Description

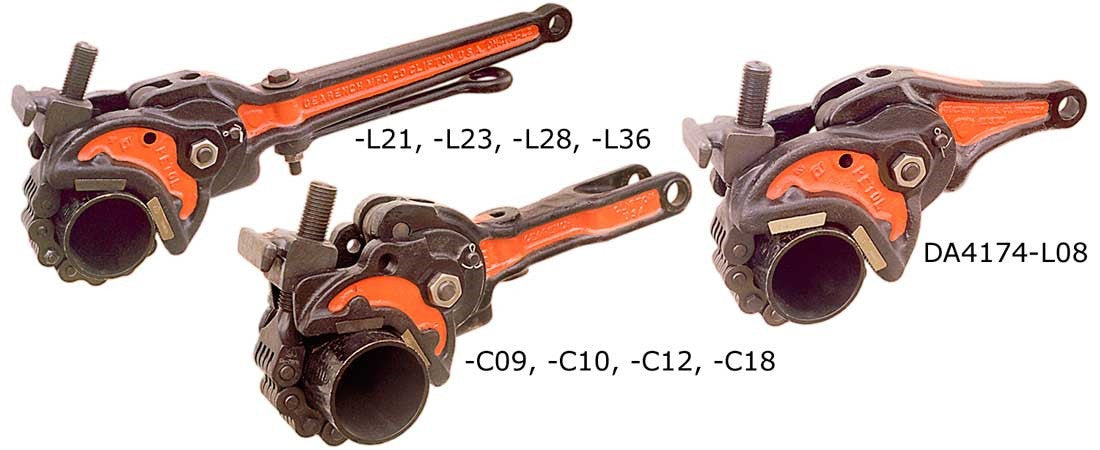

Petol drill pipe tongs are designed for making up and breaking out drill pipe, casing, and pneumatic drills on light rigs. These tongs are furnished as original equipment by rig manufacturers because of their ease in handling, quick application, and ability to withstand rugged use.
| Petol Drill Pipe Tongs | |||||
|---|---|---|---|---|---|
| CATALOGUE NO. | O.D.* | GRIPPING WIDTH | HANDLE LENGTH** | WEIGHT*** | |
| DA1344 | 1" - 6" | 4" | 8" | 12 lbs. | |
| DA2344-C12 | 2-1/8" - 5" | 4.44" | 12" | 27 lbs. | |
| DA2344-L21 | 2-1/8" - 5" | 4.44" | 21" | 31 lbs. | |
| DA4174-L08 | 3" - 8-1/4" | 5.00" | 8" | 40 lbs. | |
| DA4174-C12 | 3" - 8-1/4" | 5.00" | 12" | 43 lbs. | |
| DA4174-L21 | 3" - 8-1/4" | 5.00" | 21" | 45 lbs. | |
| DA6184-C10 | 4-1/4" - 10-3/4" | 4.88" | 10" | 49 lbs. | |
| DA6184-L36 | 4-1/4" - 10-3/4" | 4.88" | 36" | 74 lbs. | |
| DA8184-C09 | 4" - 14" | 7.25" | 9" | 91 lbs. | |
| DA8184-C18 | 4" - 14" | 7.25" | 18" | 120 lbs. | |
| DA8184-L23 | 4" - 14" | 7.25" | 23" | 114 lbs. | |
| DA8184-L28 | 4" - 14" | 7.25" | 28" | 122 lbs. | |
| DA8184-L36 | 4" - 14" | 7.25" | 36" | 129 lbs. | |
Note: Chain assemblies are ordered separately.
