USA made rig wrenches and drill pipe break out wrenches. Scintex is the Australian supplier for Gearench manufactured Petol wrenches and tools.

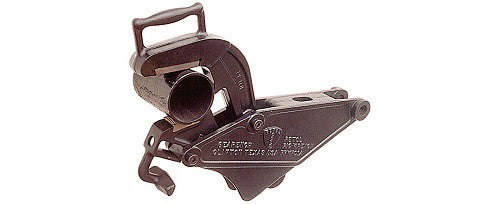

Petol Rig Wrench
The Petol rig wrench provides a faster and safer method of making up or breaking out drill pipe on water well and blast hole drilling rigs. The wrench is self-adjusting and has perfect ratcheting action. Specially designed hand grips enable the operator to apply and remove the wrench with ease. The added expense of hook jaw and insert breakage is greatly reduced through the Petol Rig Wrench's non-jamming feature and rugged design. Because Petol Inserts are seated in dovetail slots, they will not shear from the wrench during use.
| CATALOGUE NO. | O.D.* | GRIPPING WIDTH | TORQUE ARM LENGTH | WEIGHT | MAXIMUM WORKING LOAD |
|---|---|---|---|---|---|
| PRWA01 | 3-1/2" - 5" | 2.25" | approx. 18"** | 53 lbs. | 16,000 ft.-lbs. |
| PRWA01-D | 3-1/2" - 5" | 2.25" | approx. 22"*** | 53 lbs. | 16,000 ft.-lbs. |
*Use T-7 Inserts for 3-1/2" O.D. only.
**Torque arm length will vary from 17.38" to 19.38" depending on O.D. being worked.
***Torque arm length will vary from 21.25" to 22.63" depending on O.D. being worked.
