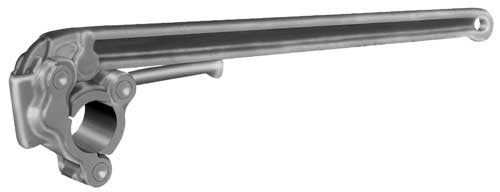

Petol Surgrip Friction Tongs

Contact us for Price & Availability

Description

Petol surgrip friction tongs are designed to makeup and breakout pump sections without marring the pump barrel or rod surfaces. Features of the Surgrip friction tong are its high quality steel construction, and the ability to ratchet after being applied to the pump, preventing frequent wrench adjustments and removal. Three precision machined jaws provide friction gripping around the complete circumference of the pump. Every piece of the tong is heat-treated to assure years of dependable service.

PETOL Surgrip Friction Tongs
CATALOGUE NO. O.D. GRIPPING WIDTH WEIGHT MAXIMUM WORKING LOAD
ZT1:0.625 0.625" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.688 0.688" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.750 0.750" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.812 0.812" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.875 0.875" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.938 0.938" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:0.969 0.969" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.000 1.000" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.031 1.031" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.062 1.062" 2.25"" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.125 1.125" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.125H 1.250" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.138 1.138" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.144 1.144" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.188 1.188" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT1:1.250 1.250" 2.25" 6-1/2 lbs. 500 ft-lbs.
ZT2:1.312 1.312" 2.50" 10-1/2 lbs. 1200 ft-lbs.
>ZT2:1.375 1.375" 2.50" 10-1/2 lbs. 1200 ft-lbs.
>ZT2:1.438 1.438" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.500 1.500" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.625 1.625" 2.50" 10-1/2 lbs. 1200 ft-lbs.
>ZT2:1.688 1.688" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT2:1.750 1.750" 2.50" 10-1/2 lbs. 1200 ft-lbs.
ZT3:1.625 1.625" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.750 1.750" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.812 1.812" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.875 1.875" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.938 1.938" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:1.960 1.960" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.000 2.000" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.062 2.062" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.125 2.125" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.188 2.188" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.228 2.228" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.250 2.250" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.302 2.302" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.312 2.312" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.340 2.340" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT3:2.375 2.375" 2.50" 11-1/2 lbs. 2300 ft-lbs.
ZT4:2.375 2.375" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.500 2.500" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.562 2.562" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.625 2.625" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.688 2.688" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.750 2.750" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.812 2.812" 3.00" 20 lbs. 3000 ft-lbs.
ZT4:2.875 2.875" 3.00" 20 lbs. 3000 ft-lbs.
ZT5:3.000 3.000" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.062 3.062" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.125 3.125" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.200 3.200" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.250 3.250" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.375 3.375" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.500 3.500" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.625 3.625" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.688 3.688" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.750 3.750" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:3.875 3.875" 3.50" 45 lbs. 4500 ft-lbs.
ZT5:4.000* 4.000" 3.50" 45 lbs. 4500 ft-lbs.
