Petol Vise Tongs

$0.00
(inc GST)
SKU petol-visetongs

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.

Description

Petol Vice Tongs are designed to operate best when large makeup torques are required and when heavy loads are needed to breakout tool joints, drill collars, reamers, and similar heavy jobs. A hydraulic cylinder can be attached to the end of the tong handle.

Petol Vice Tongs have the unique feature of being easily adjusted to various pipe sizes by simply sliding the heat-treated Petol Special Chain through the jaw of the tong and engaging the locking cam lever. Regardless of the load on the handle, these tongs will not jam.

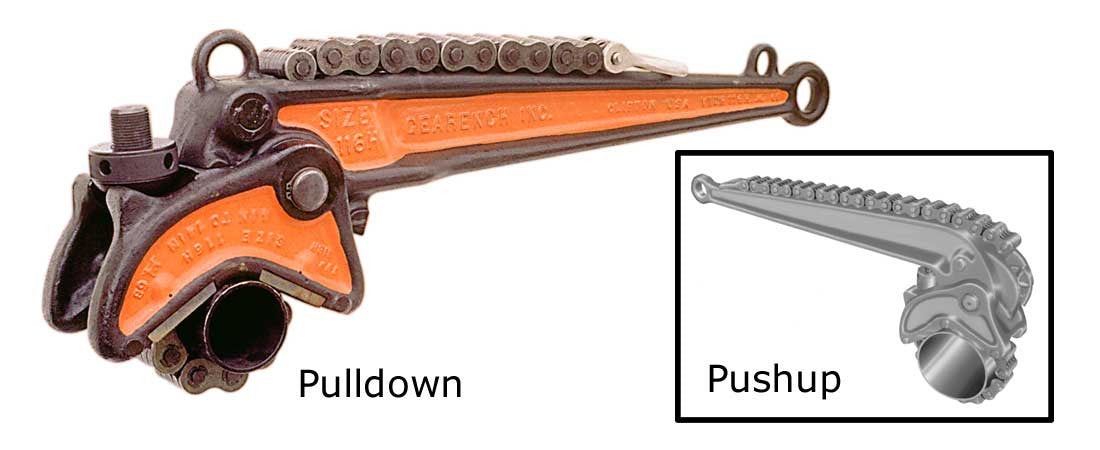

Petol vice tongs have minimum crushing effect, and great strength for their weight. Made of high-quality steel, these tongs are equipped with replaceable high-speed steel Petol Diamond Point Inserts, which minimize marring of pipe surfaces. Petol vice tongs come in both pushup and pulldown designs.

Petol Visetongs
CATALOGUE NO. O.D.* GRIPPING WIDTH HANDLE LENGTH** WEIGHT*** MAXIMUM WORKING LOAD
PULLDOWN VISETONGS
VTDA115H 2" - 8" 5.25" 24" 79 lbs. 14,000 ft.-lbs.
VTDA116H 4" - 14" 7.25" 36" 176 lbs. 50,000 ft.-lbs.
VTDA118 4" - 24" 9.00" 46" 317 lbs. 90,000 ft.-lbs.
VTDA120 6" - 24" 12.63" 36" 575 lbs. 235,000 ft.-lbs.
PUSHUP VISETONGS
VTUA118 4" - 24" 9.00" 54" 328 lbs. 75,000 ft.-lbs.
VTUA118-L36 4" - 24" 9.00" 36" 294 lbs. 72,000 ft.-lbs.
VTUA120 6" - 24" 12.63" 42" 559 lbs. 182,500 ft.-lbs.

Note: Chain assemblies are to be ordered separately.
