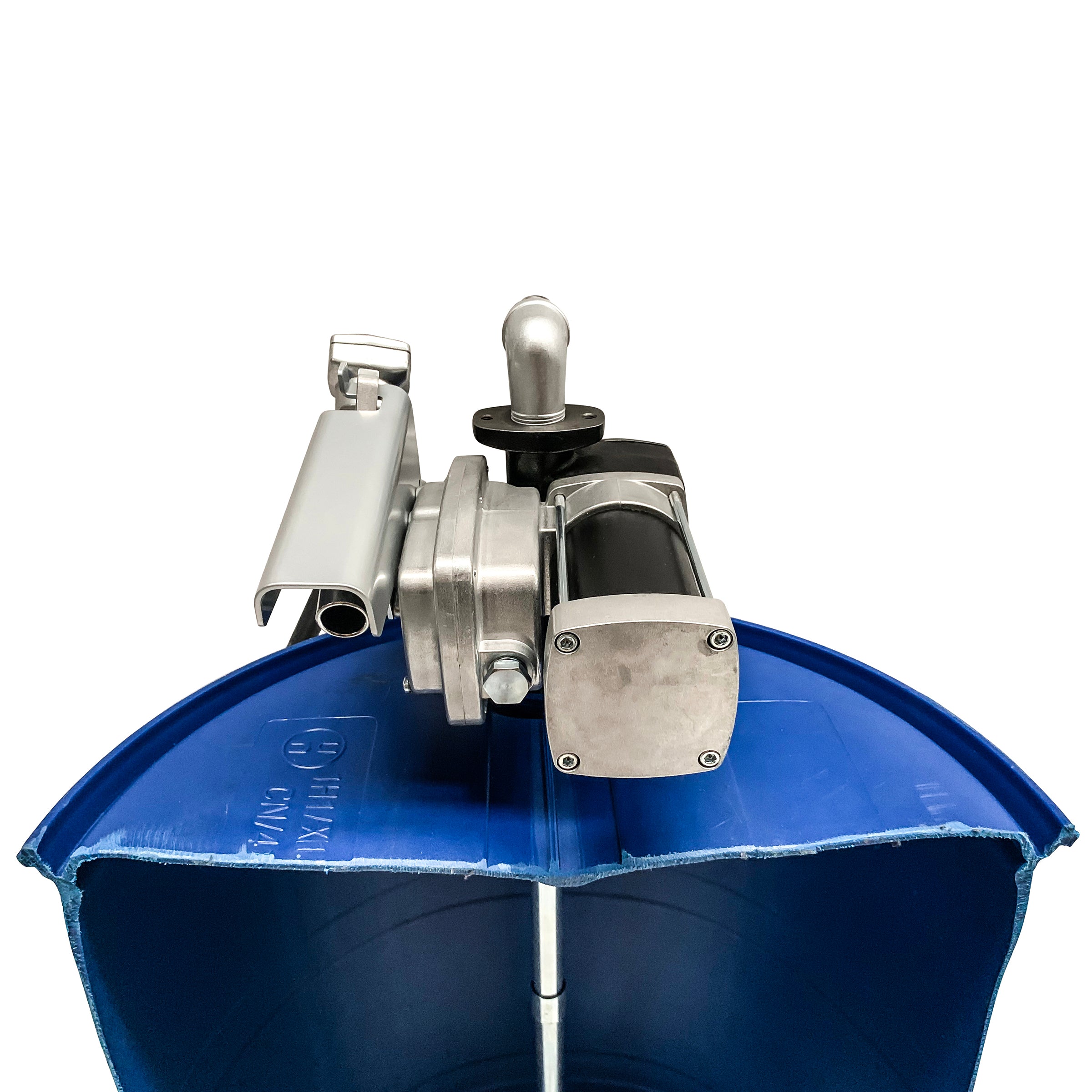

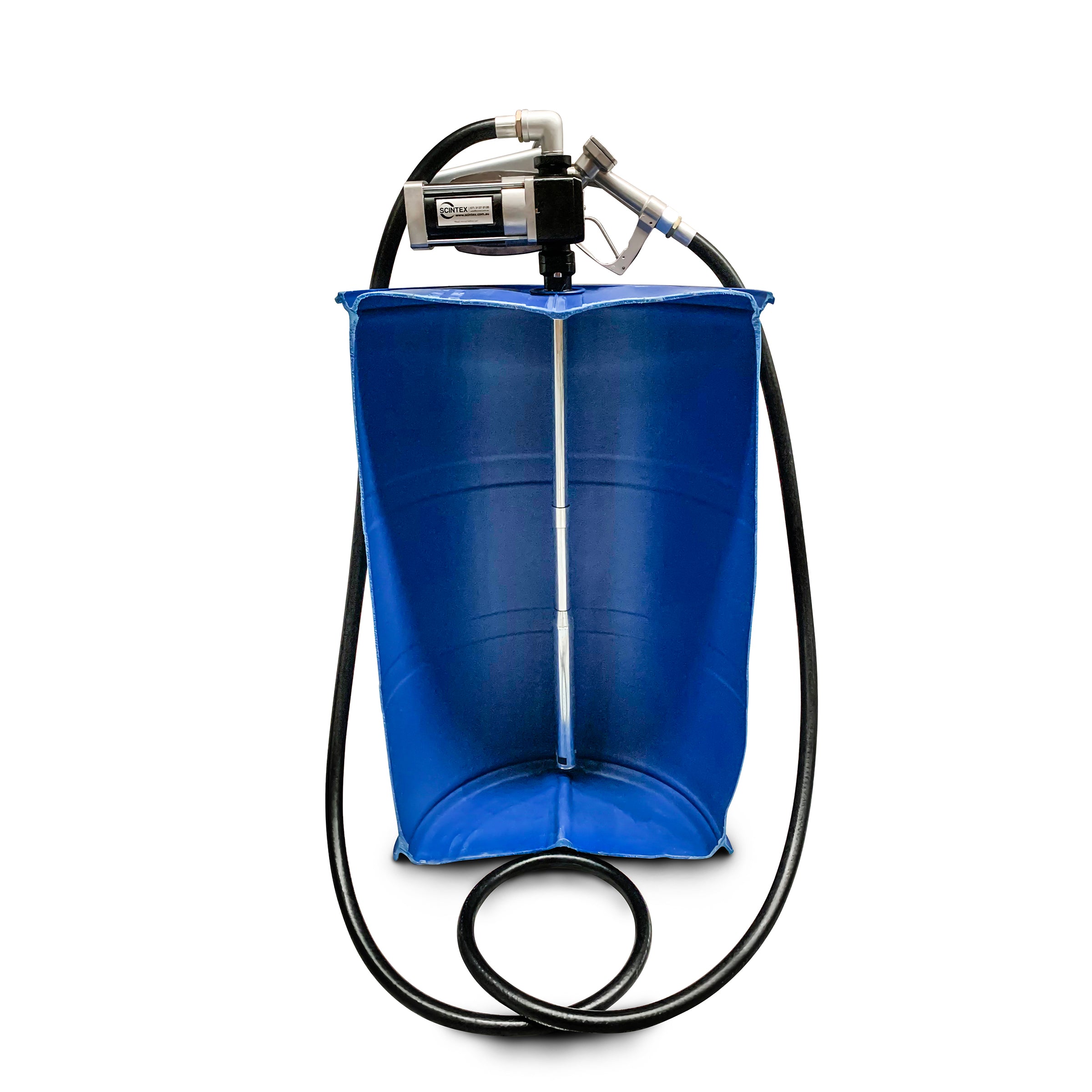

12V and 24V pumps designed for use with petrol, gasoline, kerosene, diesel and some other fuels and solvents. Ideal for installation on top of 44 gallon style drums. Perfect for refueling tractors, trucks, boats, heavy machinery. The kit includes a 4m discharge hose, suction lance, drum adaptors fittings and a nozzle.

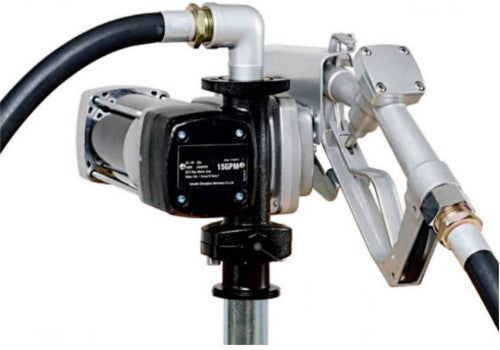

12V and 24V Petrol Diesel Pump, 57LPM or 75LPM
These pumps feature a heavy duty cast iron pump chamber making them extremely robust and safe for use with fluids such as petrol. The pump itself is a rotary vane style making it ideal for lifting fuel from drums. These units are available with pump rates of 57 or 75 L/min making them fast and efficient.
Scintex pumps are extremely high quality and designed for the harsh Australian environment. Don't accept cheap imitations, ensure you're buying a quality unit which won't let you down. These pumps are designed, manufactured and assembled under a strict quality control system complying with the ISO 9001:2008 quality standard. Each pump must achieve 100% in our quality test including dimension checks, chemical, metallurgical, mechanical, physical, and endurance. Following this system ensures our customers receive high quality products that won't let them down.
This kit is very simple to use and install and will make refueling a pleasure. The pump assembly integrates a handy holder for the nozzle when not in use. Removing the nozzle from the holder activates the pump switch meaning fuel is ready to flow as soon as the trigger is pulled.
Compatible Fluids to Pump and Transfer
Ideal for use with;
Note: These pumps are not certified for use with aviation fuels despite the materials being compatible.
These pumps are built with Buna N (nitrile) internal seals which are chemically compatible with Methanol. These seals are not compatible with Ethanol and we have an equivalent pump built with Viton internal seals if you need to pump Alcohol blended fuels.
Popular uses for these pump kits include;
Pump Kit Features:
Refueling farm machinery
Boating and marine applications
Mine vehicle refueling
Small engine refueling such as go karts and mowers
Installation on mobile refueling vehicles
By-pass valve is integrated into the pump body
Includes built in suction strainer
Lockable nozzle holder
Thermal overload protection
CSA certified for use with common fuels
12 month warranty
||12V or 24V
||180w (57LPM model) or 220w (75LPM model)
|Inlet / Outlet
||57L/min or 75L/min
||3/4" (57LPM model) or 1" (75LPM model)
|Discharge hose length
Hazardous Class - Class 1
Area Classification - Division 1
Gas Group - Group D
Temperature Class - T4
Manual Nozzle (option for auto nozzle upgrade)
2" BSP drum adaptor
