Air Diaphragm Pump - Aluminium
Description
This Aluminium Body Diaphragm Pump has nitrile rubber diaphragms and seals, which allows it to be used with a range of fluids. It is reliable and simple to use and is great for transferring motor oil, vegetable oils and diesel which makes it ideal for mechanical and farming operations.

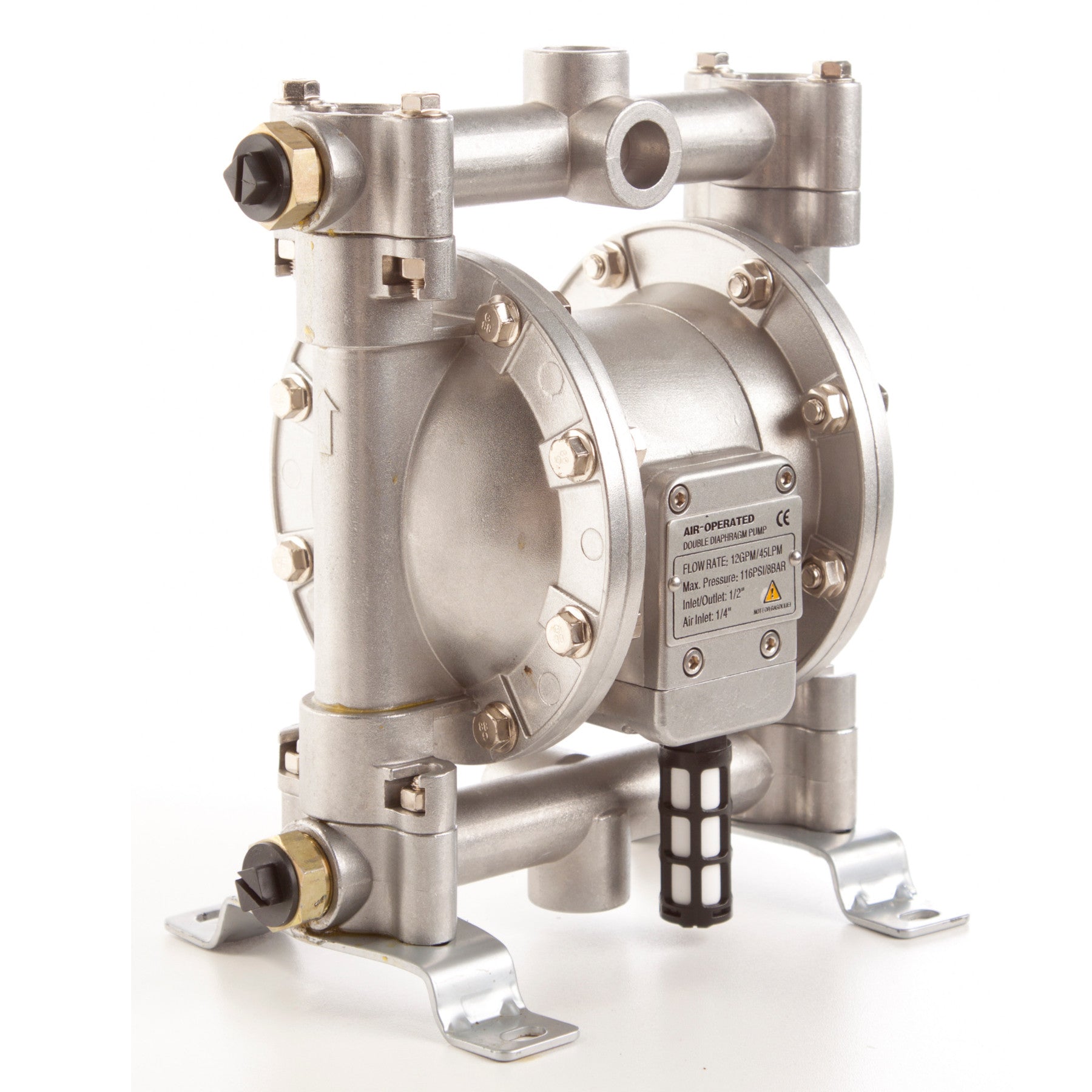

Air Driven Diaphragm Pump with Aluminium Body
Diaphragm pumps are ideal for use with a range of fluids. Their simple operation and design makes them very reliable and easy to maintain. Attach a compressed air line and regulate your supply pressure to adjust your flow rate. Never worry about dead heading the pump as there's no electric motor to burn out.
The pump body is made from Aluminium with Nitrile rubber diaphragms and seals. These materials are compatible with a range of liquids including diesel. Great for transferring oils such as vegetable oils, motor oils and hydraulic oils. Note: Always check the compatibility of the pump seals and diaphragms with the pumping solution before operating the pump.
Note, whilst this pump is chemically compatible with petrol, it is not certified for use with petrol and therefore we can not recommend if for this use.
Pump Features:- 45LPM, 60LPM, 90LPM, 240LPM, 400LPM pump sizes available
- Common air supply connection type
- 1:1 Pressure Ratio
- High suction lift capabilities
- Self priming
- Includes grounding capability to eliminate static discharge
- Durable Aluminium pump body
- Externally serviceable air distribution system
- Bolted construction ensures simple maintenance
| Specifications | SDPA45LPM | SDPA60LPM | SDPA90LPM |
|---|---|---|---|
| Flow Rate | 45LPM | 60LPM | 90LPM |
| Inlet / Outlet | 1/2" BSP | 3/4" BSP | 1" BSP |
| Air Inlet | 1/4" | 1/4" | 1/4" |
| Max. Air Inlet Pressure | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR |
| Max. Outlet Pressure | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR |
| Pressure Ratio | 1:1 | 1:1 | 1:1 |
| Max. Fluid Pressure | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR |
| Max. Discharge Head | ~69 m | ~69 m | ~69 m |
| Max. Suction Lift | 5 m | 5 m | 5 m |
| Max. Fluid Temperature | 60°C | 60°C | 60°C |
| Max. Solid Diameter | 3mm | 3mm | 3mm |
| Weight | 7kg | 7kg | 12kg |
| Materials |
Pump Body - Aluminium Diaphragms - Nitrile rubber (Buna N) Balls - PTFE Seat - CPP |
Pump Body - Aluminium Diaphragms - Nitrile rubber (Buna N) Balls - PTFE Seat - CPP |
Pump Body - Aluminium Diaphragms - Nitrile rubber (Buna N) Balls - PTFE Seat - CPP |
| Compatible Fluids | Diesel, Oils, Water | Diesel, Oils, Water | Diesel, Oils, Water |
| Warranty | 12 Months | 12 Months | 12 Months |

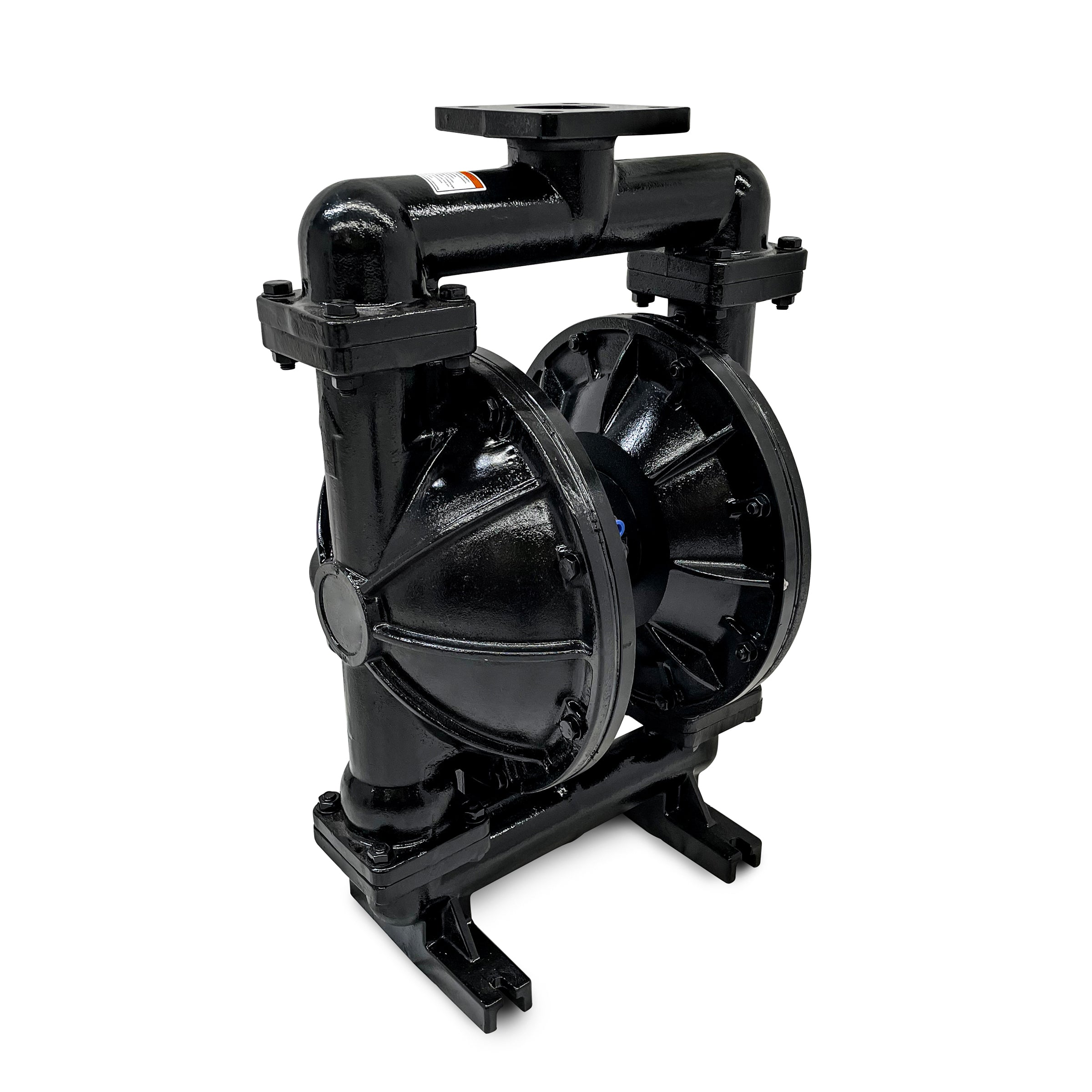

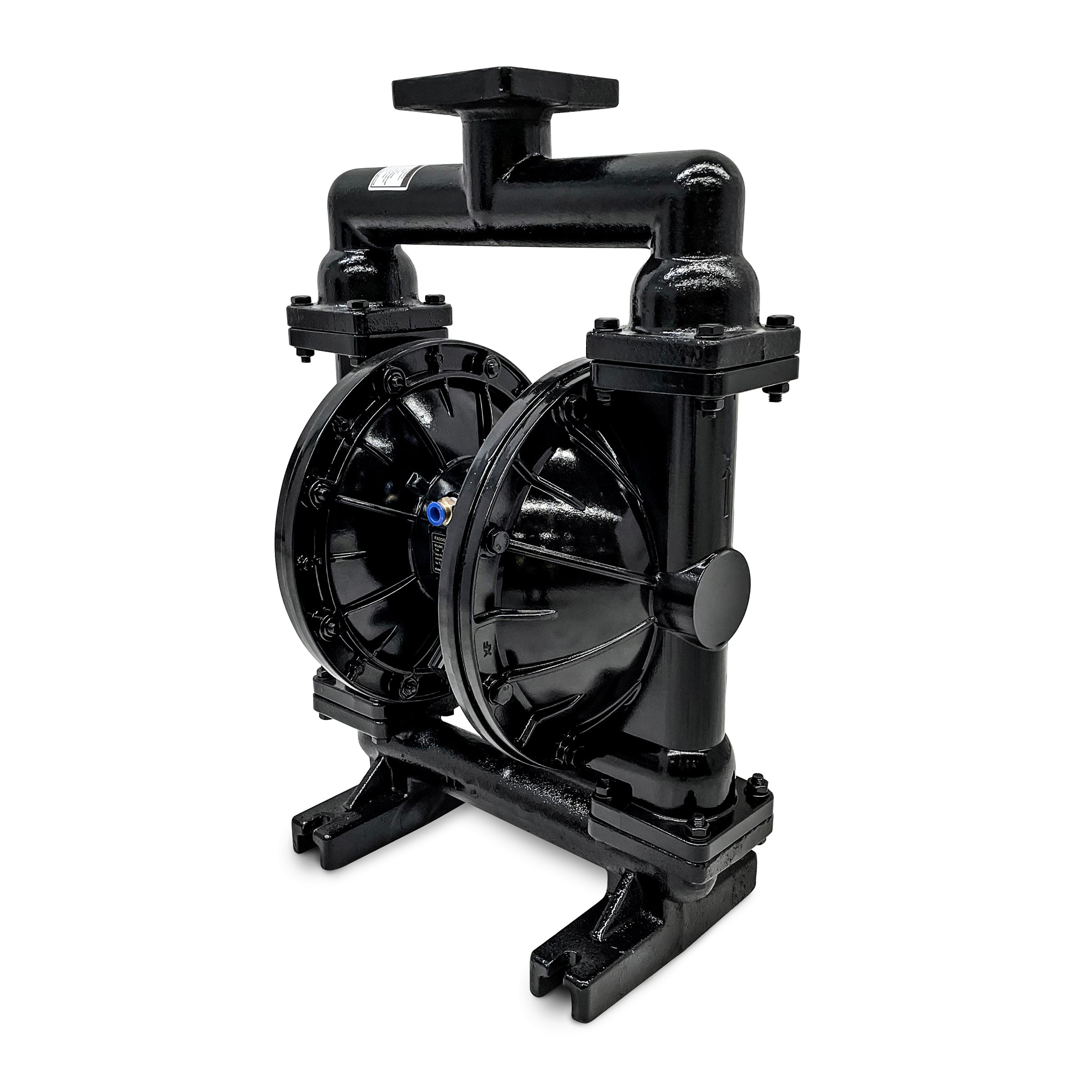

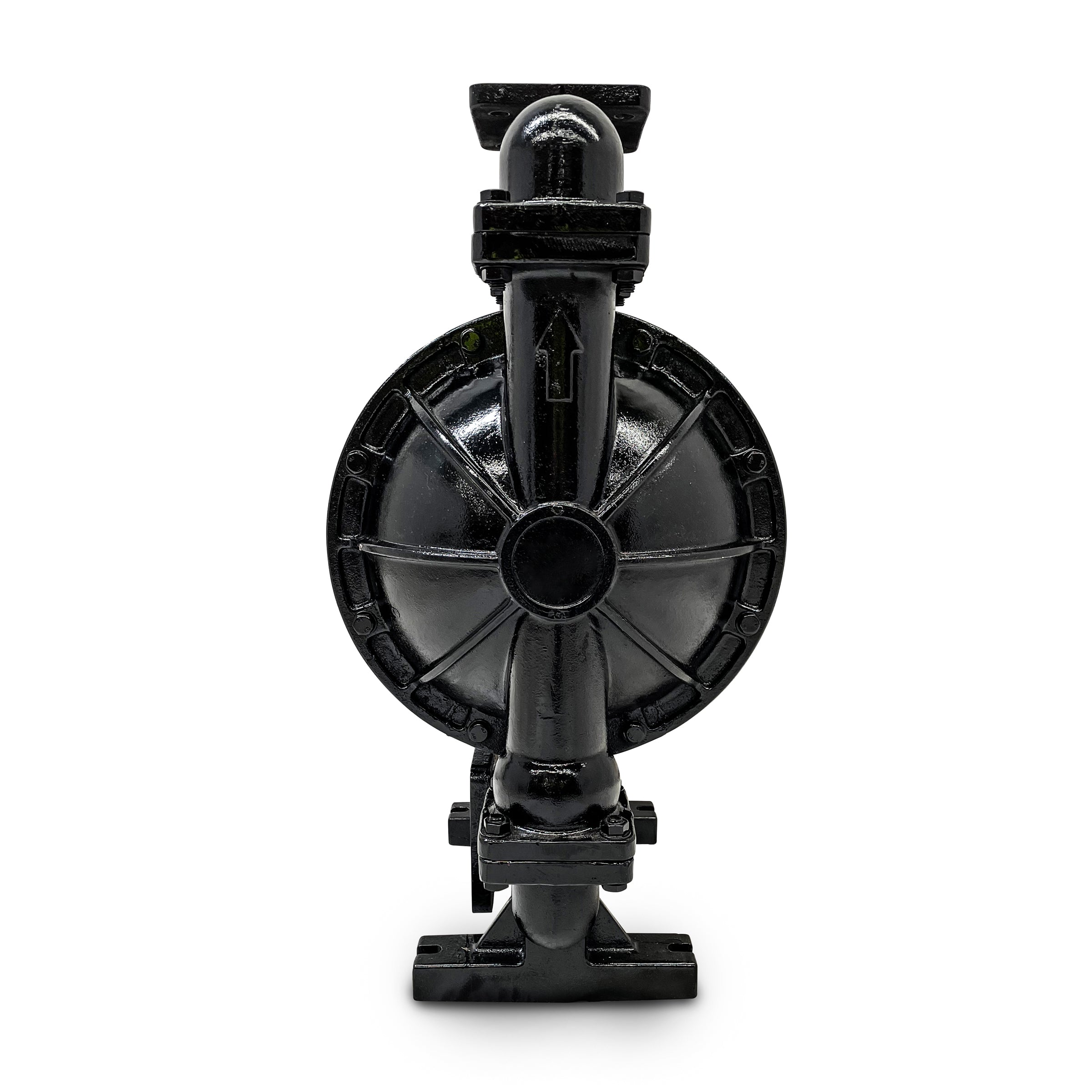

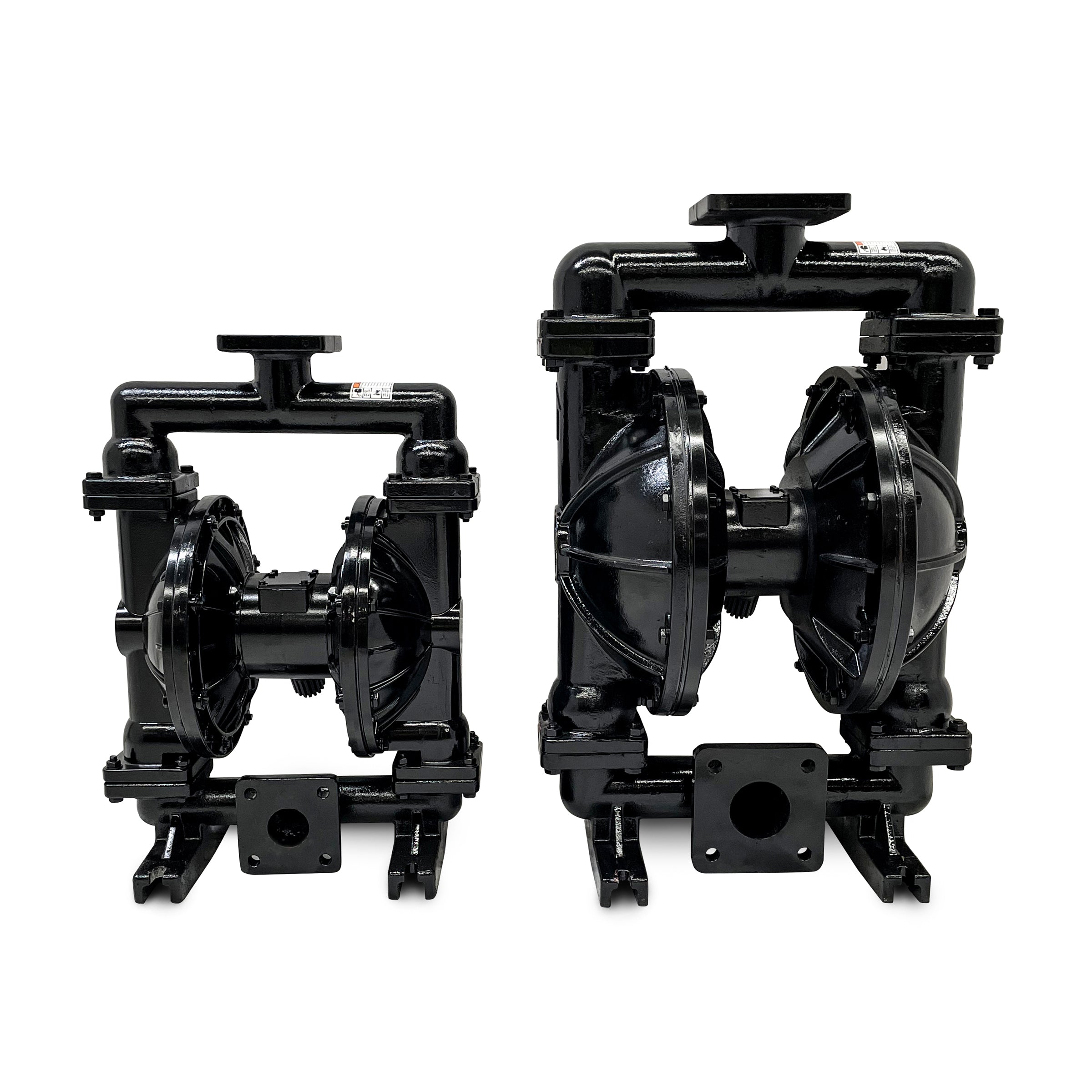

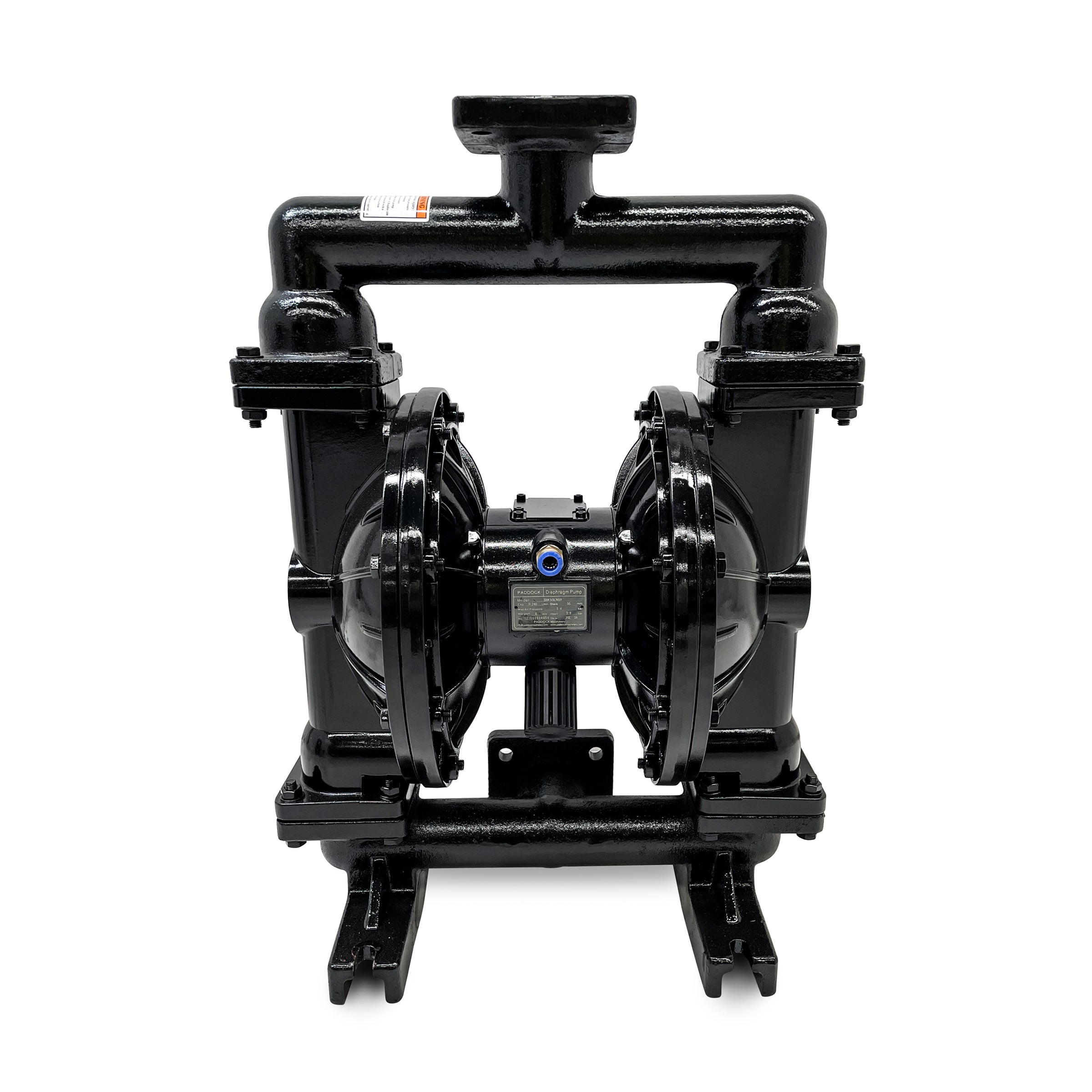

| Specifications | SBK50LNBR | SBK80LNBR |
|---|---|---|
| Flow Rate | 240 LPM | 400 LPM |
| Inlet / Outlet |
2" Flange |
3" Flange |
| Air Inlet | 1/4" | 1/4" |
| Max. Air Inlet Pressure | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR |
| Max. Air Consumption | 900 L/min | 1500 L/min |
| Max. Outlet Pressure | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR |
| Pressure Ratio | 1:1 | 1:1 |
| Max. Fluid Pressure | 100 PSI / 6.9 BAR | 100 PSI / 6.9 BAR |
| Max. Discharge Head | ~69 m | ~69 m |
| Max. Suction Lift | 5 m | 5 m |
| Max. Fluid Temperature | 60°C | 60°C |
| Max. Solid Diameter | 8mm | 10mm |
| Materials |
Pump Body - Aluminium Diaphragms - Nitrile rubber (Buna N)
|
Pump Body - Aluminium Diaphragms - Nitrile rubber (Buna N) |
| Compatible Fluids | Diesel, Oils, Water | Diesel, Oils, Water |
| Warranty | 12 Months | 12 Months |
Which air compressor to use: Scintex has had customers use these pumps on a variety of air compressors, from small 12V compressors, 240 volt compressors from Supercheap Auto to large industrial compressors. See the following table and charts for an indication of the flow rates to be expected. Always run with an inline pressure regulator so you can control the air pressure and flow to the pump. The pump uses the standard 1/4" air supply connection used on most air tools.
Air Consumption Data
Optional Extras: Scintex can also supply a service kit for this pump. It includes a set of nitrile diaphragms plus an assortment of other common wear parts.
