Description
The Portable Livestock Scale is a heavy-duty digital weighing system designed for horses, cattle, sheep, goats, pigs and other animals weighing up to 1,000kg. The large checker plate platform features integrated ramped ends for easier animal access, while the adjustable hold function helps provide stable readings when animals move during weighing.
Supplied as a complete kit with the weighing platform, stainless steel digital display, rechargeable battery, 240V power supply, leads and protective carry case, this scale is ideal for farms, acreages, veterinary clinics, equine facilities and livestock management.
Portable 1,000kg Livestock & Veterinary Scale
- 1,000kg maximum weighing capacity
- ±0.5kg accuracy
- Suitable for horses, sheep, goats, pigs and other animals
- Hold function helps stabilise readings from moving animals
- Large heavy-duty checker plate steel platform
- Integrated ramped ends for easier loading and unloading
- Rechargeable internal battery for portable operation
- Can also operate continuously from 240V power
- IP65 rated weighing system
- Adjustable feet for levelling and stability
- kg or lb weighing modes
- Calibration, repairs and spare parts support available from Scintex
Designed for Weighing Animals
Weighing livestock presents a particular challenge because animals rarely remain completely still. This scale incorporates an adjustable hold function to assist in obtaining a stable weight reading while the animal is moving on the platform.
With a maximum capacity of 1,000kg, the scale is suitable for weighing large animals such as horses while its ±0.5kg accuracy also provides useful readings for smaller livestock and animals.
Typical Applications
- Horse and equine weighing
- Sheep and goat weighing
- Pig weighing
- Livestock management
- Veterinary clinics
- Animal health monitoring
- Farms and acreages
- Breeding and feeding programs

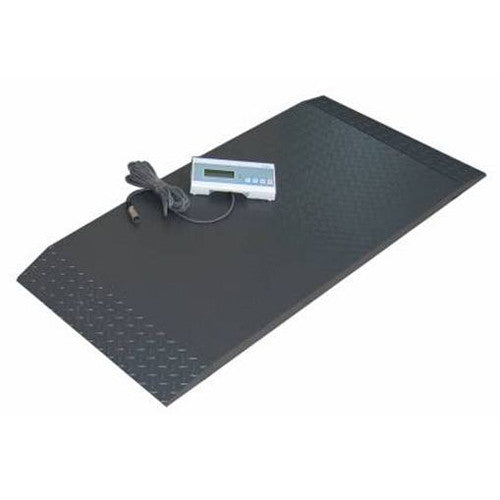

Heavy-Duty Steel Weighing Platform
The weighing platform is manufactured from heavy-duty steel with a checker plate surface to provide additional grip underfoot.
Both ends of the platform are tapered to form integrated ramps, helping animals step onto and off the scale without negotiating a sharp platform edge.
Four adjustable feet allow the platform to be levelled and stabilised on a suitable surface for accurate weighing.
Portable Digital Display
The scale is supplied with a stainless steel digital display connected to the weighing platform by 2.5m leads. The large 31mm display provides clear weight readings and incorporates adjustable brightness for varying operating conditions.
Useful weighing functions include:
- Adjustable hold function
- Automatic zero
- Tare function
- Adjustable display brightness
- kg and lb measurement modes
Rechargeable Battery or 240V Operation
The digital indicator incorporates an internal 6V rechargeable battery, allowing the scale to be used in yards, sheds and other locations where mains power may not be readily available.
A 240V charger and power supply is included. The display can also be operated continuously from the supplied 240V power source when mains electricity is available.
Complete Livestock Scale Kit
The scale is supplied with the components required for normal operation and storage.
- Heavy-duty weighing platform
- Stainless steel digital display
- Internal rechargeable 6V battery
- 240V charger and power supply
- 2.5m connection leads
- 4 adjustable levelling feet
- Hard protective carry case for the display
The hard carry case provides protected storage for the indicator and makes it easy to remove the display from the weighing area for transport, storage or charging.
Livestock Scale Specifications
| Specification | Value |
|---|---|
| Maximum Weight Capacity | 1,000kg |
| Accuracy | ±0.5kg |
| Measurement Units | kg or lb |
| Platform Dimensions | 762mm x 1,497mm |
| Platform Construction | Heavy-duty powder-coated steel with checker plate surface |
| Display Construction | Stainless steel |
| Lead Length | 2.5m |
| IP Rating | IP65 |
| Power | 240V power supply or internal 6V rechargeable battery |
| Display Digit Height | 31mm |
| Functions | Hold, Auto Zero, Tare and Adjustable Brightness |
| Levelling | 4 adjustable feet |
| Warranty | 12 Months |
Calibration, Repairs & Spare Parts
Scintex stocks a range of replacement parts for these livestock scales and can provide ongoing technical support, servicing and repairs.
Scintex can also perform scale calibration and repair services to help maintain the weighing system over its operating life.
Setup & Weighing Notes
- Position the scale on a firm and stable surface before use.
- Use the adjustable feet to level and stabilise the platform.
- Ensure the animal is fully positioned on the platform before recording its weight.
- Use the hold function where animal movement makes the displayed weight difficult to read.
- Keep the platform clean and free from excessive mud or debris that could affect safe footing or weighing performance.
