Constructed with uncompromising quality, Paddock's motorised power barrow is the envy of all competitors. With a variety of functional accessories on offer these powered mini dumpers have endless uses and applications. This motorised mini dumper was designed to exceed the best on the market.
Paddock machinery and equipment is extremely high quality designed for the commercial and trade user. Paddock only use quality components sourced from all over the world to deliver exceptional performance and reliability for all their machines. Scintex is proud to offer the Paddock brand to Australian customers offering local support and parts for the life of the machine.
Power wheel barrows are versatile to say the least. Their small size gives them access to places other machinery and loaders won't reach. They also have a low foot print and centre of weight making them ideal for slops and steep gradients. The Paddock barrows are 4 wheel drive and with 5.5HP under the hood, they negotiate tough terrain with ease. They are small enough to fit through doorways and gates, making them ideal for use on building construction sites and for the home handy man/lady. Suitable for use on farms, concreting, bricks, general construction, mining, landscaping and almost any job where a standard wheelbarrow could be used. Capable of carrying rock, cement, dirt and fill plus much more.
Paddock barrow's are chain driven by the industrial Briggs and Stratton petrol engine. A genuine USA built Hydro-Gear transmission is use to provide stepless speed change with both forward and reverse selection. Engine RPM and Hydro-gear lever engagement give the ultimate in speed control allowing you to travel quickly when traversing vast distances or slow and controlled on steep slopes.
With advancements in technology over the past 10yrs, Briggs and Stratton continues to be a name synonymous with reliability when it comes to small displacement 4 stroke engines. With their easy recoil start, they negate the down time and reliability issues seen with electric starters and having to maintain and charge batteries. One simple pull and you're away with quiet and ultra smooth running. Large clear access to the engine makes fueling and maintaining the engine effortless and easy. The 700E SERIES™ DOV® engine delivers breakthrough performance driven by technology that makes a difference you can SEE, FEEL and HEAR. The patented Direct Overhead Valve (DOV®) engine delivers more torque, improved sound quality, and less noise and vibration than competitive engines in the same class.

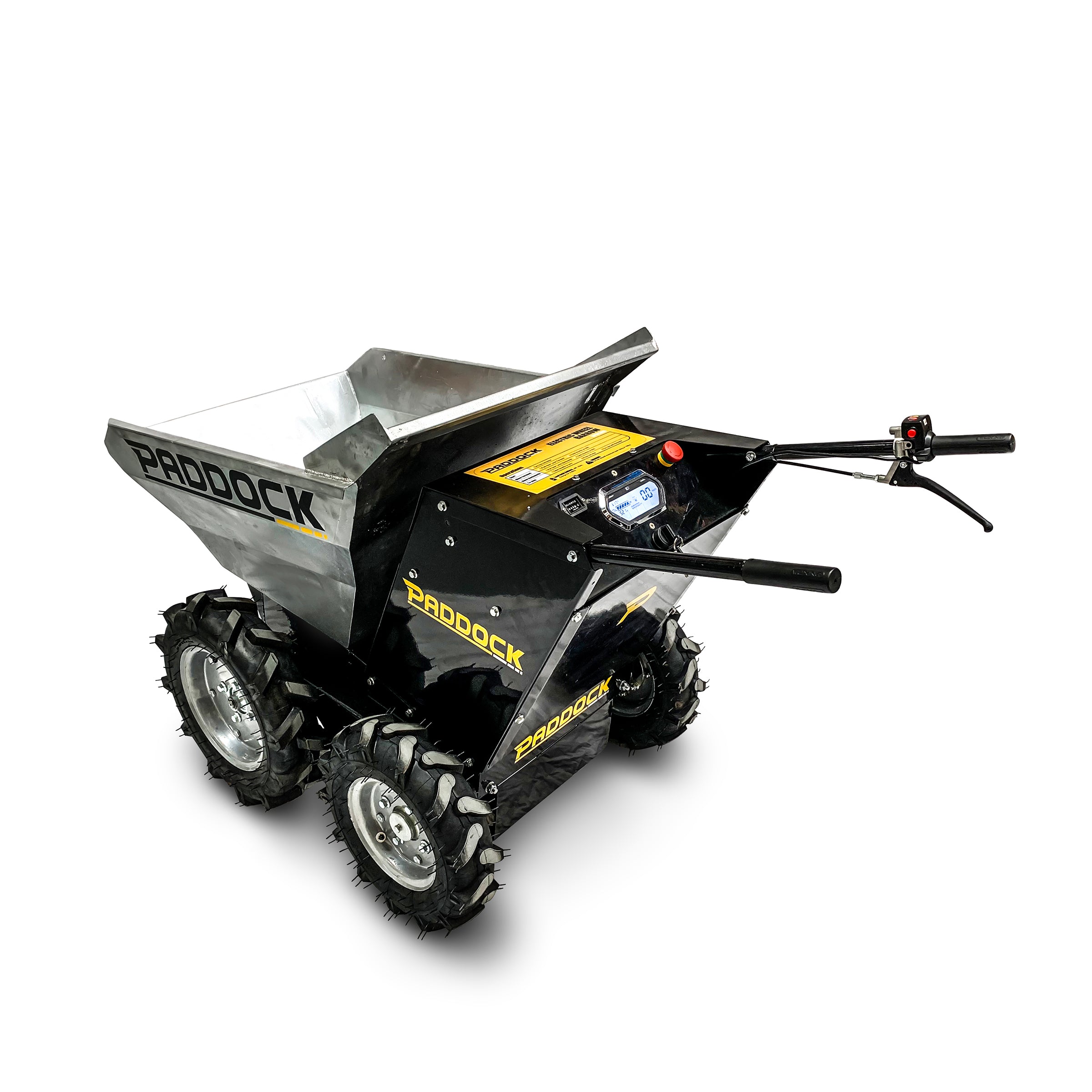

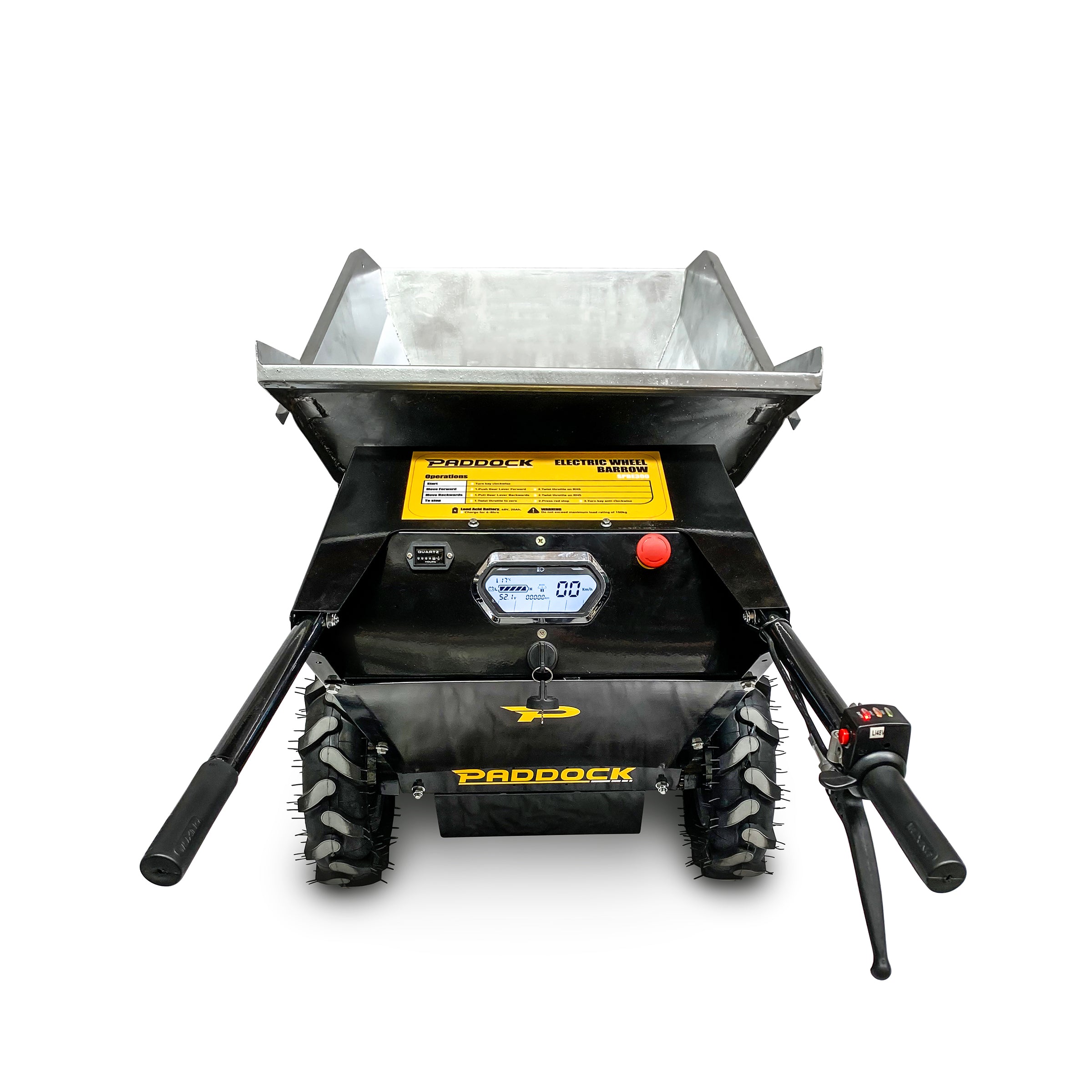

Developed by popular request for use in confined spaces or underground where combustion engine restrictions apply, the PADDOCK electric wheel barrow can now be used. With the same build quality as the original petrol engine model, this battery powered model is quiet and highly efficient and still packs a pouch with the same large 300 kg capacity. Transport a range of materials include soil, rocks, fruit and vegetables or building materials at up to 5 km per hour. Great for night time construction with low operating noise. With run times up to 8 hrs, this electric model is a viable alternative to the combustion engine model.
Every wheel barrow supplied by Scintex comes with the bucket / barrow standard. You then have several additional accessories to choose from depending on your intended use.
Flat bed option - The bucket can be easily and quickly be removed and the flat bed attached. These are great for transferring bags of feed, bails of hay, as well as steel, wood and other items.
Blade or plough - A very popular upgrade and it can simply be added to the front of the barrow without removing the bucket. It has 2 wheels to stabilise and assist movement as well as an extension handle to allow the user to vary the pitch on the blade. The angle of the blade can be adjusted from 45 degrees to the left or right. An ideal extra for leveling dirt, fill, wood chips and pebbles as well as clearing snow and footpaths.

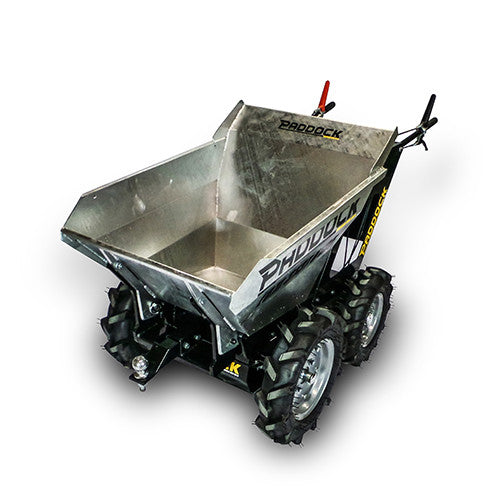

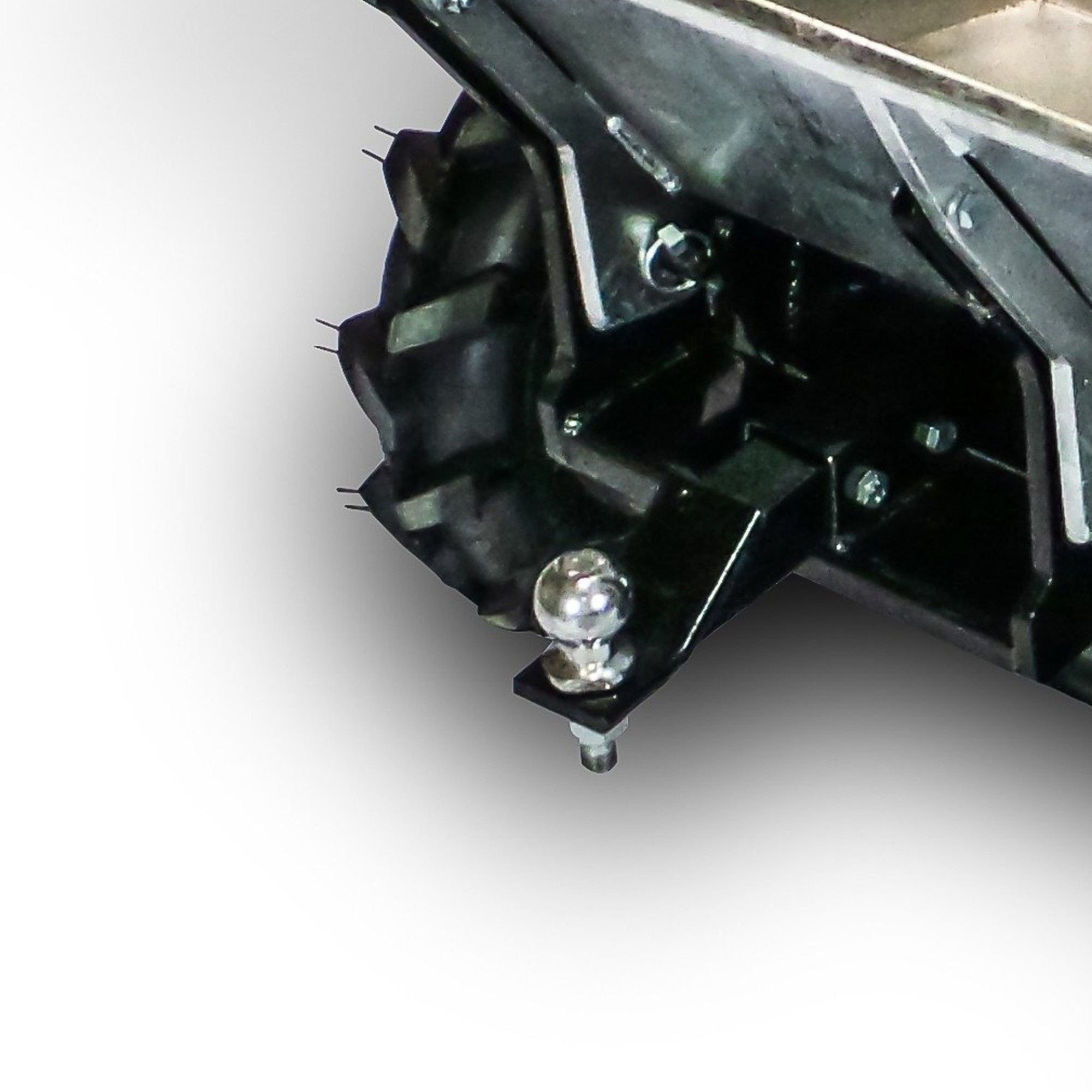

2" tow ball and hitch - can be fitted to the front allowing the barrow to push/pull and move boats, caravans, trailers and other equipment within the load capacity of the barrow.
Don't Compromise Quality
When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. Paddock only use the highest quality materials making them a machine for life. Ensure you're getting genuine branded equipment, not some Chinese copy.
|Model||Petrol Engine||Electric - Battery|
|Load rating||300 kg||300 kg|
|Bucket Volume||6 cu. feet / 170 L||6 cu. feet / 170 L|
Briggs and Stratton 750 series 4 Stroke
5.5hp Petrol Engine
42V battery (20 x 4Ah lead acid)
Run time up to 8hrs
|Starter||Easy Recoil Pull Start||N/A|
|Speed||0-8 km/hr||0-5 km/hr|
|Max Climb Angle||20 degrees loaded to capacity||20 degrees loaded to capacity|
|Drive||Twin Chain Drive||Twin Chain Drive|
|Gearbox||USA built Hydro-Gear Hydro Static with forward and reverse||Forward and reverse via electric motor control|
|Motion||True all 4 wheel drive||True all 4 wheel drive|
|Tyres||Pneumatic 2 ply puncture resist||Pneumatic 2 ply puncture resist|
|Dimensions||780mm (W) x 1600mm (L) x 1000mm (H)||780mm (W) x 1600mm (L) x 1000mm (H)|
12 Months Paddock Parts Supply Warranty
12 month global Briggs and Stratton Engine Warranty
12 month global Hydro-Gear Transmission warranty
|Notes||Includes battery charger. Typical charge times are 8-10hrs.|
|Engine||Briggs and Stratton 750EX Series™ I/C® DOV®|
|Style||4 Stroke, Single Cylinder, Overhead valve, Vertical Shaft|
|Ignition||Transistorised magneto ignition|
|Fuel Consumption||1.1 L/h at 3,000 rpm|
|Fuel Tank Volume||1L|
The Paddock motorised power wheel barrow offered by Scintex is designed to have trouble free and easy maintenance. The gearbox and diffs are sealed and rarely require attention. Like any small engine the oil will require changing at predetermined intervals. Otherwise general maintenance checks and lubrication of chains and other components is required as per the table below. All maintenance points are simple to access and very limited mechanical knowledge is required to maintain this machine.
|Engine Oil||50 hrs (After 5 hrs on engine break in)|
|Gearbox||Sealed maintenance free|
|Differential||Sealed maintenance free|
|Chains||Lubricate after 10 - 15 hrs|
|Air Filter||50 - 100 hrs depending on environment|
|Tyre Pressure||30 PSI - Check before each use|
|Brake / Cables||Adjust every 50 hrs|
|Belt Tension||Check 50 hrs (replace if wear present)|
|Spark Plug||Inspect 50 hrs|
Note: The engines are stored and transported with only enough oil to keep the unit lubricated and additional oil will need to be added before started.
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of ~150kg. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading otherwise we'll need to quote on a tail lift truck for delivery.
