Puddle Sucker Pumps
SKU: SPSP0530N
FOR BULKY AND HEAVY ITEMS CONTACT US FOR A FREIGHT QUOTE.
For orders outside of Australia contact us for a freight quote.
Description

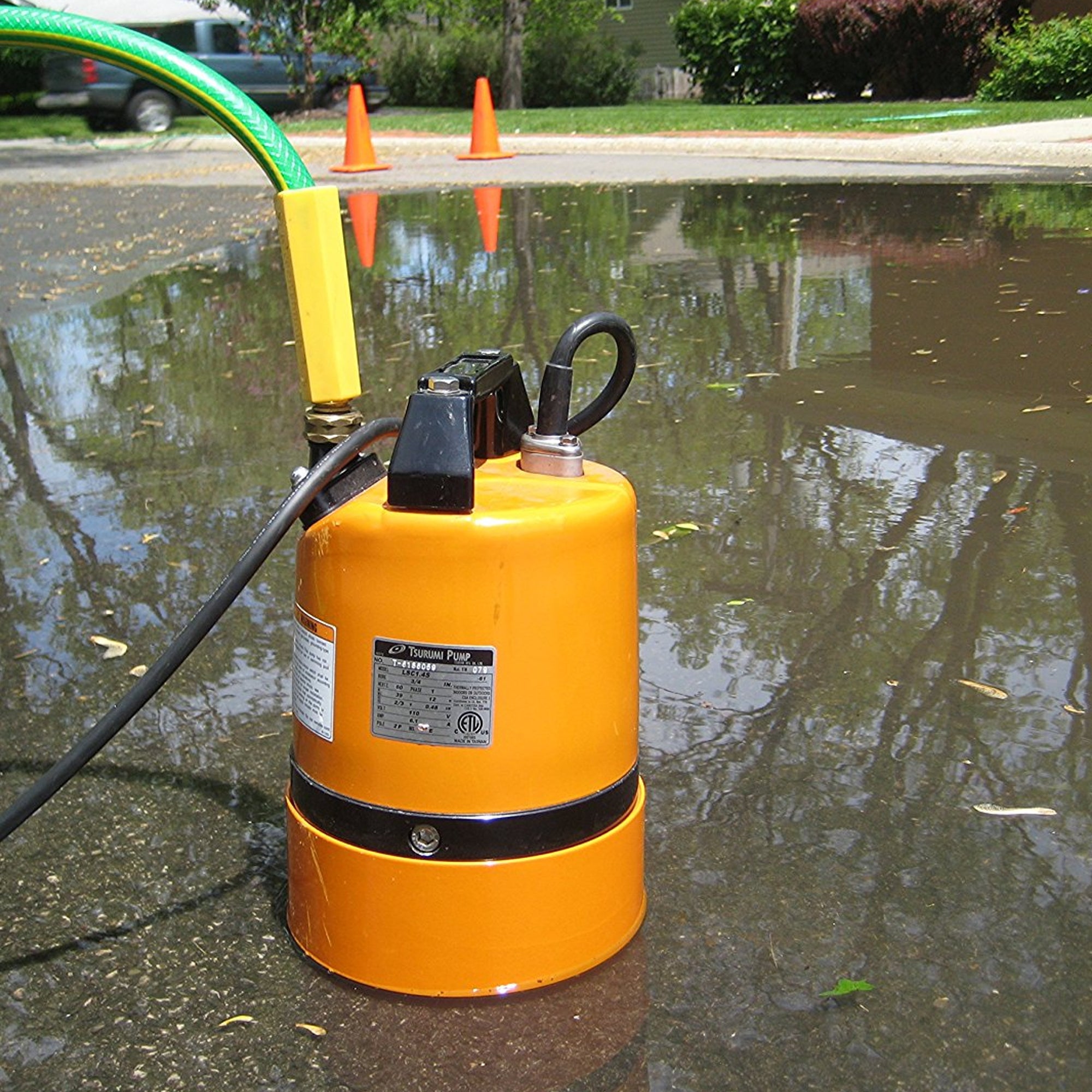

Puddle Suckers, low boys, dry bottoms, these are all industry names for submersible pumps which can pump down to extremely low water levels. These pumps will draw down to only 1mm water depth making them ideal for complete drainage of flat surfaces, basements, car parks and pits.
Single Phase Residue Dewatering Pumps
A puddle sucker pump can be used for general sump and drainage pump out but also has a added feature of being able to draw the fluid level down to extremly low levels, 1mm or less. This is ideal if you're needing to drain a pool to empty for coating repairs or a basement or carpark for painting. Ordinary submersible pumps would leave upwards of 60mm of water in the bottom which can be a considerable volume where as a puddle sucker will virtually eliminate all water.

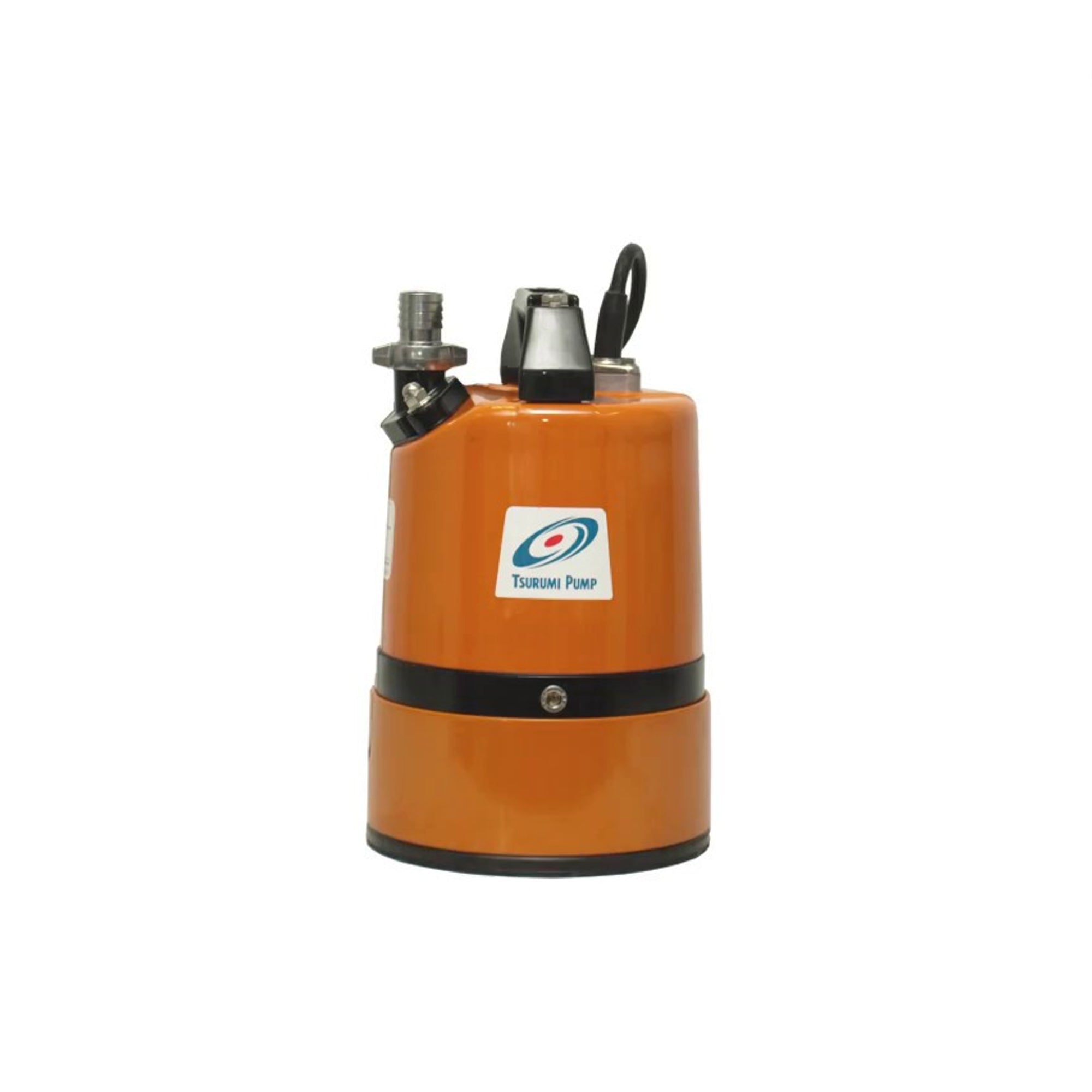

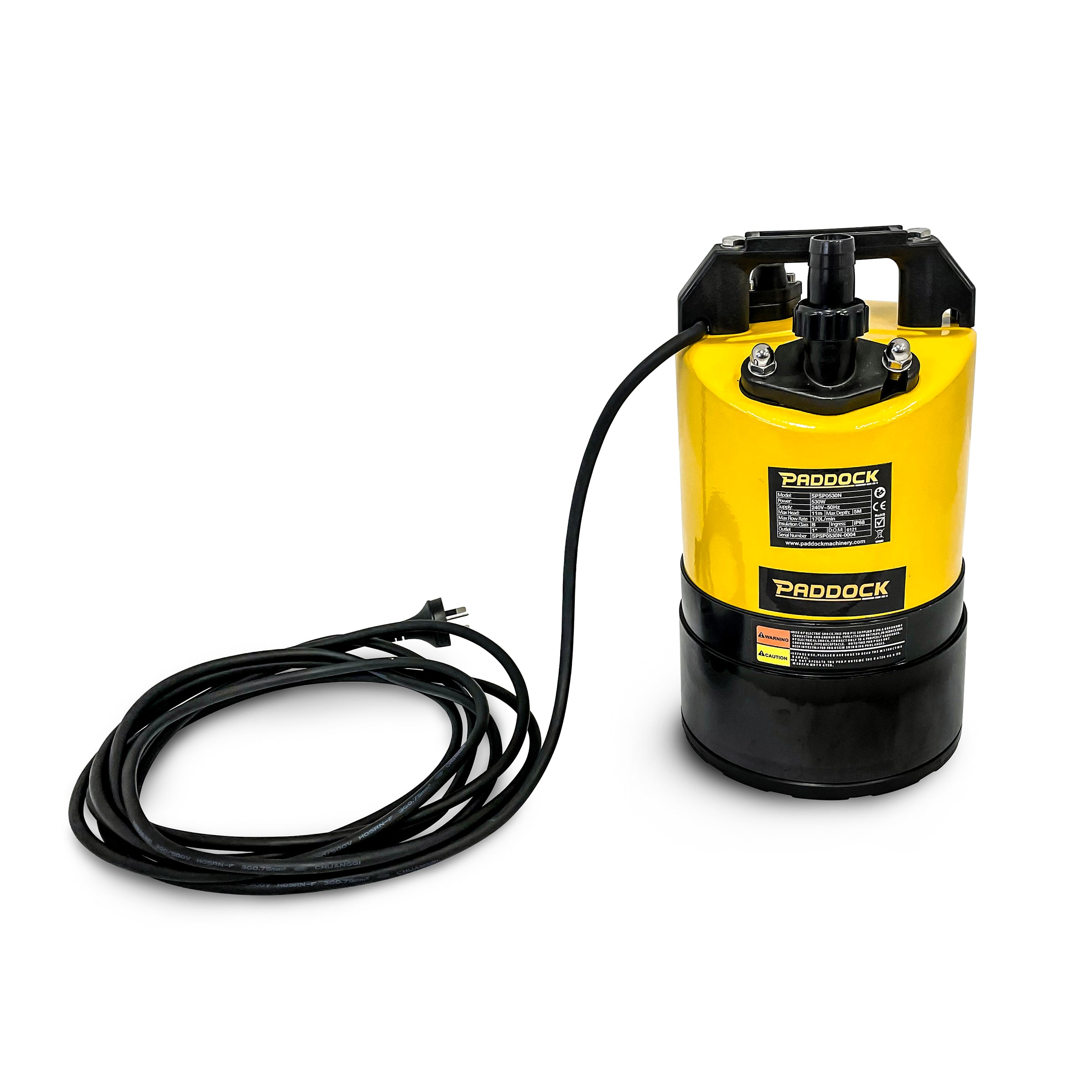

Paddock™ pumps are known for their exceptional quality and value for money without sacrificing performance. Also available are the Tsurumi puddle sucker pumps as an alternative.
These pumps are designed such that the discharged water cools the motor preventing overheating and damage at ultra-low liquid levels. They also have specially designed thermal protection which shut the pump down if it does reach a temperature that could cause damage.

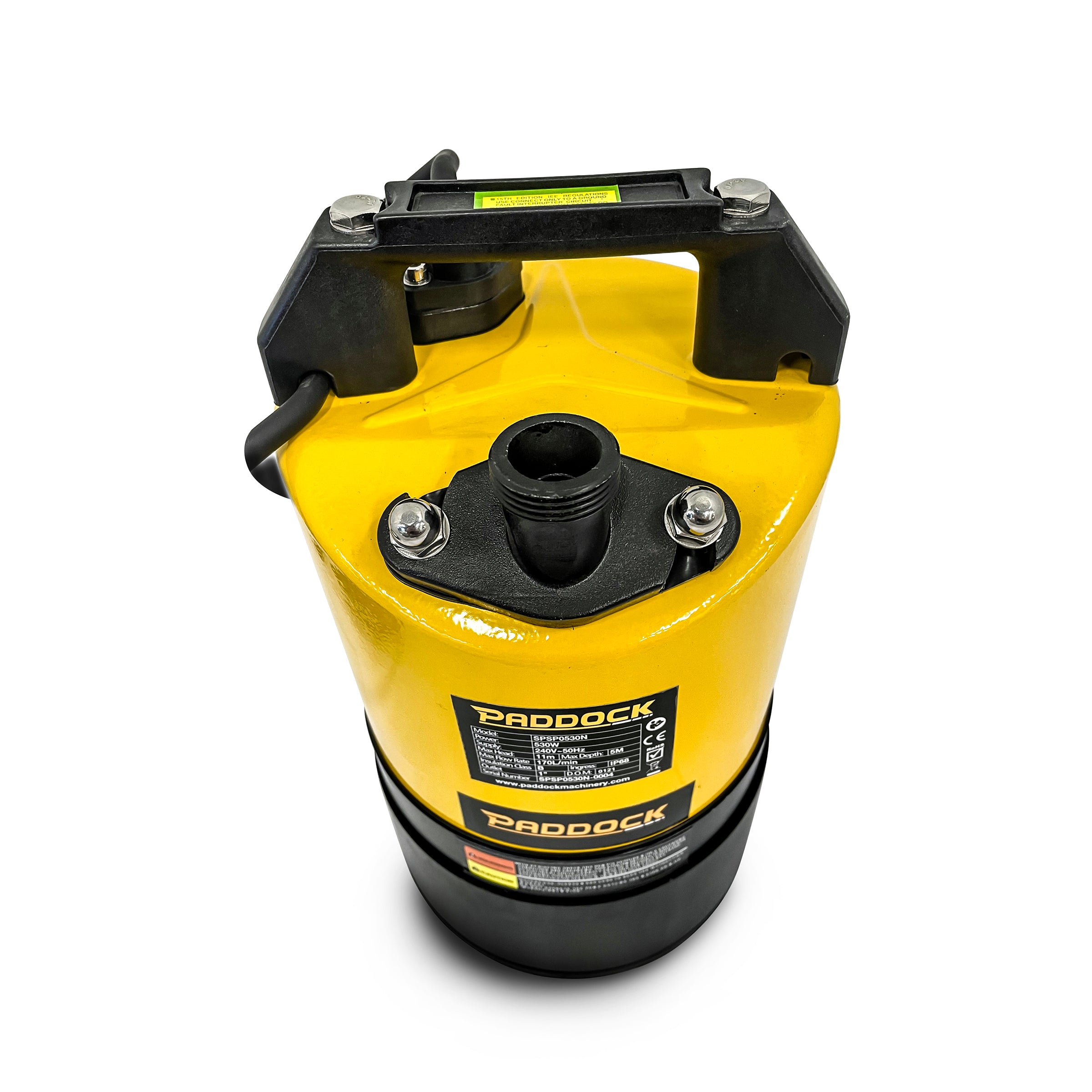

Some models offer a directional discharge connection meaning they can discharge vertically for tight pits or horizontally to prevent hose kinking in applications where the water is to be directed off to the side.
LSC Pump Features
- Max. solid handling 6mm
- 25mm discharge port
- Semi-vortex abrasion resistant impeller
- 5m cable with Australia plug end
- Flow rates up to 170 L/min
- Discharge heads to 11m
- Unique anti-wicking cable entry design
- Thermal motor protection
- Twin dual SiC mechanical seals
- Exceptional quality
| Pump Specification | SPS0100 | SPSP0530N | LSC1.4S |
|---|---|---|---|
| Manufacture | Generic |
Paddock | Tsurumi |
| Voltage/Frequency | 240V Single Phase / 50 Hz | 240V Single Phase / 50 Hz | 240V Single Phase / 50 Hz |
| Power | 120 Watts | 530 Watts | 480 Watts |
| Motor | Continuous Duty | Continuous Duty | Continuous Duty |
| Level Control | Manual | Manual | Manual |
| Flow Rate (max) | 105 L/min, 6.3 m3/hr | 170 L/min, 10 m3/hr | 170 L/min, 10 m3/hr |
| Minimum draw down level | 1 mm | <1mm | 1mm |
| Discharge Head (max) | 9 m | 11m | 11 m |
| Outlet | 20mm and 25mm hose tail outlet vertical |
25mm BSPM, 1" tail 2 bolt fast rotation vertical or horizontal arrangement |
25mm BSPM, 1" tail 2 bolt fast rotation vertical or horizontal arrangement |
| Max. Submersion Depth | 5 m | 5 m | 5 m |
| Max. Fluid temp. | 40 °C | 40 °C | 40 °C |
| Build in check valve | No | Yes | Yes |
| Compatabile Fluids | Water Max. solid handling 6mm |
Water Max. solid handling 6mm |
Water Max. solid handling 6mm |
| Approx. Weight | 6 kg | 13.5 kg |
12 Kg |
| Approx Dimensions | 160 x 160 x 280 mm | 230 x 230 x 370 mm | 200 x 200 x 320 mm |
| Construction |
Semi vortex impeller, PPO and Fibreglass Italian mechanical oil seal Anti-wicking cable entry |
Semi vortex impeller Oil resistant cable Anti-wicking cable entry Dual silicon carbide mechanical seals |
Semi vortex impeller Oil resistant cable Anti-wicking cable entry Dual silicon carbide mechanical seals |
| Warranty | 1 yr | 2 yrs | 1 yr |
