1" Pump Discharge Hose – 5m, 10m & 20m
Description
The 1" Pump Discharge Hose is a flexible, fibre-reinforced rubber hose suitable for transferring a range of compatible fluids including water, diesel, biodiesel, unleaded petrol and oils.
With a 25mm (1") internal diameter, the hose is suitable for connecting compatible pumps, filters, flow meters, centrifuges, heat exchangers and other fluid-transfer equipment. Available in 5m, 10m and 20m lengths.

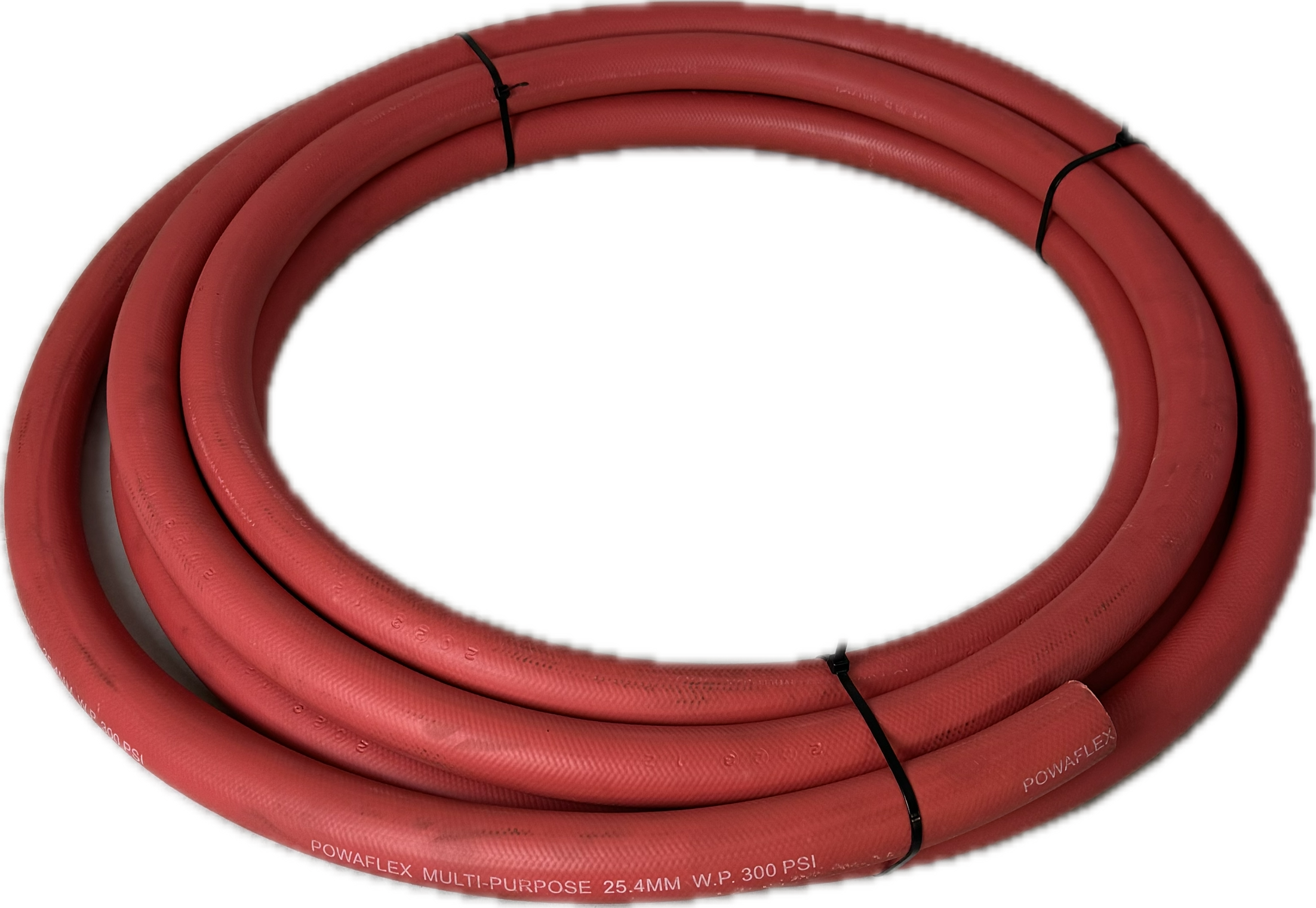

1" Pump Discharge Hose
This durable rubber discharge hose provides a flexible connection for a wide range of compatible pumping and fluid-transfer applications.
The fibre-reinforced construction provides strength while retaining useful flexibility for installation and handling.
Key Features
- 25mm / 1" internal diameter
- 36mm outside diameter
- Fibre-reinforced rubber construction
- Available in 5m, 10m and 20m lengths
- Good flexibility and resistance to kinking
- Designed for durability against cracking and perishing
- Suitable for compatible water, oil and fuel applications
- 12 month warranty
Fluid Compatibility
The supplied hose is suitable for use with a range of compatible fluids including:
- Water
- Diesel
- Biodiesel
- Unleaded petrol
- Oils
- Some compatible solvents
For solvents or other chemicals not specifically listed, confirm material compatibility before use.
Typical Applications
- Pump discharge lines
- Fuel transfer systems
- Water transfer
- Filter housings
- Flow meters
- Centrifuges
- Heat exchangers
- General fluid-transfer equipment
Specifications
| Specification | Details |
|---|---|
| Hose Type | Fibre-reinforced rubber discharge hose |
| Internal Diameter | 25mm / 1" |
| Outside Diameter | 36mm |
| Available Lengths | 5m, 10m & 20m |
| Compatible Fluids | Water, diesel, biodiesel, unleaded petrol, oils and some compatible solvents |
| Warranty | 12 Months |
Hose Connections
Threaded hose-tail fittings can be used to connect the hose to compatible pumps, filter housings, flow meters, centrifuges and other equipment. Select fittings to suit the hose internal diameter and the thread type of the connected equipment.
Important – Discharge Hose
This product is intended as a discharge hose. For pump suction applications where the hose may be subjected to vacuum, use an appropriately rated suction hose such as a wire-reinforced suction hose.
Always confirm the hose material is compatible with the fluid being transferred and the operating conditions of the system before use.
