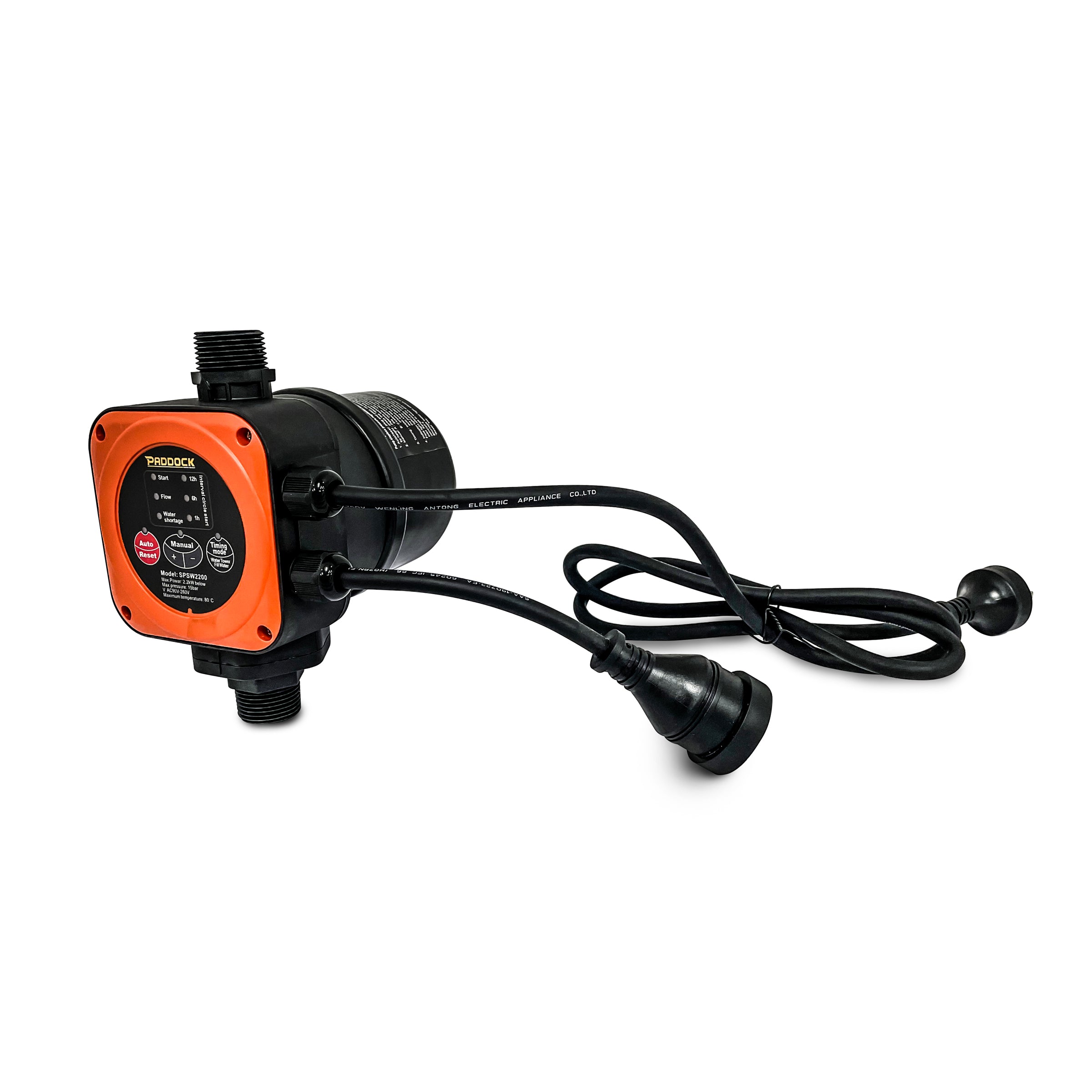

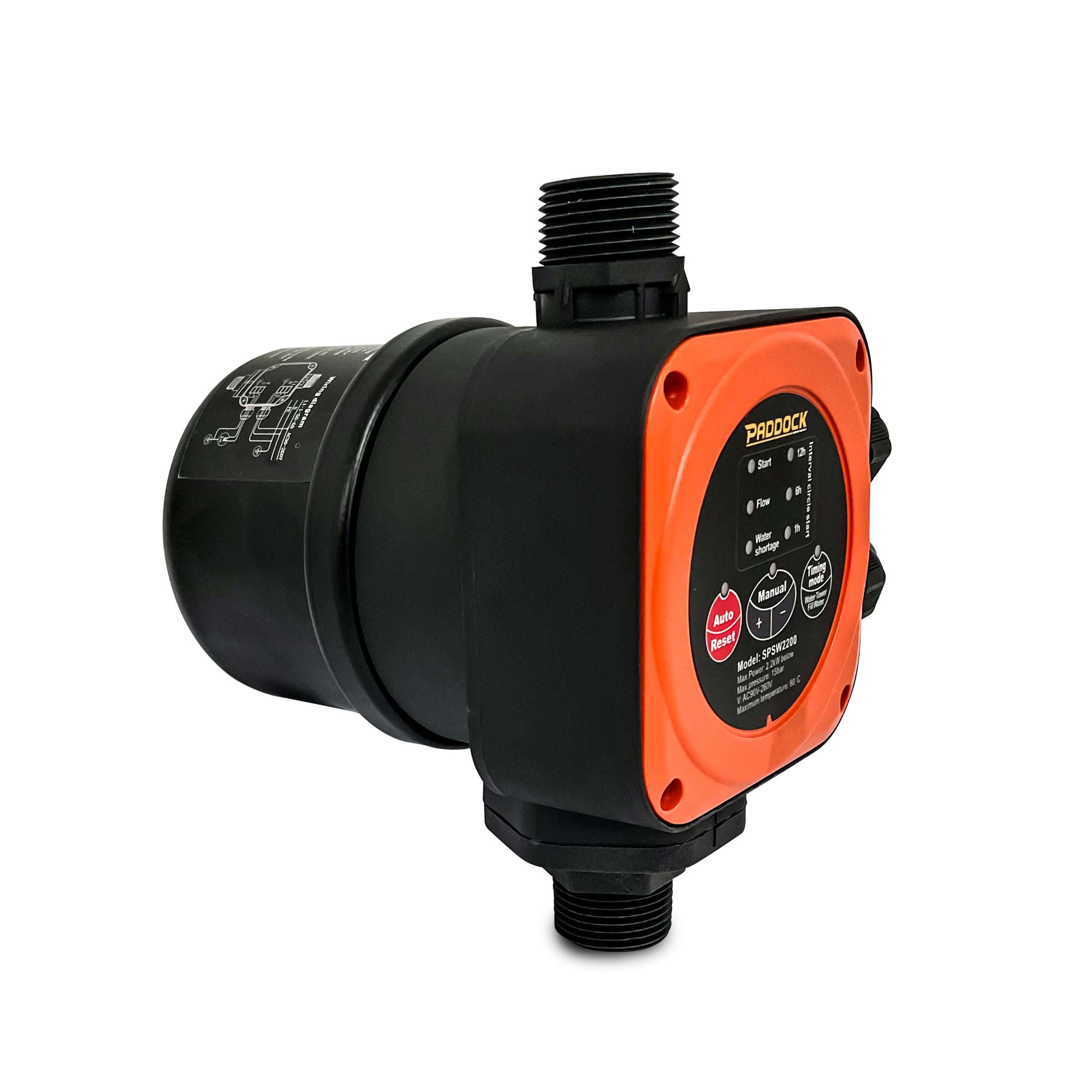

Pump Intelligent Pressure Controller
Description
Installing a Paddock Intelligent Pressure Controller helps your pump to perform better than it ever has prior. This plug and play pump pressure controller offers a solution for household water pressure pumping applications. These controllers are simple to use and simple to incorporate into household pumping systems and will ensure you have water on demand when you need it.
Modern Intelligent Pump Pressure Controller
- Ideal for household 240v water pumps
- Simple inline design triggers the pump on demand
- No need for electrician, plug and play design
- Fully adjustable automatic controller
- Suitable for loads up to 10 amps / 240v
- Durable and robust design
This automatic pump controller will automatically start and stop your pump as there's demand. It's ideal for household pumping applications and helps to ensure steady water delivery at the tap.
The controller incorporates a receiver tank that reduces pump cycling in low demand conditions such as a tap dripping.
The pressure set points are adjustable via a simple '+' and '-' button on the units face plate which allows users to customise and optimise the pumps performance for their specific application.
This intelligent controller also incorporates a flow switch that can activate the pump when it detects flow such as when a tap is opened. The flow switch also works to stop the pump when no flow is detected such as when the tap is closed.
The controller incorporates a self prime timer to allow the pump to run without flow for a period of time while the pump suction line primes. This function is ideal for situations where an extended priming time is necessary such as in deep well jet pumps. Without this function, many pump controllers would detect loss of flow and turn the pump off before it has the opportunity to prime.
The controller is simple to install inline in the pumps outlet and it incorporates a non return valve which helps to prevent unnecessary pump cycling.
The controllers construction is excellent with a IP67 rating thanks to the PCB being epoxy resin encased. This controller is built to last and will help your pump to perform to its best.
Pump Controller Specifications
| Specification | Value |
|---|---|
| Voltage |
90-265 V 50/60 Hz |
| Max. Current | 10 A, up to 2.2kw motors |
| Max. Water Temperature | 80 C |
| Starting Pressure |
0-10bar (adjustable) |
| Max. Pressure | 15bar |
| Protection | IP67 |
| Inlet / Outlet |
25mm (1") BSP |
| Operation | Automatic / adjustable |
| Plug and Play | Yes |
| Features |
Built in pressure sensor Built in flow switch Incorporates non return valve |
| Protection Degree |
Waterproof IP 67 |
| Shutoff Timers |
When starting the pump it allows for 3min 20 seconds self prime timer before shutting off. When pump has been running, it allows for 3min 20 seconds no flow before it shuts off pump in case of loss of supply. |
| Weight | ~1 kg |
| Warranty | 12 Month Warranty |
