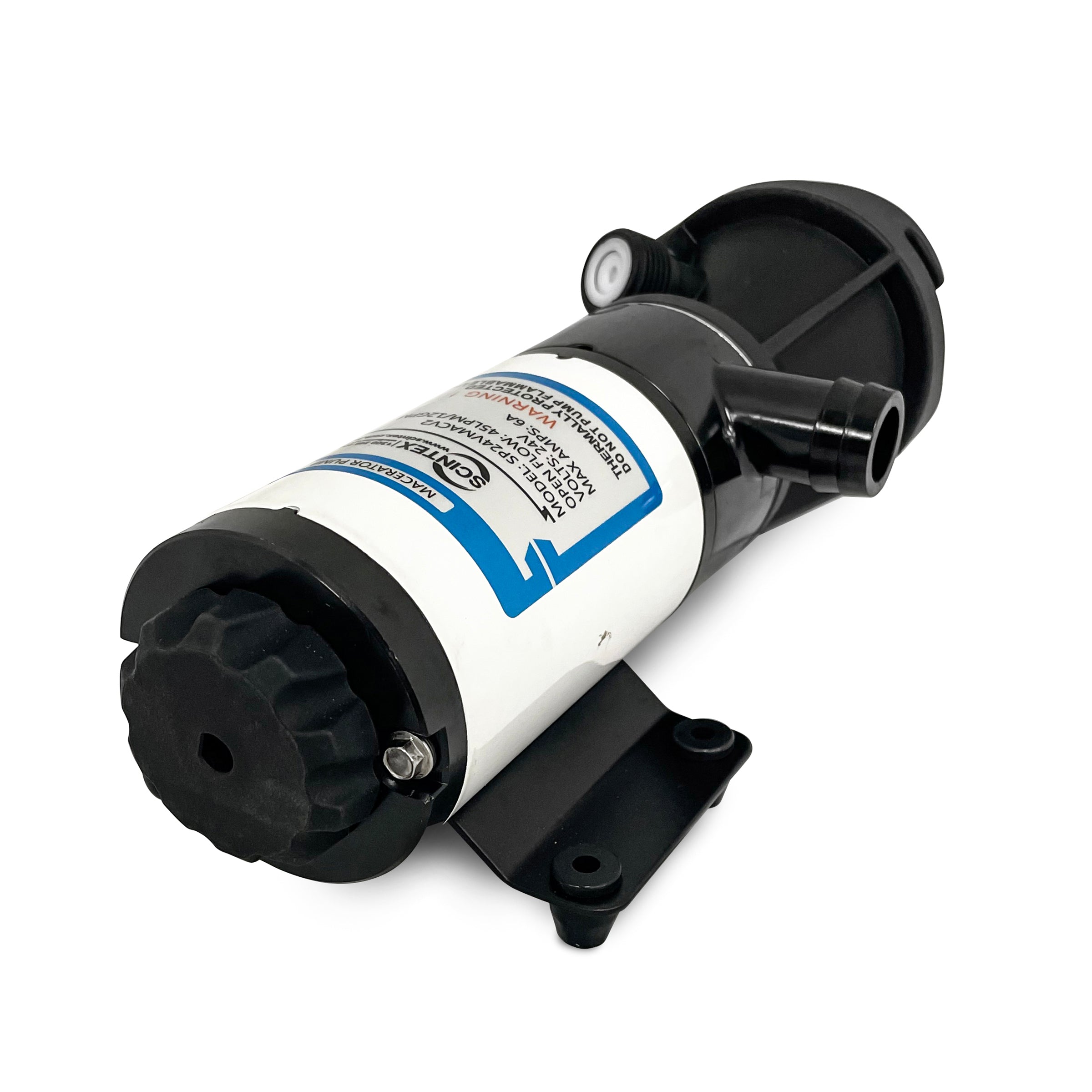

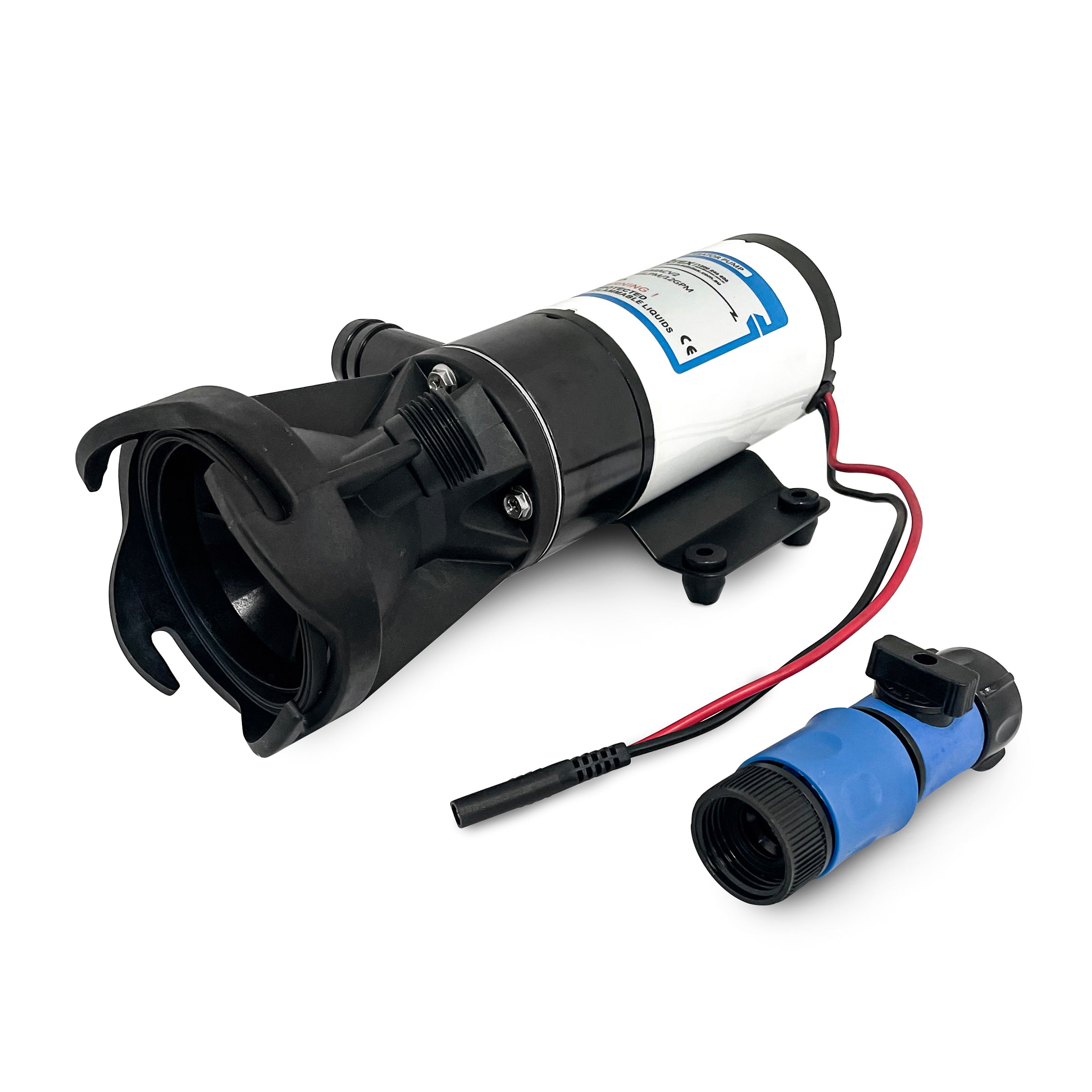

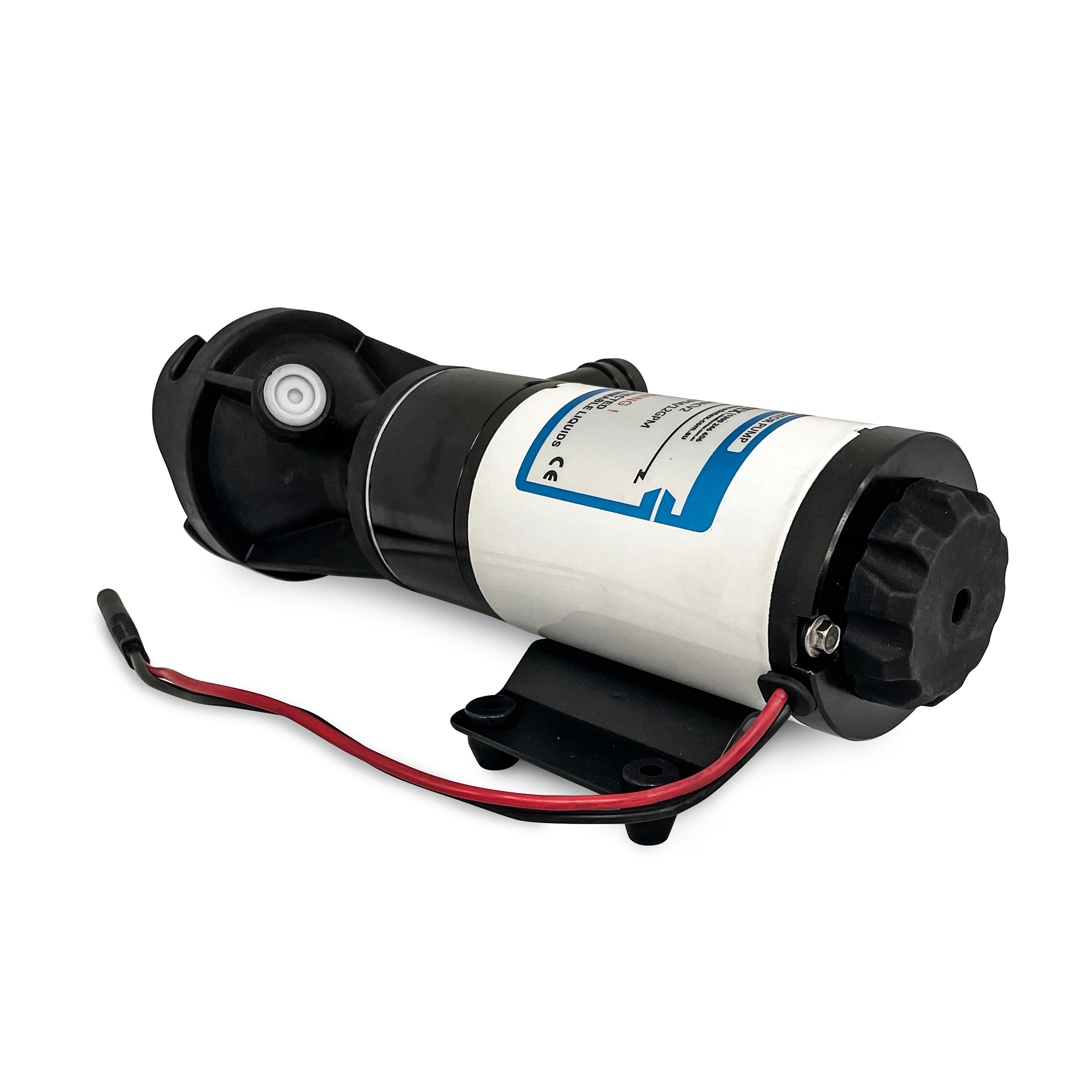

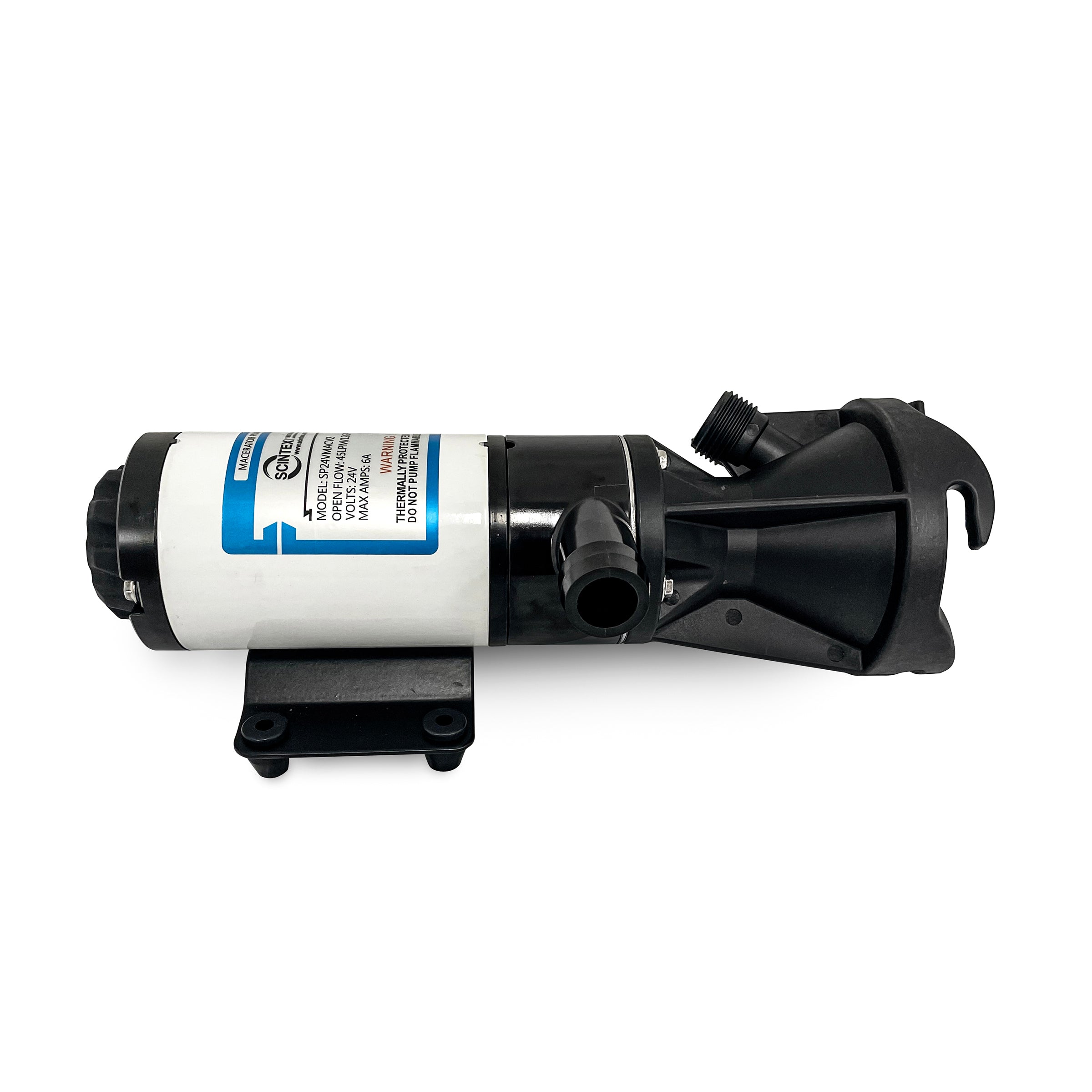

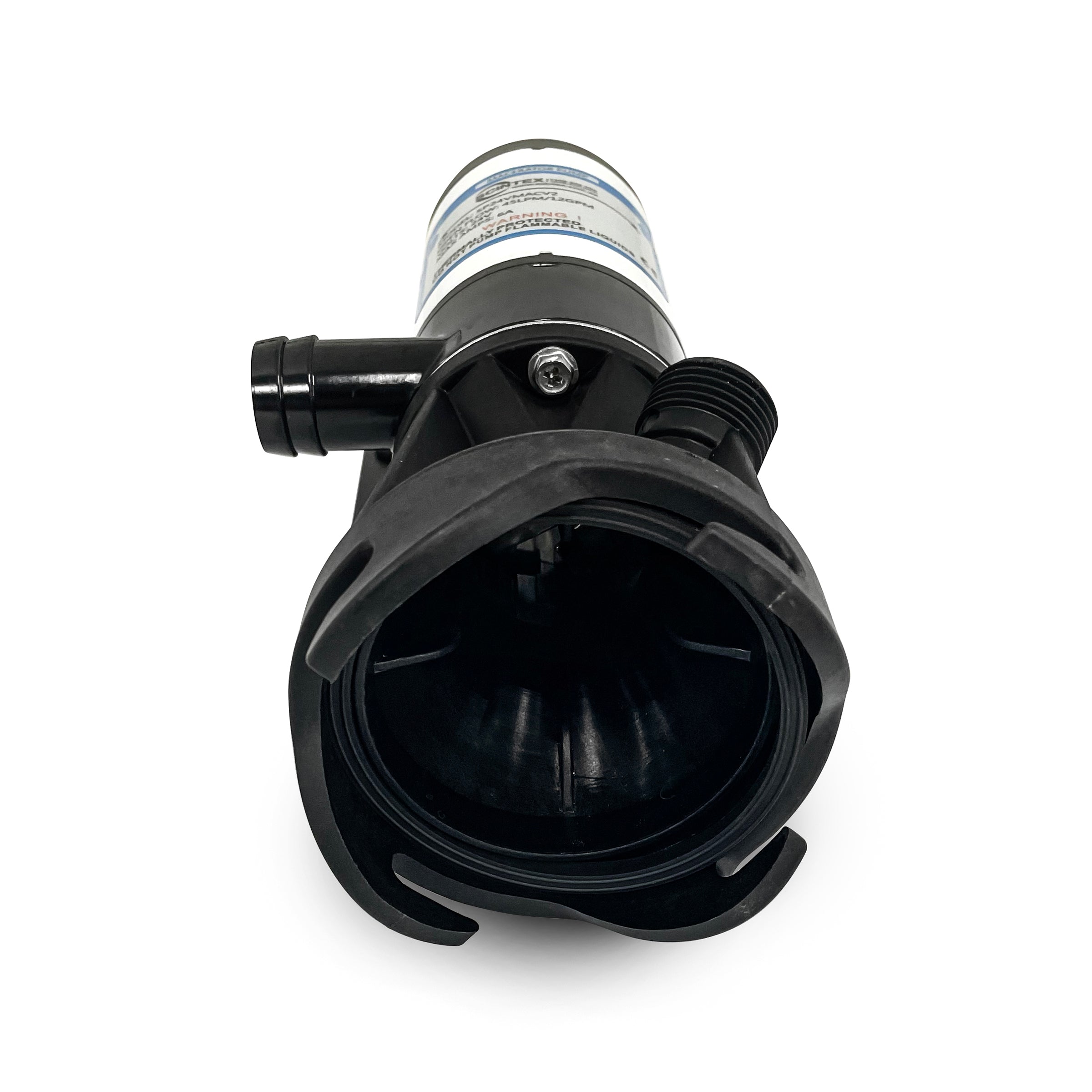

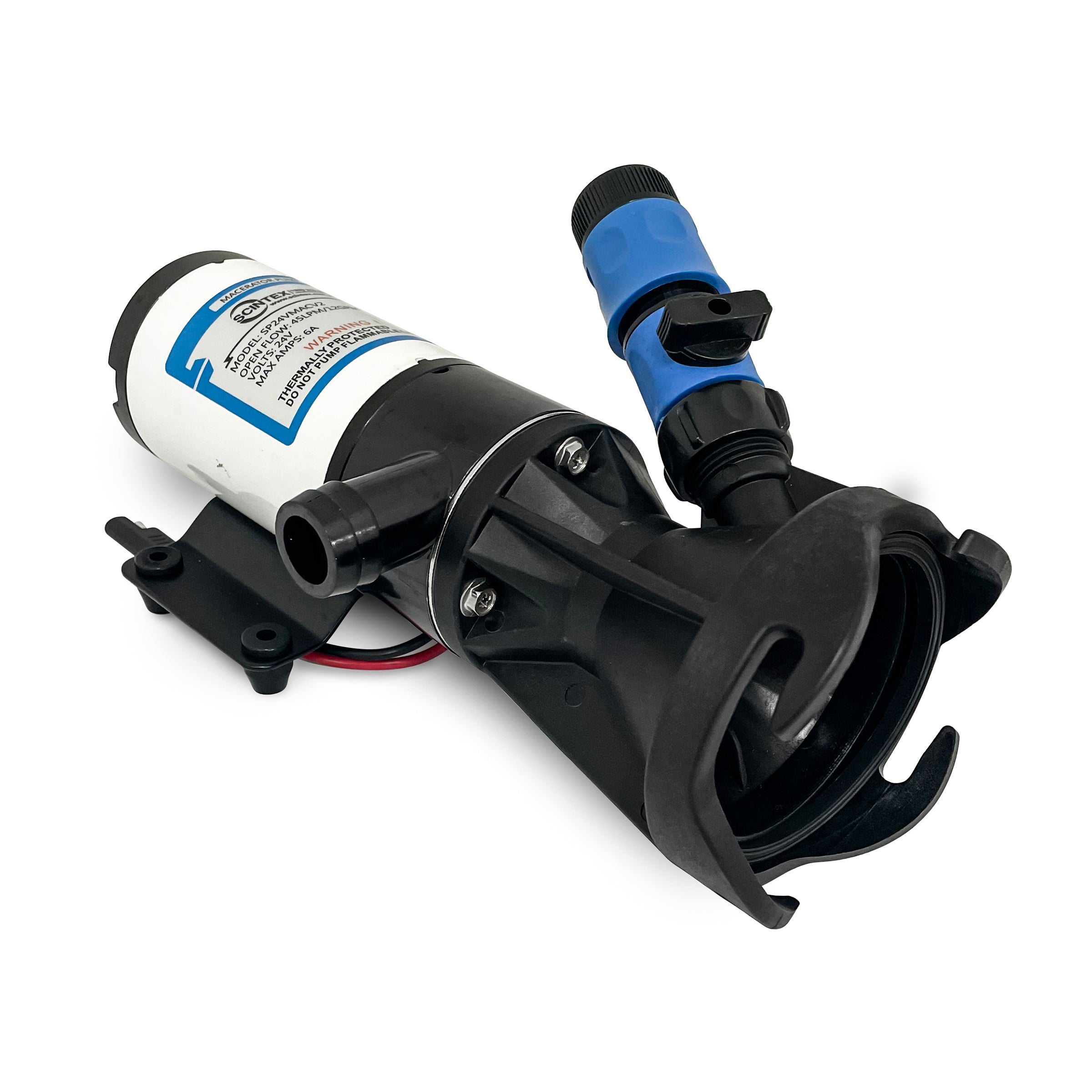

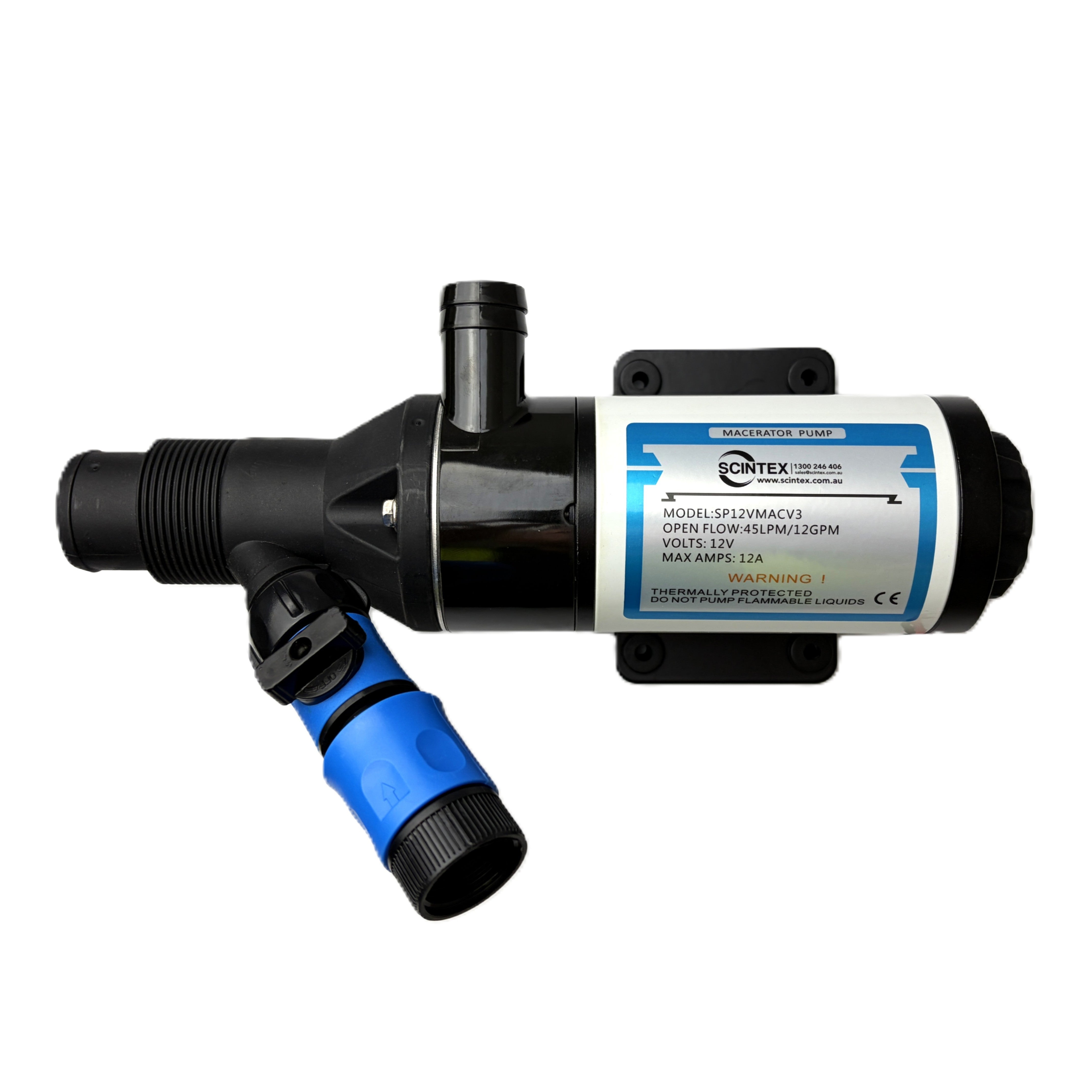

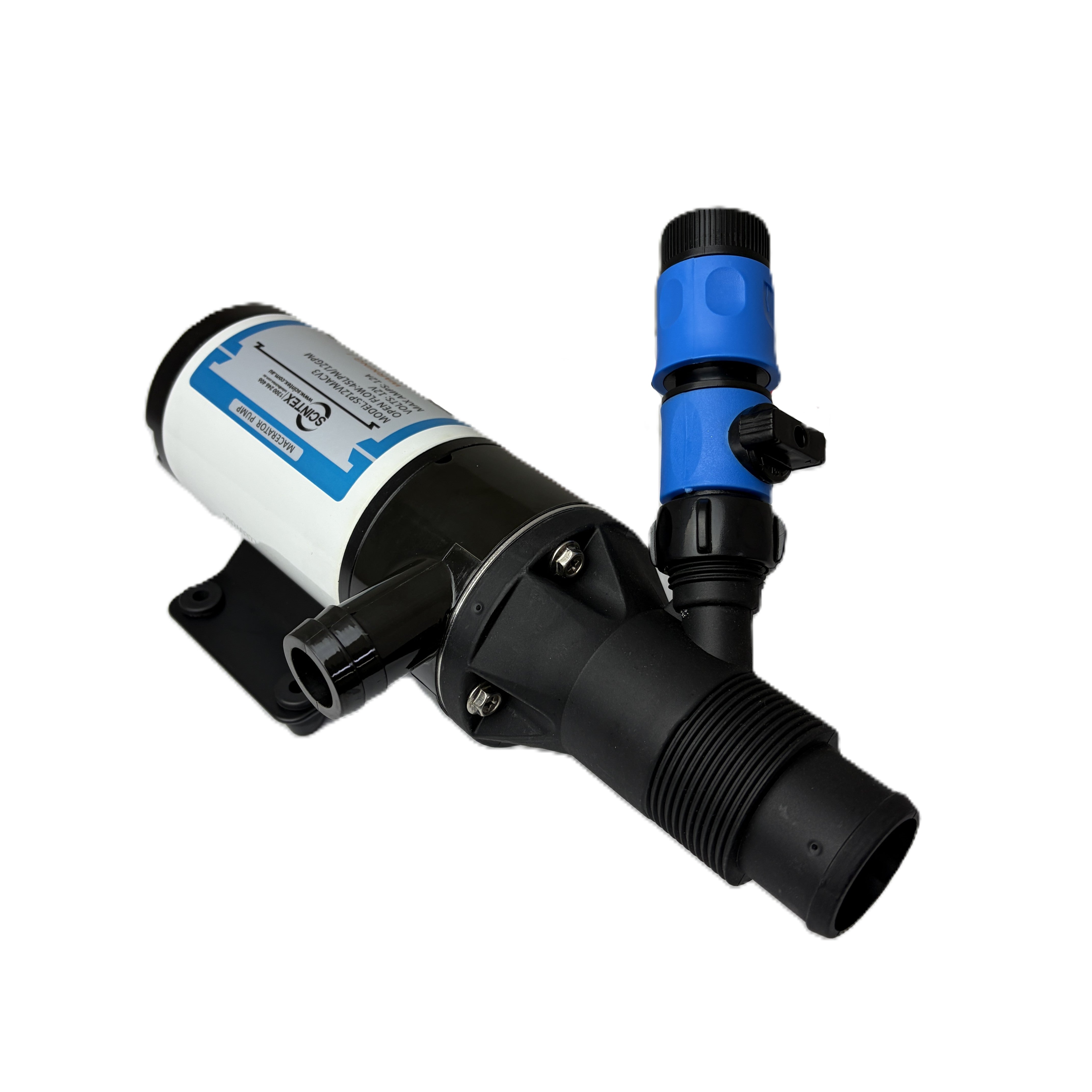

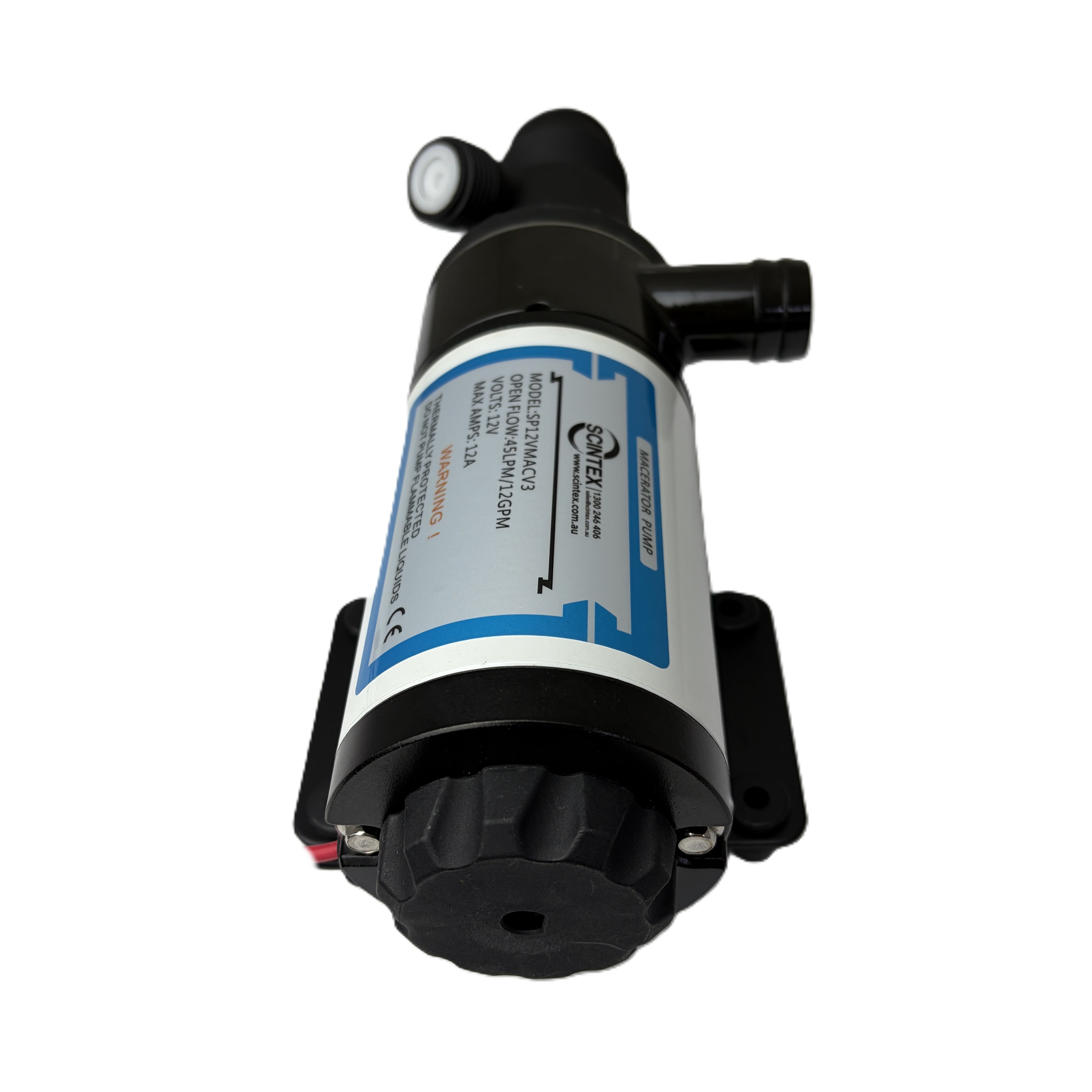

Septic Sewage Macerator Pump
SKU: SP12VMAC
FOR BULKY AND HEAVY ITEMS CONTACT US FOR A FREIGHT QUOTE.
For orders outside of Australia contact us for a freight quote.
Description
Low voltage yet extremely robust macerator pumps ensure your boat, caravan or motor-home's septic system keeps flowing and doesn't need your attention. These quality pumps are ideal for fitting in tight spaces whilst achieving reliable operation from a 12v or 24v unit.
Grey Water Sanitation Water Pump
These are extremely high powered 12v or 24v macerator pumps capable of handling dirty fluids. They're designed not only with heavy duty over-engineered shaft seals, but also upgraded knife cutting blade and brass/rubber impeller which ensures reliable and trouble free performance. These pumps are rated to move 45 LPM making them fast and up for the challenging tasks.
These pumps feature high quality motors capable of high torque operation when compared to other models on the market. The motor winding's have been upgraded to make this one of the best and most powerful units we've had the pleasure to offer.
Macerator pumps are ideal for installation on boats in fish bins and kill tanks where the fluid isn't always clean and free of solids. The macerating action chops through the bits and continues to pump the juices out to the sea. These pumps have a seamless outer casing which has been design with the salt water environment in mind and the motor is triple sealed for splash and wash down environments.
Note, macerator pumps should not be left to run dry where possible. Dry running will cause the internal impeller to rub inside the pump casing increasing the load and eventually overheating the pump. A nice feature of these macerator pumps is they come standard with thermal overload protection on the motor which helps to protect the motor from being damaged in such situations. The thermal protection will only kick in after a period of dry running meaning the pump can still self prime from dry service without problem.
These are a premium pump and offer exceptional value for money across a range of applications and environments. Ideal for use in caravans, motor homes, RV's, on boats and ships. Popular for people living off the grid in solar powered cabins and remote camp sites.
Macerator Pump Features
- Self priming
- Seamless motor shell and o-ring end cap design prevents salt environment ingress
- Heavy duty high performance motor provides greater torque
- Engineered design with respect to shaft seal types and locations prevents leaks
- Motor thermal protection standard
- Rubber feet mounts help for quiet and smooth operation
- Non sparking design prevents possible ignition inside holding tanks
- 12 month warranty
| Specifications | Value |
|---|---|
| Voltage | 12V DC or 24V DC options |
| Inlet | 1-1/2" MNPT / 38mm hose barb |
| Outlet | 25mm hose barb |
| Flow rate | 45 L/min |
| Max. Discharge Head | 9m |
| Self Priming | Yes |
| Max fluid temperature | 60C |
| Duty Cycle | Continuous - 2800 hr brush life |
| Amperage Draw (max) | 10 amp (12v model) 5 amp (24v model) |
| Pump Type | Rubber impeller with cutting blade |
| Motor | Permanent Magnet Thermally Protected |
| Weight | ~2.2kg |
| Dimensions | 280mm (L) x 125mm (W) x 110mm (H) |
| Warranty | 12 Months |
