Sherpa 10,000Lb High Speed Winch

Current Price $1,399.00
Original Price $1,539.00
(inc GST)

Notify me when back in stock

Heavy & Bulky Item Information Info

Freight costs for heavy & bulky items may differ to the online freight calculator. Some items require a drop tail delivery service where a fork lift is not available to unload.

To order, checkout online and a customer service representative will then contact you to discuss the delivery options.

You can also contact us for a freight quote prior to ordering.

For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.



The Sherpa 4x4 range of 4WD winches are in our opinion the best value for money on the market. These are heavy duty, industrial quality, 4WD and truck winches. With increased load ratings they outperform the competition. Their heavy duty motors are coupled to 3 stage planetary gear boxes make them incredibly powerful. Available with a range of options such as lightweight synthetic rope or robust steel cable, oversized spools, 12/24V genuine Albright solenoids and even dual motors.

  • Available in 12 or 24 Volt
  • Genuine Albright solenoids
  • Suitable for competition use
  • IP68 Rated

Sherpa Winches

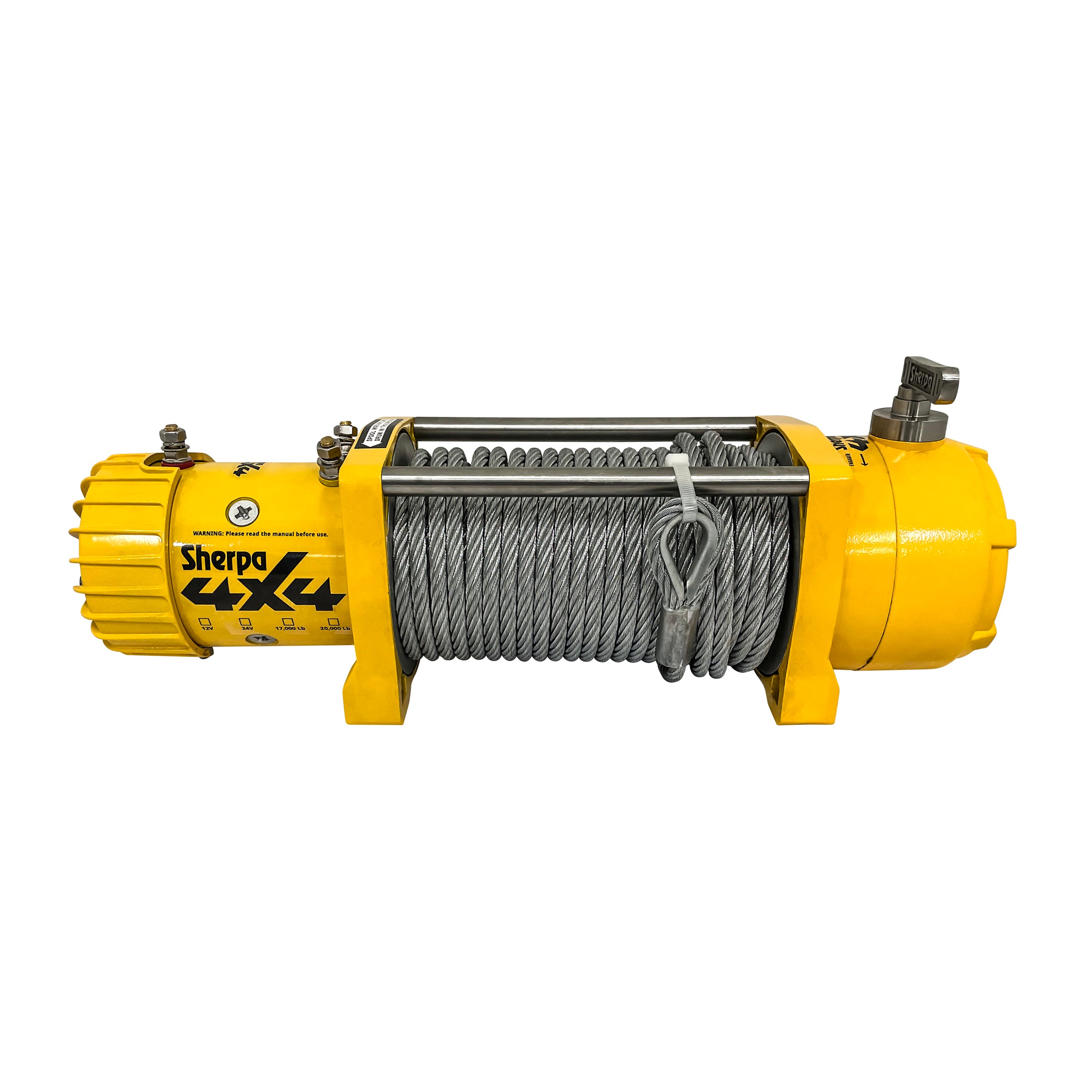

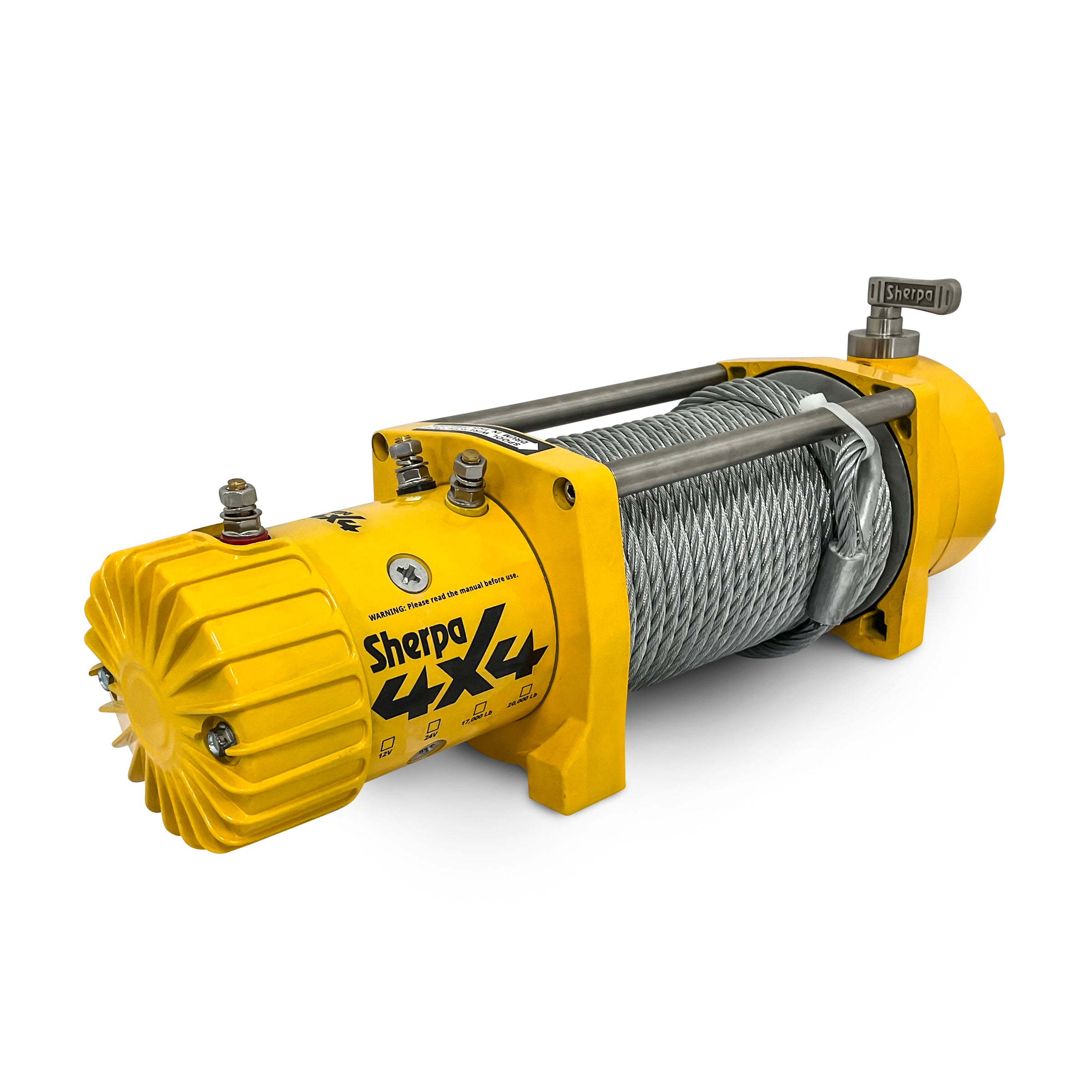

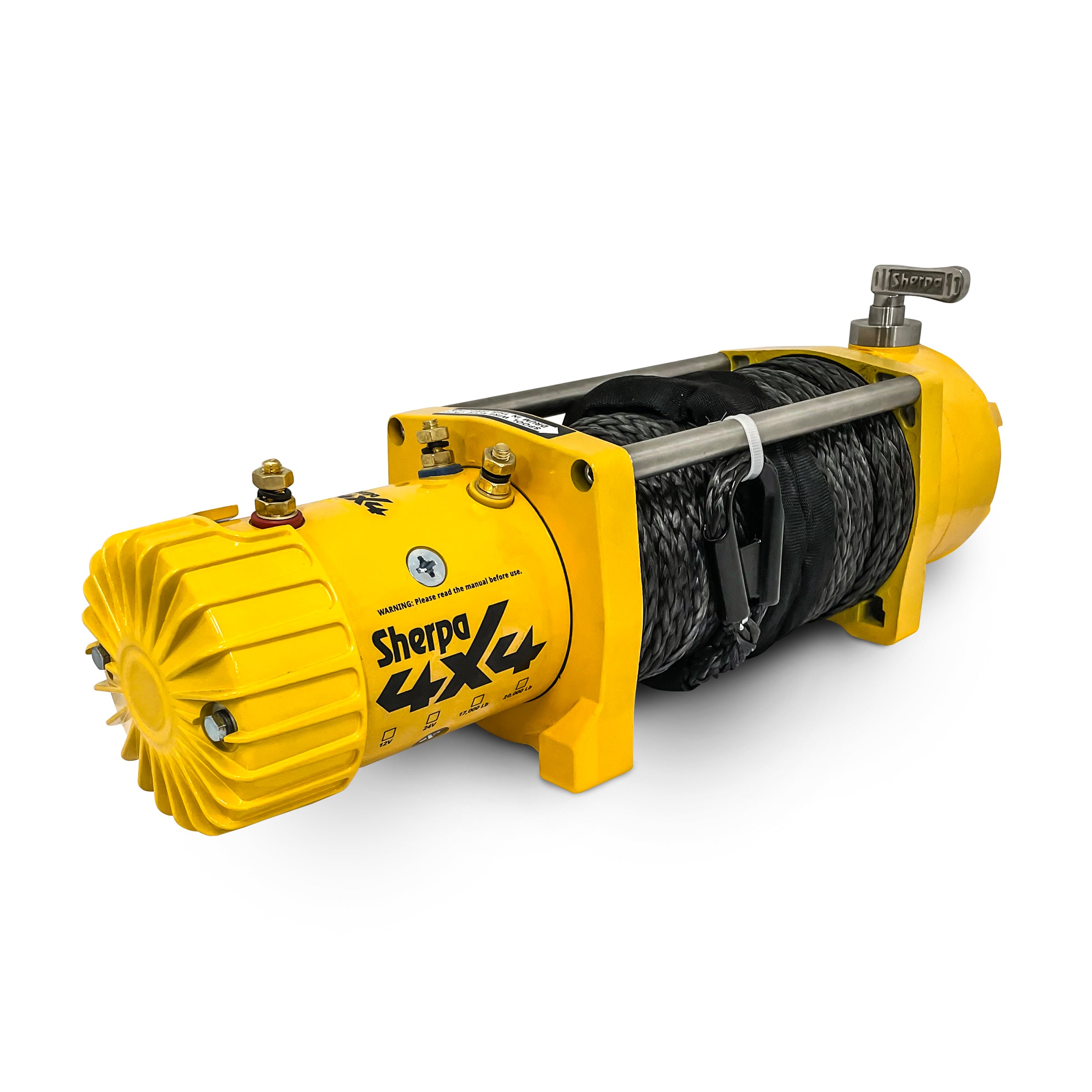

'THE BRUMBY' Sherpa 4x4 10,000Lb Fast Winch

The 'Brumby' is a fast recovery winch ideal for special purpose applications and competition use. It features a larger hp motor and new gearbox ratio to deliver line speeds of over 15m/min.

    • 316 stainless steel fittings and cross members.
    • Genuine Albright heavy duty solenoid as standard
    • Simple hoist style hand remote.
    • Stylish yellow powder coat.
    Why are Sherpa winches different to the competition?
    • Tried and Tested - These winches have been designed and built with many years experience in the winching and lifting business. These winches have been through many stages of testing and improvements to deliver a reliable product offered to Sherpa 4x4 customers. These winches have been witnessed to perform under water in the muddiest rainforests on the planet recovering laden trucks to safety. Sealed to water and mud ingress* they perform reliably in the toughest outback conditions.
    • Tough & Durable - The Brumby winch is designed to survive in all conditions, with 316 stainless steel fitting and cross beams this winch will stand up to all environments.
    • Braking Design - Beware of cheap imitations! Many winches on the market use a 'Brake in drum' design which causes heat to build up in the winch drum damaging synthetic rope. 'Brake in Drum' winches are low cost and not designed for synthetic rope, this will become obvious at the most inconvenient time. Also avoid 'Brake in Motor' hoist style winches, these brakes are not suited to extreme offroad 4x4 applications and are inferior to the Sherpa 4x4 design. Sherpa Winches are compatible with all types of synthetic rope as the brake is designed into the gearbox ensuring a long life and well lubricated design. This innovative design results in a trouble and heat free winching and braking combination. Any experienced winch operator will understand the importance of a strong, reliable winch brake, it's definitely not something you want to fail when you're perched precariously on the side of a hill.
    • Quality gearboxes - Other brands use sintered steel to make their gears. In this process heat and pressure is used to cast shapes from powdered steel. Sintered gears are no where near as strong as gears which are CNC cut from quality billet steel. Sherpa specify and demand the highest quality components for every step of the winch build meaning we can deliver stronger winches which last.
    • Electrics - Sherpa 4x4 winches come standard with fully sealed, water tight, heavy duty, genuine Albright solenoids. The number one failure for winches is the solenoid so why use anything but the best. Sherpa only offer Albright solenoids across our complete range of winches because they work. Don't waste your time with imitations, demand the best. Sherpa winches are IP68 rated.
    • Powerful- Sherpa 4x4 winches come with massive series wound motors featuring higher amounts of copper in the winding's then others. By specifying the best motors across all our winches as a standard component, you are ensured a more durable winch motor which can withstand the extreme conditions winching brings. The fully engineer designed frame and gearbox results in incredible winching power. Why settle for 9,000lb when more pulling power is available. When other winches are stalling, the Sherpa 4x4 units are still loading up.
    • Simplicity - Sherpa winches are supplied with the parts and materials making installation easy for the home mechanic. Made to fit the common winch bars in Australia you'll be amazed how quickly it can be integrated into your set-up.
    • Hawse- The 'Brumby' winch is supplied with a quality aluminum rope hawse to stop your line chaffing when winching on difficult angles and inclines.
    • Warranty and Parts - Sherpa 4x4 offers a 5 Year warranty on the 'Brumby' winch. A complete range of affordable spares is also available if ever required required.
    Albright Winch Solenoids
    Genuine Albright Solenoids

    All Sherpa 4x4 winches come with genuine Albright solenoids! Incorporated into our electrics is a custom made version of the DC88P solenoid designed specifically by Albright International for the Sherpa 4x4 control boxes. With 70 years experienced in contactor design, these are by far the best winch solenoids available. Capable of handling up to 800 amps, almost twice the maximum capacity of the winch. Contact plating is second to none, increasing the duty cycle over other winches. As seen in our water submersion testing videos the Albright solenoids can be run for significant time under water without moisture ingress. The cheap Chinese solenoids used in the majority of winches will fail under extreme conditions and under high amperage load.

    What is included in the Sherpa winch kits:

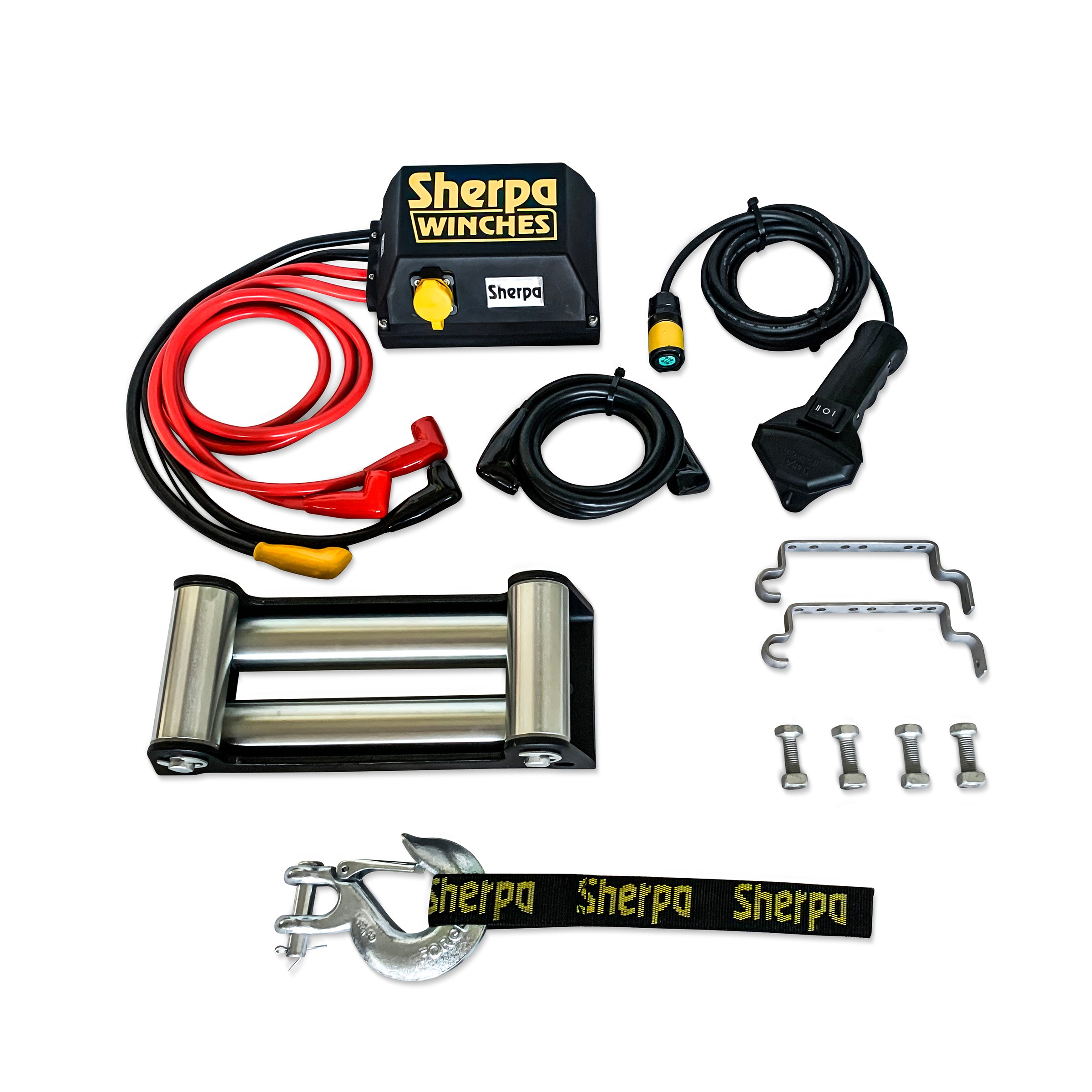

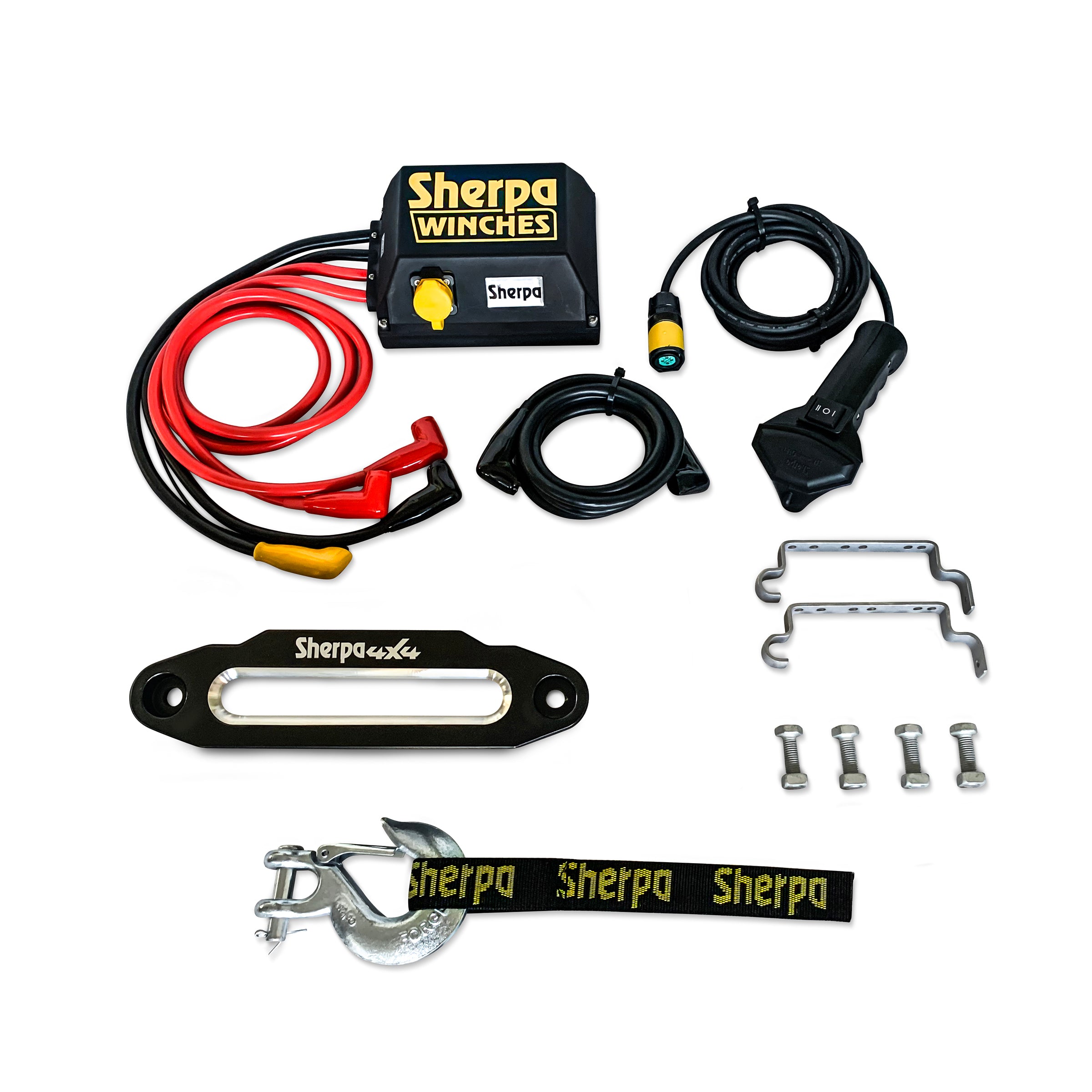

    Sherpa winches are supplied as a kit with all the items required for a standard winch installation. See the images here showing the parts included for synthetic rope and steel cable models.

     Sherpa 4WD Winch Parts Synthetic Rope Sherpa 4WD Winch Parts Steel Cable
    Synthetic Rope Models Steel Cable Models

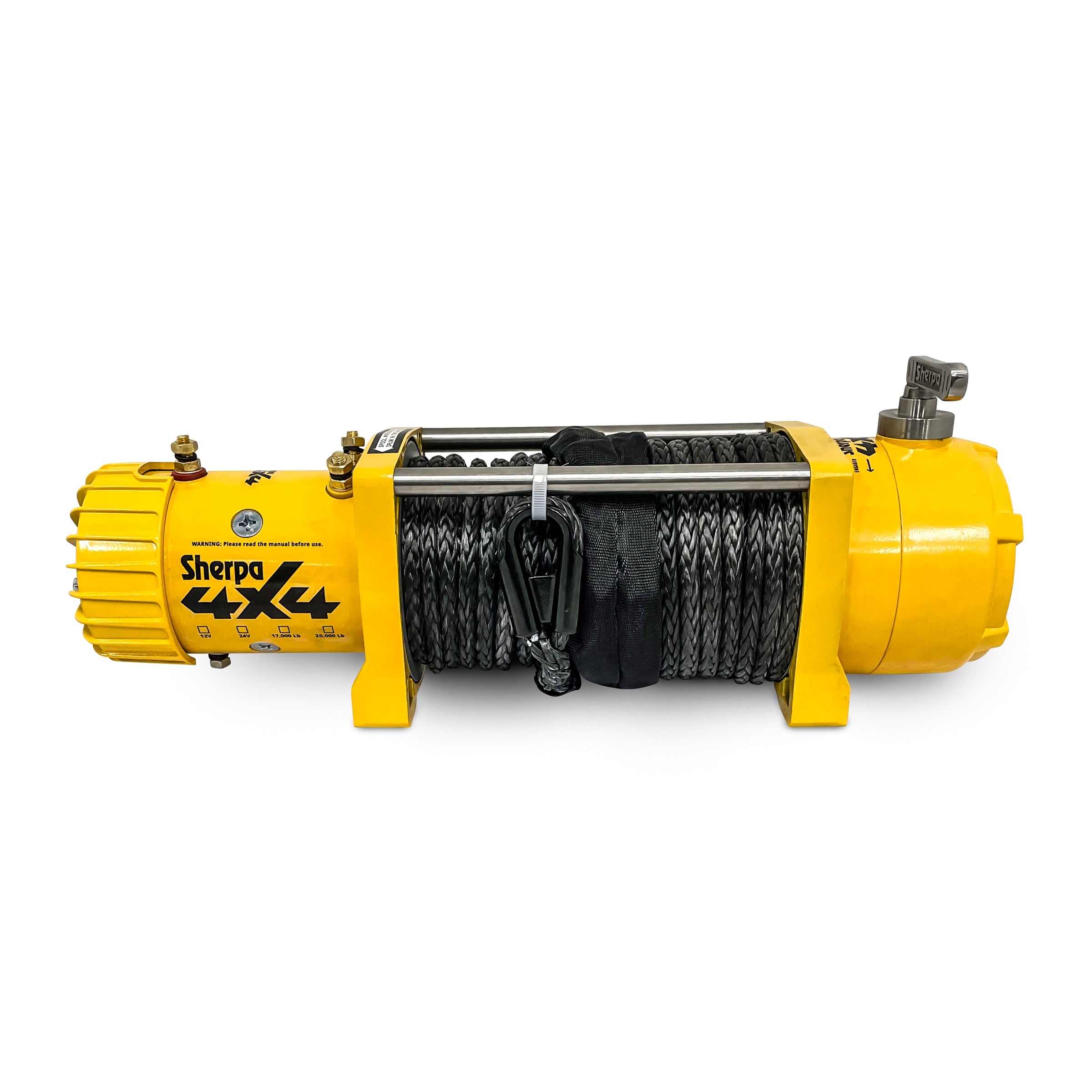

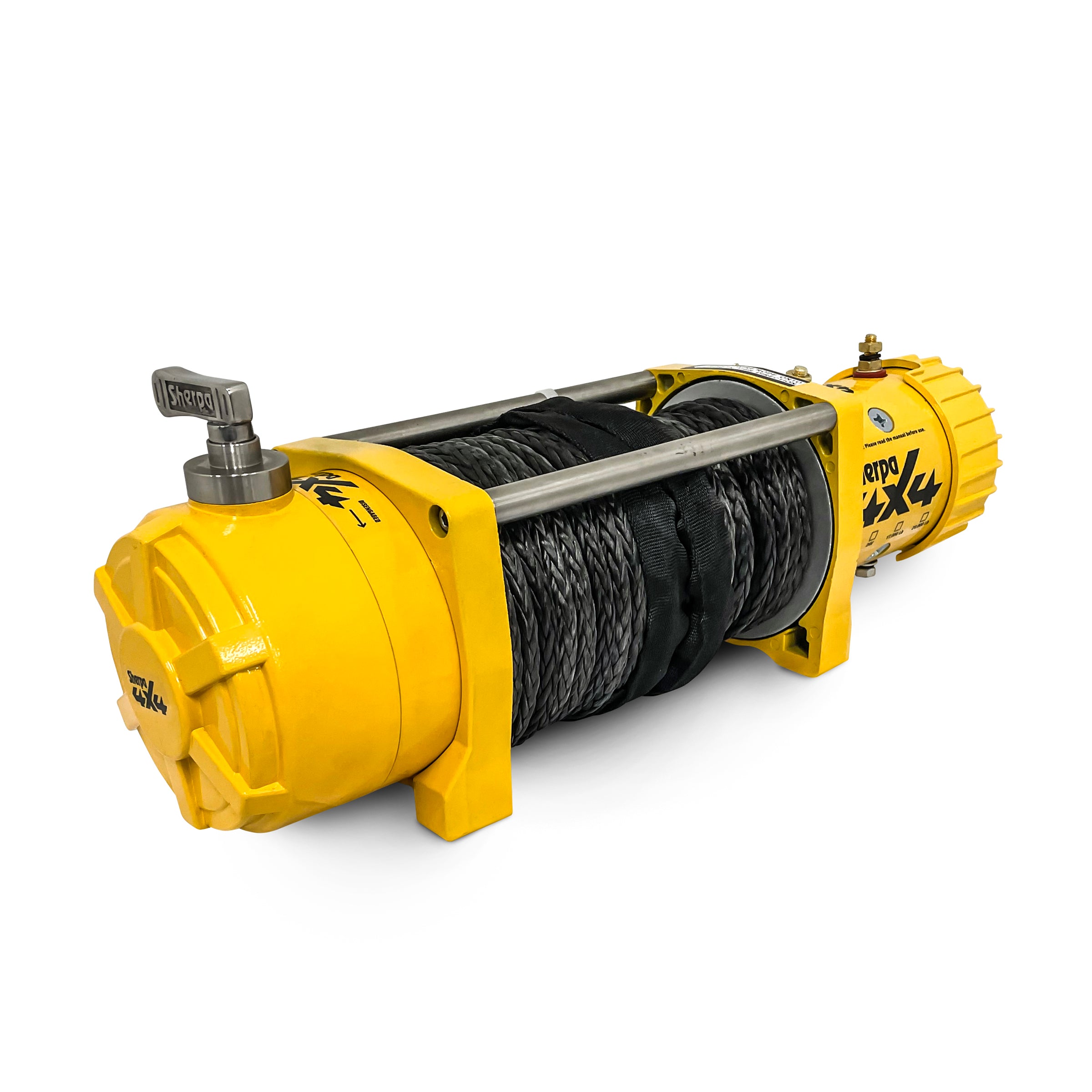

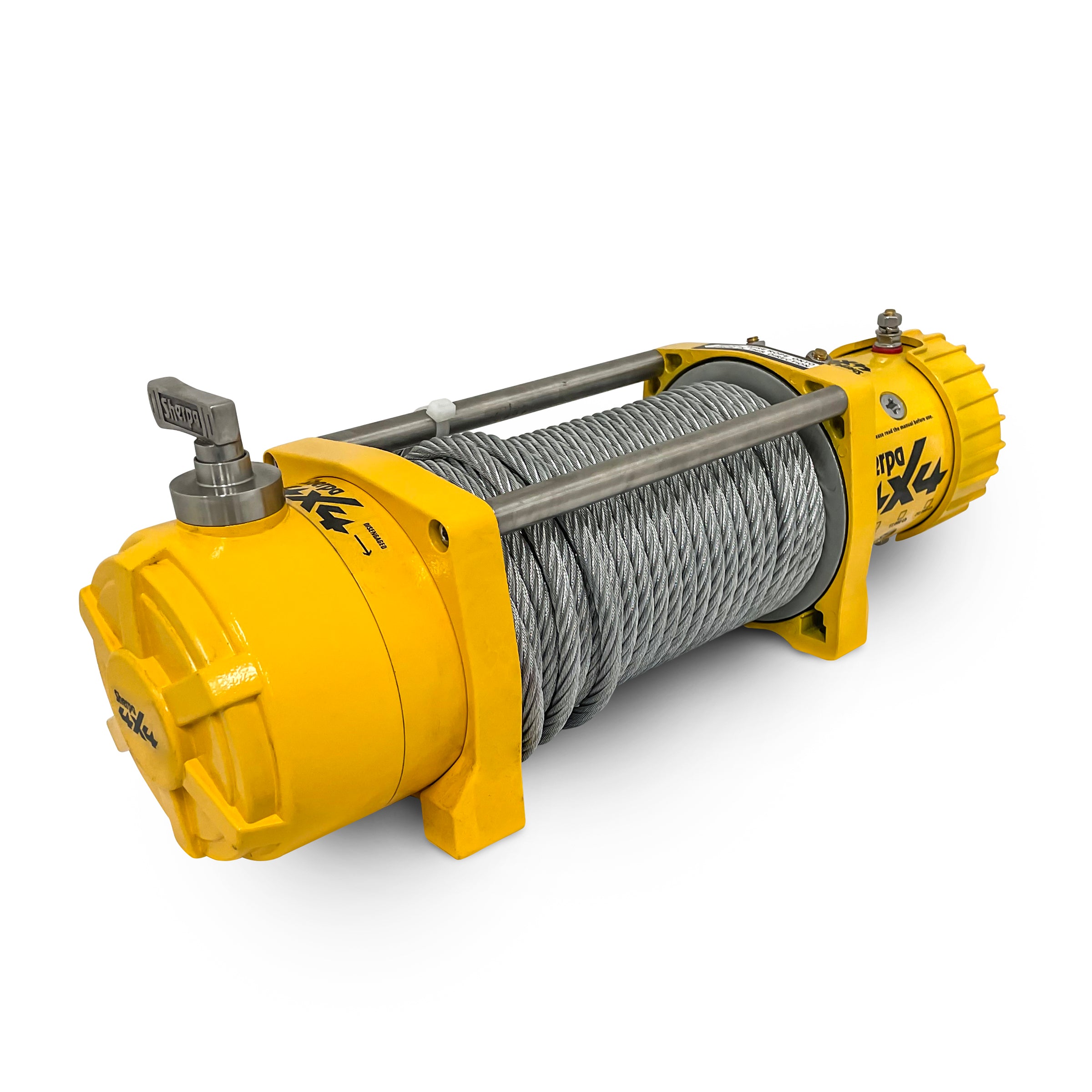

    -Winch (fitted with either synthetic rope or steel cable as per your choice)

    -Aluminium hawse or roller fairlead (synthetic rope winches will have an aluminium hawse, steel cable winches will come with a roller fairlead)

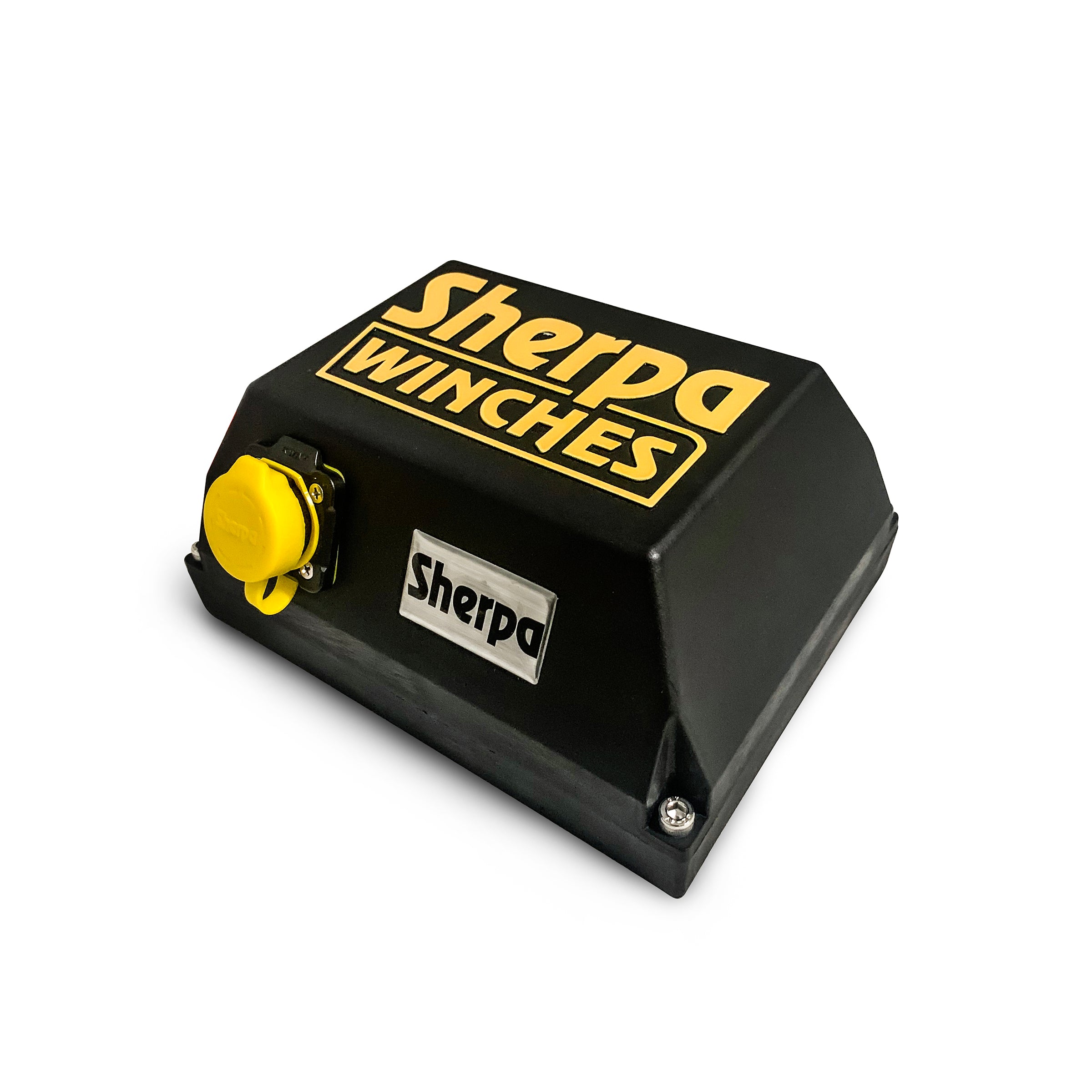

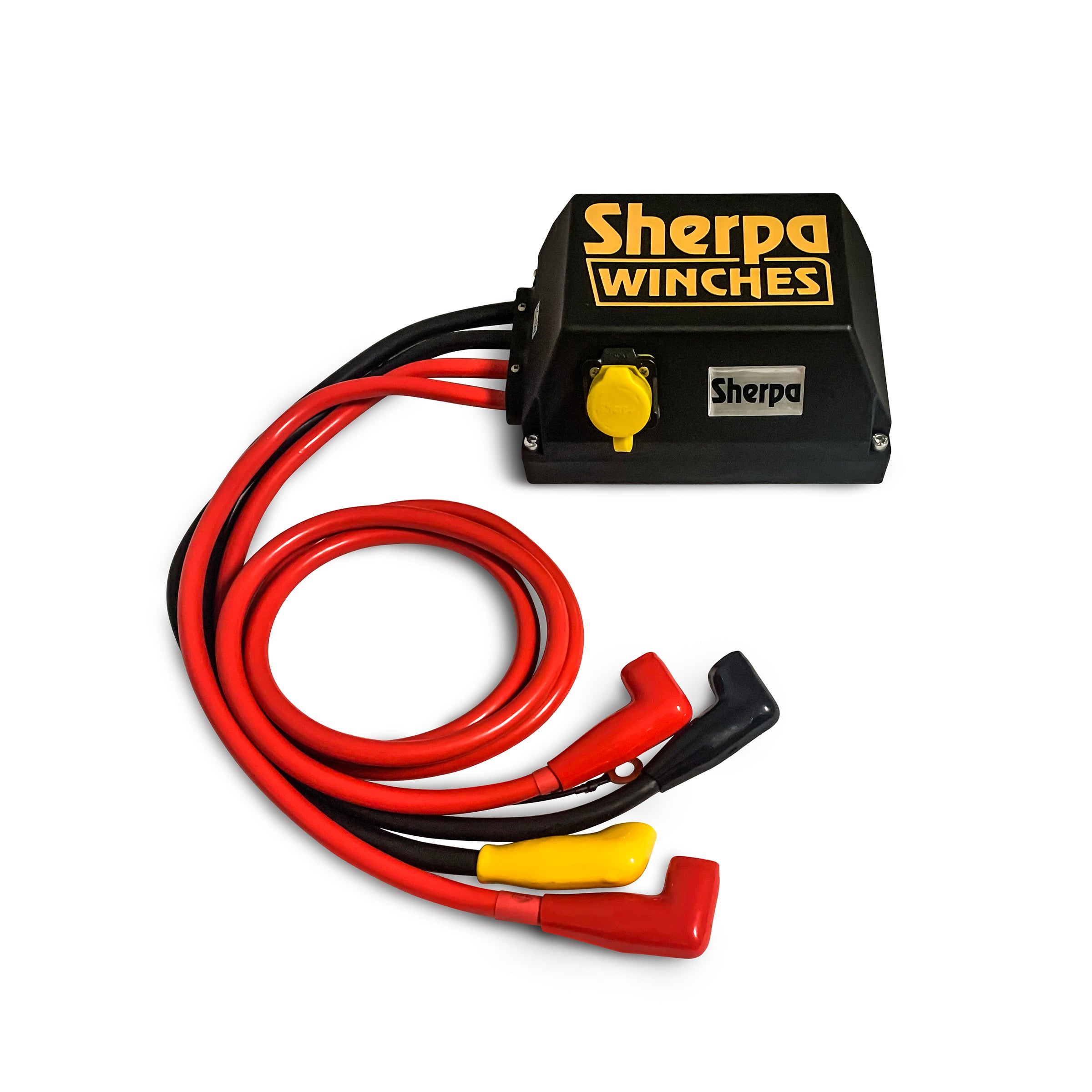

    -Control box with internal Albright solenoid

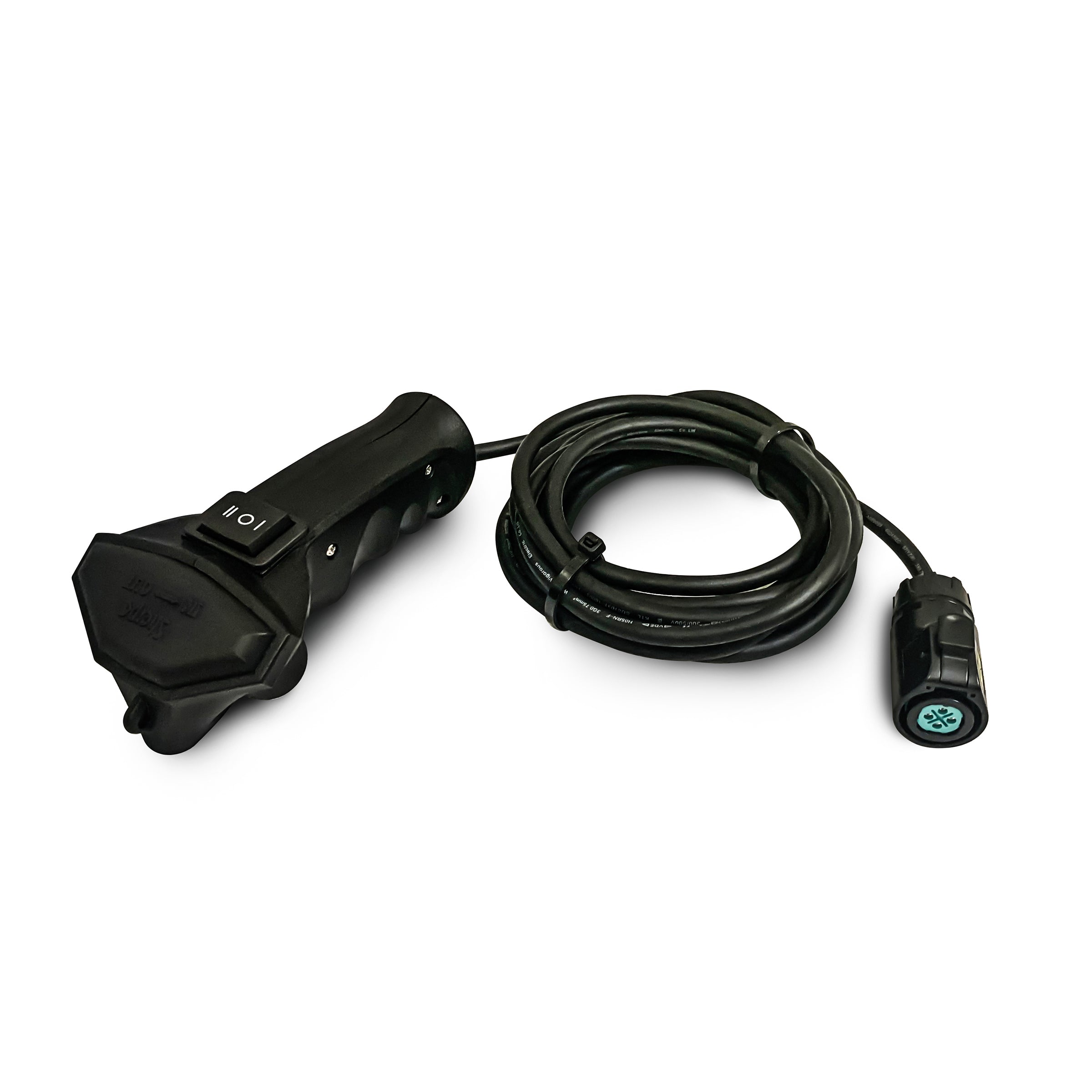

    -Wired hand remote (wireless remotes are an optional extra)

    -All cabling (5 cables are already incorporated into the control box, a separate earth cable is provided)

    -Winch hook with strap

    -Winch and control box mounting bolts

    -Control box mounting brackets (In most cases the control box is flush mounted to the bulbar using bolts internal to the control box housing and DOES NOT require a bracket. See the winch manual on the Sherpa Data Sheets page for instructions on mounting. The brackets included allow you to mount the control box directly on top of the winch by attaching to the winch cross members).

    Optional & Recommended Extras:

    Sherpa provides a range of optional and recommended extras you may want to consider when buying a winch. You can order these using the tick box options near the 'Add to Cart' button. For full details on each item. See the Sherpa 4WD Accessories page.

    Sherpa highly recommends the use of a winch dampener with all winches but it is essential with steel cable winches. It is best practice to use a battery isolation switch. This will make sure that nobody can interfere with your winch by crossing terminals on your winch or control box. This will also prevent shorting / sparking if the positive power cable were to be crushed and earthed in a collision.

    Specifications Value
    Rated Line Pull 10,000lb (4,545kg)
    Motor 8.9hp series wound (12V or 24V options)
    Gear reduction ratio 105:1 3 stage planetary gearbox

    28m of 9.5mm synthetic rope rated to 18,000Lb MBS

    28m of 10mm steel cable

    Mounting Bolt Diameter 11.2mm
    Drum Size (Dia x Length) 64mm x 224mm
    Mounting Bolt Pattern 254mm x 114.3mm
    Overall Dimensions See winch dimensions chart
    Weight See winch weight chart
    Clutch 180 degree turn, free spooling, slide ring gear
    Brake Automatic in gearbox
    Solenoid Albright International Heavy Duty 800 amp
    Duty Cycle Intermittent
    Hawse Polished aluminium rope hawse or roller fairlead to match your order
    Battery Leads 1.8m long
    Hand Remote Lead 3.5m long
    Water Ingress Rating IP68
    Warranty 5 Years

    Performance Data for 12V Version
    Line Pull (Lb) Line Speed (m/min) Motor Current (A)
    0 15.2 65
    2,000 9.5 110
    4,000 6.9 175
    6,000 4.1 220
    8,000 3.6 260
    10,000 3.2 330

    Performance Data for 24V Version
    Line Pull (Lb) Line Speed (m/min) Motor Current (A)
    0 15.6 40
    2,000 9.8 70
    4,000 7.3 110
    6,000 5.5 150
    8,000 4.3 195
    10.000 4 250
