Sherpa 4x4 'BOX AIR' Air Compressor (118 L/min)
Description
The Sherpa 4x4 BOX AIR is a compact, heavy duty 12V air compressor kit designed for touring, beach driving, camping and off-road tyre inflation. Packed inside a rugged carry case, the kit includes a dual-head compressor, 3.8L air tank, pressure switch, air hose, gauge and power leads, giving you a complete portable air system ready for your next trip.
With 118 L/min free air delivery and automatic tank pressure control, the BOX AIR provides fast, convenient tyre inflation without requiring a permanent onboard installation.
Sherpa 4x4 BOX AIR Portable 12V Air Compressor Kit
- 118 L/min free air delivery
- Dual-head 12V air compressor
- Integrated 3.8L air receiver tank
- Automatic pressure switch
- 120 PSI cut-in / 150 PSI cut-out
- 180 PSI safety relief valve
- 6.5m PU air hose included
- 3m power leads with alligator clips
- Heavy duty portable carry case
- Ideal for 4WD, touring and tyre inflation
- 12 month warranty

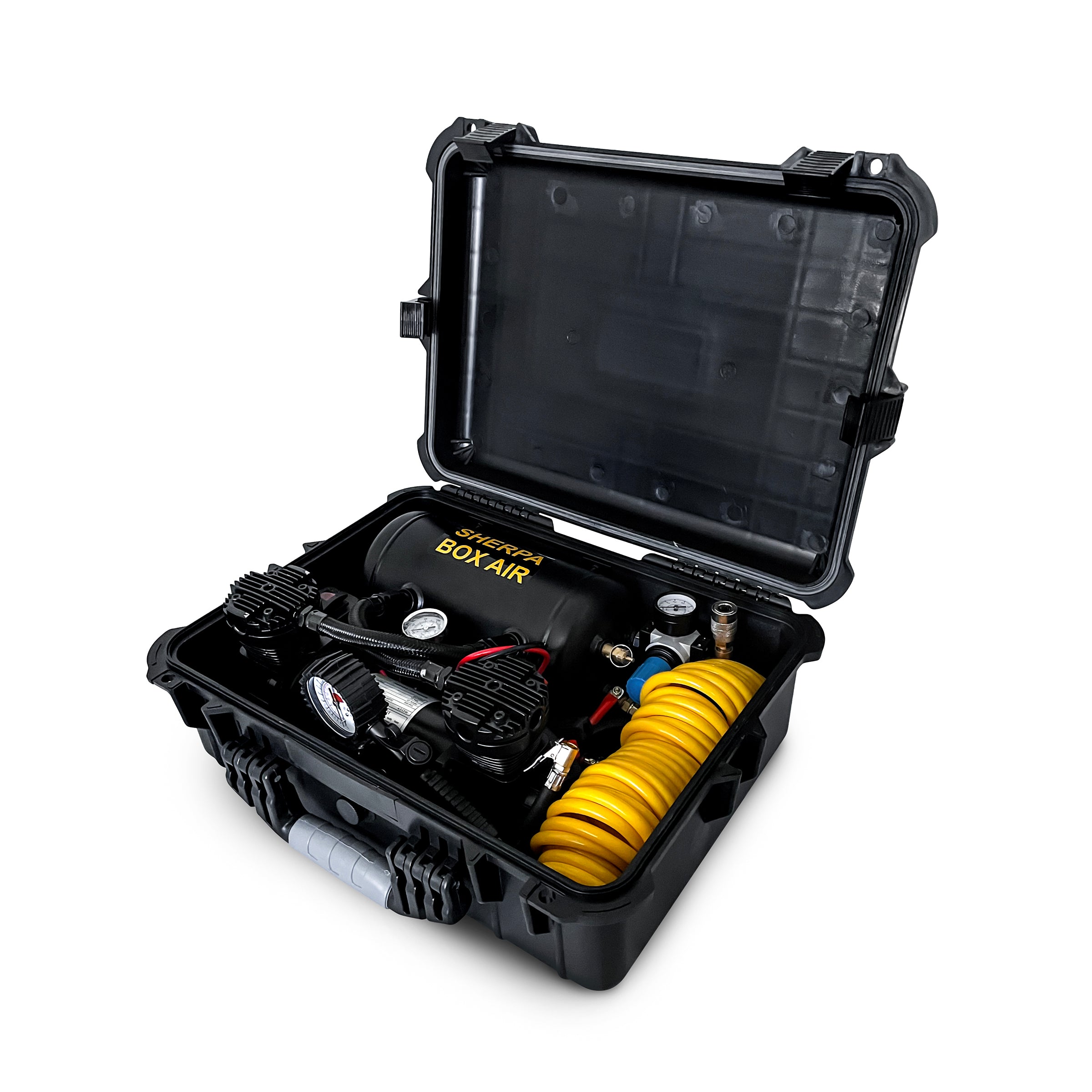

Complete Portable Air Compressor Kit
The Sherpa BOX AIR combines a powerful dual-head compressor with the accessories needed for tyre inflation in one portable package.
Everything stores inside the heavy duty case, making it easy to pack in a ute, wagon, camper or touring vehicle without installing a permanent onboard air system.

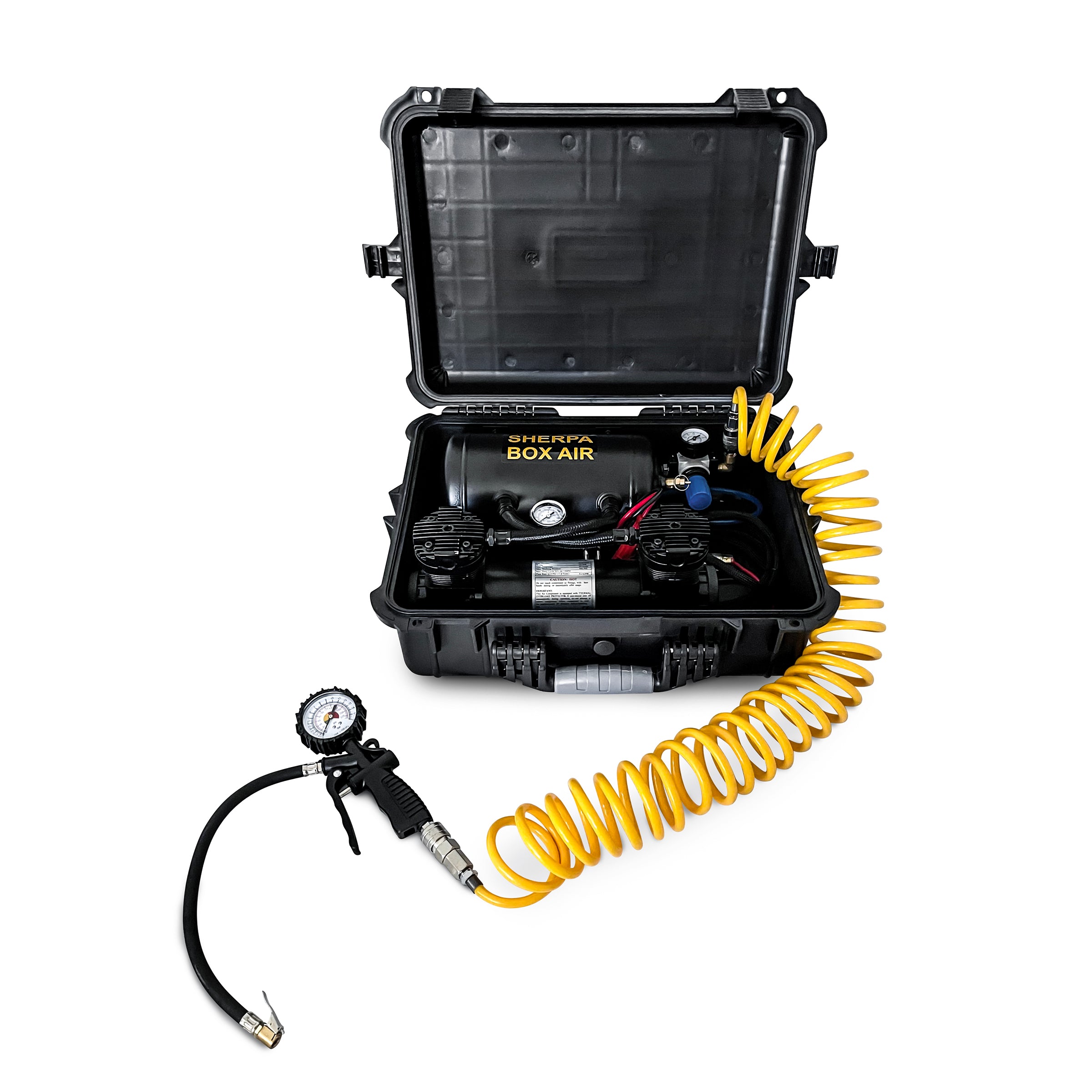

The kit includes:
- 12V dual-head compressor
- 3.8L air receiver tank
- Automatic pressure switch
- Safety relief valve
- 6.5m PU air line
- Inflation gauge
- 3m power leads with alligator clips
- Heavy duty carry case
118 L/min Free Air Delivery
The dual-head compressor delivers up to 118 L/min of free air, making the BOX AIR well suited to inflating 4WD tyres after beach driving, off-road touring or reducing tyre pressures for rough terrain.
Unlike free-air figures alone, compressor flow reduces as pressure increases. The performance table below shows the actual airflow available at different operating pressures.

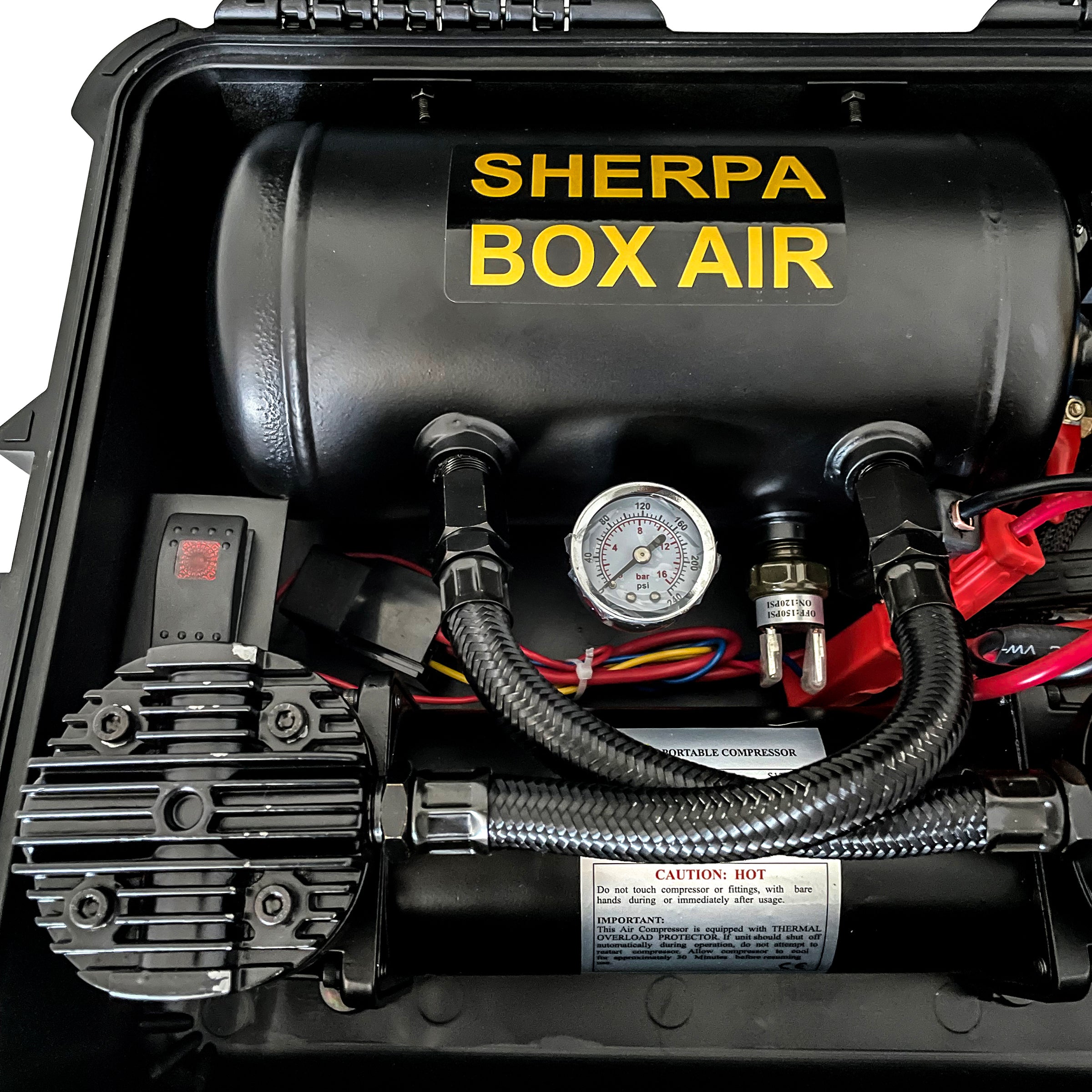

Integrated 3.8L Air Tank
The BOX AIR incorporates a 3.8L air receiver which stores compressed air and helps provide a responsive air supply between compressor cycles.
The automatic pressure switch starts the compressor when tank pressure falls to approximately 120 PSI and switches it off when the tank reaches approximately 150 PSI.
This allows the compressor to build and store air while you move between tyres or prepare the next inflation point.

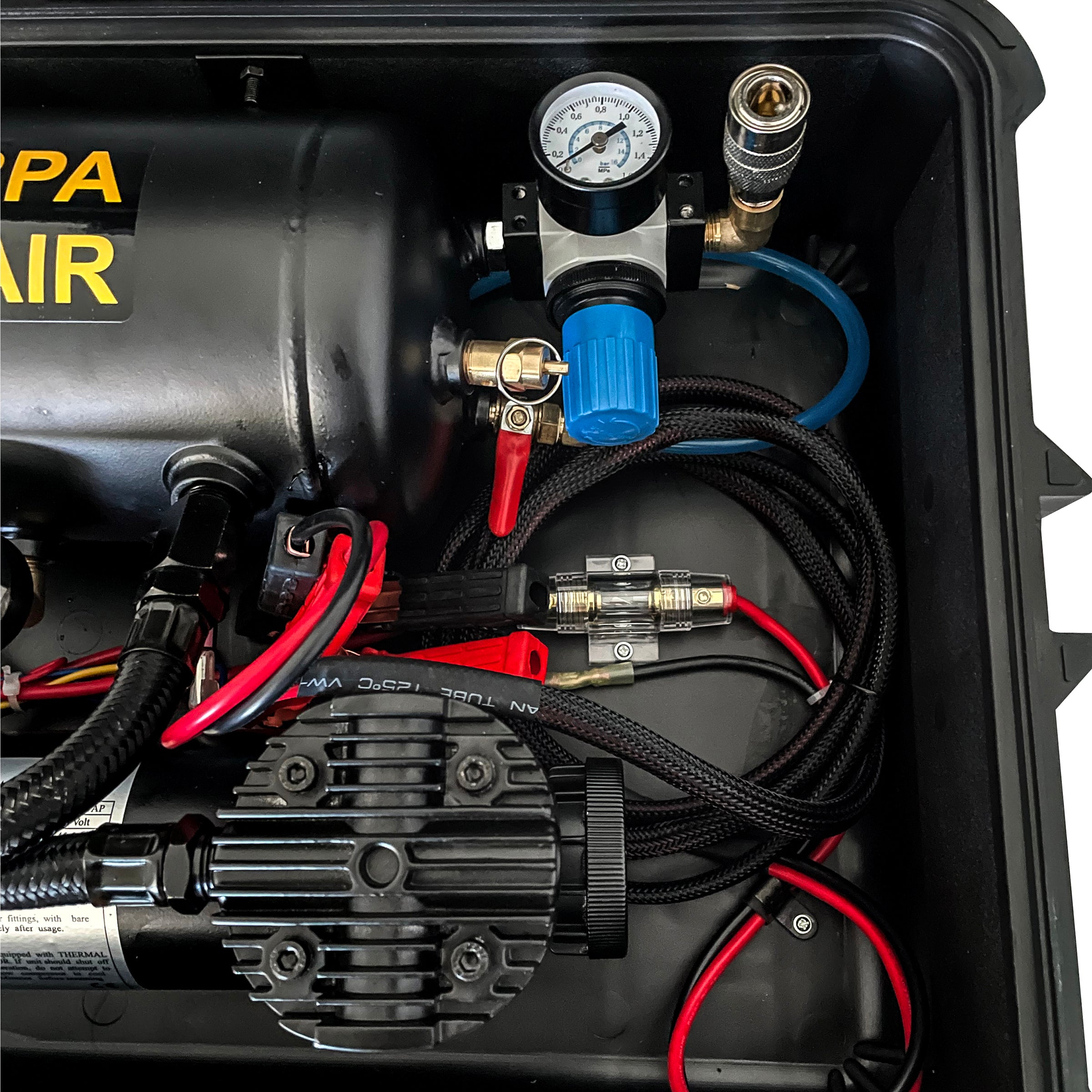

Automatic Pressure Control
With an integrated pressure switch, the BOX AIR operates much like a compact workshop compressor.
The compressor automatically cycles between:
- Cut-in pressure: 120 PSI
- Cut-out pressure: 150 PSI
A separate 180 PSI safety relief valve provides additional over-pressure protection.

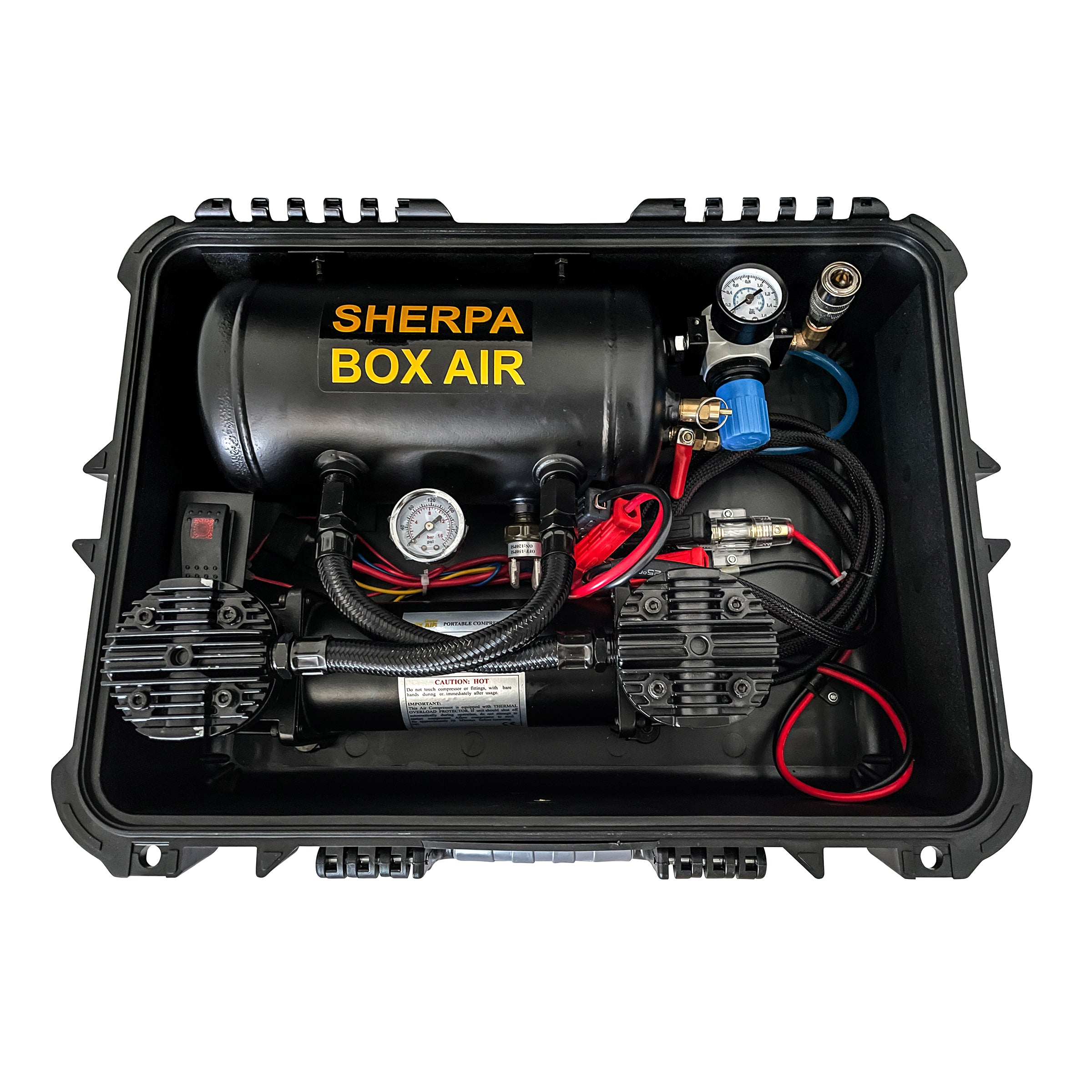

Heavy Duty Dual-Head Compressor
The BOX AIR uses a dual-head oil-free compressor designed to deliver strong airflow from a compact 12V package.
The compressor has a maximum operating pressure rating of 200 PSI, while the integrated control system normally operates the tank between 120 and 150 PSI.
This provides ample pressure for typical 4WD tyre inflation while keeping normal operation below the compressor's maximum pressure rating.

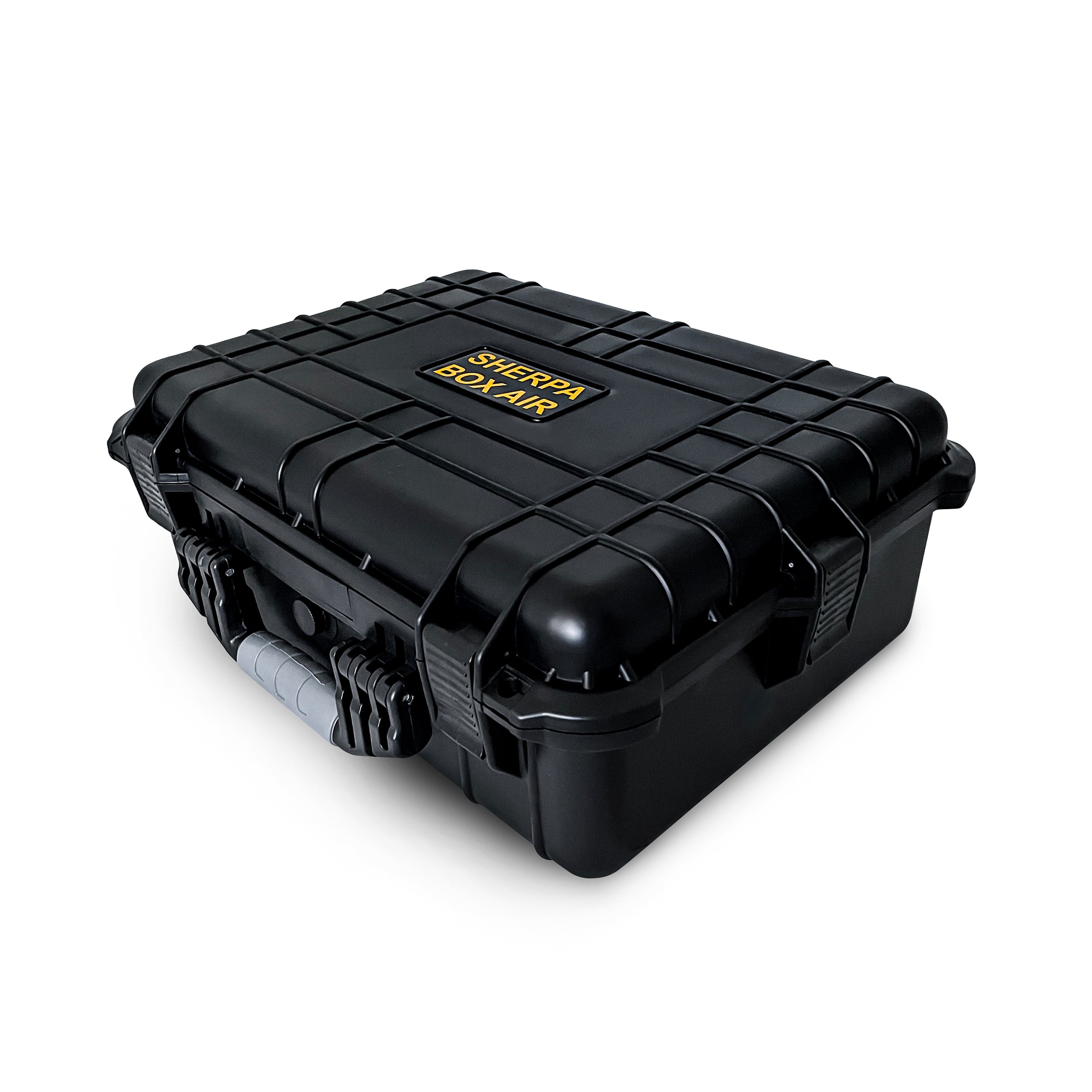

Heavy Duty Portable Carry Case
The complete air system is mounted inside a rugged carry case designed for touring and off-road use.
The case keeps the compressor, tank and accessories together and provides a stable platform when the system is placed on the ground for operation.
At approximately 15kg, the complete BOX AIR remains portable while providing the convenience of an integrated tank and automatic pressure control.
12V Power
The BOX AIR connects directly to a suitable 12V vehicle battery using the supplied 3m power leads with alligator clips.
Maximum current draw is approximately 45A, with a 60A fuse incorporated into the electrical system.
For best performance, ensure the battery and charging system are in good condition and that electrical connections are clean and secure.
Duty Cycle
The BOX AIR is rated to a 30% duty cycle at 100 PSI.
This means the compressor requires cooling periods during extended high-pressure operation. It is ideal for normal tyre inflation and touring use, but is not designed for continuous-duty industrial air supply.
Air Compressor Specifications
| Specification | Sherpa BOX AIR |
|---|---|
| Free Air Delivery | 118 L/min |
| Compressor Type | Dual-head, oil-free |
| Maximum Operating Pressure | 200 PSI |
| Pressure Switch Setting | 120 PSI ON / 150 PSI OFF |
| Relief Valve Setting | 180 PSI |
| Air Tank Volume | 3.8L |
| Motor Voltage | 12V DC |
| Maximum Current Draw | 45A |
| Fuse | 60A |
| Solenoid Rating | 100A |
| Duty Cycle | 30% @ 100 PSI |
| Power Leads | 3m with alligator clips |
| Air Line | 6.5m PU hose |
| Weight | 15kg |
| Dimensions | 550 x 410 x 190mm |
| Warranty | 12 Months |
Performance Data
| Pressure | Current Draw | Air Flow |
|---|---|---|
| 0 PSI | 16A | 4.2 CFM / approx. 118 L/min |
| 40 PSI | 30A | 2.3 CFM / approx. 65 L/min |
| 90 PSI | 38A | 1.9 CFM / approx. 54 L/min |
| 150 PSI | 41A | 1.6 CFM / approx. 45 L/min |
Ideal for 4WD Touring
The BOX AIR is particularly well suited to drivers who regularly air tyres down for sand, beach or off-road conditions and need a reliable way to reinflate them before returning to sealed roads.
Its combination of portability, automatic pressure control and integrated air storage makes it a practical alternative to permanently mounting a compressor and tank inside the vehicle.
Important Operating Information
Electrical supply: Connect the compressor directly to a suitable 12V battery using the supplied leads. Ensure the battery, terminals and connections are capable of supporting the compressor's current demand.
Duty cycle: Observe the 30% duty cycle at 100 PSI and allow the compressor to cool during extended use.
Pressure: Do not alter or bypass the pressure switch or safety relief valve. Only use air hoses, fittings and accessories rated for the operating pressure of the system.
