Sherpa 4x4 Winch Battery Cable Set – 3m Positive & Negative Leads
Description
The Sherpa 4x4 Winch Battery Cable Set includes 3m positive and negative battery leads for winch installations requiring additional cable length. Ideal for rear-mounted winches, trucks, agricultural equipment and other installations where the winch is positioned further from the battery.

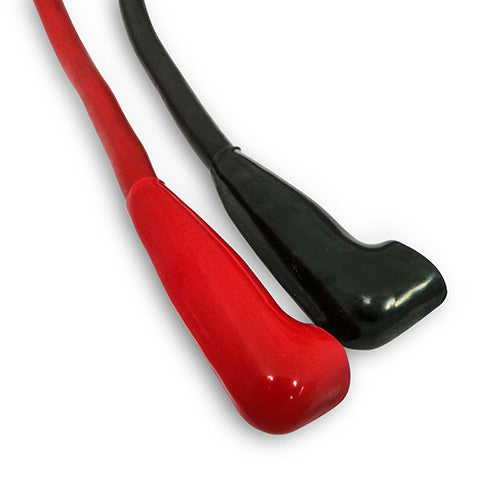

The kit includes one red positive cable and one black negative cable, each 3m long, together with terminals and protective boots. Terminals are supplied loose so the cables can be routed through glands and installation points before being cut and terminated as required.
Sherpa 4x4 3m Winch Battery Cable Set
Installing a winch away from the vehicle battery often requires longer battery cables than those supplied with a standard winch installation kit.
This Sherpa 4x4 cable set provides 3m positive and negative leads, making it particularly useful for rear-mounted winches and installations on larger vehicles, trucks and agricultural equipment.
Winch Battery Cable Set Features
- Includes positive and negative winch battery cables
- 3m length per cable
- Red positive cable
- Black negative cable
- Approx. 10mm cable outside diameter
- Approx. 9mm terminal hole diameter
- Terminals included
- Protective terminal boots included
- Terminals supplied loose for easier cable routing and installation
- Suitable for compatible winch installations requiring additional cable length
Ideal for Rear-Mounted Winches
The additional cable length makes this set particularly useful when installing a winch at the rear of a vehicle or in another location where the standard battery cables cannot reach the power source.
Typical applications include:
- Rear-mounted 4WD winches
- Utes and service vehicles
- Truck winch installations
- Agricultural equipment
- Machinery
- Custom winch installations
Terminals Supplied Loose
The cable terminals are supplied unfitted. This allows the cables to be routed through suitable glands, bodywork and other restricted installation points before the terminals are fitted.
The cables can also be cut to the required length during installation rather than leaving unnecessary excess cable in the vehicle.
Once the cable has been routed and sized, the supplied terminals should be correctly crimped to provide a secure, low-resistance electrical connection.
Winch Battery Cable Specifications
| Specification | Details |
|---|---|
| Number of Cables | 2 |
| Positive Cable | Red |
| Negative Cable | Black |
| Cable Length | 3m each |
| Approx. Cable Outside Diameter | 10mm |
| Approx. Terminal Hole Diameter | 9mm |
| Terminals | Included – supplied unfitted |
| Protective Terminal Boots | Included |
Installation Considerations
Electric winches can draw very high current, particularly under heavy load. Battery cable length, conductor size, connection quality and voltage drop can all affect winch performance.
Ensure the cable set is suitable for the current requirements and installation length of the selected winch. Connections should be securely crimped, protected against accidental short circuits and routed away from sharp edges, excessive heat and moving components.
Keep cable runs as short as practical and ensure both positive and negative connections are secure and suitable for the winch installation.
