Sherpa 4x4 Wireless Winch Remote & Receiver Kit – 12V / 24V
Description
The Sherpa 4x4 Wireless Winch Remote & Receiver Kit provides convenient wireless control of compatible Sherpa winches from up to 20m away. The plug-and-play receiver connects directly to the same 4-pin control port used by the Sherpa wired hand remote, providing greater freedom when positioning yourself during winching operations.
Compatible with both 12V and 24V Sherpa 4x4 winches fitted with the appropriate 4-pin control box connection, the receiver is powered directly through the winch control system and requires no separate receiver battery.

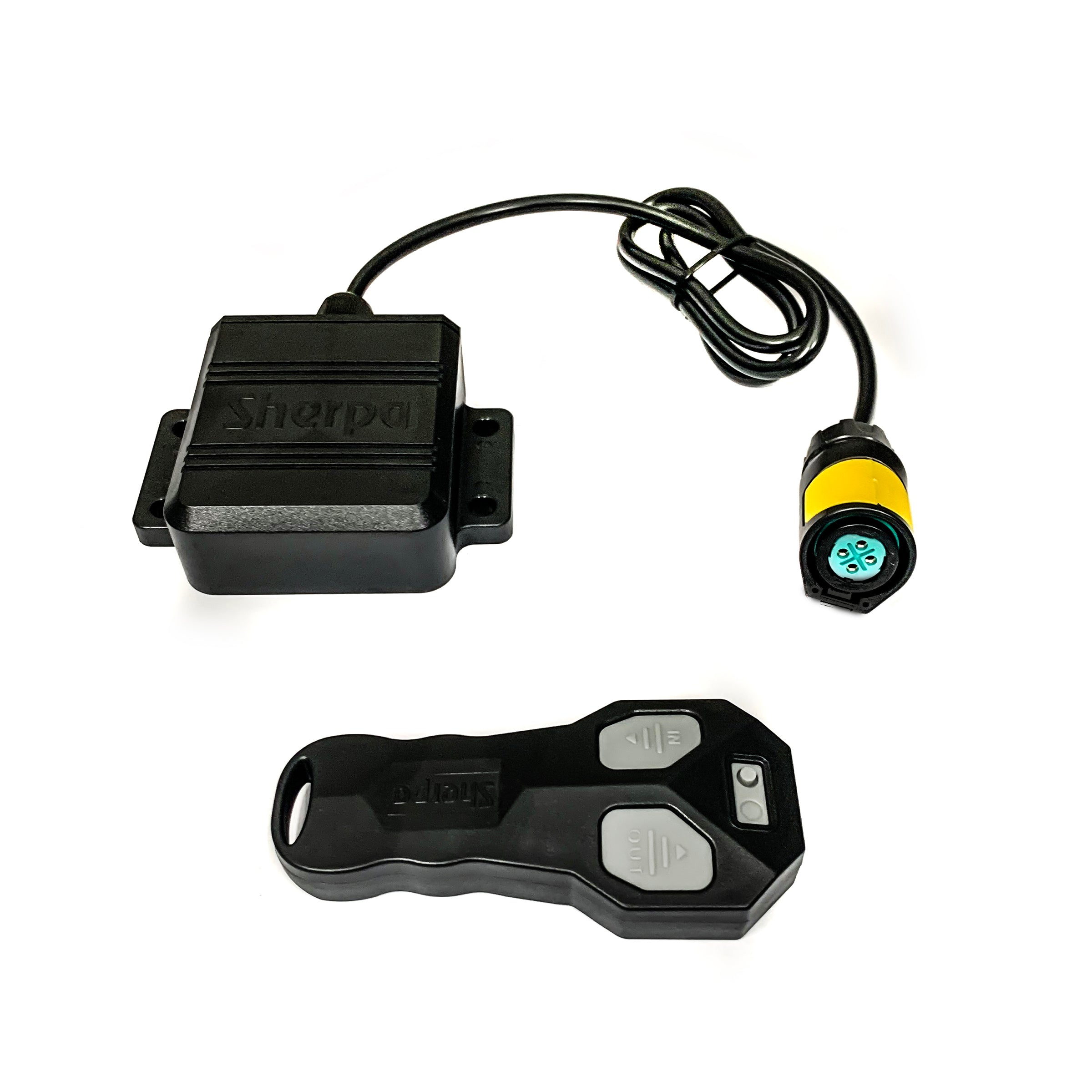

Sherpa 4x4 Wireless Winch Remote & Receiver Kit
- Wireless winch control from up to 20m away
- Simple plug-and-play installation
- Connects directly to compatible Sherpa 4x4 4-pin remote ports
- Suitable for compatible 12V and 24V Sherpa winches
- Winch in and winch out control
- Receiver powered through the winch control system
- No separate receiver battery required
- IP68 rated receiver enclosure
- Weatherproof and shock-resistant housing
- 80cm receiver lead
- Made in Australia
- 12 month warranty
Simple Plug & Play Installation
No complicated wiring is required. The wireless receiver plugs directly into the 4-pin hand controller port on compatible Sherpa 4x4 winch control boxes.
Once connected, the handheld wireless remote allows the operator to control winch in and winch out without being restricted by the wired remote lead.
Wireless Control Up To 20m
With a stated operating range of up to 20m, the wireless remote provides greater freedom when operating your winch. This can make it easier to position yourself where you have a clear view of the vehicle, winch rope and recovery area.
The remote may also be operated from inside the vehicle where appropriate, avoiding the need to run the wired hand controller through a window or door.
Note: Actual wireless operating range may vary depending on installation, surrounding structures, interference and operating conditions.
Designed for Sherpa 4x4 Winches
The receiver is designed for compatible Sherpa 4x4 winch control systems and can be used with both 12V and 24V winches.
Compatible models include Sherpa 4x4 9,500lb, 12,000lb, 17,000lb and 25,000lb winches fitted with the compatible 4-pin control box connection.
Please Note: Compatibility is determined by the winch control system and 4-pin remote connection. Check your Sherpa winch control box before ordering. If you are unsure whether this wireless remote kit suits your winch, please contact Scintex for assistance.
IP68 Receiver Enclosure
The wireless receiver features an IP68 rated enclosure designed to provide protection against dust and water ingress. Its weatherproof, shock-resistant housing is suited to the demanding conditions commonly encountered in 4WD and recovery applications.
Wireless Remote Specifications
| Specification | Details |
|---|---|
| Type | Wireless winch remote and receiver kit |
| Working Distance | Up to 20m |
| Receiver Lead Length | 80cm |
| Connection | 4-pin Sherpa 4x4 control box remote port |
| Winch Voltage | 12V or 24V |
| Receiver Power | Powered through winch control system |
| Receiver IP Rating | IP68 enclosure |
| Construction | Weatherproof, shock-resistant housing |
| Country of Manufacture | Australia |
| Warranty | 12 months |
Safe Winch Operation
Wireless control is a convenient addition to a winch system but does not replace normal winching safety procedures. Always maintain a clear view of the vehicle, winch rope and recovery area while operating the winch.
Keep people clear of the winch rope and recovery path, use appropriately rated recovery equipment and follow the Sherpa winch operating and safety instructions.
