Sherpa 4x4 ‘The Stallion’ 25,000lb Heavy-Duty Truck Winch – 12V / 24V
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
The Sherpa 4x4 'The Stallion' 25,000lb Winch is designed for demanding heavy-vehicle recovery applications where substantially more pulling capacity is required than a conventional 4WD winch can provide.
With a stated 25,000lb (11,363kg) rated line pull, powerful 8.9HP series-wound motor and heavy-duty 3-stage planetary gearbox, The Stallion is suited to trucks, large 4WDs and other appropriately engineered high-load recovery installations.
Available in 12V or 24V, the winch can be configured with either 30m of 12mm synthetic rope or 30m of 12mm steel cable.
- 25,000lb (11,363kg) rated line pull
- 8.9HP series-wound motor
- 12V or 24V options
- 30m × 12mm synthetic rope option – 31,000lb MBS
- 30m × 12mm steel cable option – 28,000lb MBS
- Genuine Albright heavy-duty contactor
- IP68 stated ingress rating
- Heavy-duty 3-stage planetary gearbox
- Automatic gearbox-mounted brake
- Upgraded high-load gearbox bushes
- 316 stainless steel fittings and cross members

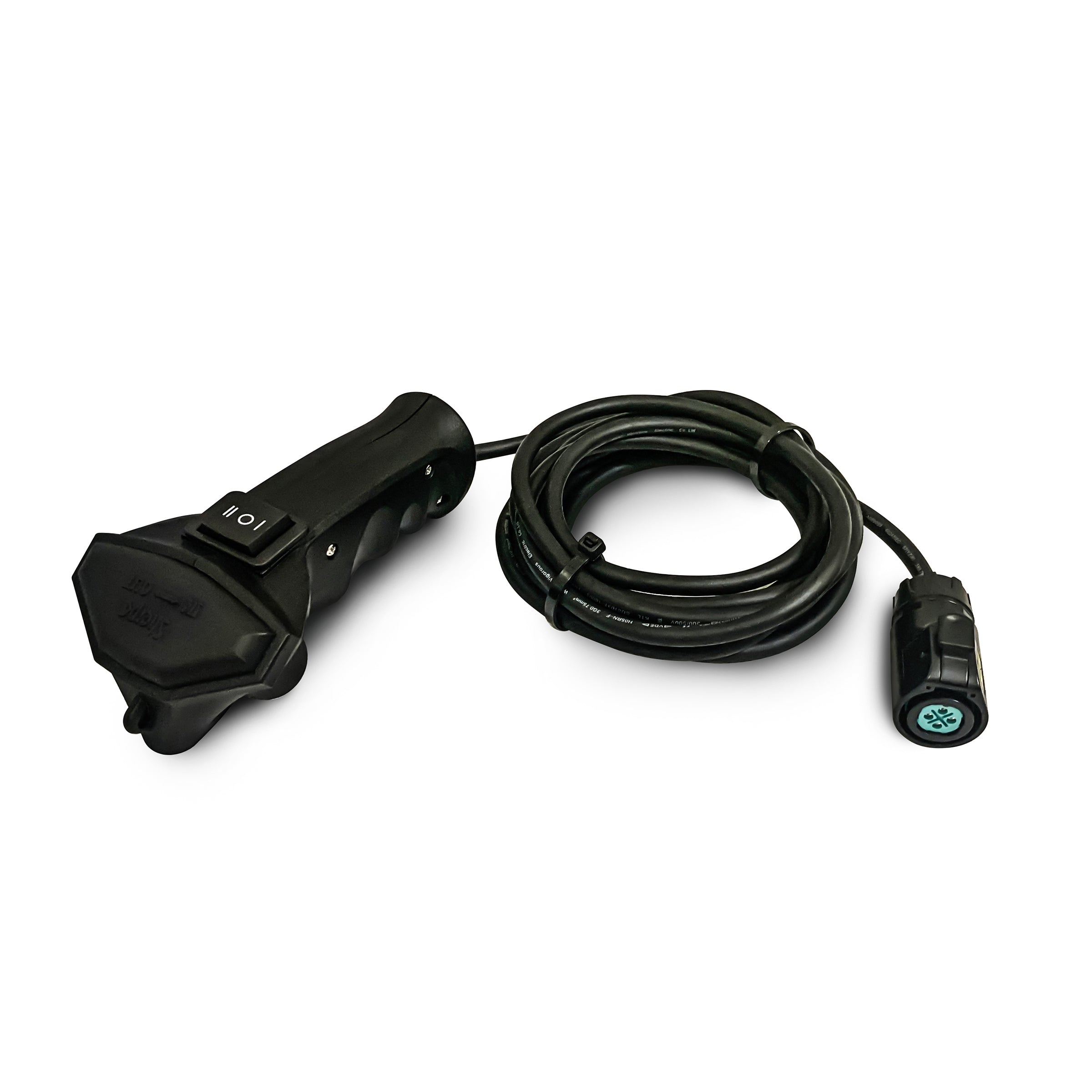

- Wired hand remote included
- 5 year warranty

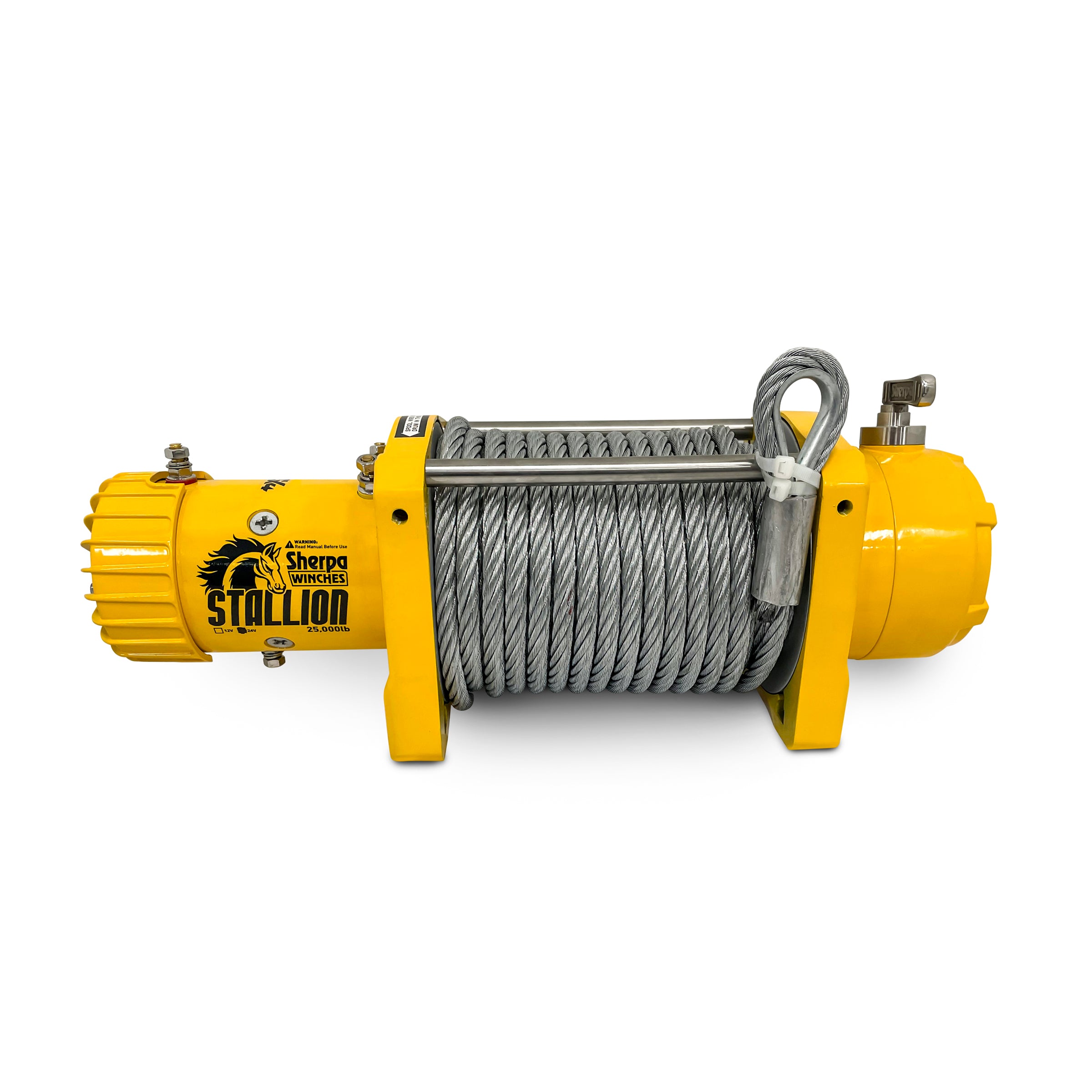

Sherpa 4x4 'The Stallion' 25,000lb Heavy-Duty Winch
Built for Heavy Vehicle Recovery
The Stallion combines a high-output electric motor, heavy-duty gearbox and large drum capacity to provide the pulling capability required for demanding recovery applications.
Its stated 25,000lb rated line pull makes it suitable for appropriately engineered installations on trucks, large 4WDs and other heavy vehicles where the vehicle, mounting system and electrical system are capable of supporting the loads involved.
Important: Winch rope or cable must be correctly wound onto the drum under load before use. Refer to the supplied winch manual for the correct first-use procedure.
8.9HP Series-Wound Motor
The Stallion uses Sherpa's 8.9HP series-wound electric motor, available in both 12V and 24V configurations.
The motor and gearbox combination is designed to provide the torque required for high-load recovery work while retaining compact vehicle-mounted packaging.
Heavy-Duty 3-Stage Planetary Gearbox
A 3-stage planetary gearbox provides the reduction required to convert motor speed into high winching torque.
The Stallion also incorporates upgraded high-load gearbox bushes to suit the forces generated during heavy recovery operation.
Gearbox-Mounted Automatic Brake
The automatic brake is mounted within the gearbox rather than inside the rope drum.
This design helps reduce direct brake heat transfer into the drum, which is particularly relevant when using synthetic winch rope.
316 Stainless Steel Components
Selected fittings and cross members are manufactured from 316 stainless steel to provide corrosion resistance in demanding vehicle and recovery environments.
IP68 Stated Ingress Rating
The Stallion carries a stated IP68 ingress rating when correctly installed and maintained.
The rating should not be treated as a substitute for correct installation, maintenance or inspection after exposure to water, mud or other contaminants.

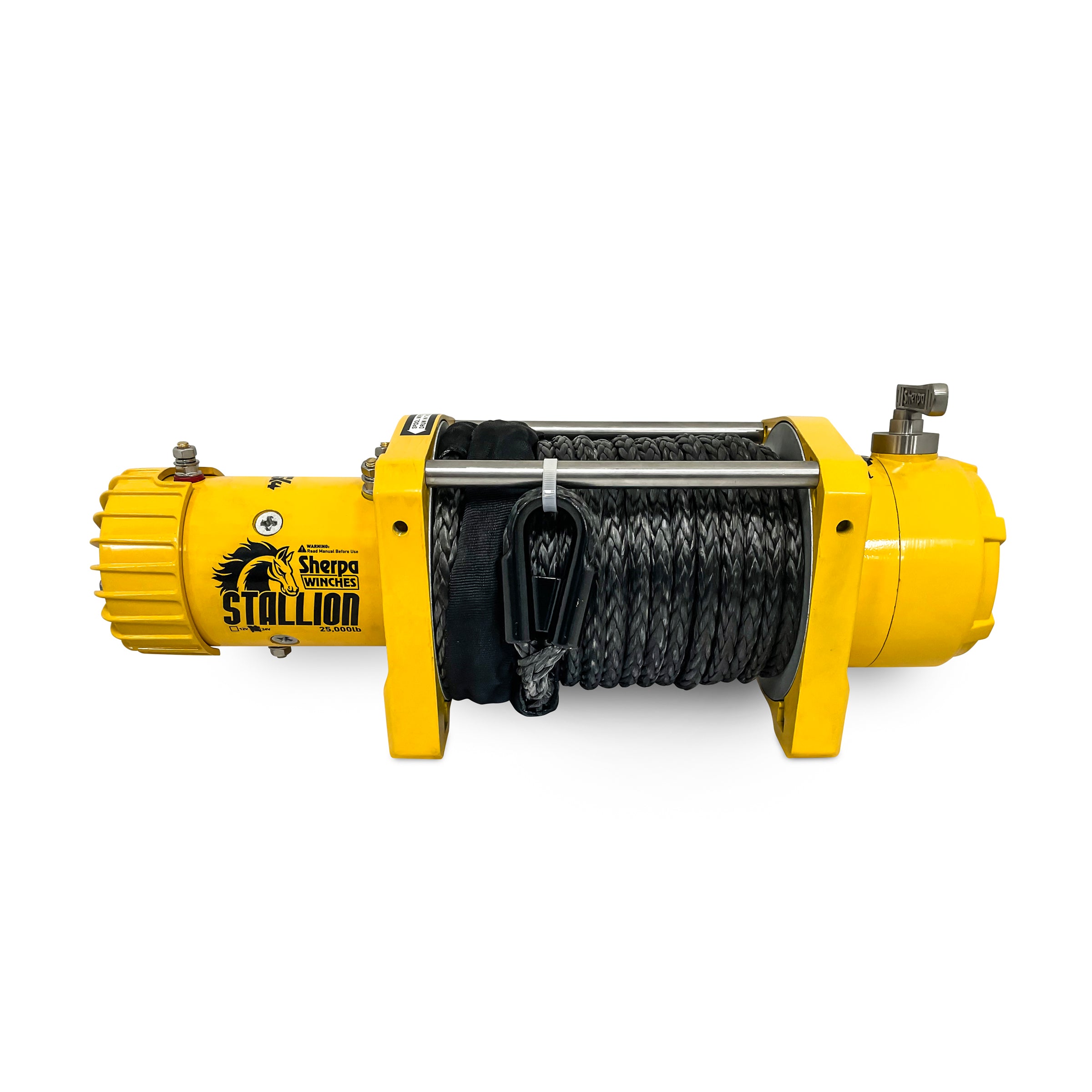

Synthetic Rope or Steel Cable
Choose between two supplied line configurations:

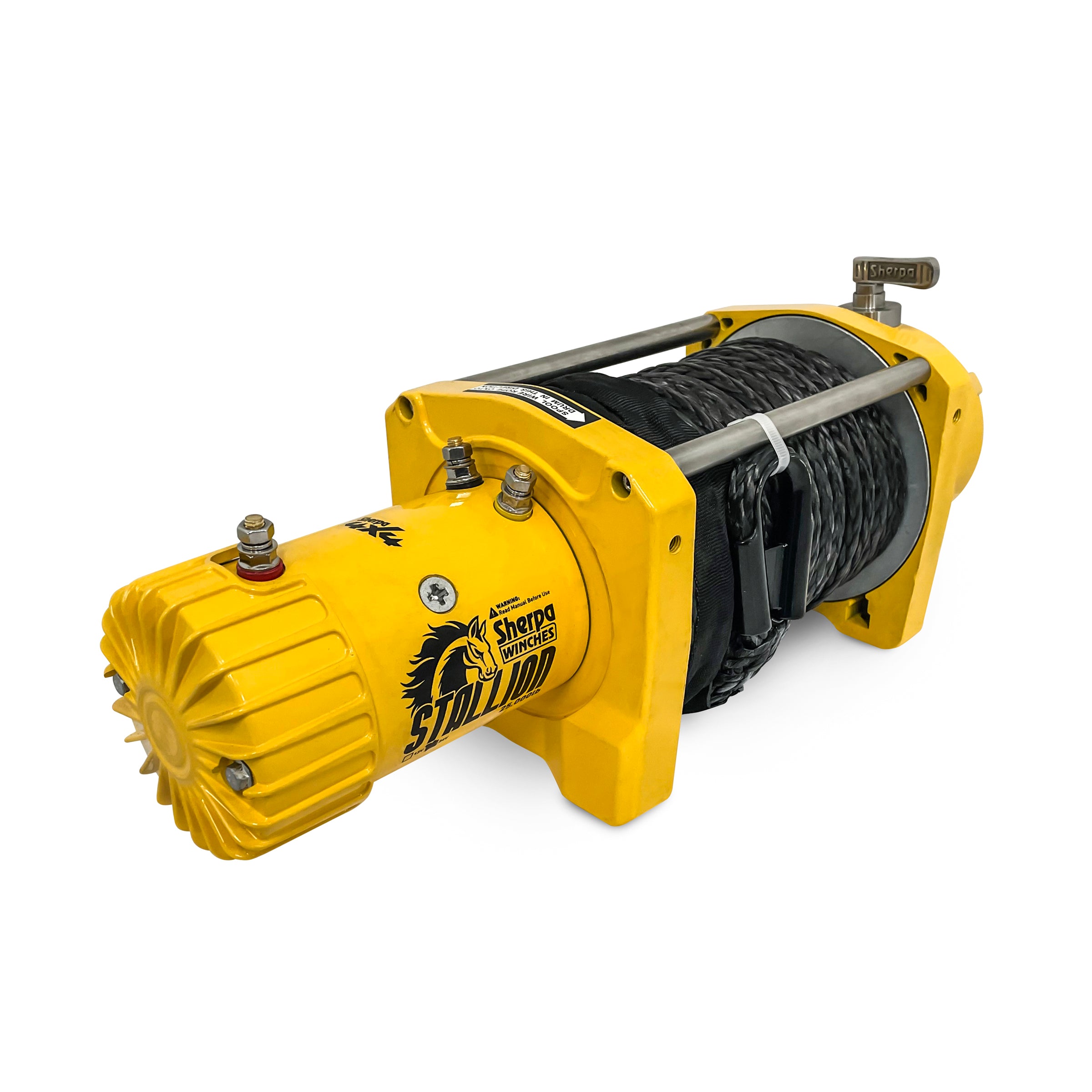

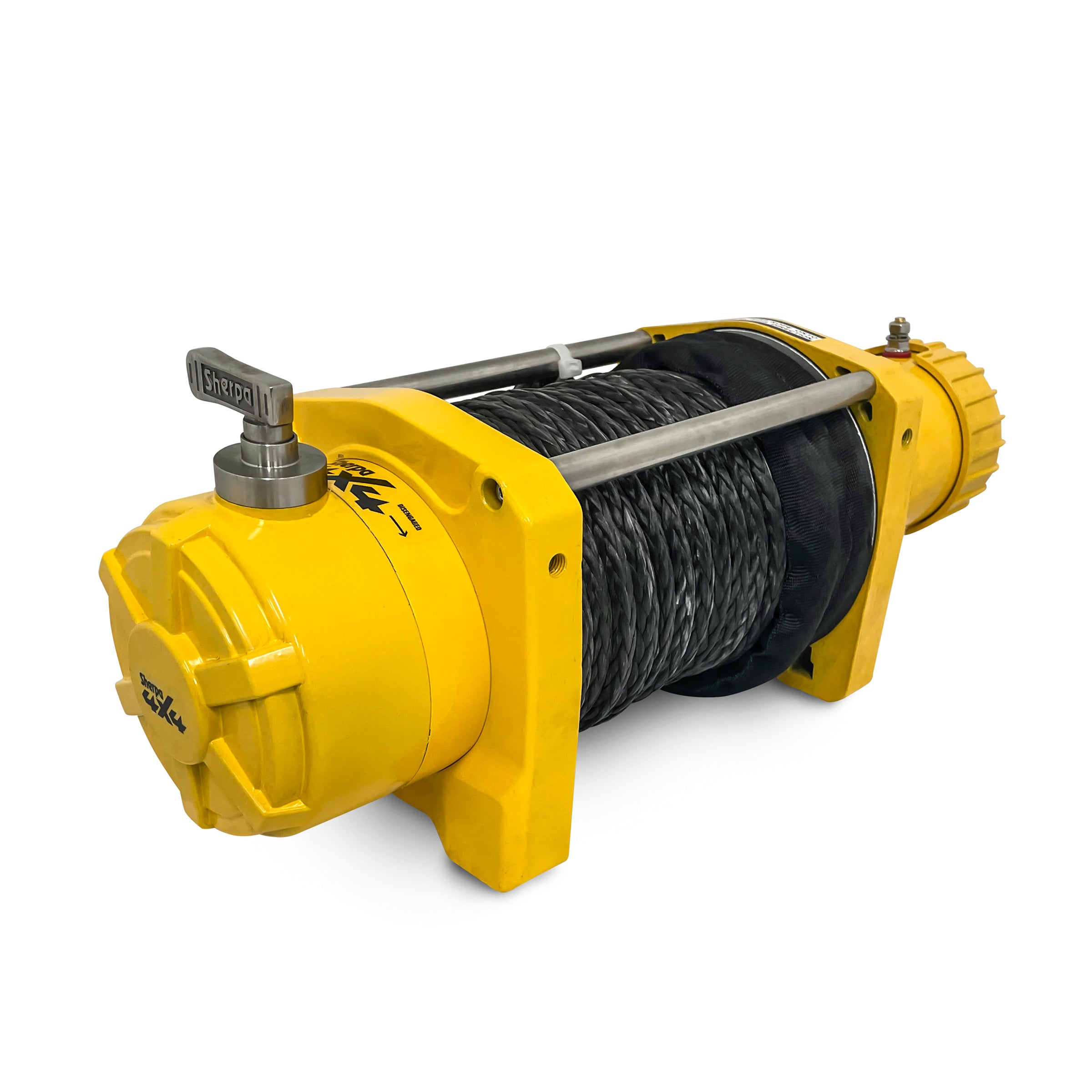

- Synthetic Rope: 30m × 12mm with a stated 31,000lb Minimum Breaking Strength (MBS), supplied with polished aluminium hawse fairlead.

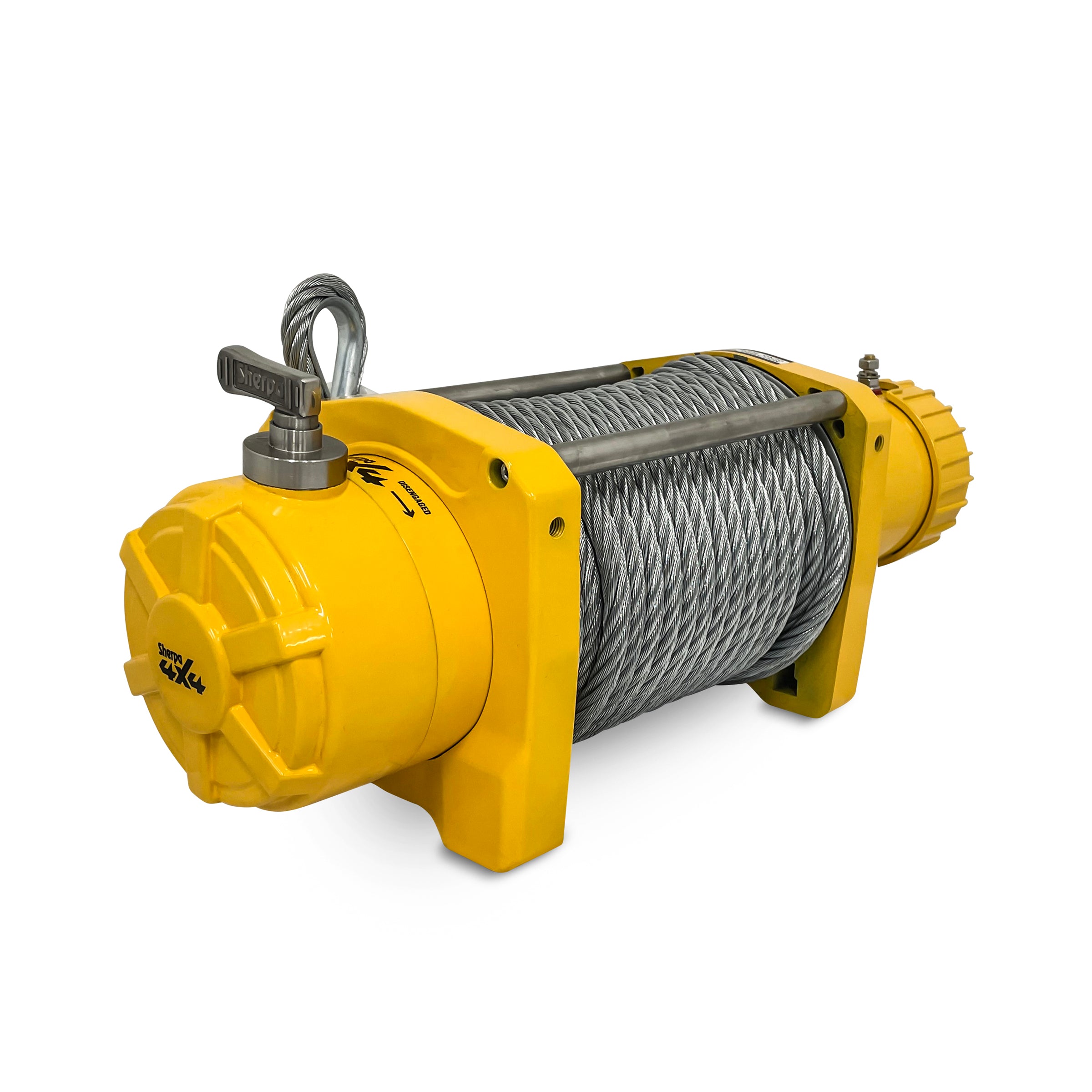

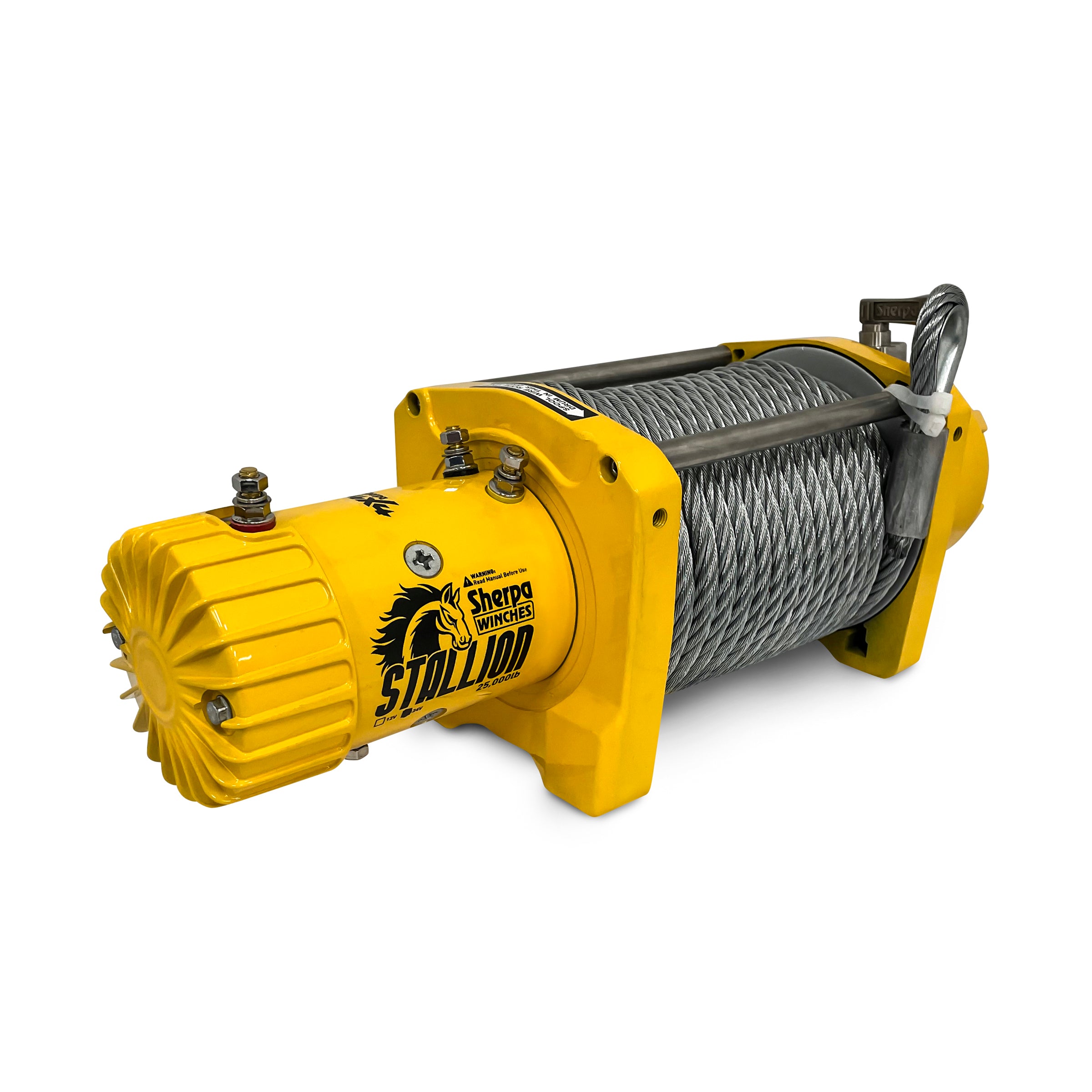

- Steel Cable: 30m × 12mm with a stated 28,000lb Minimum Breaking Strength (MBS), supplied with 4-roller fairlead.
MBS is a breaking-strength figure and should not be interpreted as a Working Load Limit or as the safe capacity of the complete recovery system.

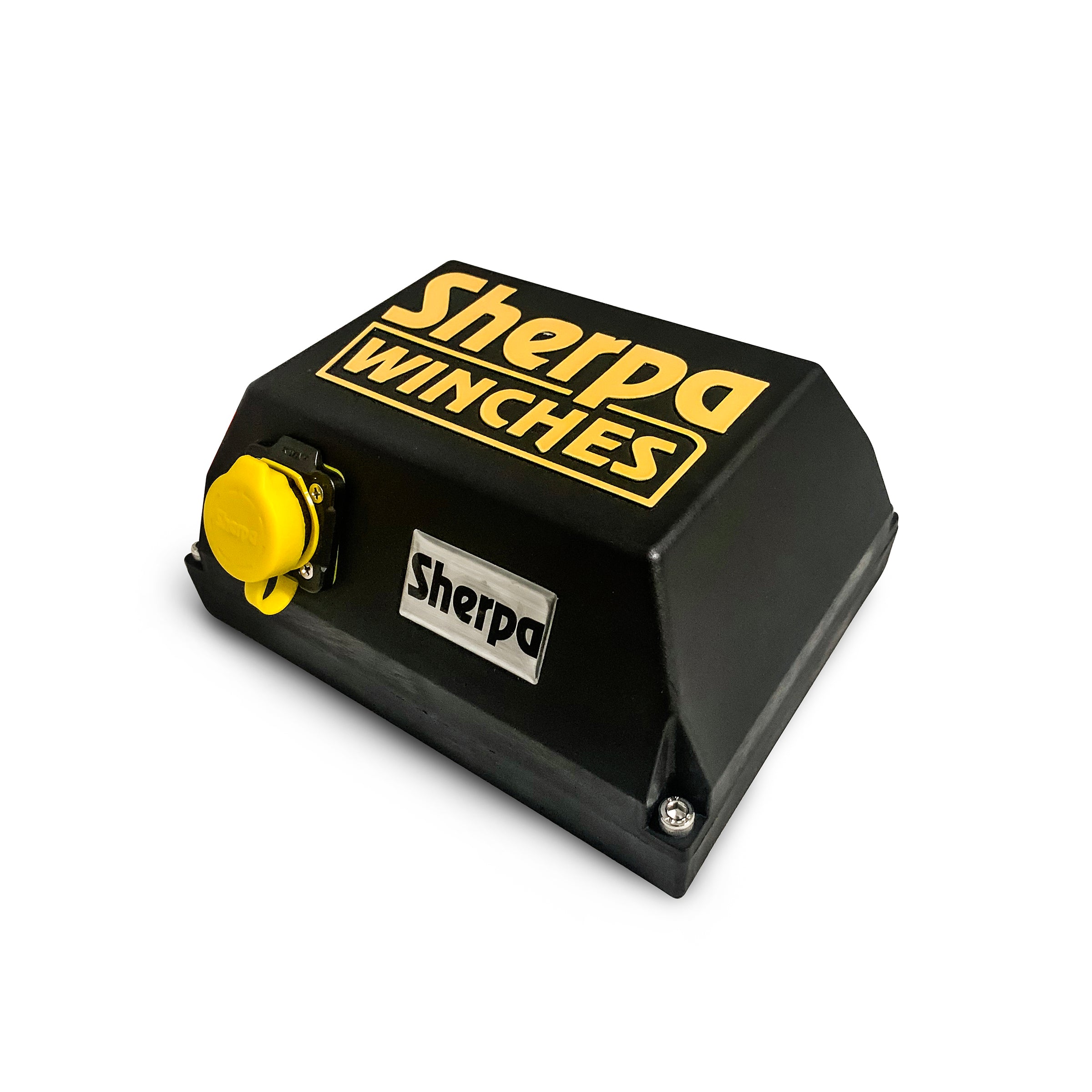

Genuine Albright Heavy-Duty Contactor
The Stallion is supplied with a genuine Albright International heavy-duty contactor in the winch control box.
The supplied specification states a maximum current capability of up to 800A. Actual winch current draw varies substantially with load and system voltage.

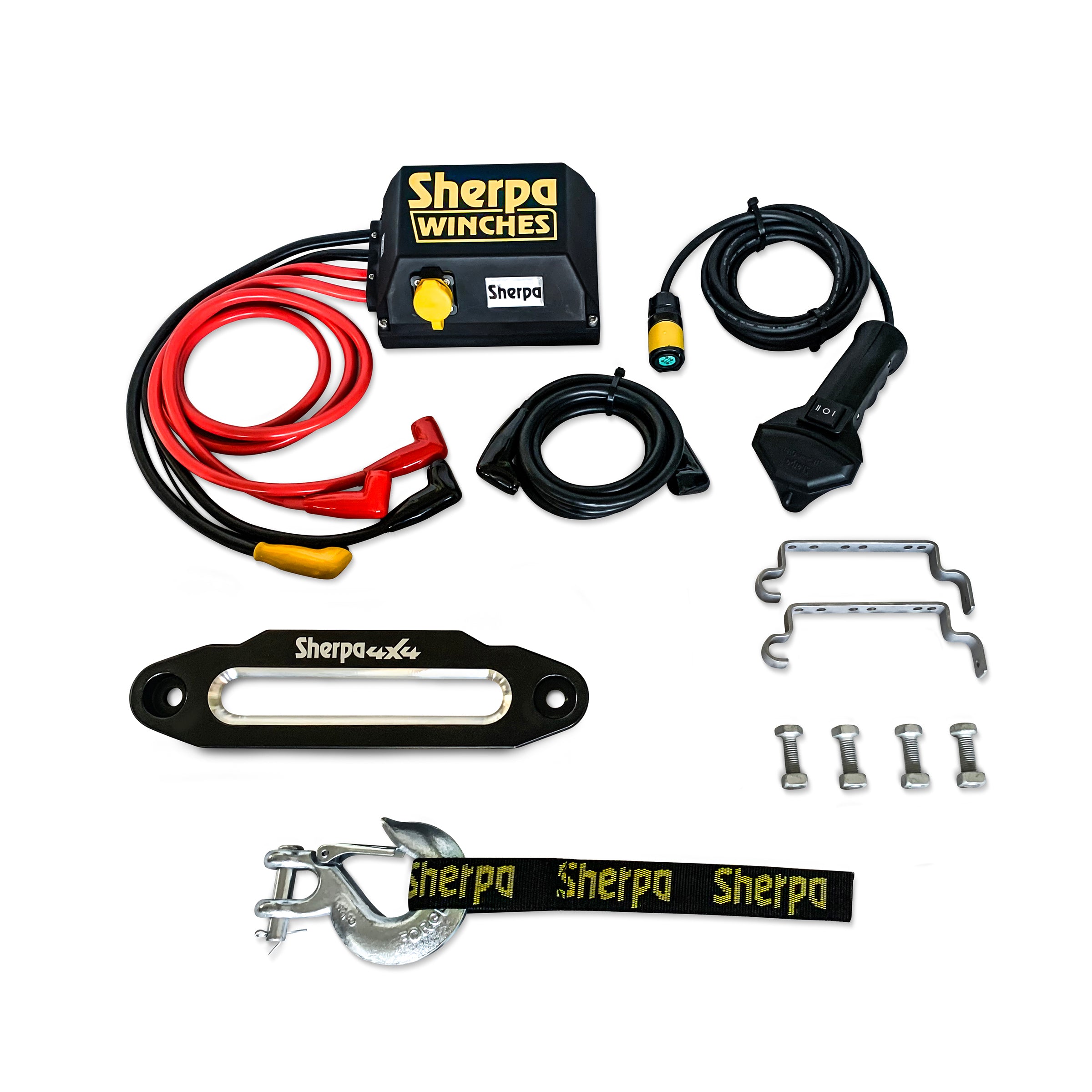

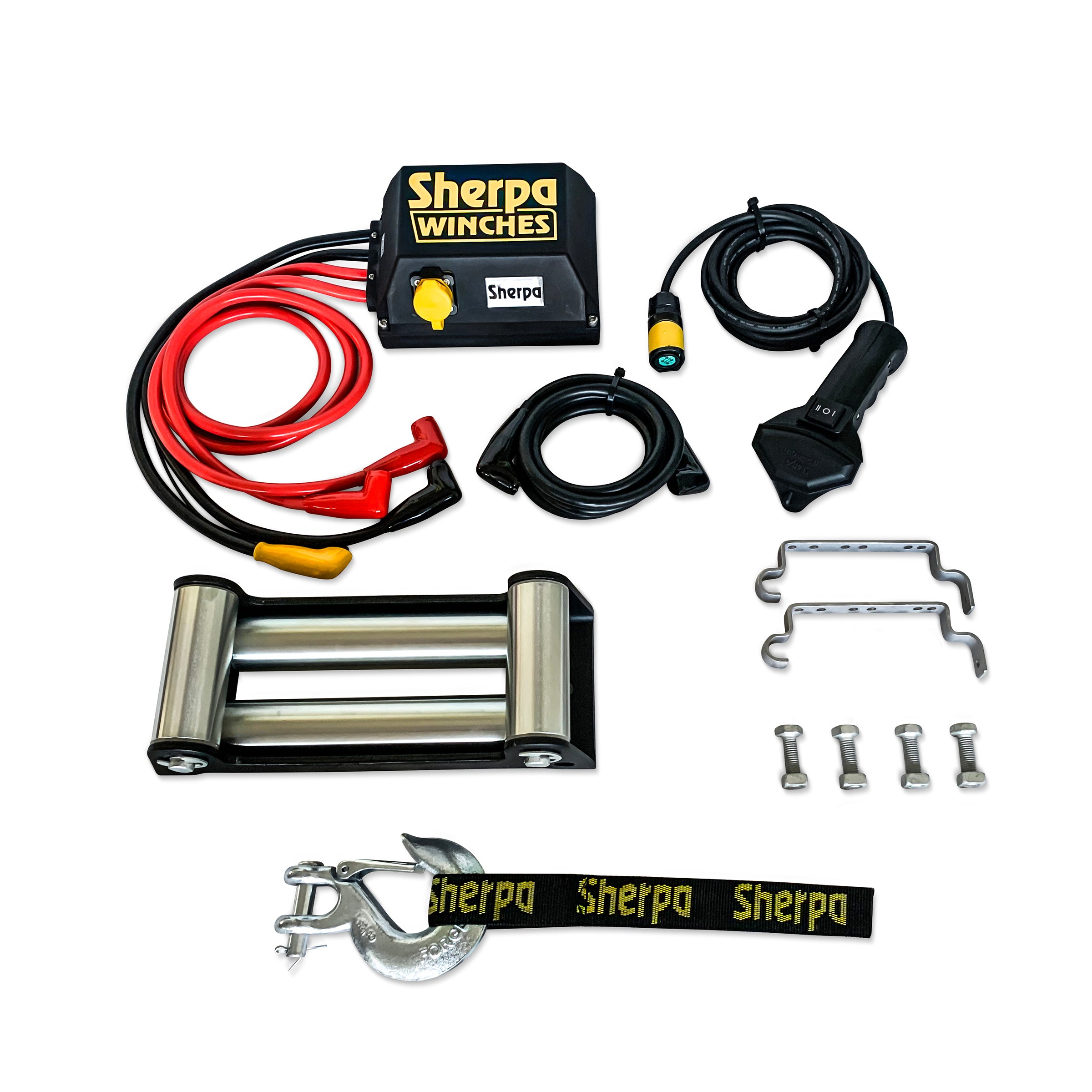

What's Included?
|
|
| Synthetic Rope Models | Steel Cable Models |
- Sherpa Stallion 25,000lb winch
- 30m synthetic rope or steel cable depending on selected configuration
- Polished aluminium hawse fairlead with synthetic rope models
- 4-roller fairlead with steel cable models

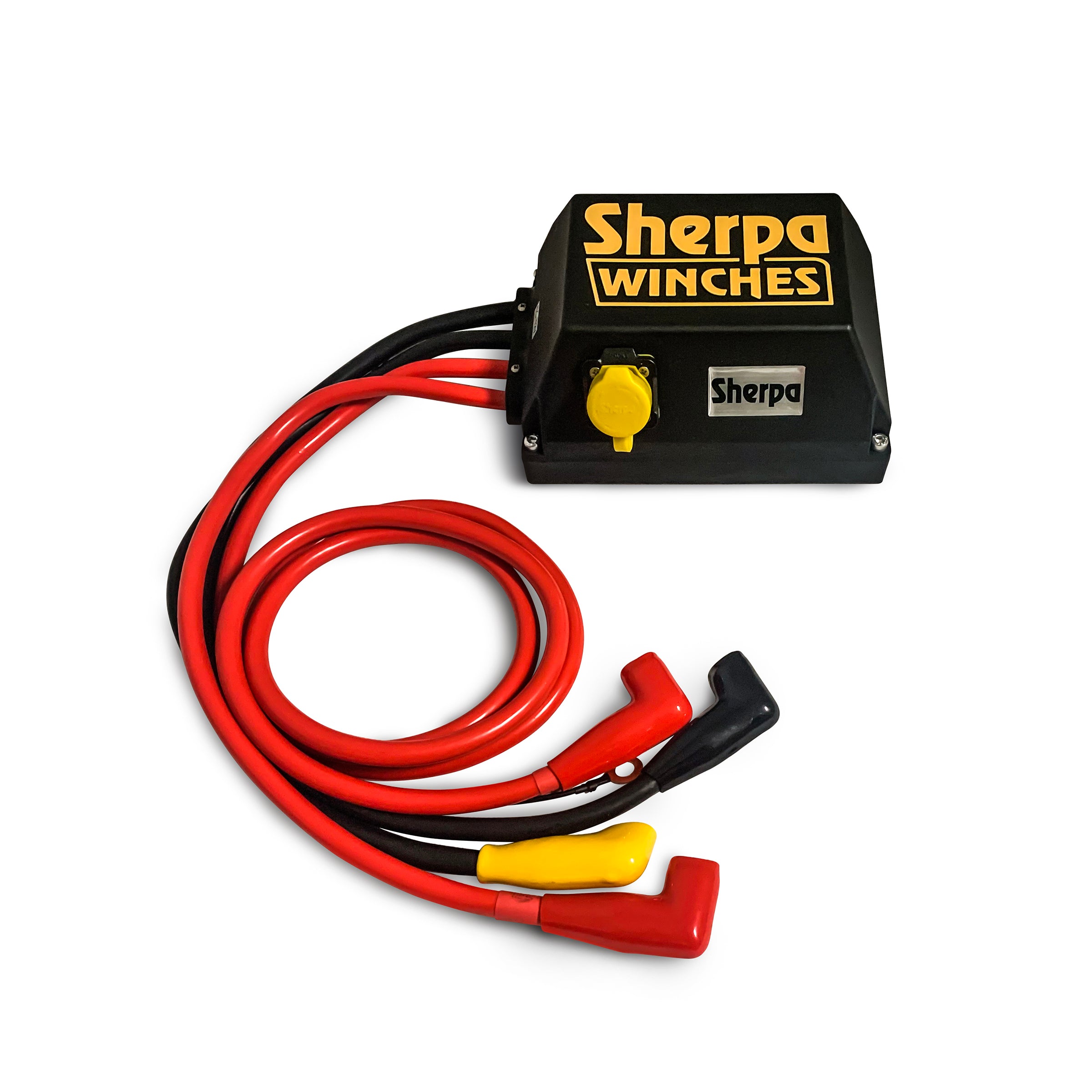

- Control box with genuine Albright heavy-duty contactor
- Wired hand remote
- Winch power cabling and separate earth cable
- Winch hook and strap
- Winch and control box mounting bolts
- Control box mounting brackets
The control box can be flush-mounted in suitable installations or positioned above the winch using the supplied brackets. Always confirm mounting space, structural requirements and electrical capacity before installation.
Recommended Winch Accessories
Depending on the installation and intended recovery use, accessories such as a winch damper, battery isolation switch and wireless remote may be useful.
A winch damper is recommended as an additional safety measure during recovery operations. A suitably rated battery isolation switch can also provide a convenient means of isolating winch power when the system is not in use.
See the Sherpa 4WD Accessories range for compatible accessories.
Stallion Winch Specifications
| Specification | Value |
|---|---|
| Rated Line Pull | 25,000lb (11,363kg) |
| Voltage | 12V or 24V options |
| Motor | 8.9HP series-wound |
| Gearbox | 3-stage planetary |
| Synthetic Rope | 30m × 12mm, 31,000lb MBS |
| Steel Cable | 30m × 12mm, 28,000lb MBS |
| Drum Size | 64mm diameter × 224mm length |
| Mounting Bolt Pattern | 254 × 114.3mm |
| Mounting Bolt Diameter | 11.2mm |
| Clutch | 180° turn, free-spooling slide ring gear |
| Brake | Automatic gearbox-mounted brake |
| Contactor | Genuine Albright International heavy-duty contactor, stated up to 800A |
| Duty Cycle | Intermittent |
| Fairlead – Synthetic Rope | Polished aluminium hawse |
| Fairlead – Steel Cable | 4-roller fairlead |
| Battery Leads | 1.8m |
| Wired Remote Lead | 3.5m |
| IP Rating | IP68 |
| Certification | CE |
| Warranty | 5 years |
| Weight | See winch weight chart |
| Dimensions | See winch CAD drawings |
12V Winch Performance
| Line Pull (lb) | Line Speed (m/min) | Motor Current (A) |
|---|---|---|
| 0 | 5.7 | 65 |
| 1,500 | 4.8 | 80 |
| 3,000 | 3.8 | 120 |
| 6,000 | 3.0 | 155 |
| 9,000 | 2.5 | 190 |
| 12,000 | 2.1 | 225 |
| 15,000 | 1.8 | 265 |
| 18,000 | 1.6 | 300 |
| 22,000 | 1.4 | 350 |
| 25,000 | 1.2 | 400 |
24V Winch Performance
| Line Pull (lb) | Line Speed (m/min) | Motor Current (A) |
|---|---|---|
| 0 | 5.9 | 35 |
| 1,500 | 5.1 | 40 |
| 3,000 | 4.0 | 60 |
| 6,000 | 3.2 | 80 |
| 9,000 | 2.8 | 95 |
| 12,000 | 2.3 | 115 |
| 15,000 | 2.1 | 140 |
| 18,000 | 1.8 | 155 |
| 22,000 | 1.6 | 180 |
| 25,000 | 1.4 | 210 |
Stallion Winch Installation – Dodge Ram
Installation & Electrical Requirements
A 25,000lb electric winch places substantial loads on both the vehicle structure and electrical system.
Before installation, confirm the following are appropriately sized and rated:
- Winch mounting structure
- Mounting fasteners
- Vehicle battery system
- Charging system
- Power and earth cabling
- Electrical isolation and protection
- Recovery points and connecting equipment
The supplied performance data shows current draw of up to approximately 400A on the 12V model and 210A on the 24V model at the stated 25,000lb load point.
The Stallion is an intermittent-duty winch. Observe the operating and cooling requirements in the Sherpa instructions and do not treat the winch as continuous-duty equipment.
Always keep people clear of the tensioned winch line and potential recoil path during recovery.
