Tight Access Submersible Water Pumps
SKU: SPS012F
FOR BULKY AND HEAVY ITEMS CONTACT US FOR A FREIGHT QUOTE.
For orders outside of Australia contact us for a freight quote.
Description
This range of 240 volt, submersible pumps includes a integral float switch which makes them ideal for tight access pits and sumps where traditional float switches on leads would get hung up. These pumps are ideal for a range of applications including domestic pumping, farming, fisheries, basement dewatering plus much more.
240V Submersible Centrifugal Pump
These submersible water transfer pumps are constructed from high quality components ensuring a long operating life. Each pump includes an Italian made silicon carbide mechanical seal and stainless steel pump shaft which helps to deliver reliable operation. This pumps is suitable for fresh water applications or limited use in saline water.
As the float switch for these pumps is integrated into the pump they are ideal for pits and tight holes where traditional float switches don't work. Other pumps will jam their floats in the on position causing the pump to suck the pit dry and overheat the motor leading to failure. These units avoid this and are unique for this reason.
The model SPSSS95LPM pump has the advantage of being able to pump water down to depths of only 45mm. The pump will turn on when water levels reach 125mm but will continue to draw down the level to the 45mm 'off' switch point. This makes a massive difference when you're trying to pump a basement or flooded area dry.

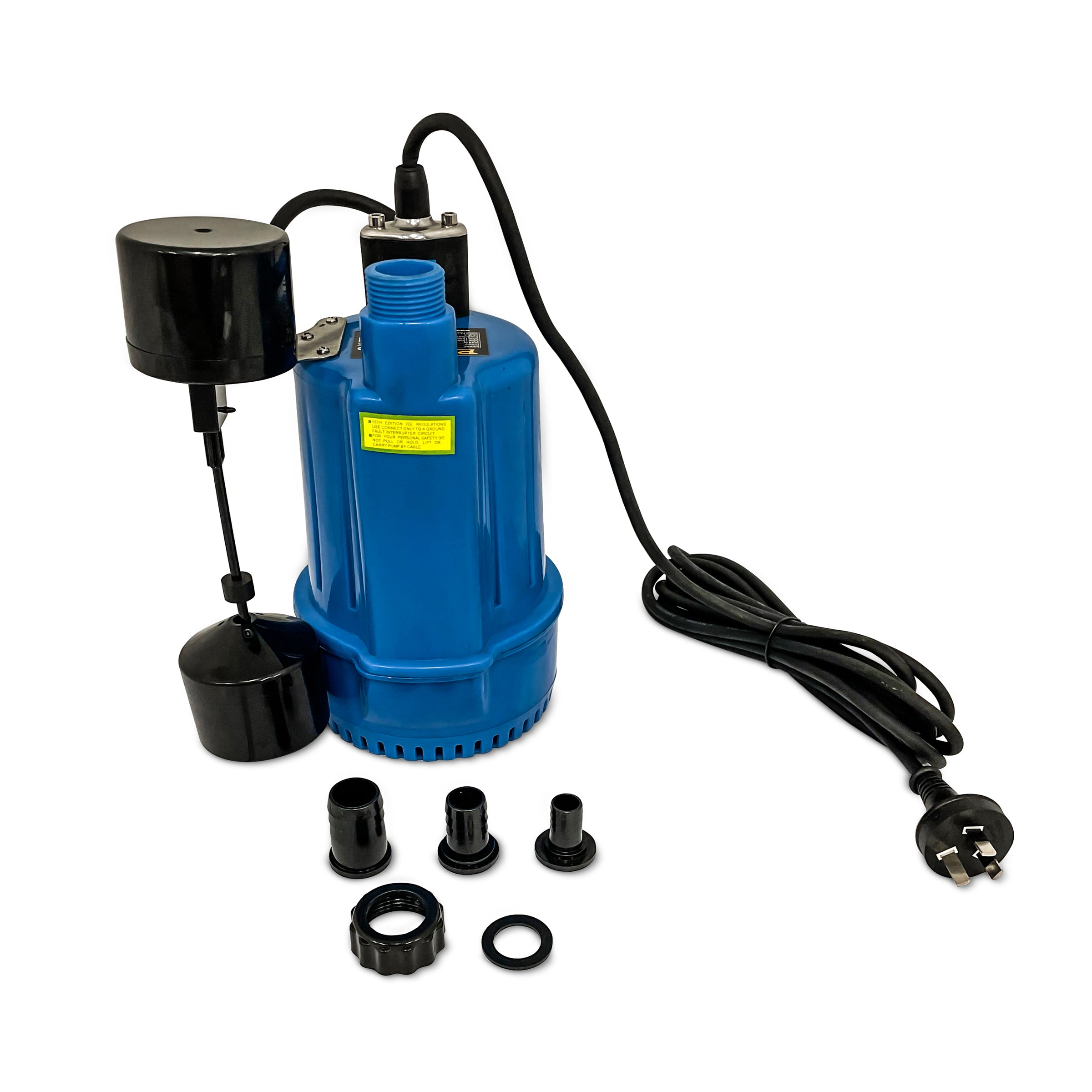

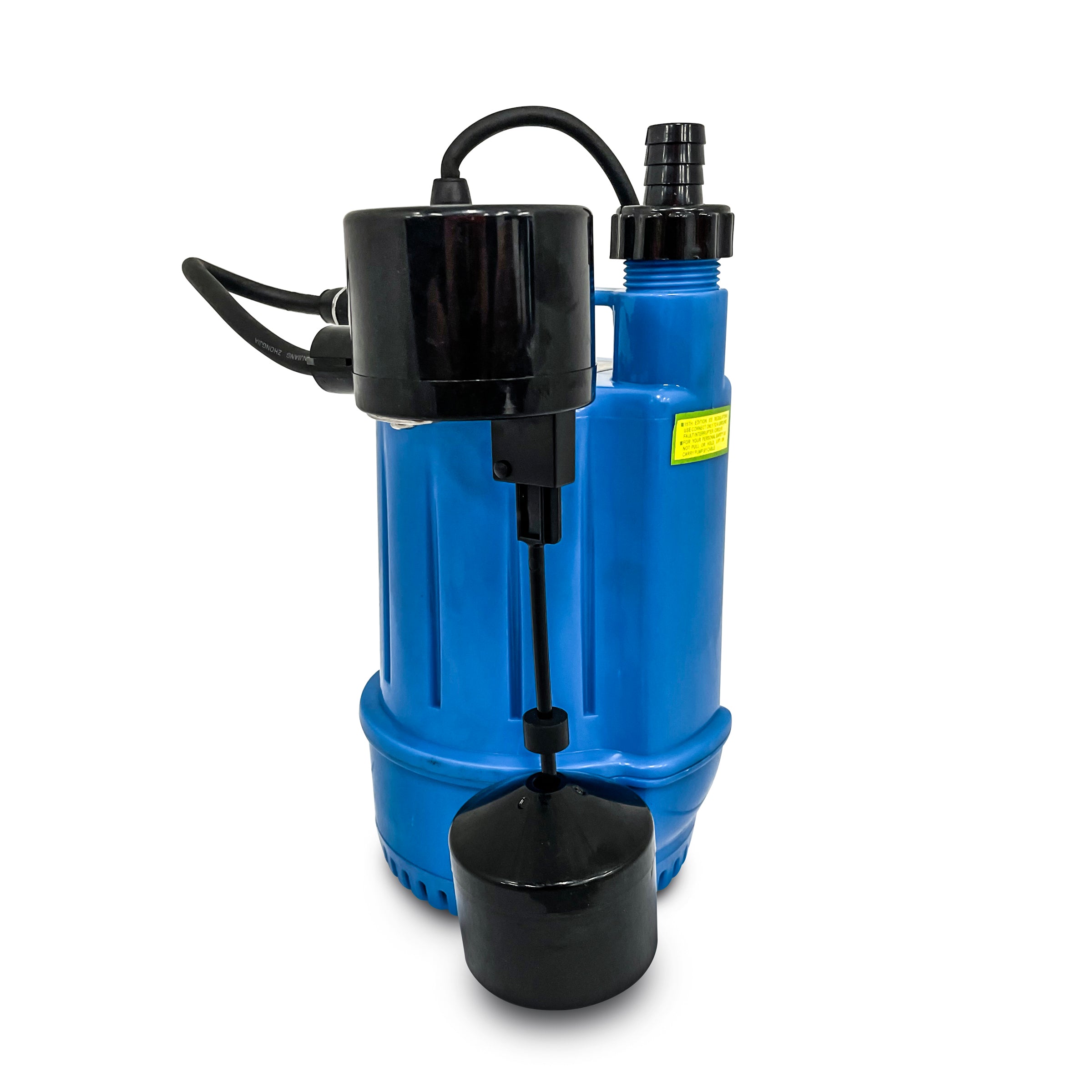

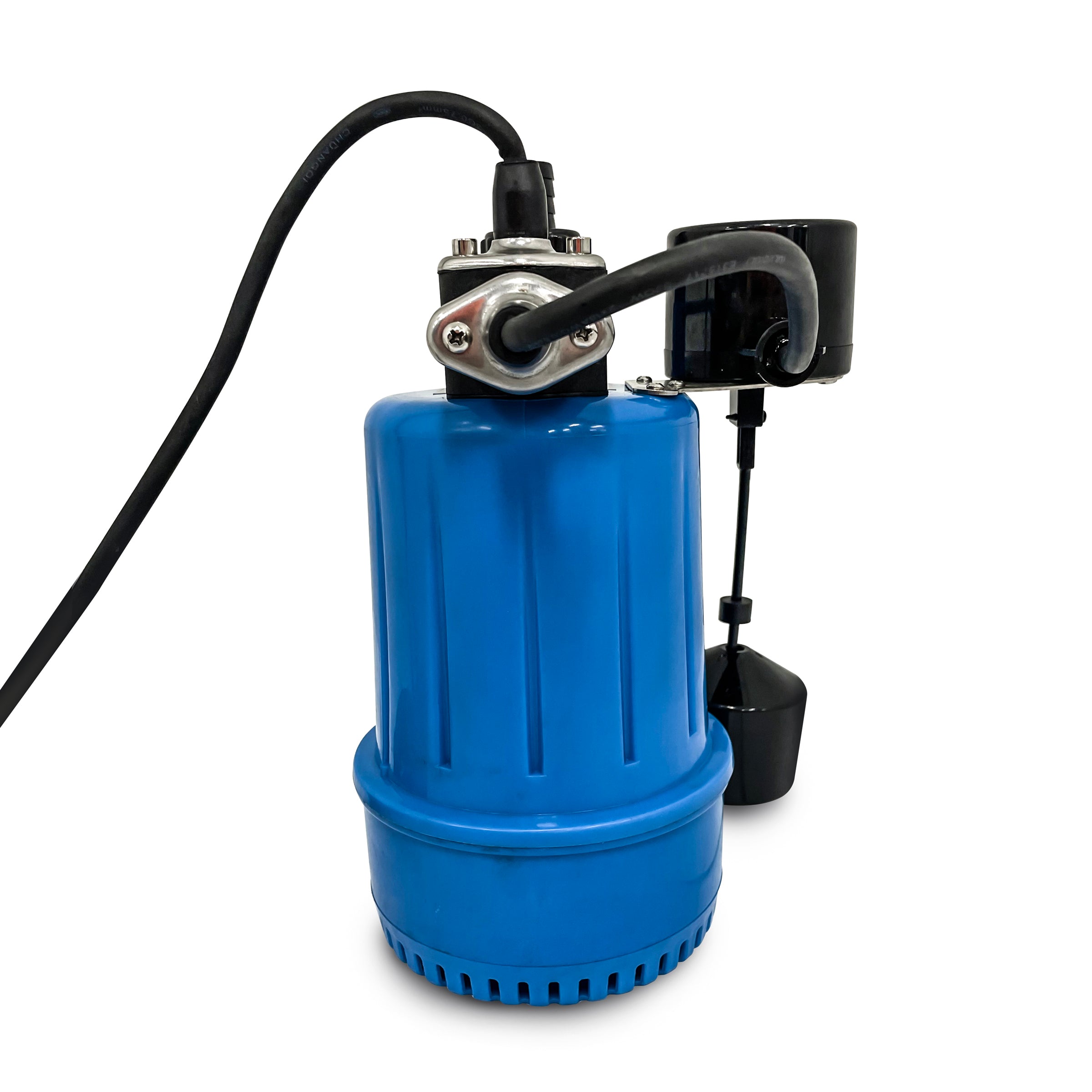

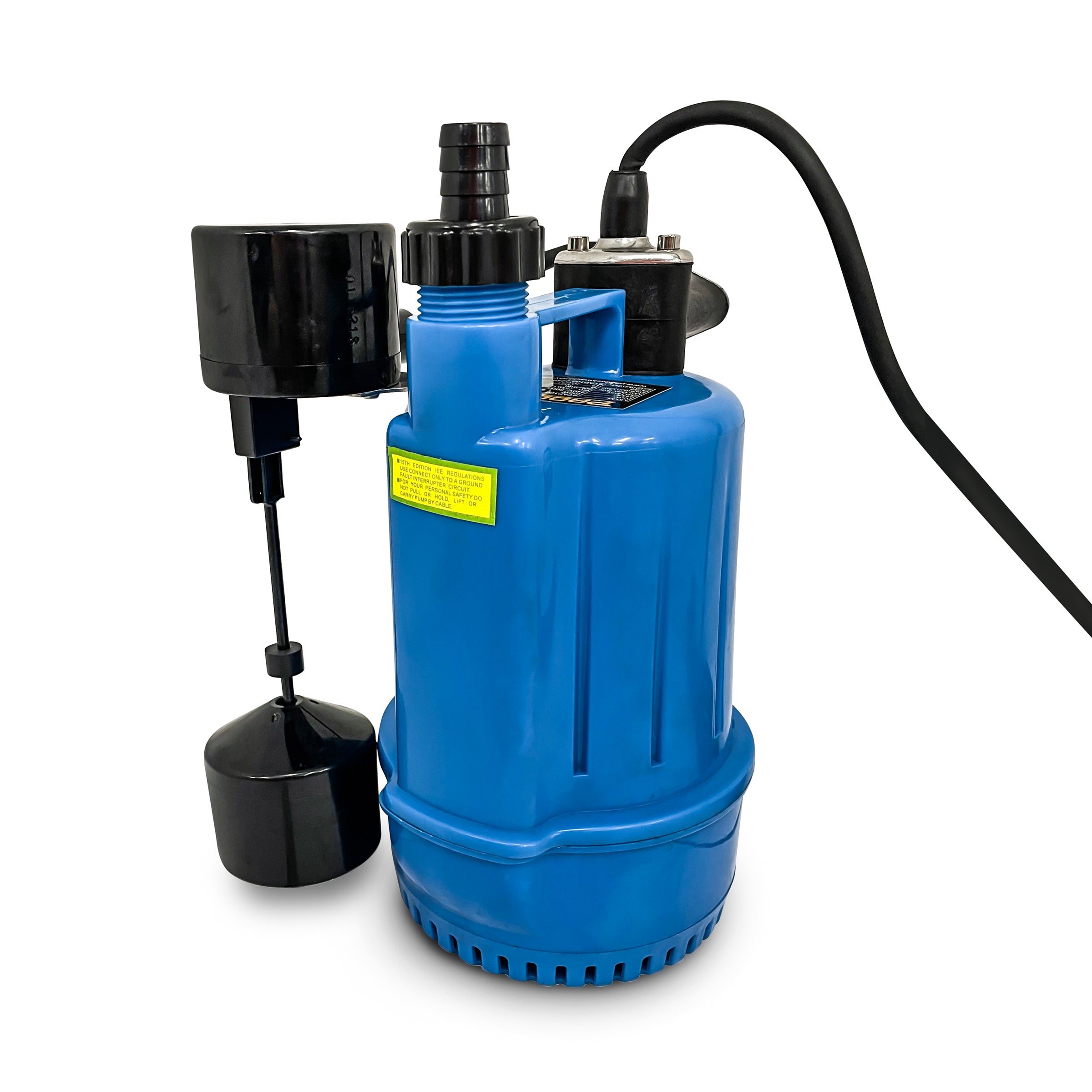

The model SPS012F has a exposed external float which allows users to simply adjust the on/off trigger points for the pump. The pump can be configured to turn on at between 80mm and 150mm liquid level and it will turn off at a minimum of 50mm. This simple adjustment feature allows for more operating configurations and customization.
Popular uses include water supply and disposal, irrigation, dairy, farming, fishery, residential pumping and construction sites.
Submersible Pump Features:
- Long lead with plug end
- Integrated float switch ideal for tight pits
- Low Noise, smooth operation
- Compact Construction
- 12 month warranty
| Pump Specifications | SPS012F | SPS013F |
|---|---|---|
| Voltage | 220V | 220V |
| Power | 230 W | 350 W |
| Exterior Construction | Poly | Poly |
| Flow Rate | 130 L/min | 150 L/min |
| Inlet / Outlet | 3/4" / 1" | 3/4" / 1" |
| Discharge Head / Pressure | 9m ~90kPa | 11m ~110kPa |
| Float Switch |
External Adjustable Turns on at 80-150mm Off at minimum 50mm |
Enclosed Turns on a 190mm Off at 100mm
|
| Max. Fluid temp. | 60 C | 60 C |
| Compatible Fluids | Water, Sea Water, Salt Water | Water, Sea Water, Salt Water |
| Approx. Weight | 6.3 kg | 4.8 kg |
| Approx. Dimensions | 160x210x280 | 160x200x288 |
| Construction | PP and Fiberglass casing Nylon and Fiberglass impeller Stainless steel shaft Silicone Carbide Mechanical Shaft Seal with secondary oil seal |
PP and Fiberglass casing Nylon and Fiberglass impeller Stainless steel shaft Silicone Carbide Mechanical Shaft Seal with secondary oil seal |
