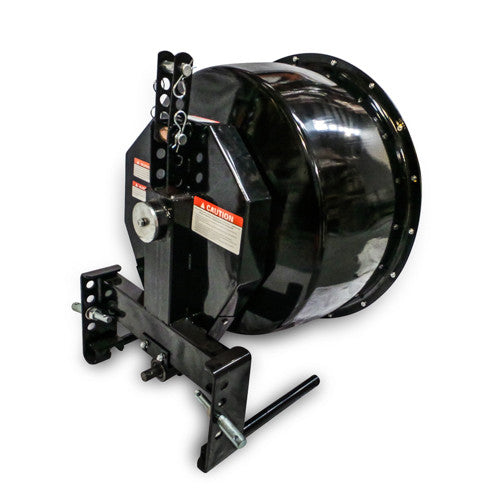

Paddock™ Tractor PTO Cement Mixer – 142L, Cat I
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
The Paddock™ Tractor PTO Cement Mixer is a heavy-duty 142L tractor-mounted mixer designed for concrete, cement, sand and other suitable mixing applications. Connecting to a Category I three-point linkage and standard 540 RPM PTO, it features internal mixing paddles, chain drive and hydraulic tipping for convenient unloading from the tractor.
Paddock™ Tractor PTO Cement Mixer – 142L
Turn a compatible tractor into a mobile mixing platform with the Paddock™ PTO Cement Mixer. Designed for Category I tractors in the 20–55HP range, the mixer uses a standard 540 RPM PTO input to drive the 142L steel mixing drum.
Three internal paddles help combine material as the drum rotates, while the hydraulic tipping system allows the operator to raise and empty the mixer using the tractor's hydraulic system.
Tractor Cement Mixer Features
- 142L / 5 cubic ft drum capacity
- Suitable for compatible Category I tractors
- 20–55HP tractor / gearbox power range
- Standard 540 RPM PTO input
- 1-3/8" 6-spline PTO shaft included
- Heavy-duty 11-gauge steel drum construction
- Two-piece steel drum
- Three internal mixing paddles
- Internal chain drive from PTO
- 1:1.93 gear reduction
- Hydraulic tipping for easier unloading
- Single-hose hydraulic cylinder arrangement
- Hydraulic hose included
- 44.5cm drum opening
- Approx. 105kg empty weight
- 12 month warranty
540 RPM PTO Driven Mixer
The mixer connects to the tractor's standard Category I three-point linkage and is driven from a 540 RPM PTO.
An internal chain-drive arrangement transfers power from the PTO to the mixing drum, providing a simple mechanical drive system that can be accessed for routine inspection and maintenance.
A 1-3/8" 6-spline PTO shaft is included.
142L Steel Mixing Drum
The heavy-duty drum has a stated capacity of 142L (5 cubic ft) and is manufactured from 11-gauge steel. A 44.5cm opening provides access for loading materials and cleaning after use.
Three internal paddles help turn and combine the material during operation and assist with discharging the mixed contents when the drum is tipped.
Hydraulic Tipping
The top-mounted hydraulic cylinder allows the mixer to be raised for unloading using a compatible tractor hydraulic connection.
The hydraulic system uses a single hose and provides powered movement in the raising direction only. The mixer lowers under its own weight when hydraulic pressure is released; the cylinder does not hydraulically power the mixer downward.
Always ensure people remain clear of the mixer and linkage while raising or lowering the implement.
Typical Applications
- Concrete mixing
- Cement-based mixes
- Sand and aggregate mixing
- Fence and post installation
- Farm and acreage maintenance
- Construction and landscaping
- Remote property projects
Paddock™ Tractor PTO Cement Mixer Specifications
| Specification | Value |
|---|---|
| Brand | Paddock™ Machinery |
| Drum Capacity | 142L (5 cubic ft) |
| Drum Opening | 44.5cm |
| Drum Construction | Heavy-duty 2-piece steel drum |
| Steel Thickness | 11 gauge |
| Tractor Linkage | Category I, 3-point linkage |
| Gearbox Power Range | 20–55HP |
| PTO Speed | 540 RPM |
| PTO Connection | 1-3/8" 6-spline |
| PTO Shaft | Included |
| Gear Reduction | 1:1.93 |
| Drive | Internal chain drive from PTO |
| Mixing Paddles | 3 internal paddles |
| Tipping | Hydraulic raise / gravity lower |
| Hydraulic Connection | Single hydraulic hose |
| Hydraulic Hose | Included |
| Net Weight | Approx. 105kg empty |
| Warranty | 12 Months |
Tractor Requirements
The mixer is designed for compatible Category I tractors within the stated 20–55HP range. The tractor requires a 540 RPM PTO and a suitable hydraulic connection to operate the tipping cylinder.
Before installation, confirm the tractor has suitable three-point linkage geometry, PTO configuration, hydraulic connection and sufficient implement carrying capacity for the mixer and its intended contents.
Remember that the 105kg specification is the empty mixer weight. The total supported weight will increase substantially once materials are loaded into the drum.
Operation & Safety
Keep guards and covers correctly installed during operation and keep hands, clothing and tools clear of the PTO shaft, chain drive, rotating drum and three-point linkage.
Ensure the tractor and mixer are positioned on suitable stable ground before loading, mixing or discharging material. Do not exceed the capacity of the mixer or the safe operating limits of the tractor and three-point linkage.
Before servicing, cleaning or clearing the mixer, shut down the tractor, disengage the PTO and ensure all moving components have completely stopped.
Clean the drum and paddles after use before concrete or cement-based material is allowed to harden.
