Spin-On Tractor Engine Diesel Fuel Filter (CAV296)
Description
This spin-on diesel fuel filter assembly provides a convenient replacement for compatible clamp-together CAV Delphi 296 and 901 style fuel filter systems commonly fitted to tractors and diesel engines.
Featuring 10 micron filtration, an aluminium filter head and transparent bowl, the assembly includes fittings for 10mm (3/8") fuel hose, plugs, an integrated drain valve and filter key.

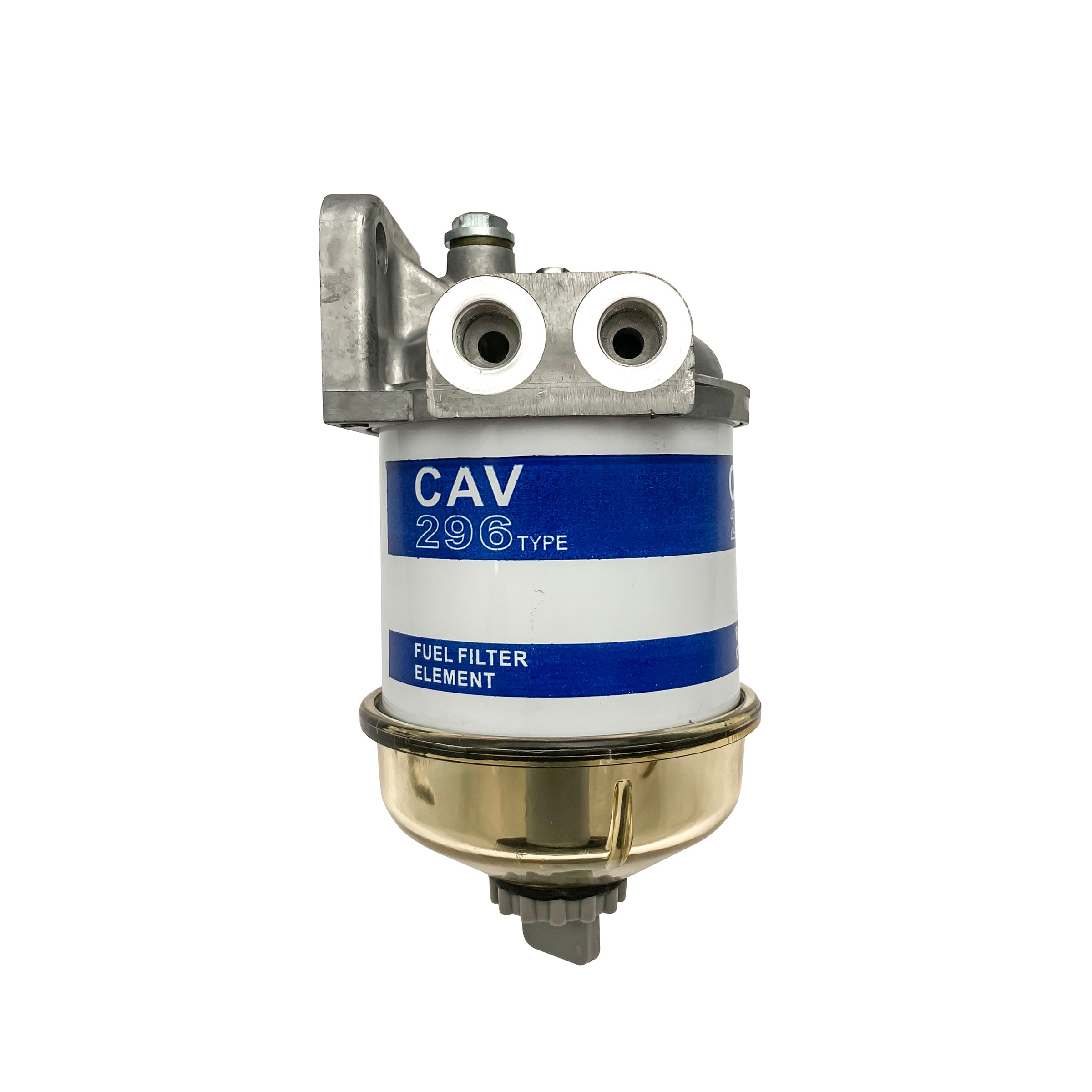

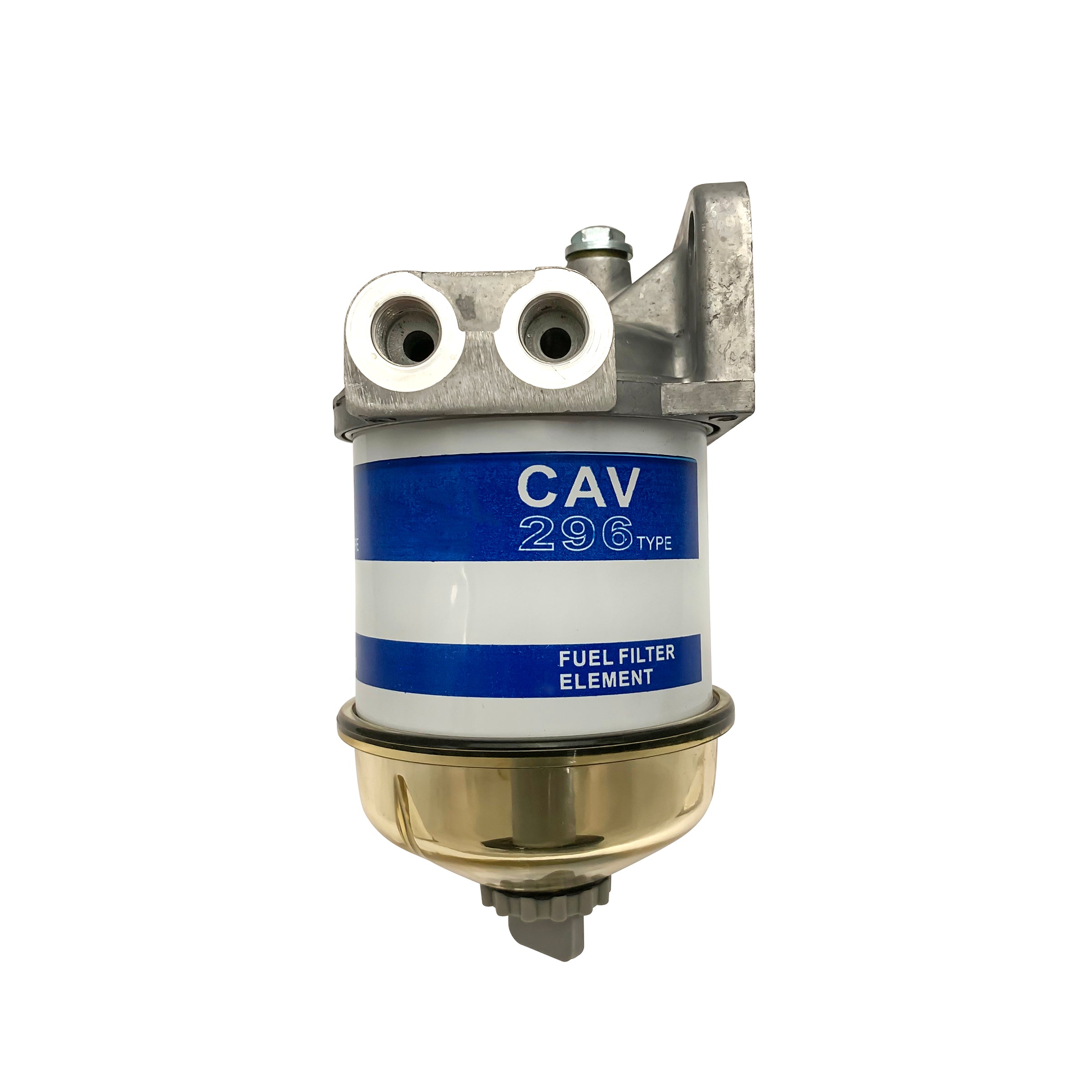

Spin-On Diesel Fuel Filter Assembly – CAV 296 / 901 Replacement

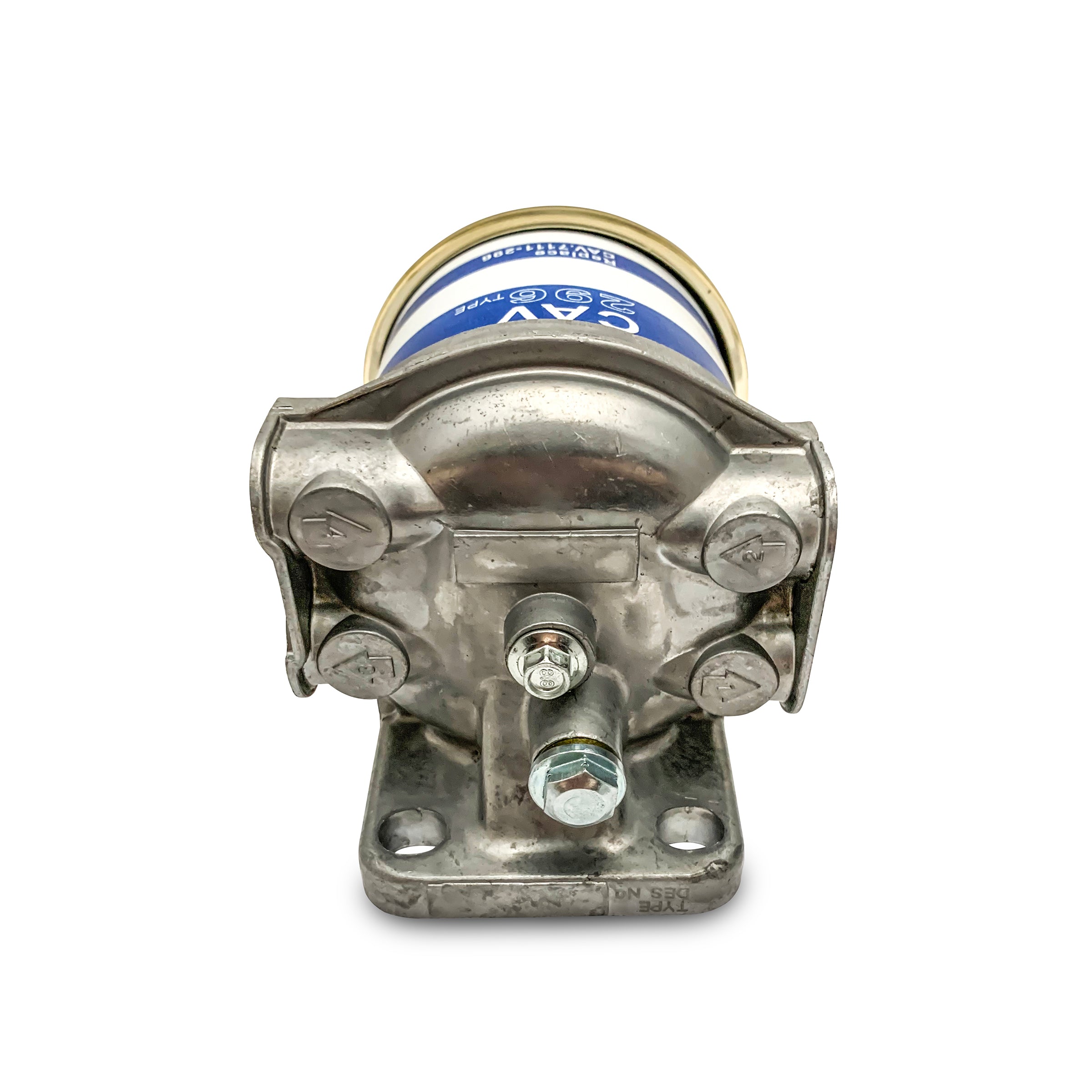

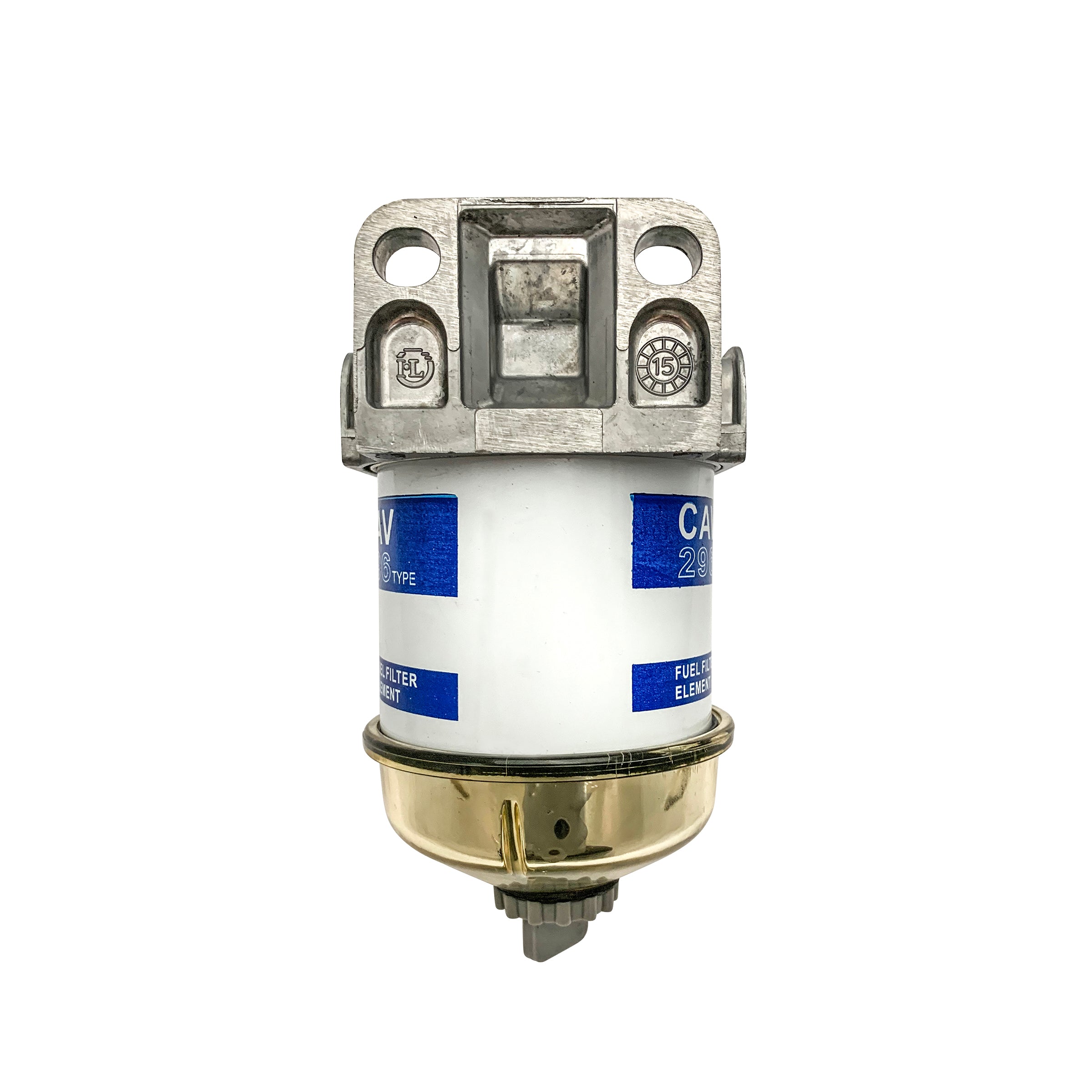

The filter head uses a standard CAV Delphi-style mounting configuration, making it suitable for replacing compatible CAV 296 and 901 type filter assemblies.
- 10 micron diesel fuel filtration
- Maximum flow capacity of 45 L/hr
- Spin-on filter design
- Aluminium filter head
- Transparent plastic bowl

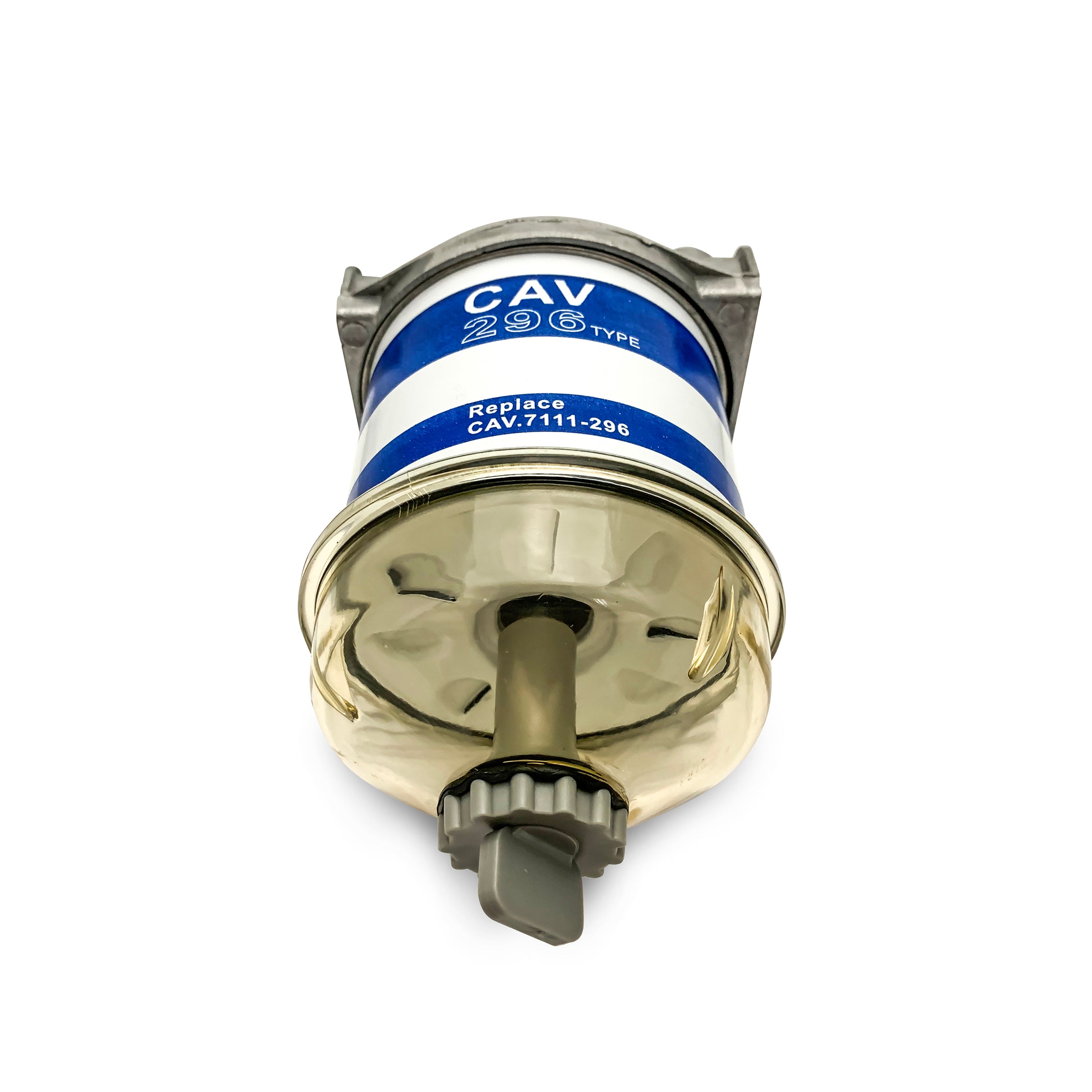

- Integrated drain valve

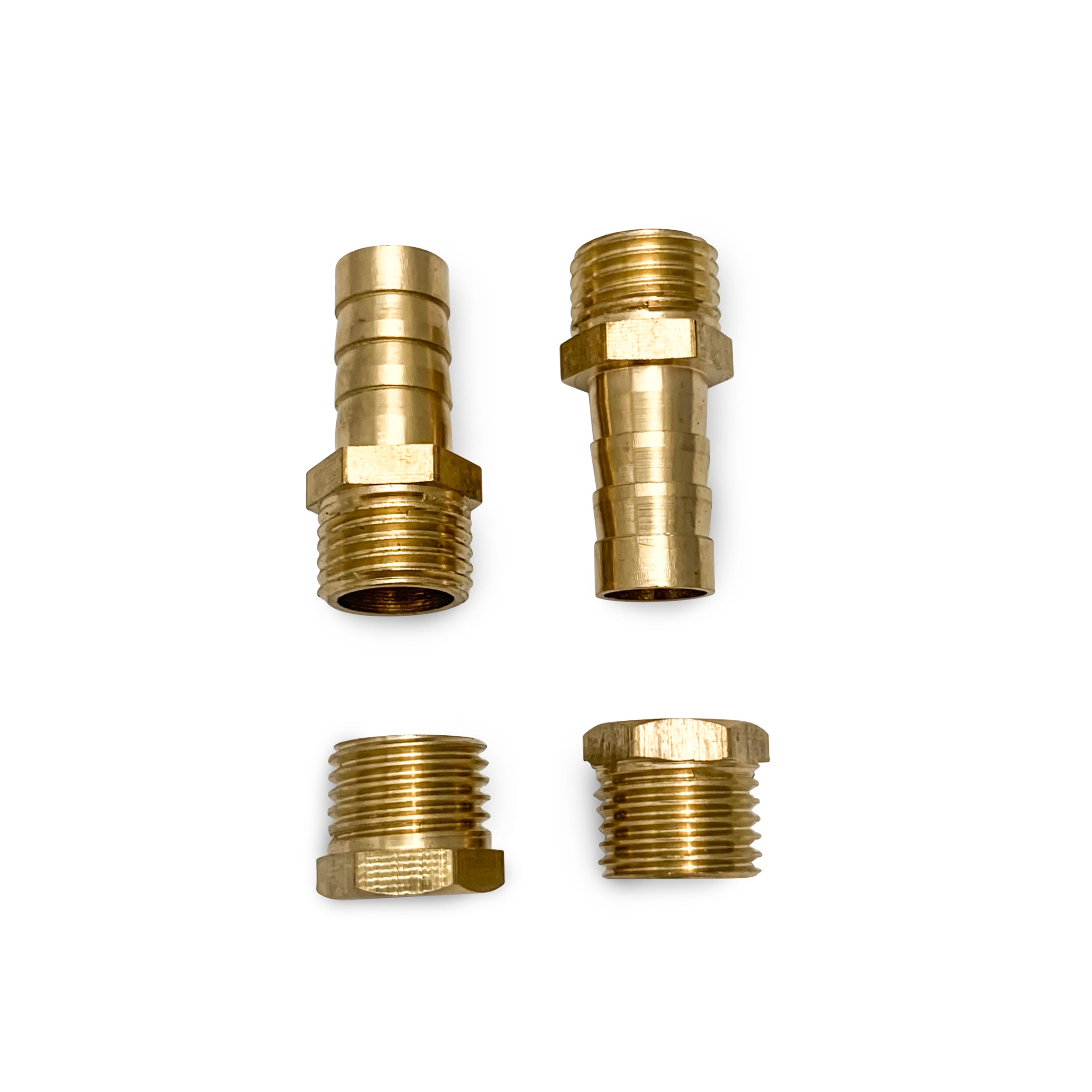

- Includes 10mm (3/8") hose tail fittings
- Filter key included
Specifications
| Specification | Details |
|---|---|
| Application | Diesel fuel |
| Filtration | 10 micron |
| Maximum Flow Capacity | 45 L/hr |
| Filter Style | CAV type spin-on filter assembly |
| Thread Size | M14 x 1.5 |
| Operating Pressure | 5 bar / 72 PSI |
| Construction | Aluminium head with transparent plastic bowl |
| Hose Connections | 2 x hose tail fittings to suit 10mm (3/8") fuel hose |
| Additional Inclusions | 2 x plugs, integrated drain valve and filter key |
| Weight | 1.9kg |
Cross Reference Numbers
Use the following cross-reference numbers as a guide when checking compatibility:
- Agrifilter: 1296
- Baldwin: BF825
- Case IH: K960911
- Coopers Filters: AZF015
- Crosland Filter: 522, CR522
- Delphi: R2132P
- Donaldson: P556245
- Fiat: 1909100
- Ford New Holland: 83937061, EDPN9N074AA
- Landini: 218577A1, 26561117, 3405418M1, K960911
- Mann: P917X
- Massey Ferguson: 3405418M1, 72113, 836218M91
- Merlo: P00518
Note: Cross-reference numbers should be used as a compatibility guide. Compare your existing filter, mounting arrangement and connections before ordering.
