SKU: SPTOFNM01

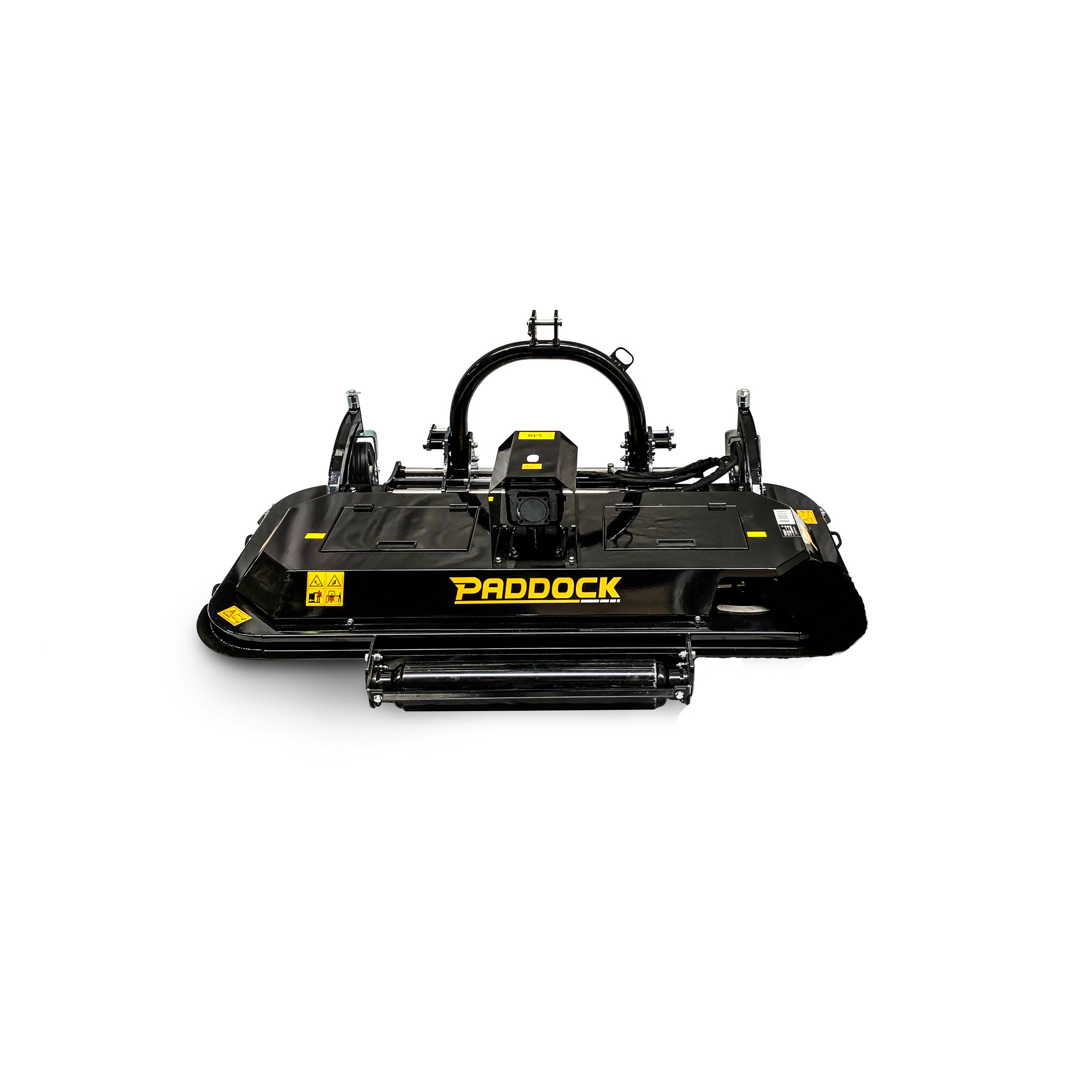

An easy to maintain yet heavy duty and reliable PTO driven mower by Paddock Machinery. Paddock Machinery designs and manufacturers only the best quality tractor and ATV implements. Designed to give a great finishing cut, use when grass presentation is a priority. Suits CAT I or II tractors and comes with PTO shaft. A great way to utilise your tractor as a grass cutter but obtain a nicer result than conventional slashers.

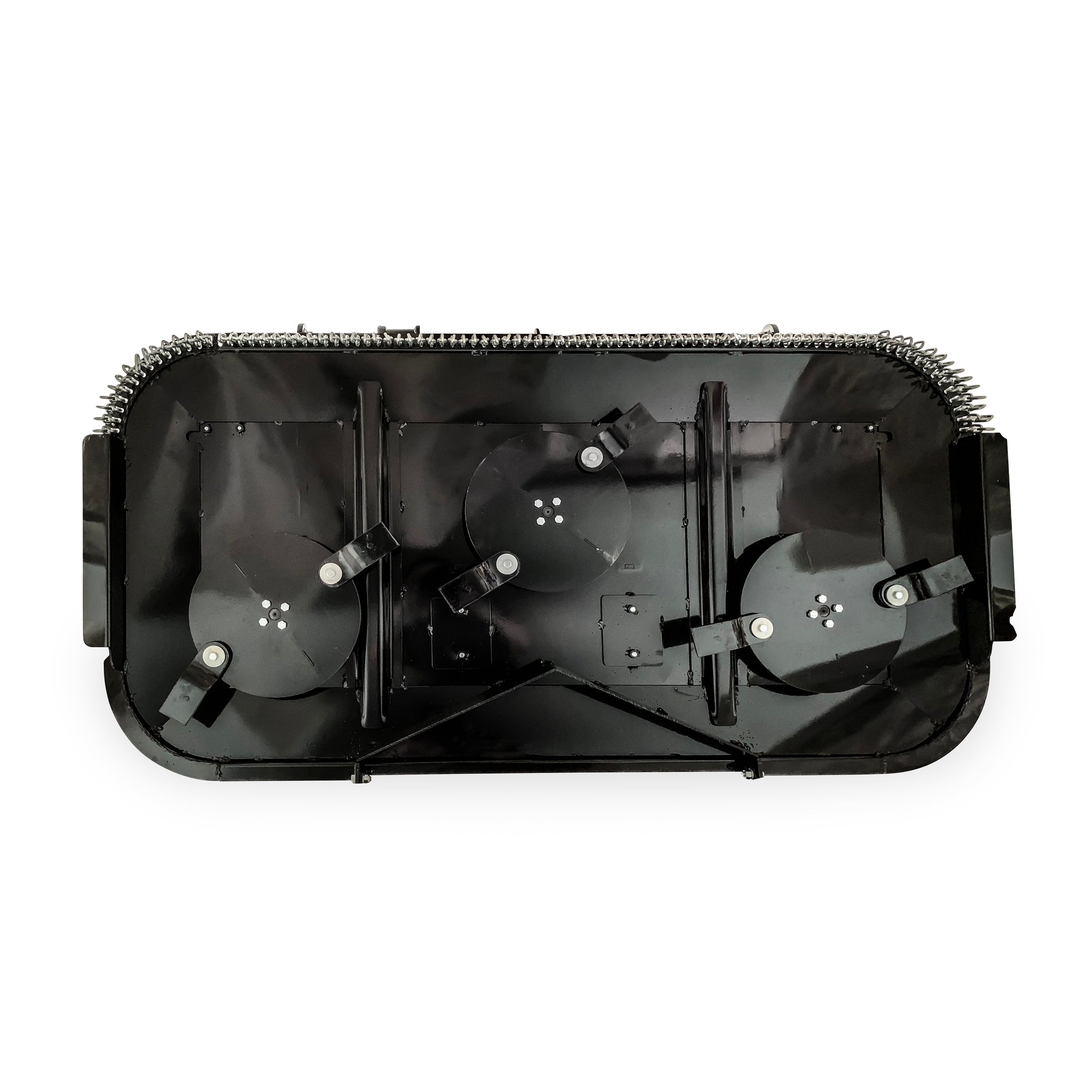

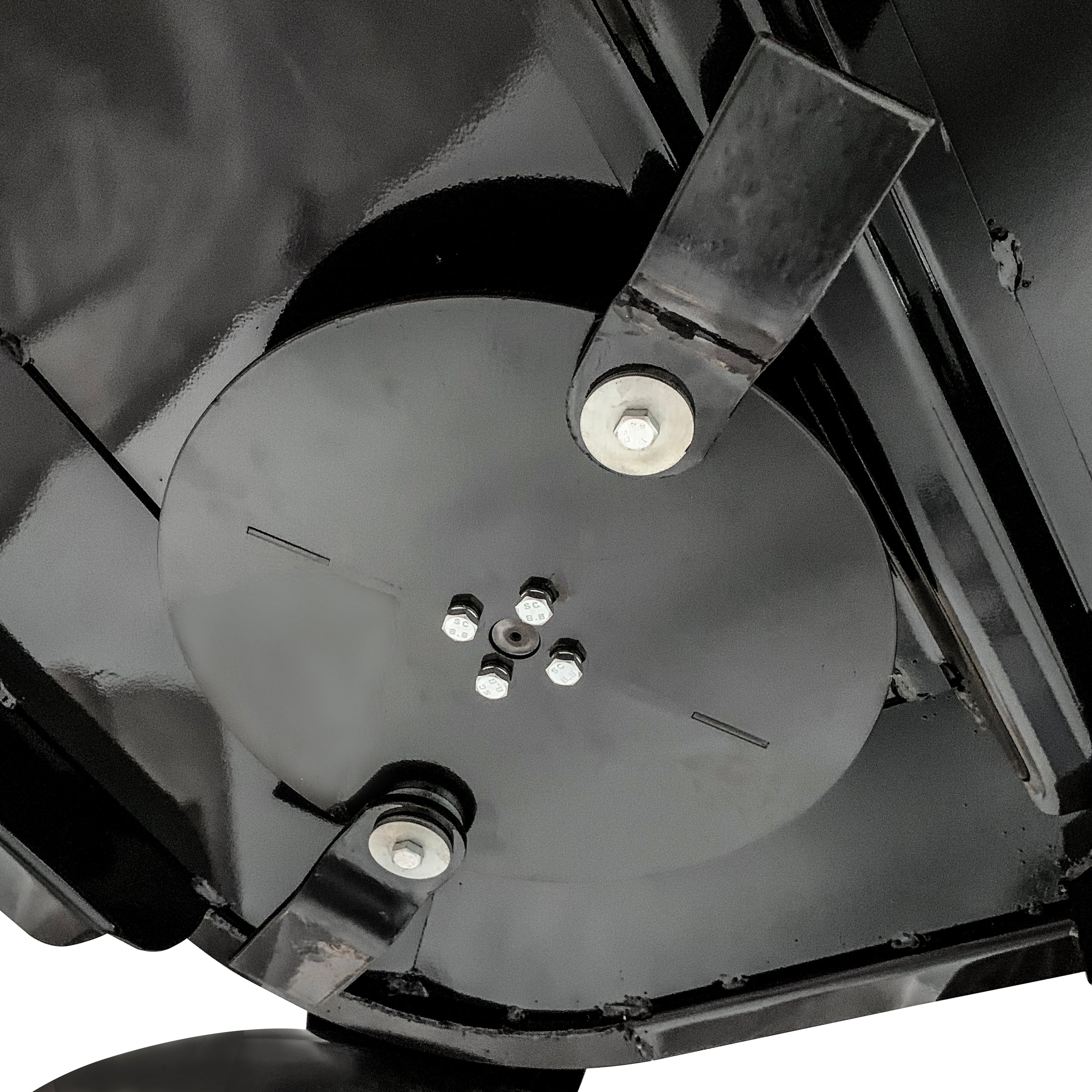

This is a highly versatile tractor mower lending itself to many applications. Scintex has supplied this unit for use in many mowing applications from mine sites, golf courses, home yards, acreages to equine centres, parklands, schools, camping grounds, caravan parks and roadsides. The 3 high speed blades, combined with adjustable castor wheels and a floating top hitch ensure that the mower contours to uneven surfaces and provides a neat, clean finish. The grass discharges from the rear which eliminates grass build up in areas uncut as well as minimising blade wear and fuel usage.
Tractor Mower | SPTOFNM01 |
---|---|
Cutting Width | 150cm |
Cutting Height | 25-100mm (1" - 4") |
Required Power | 25 - 50 HP |
No. of Blades | 3 |
Blade Material | Spring Steel 65Mn |
Wheels | Non puncture, solid rubber 8"(D) x 3" (W) |
Construction | Heavy duty, powdercoated steel |
Linkage | 3 Point Linkage - Cat I or II (Cat I pins supplied) |
Weight | 215kg |
Dimensions | 1640mm x 1480mm x 995mm (H) |
Bearings | SKF spindle and gear box bearings |
PTO Shaft | Included 1-3/8" 6 Spline |
Warranty | 12 Months Manufacturer Parts Warranty |
Note: Requires greasing of grease nipples and gearbox oil prior to operation. To reduce the storage and shipping size the mower will require some simple assembly before use.
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of 240kg. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading otherwise a tail lift truck can be used.
