Portable tractor PTO driven water pumps by Paddock Machinery. These pumps are capable of high flows and are fast to deploy as they mount to the 3 point linkage on your tractor. Available in a range of sizes they are fantastic for farming, irrigation and emergency water transfer during floods and disaster times.
Every farmer should have one of these Paddock tractor PTO pumps. No more messing around with small engines or maintaining a dedicated trailer mounted water pump engine, instead use your existing tractors reliable diesel engine and PTO system to pump water on demand. Quickly mobilise this pump on the back of your tractor to areas otherwise difficult to access. Engage the 540 rpm PTO shaft and the pump begins operation. Vary the PTO speed and engine rpm to change your discharge pressure and flow rate. Ideal for large water transfers, temporary irrigation plus so much more.
These pumps are also ideal for SES, Army, rural fire brigades and other emergency service type organisations who need to deploy equipment and move water fast. Their simple design means a reliable and robust solution is always at hand.

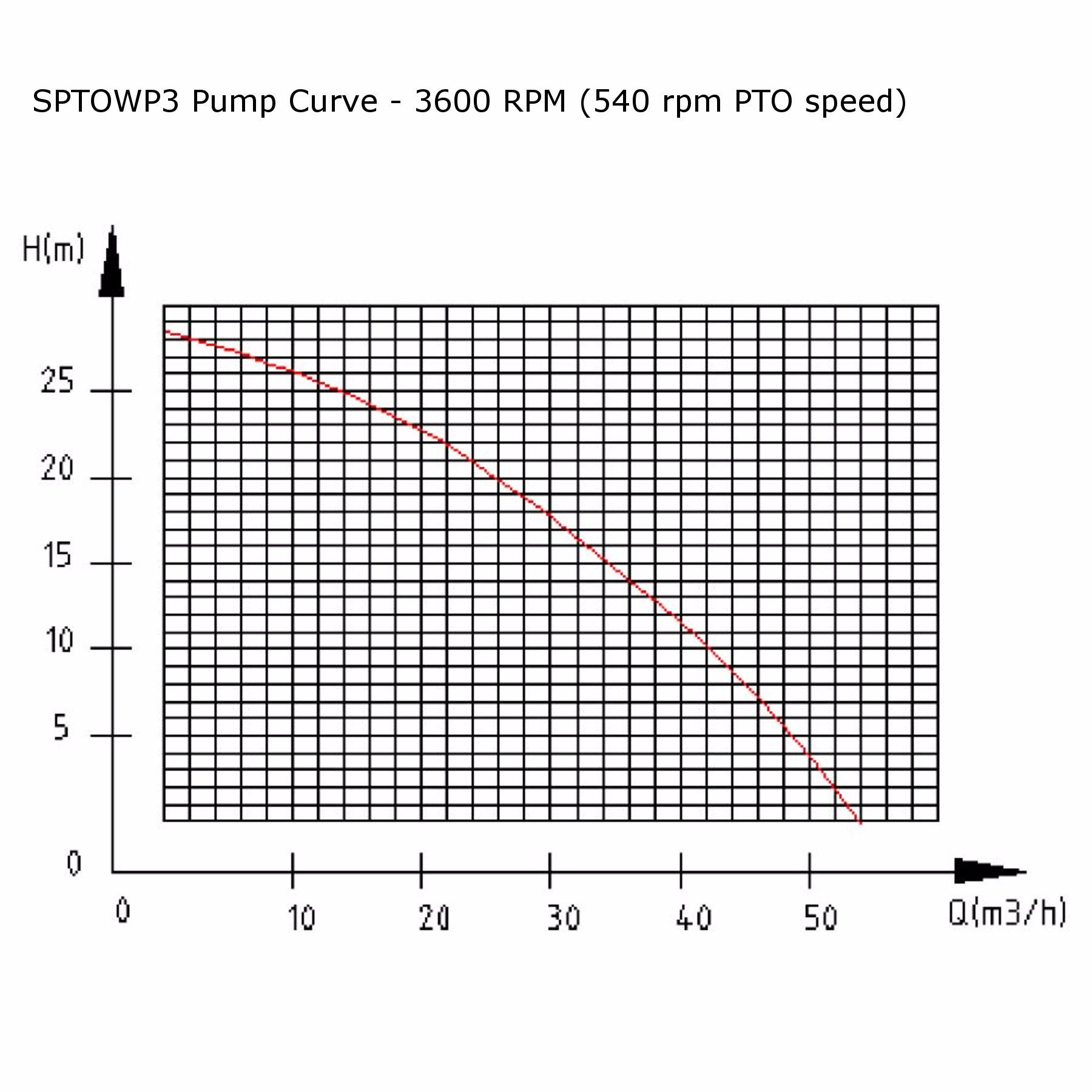

The transfer series of pumps (SPTOWP3/4/6) are ideal for bulk water moving. Move water between dams, tanks, creeks or whatever is needed. These pumps are configured for high flows and high suction lift with discharge heads of 15-34m. These pumps have heavy duty cast steel impellers and diffuses making them robust and tolerant to dirty and brackish waters.

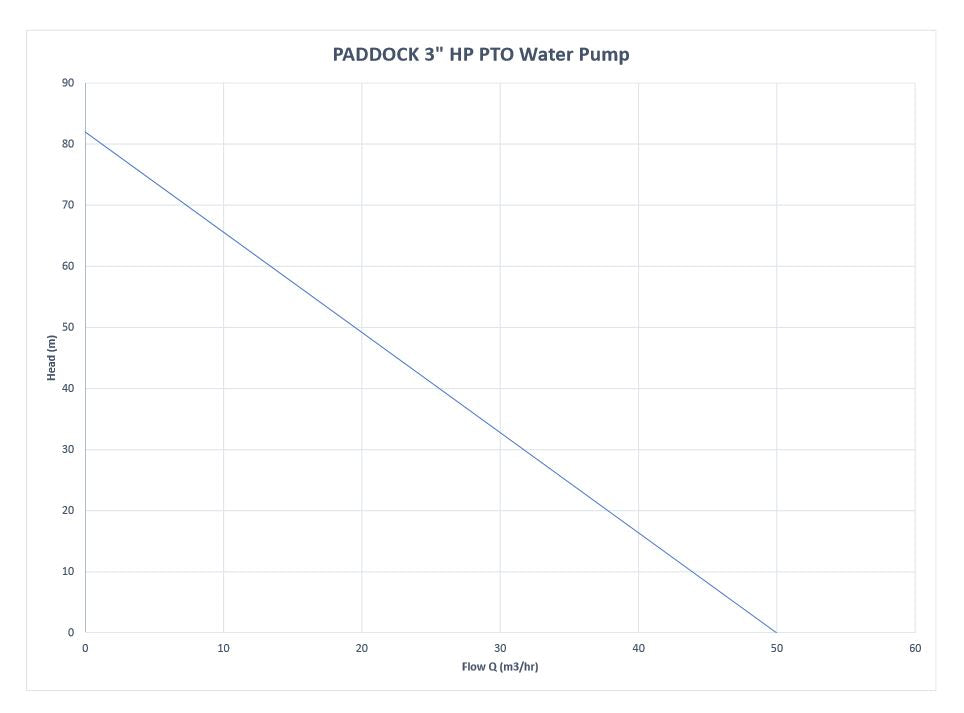

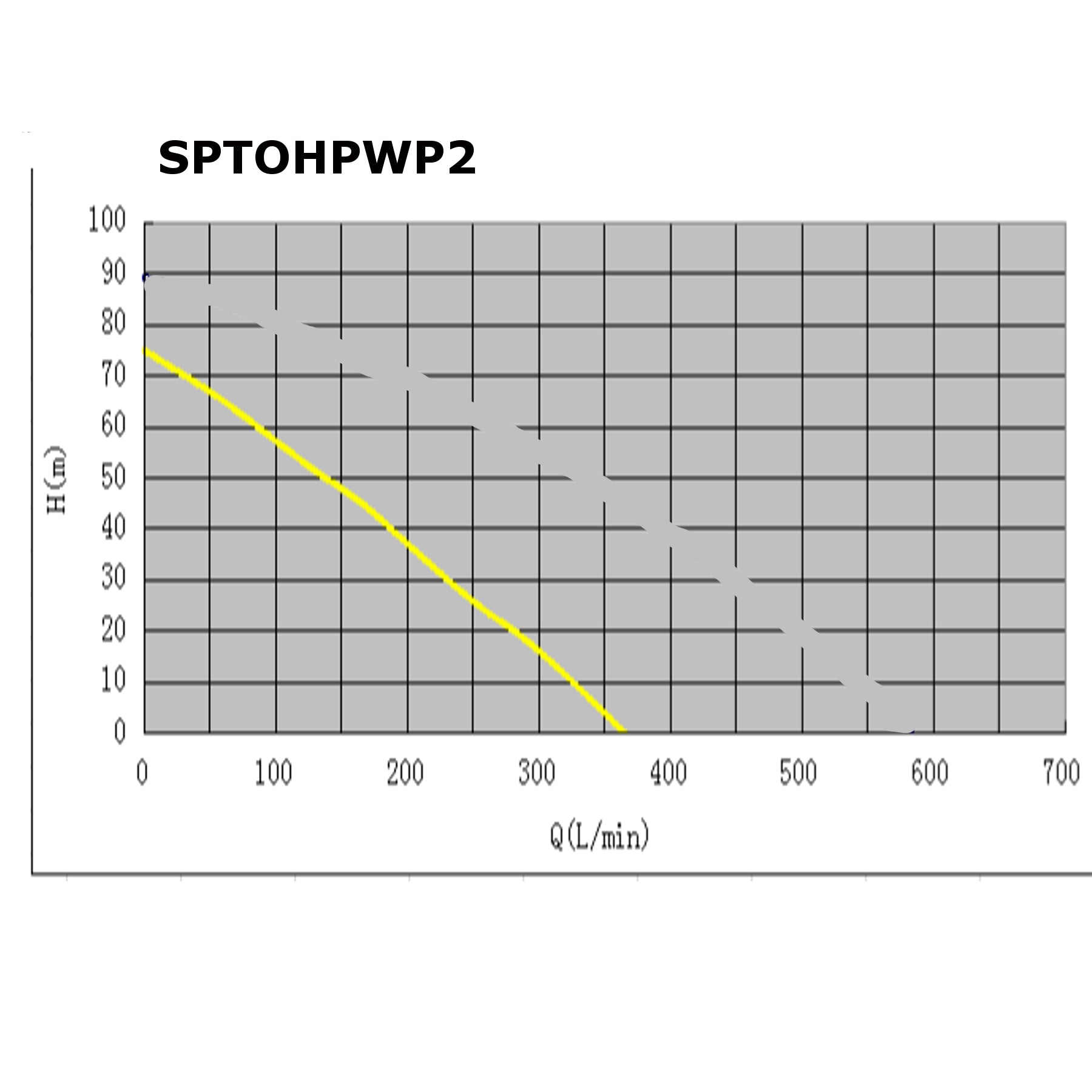

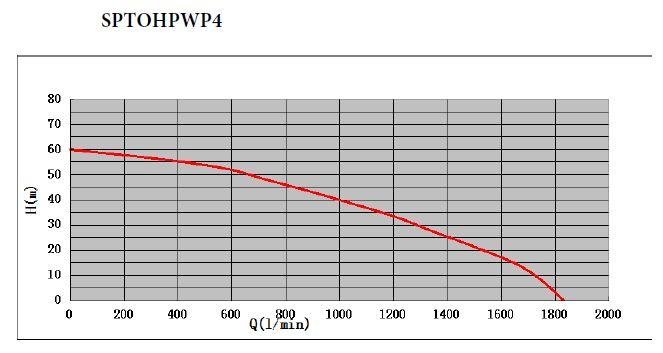

The high pressure series of pumps achieve higher discharge heads, up to 82m, making them suited to applications where water needs to be moved longer distances or for applications such as spray irrigation where great pressure at the nozzle is necessary. Ideal for use as a firefighting pump, simply start the tractor and you're ready to deploy. Fast to setup and relocate with ease. The high pressure series come in either 2", 3" or 4" sizes with further specifications and flow curves available in the table below.
These pumps feature a heavy duty speed multiplier gearbox (except for the SPTOWP6BLT model which is belt driven) which increases your tractors PTO input speed of 540 rpm to the optimum pump input speed of 3600 rpm. Mounted to a heavy steel frame makes for a robust pump package which is fast to relocate.
Each unit is supplied with the 3-point linkage arms and a PTO shaft. The PTO shaft includes a slip yoke which provides the adjustment for variances in tractor sizes and configurations.
The pumps themselves feature a mechanical shaft seal and heavy duty impeller and pump liner ensuring many years of reliable operation.
These units are configured for standard three point linkage (3PL) for Category 1 (Cat I) tractors with a PTO speed of 540 RPM. Check the specifications table below to find a pump size suitable for your tractor in the 12hp to 125hp size range.

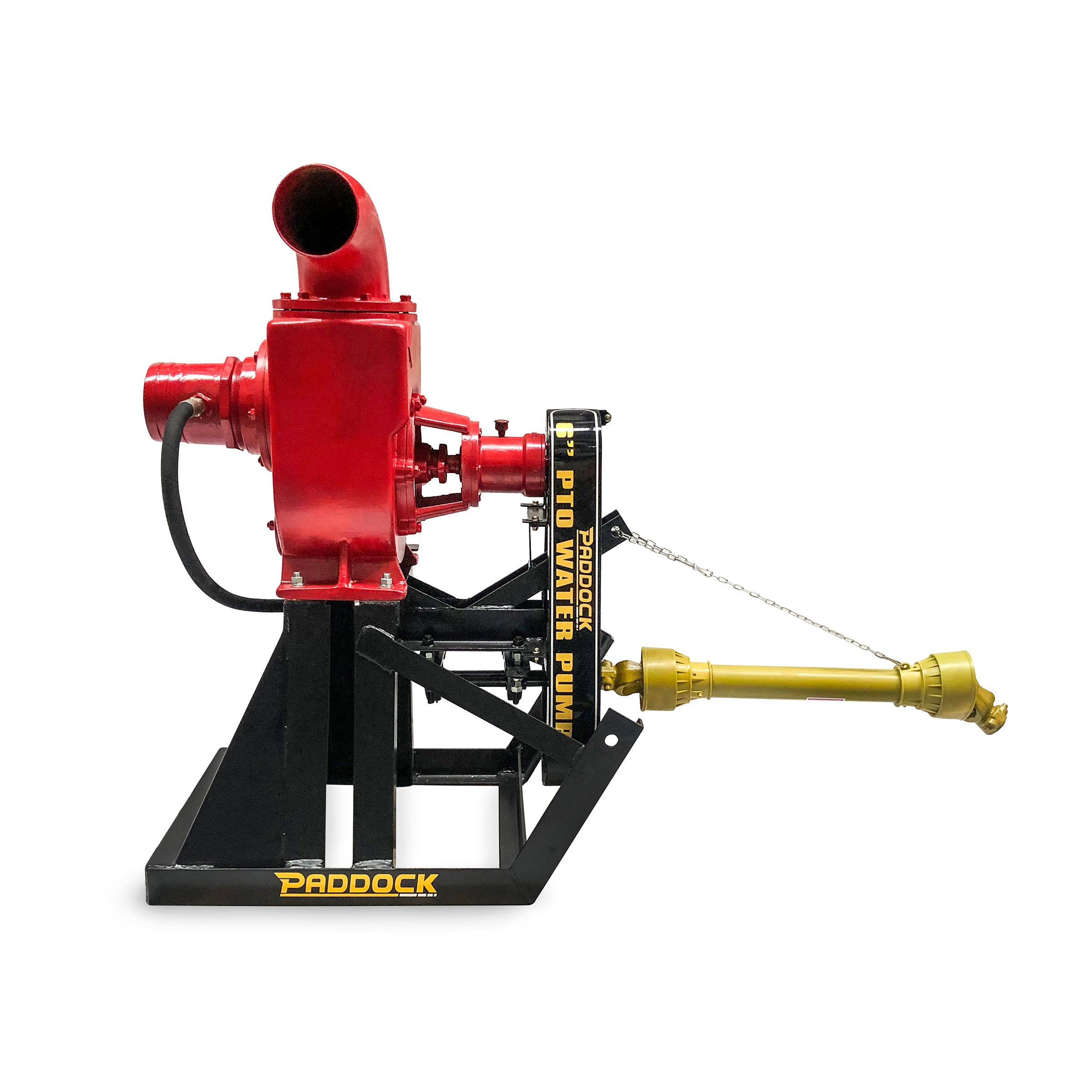

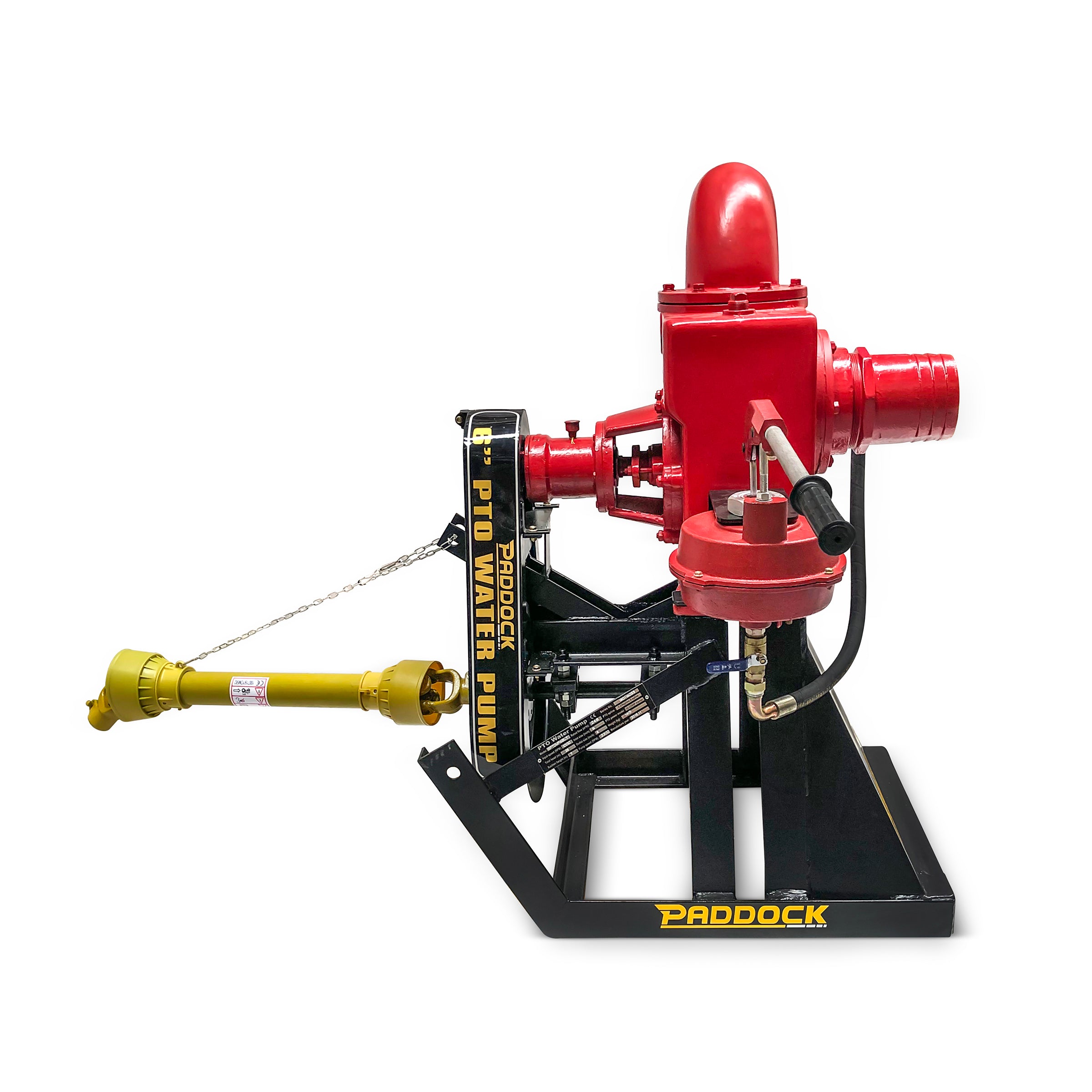

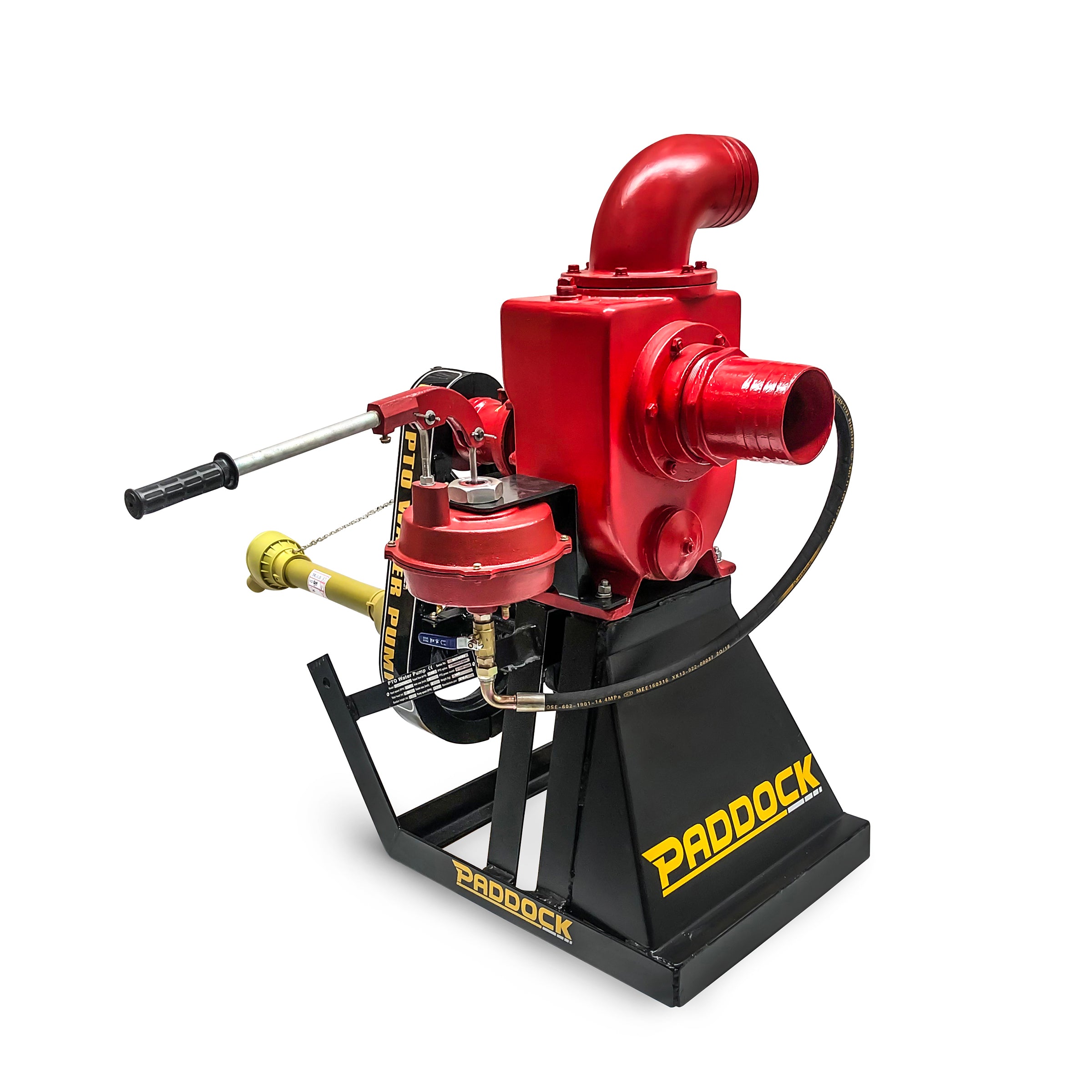

Also available is the SPTOWP6BLT which is belt driven and designed for PTO speeds of 1000 RPM found on some Cat I/II tractors.
|Inlet / Outlet||3" / 3"||4" / 4"||6" / 6"||6"/ 6|
|Flow rate||60 m3/hr||80 m3/hr||200 m3/hr||248 m3/hr|
|Discharge Pressure||~280 kPag / 40 psi||~250 kPag / 36 psi||~150 kPag / 22 psi||~320 kPag / 46 psi|
|Discharge Head||28 m||25 m||15 m||32m|
|Suction Lift||7 m||7 m||6 m||7m|
|Tractor Power Range||12-125hp||15-125hp||25-125hp||18-125hp|
|PTO Speed||540 RPM||540 RPM||540 RPM||1000 RPM|
|Pump Speed||3600 RPM||3600 RPM||3600 RPM||2200 RPM|
|Linkage||Cat I - Three Point Tractor Linkage||Cat I - Three Point Tractor Linkage||Cat I - Three Point Tractor Linkage||Cat I/II - Three Point Linkage|
|Construction||Heavy duty, painted steel||Heavy duty, painted steel||Heavy duty, painted steel||Heavy duty, painted steel|
|Gear Box Oil||SAE90||SAE90||SAE90||
|PTO Input Shaft||Included, 1-3/8" 6 spline||Included, 1-3/8" 6 spline||Included, 1-3/8" 6 spline||Included, 1-3/8" 6 spline|
|Weight||~87 kg||~93 kg||~131 kg||~200 kg|
|Dimensions||660 (w) x 660 (l) x 880 (h) mm||660 (w) x 660 (l) x 880 (h) mm||660 (w) x 660 (l) x 970 (h) mm||860 (w) x 750 (l)x 1150 (h) mm|
|Warranty||12 Months||12 Months||12 Months||12 Months|
|Pump Series||High Pressure||High Pressure||High Pressure|
|Inlet / Outlet||2" / 2"||3" / 3"||4" / 4"|
|Flow rate||36 m3/hr||50 m3/hr||108 m3/hr|
|Discharge Pressure||~630 kPag / 91 psi||~820 kPag / 119 psi||~ 580 kPag / 84 psi|
|Tractor Power Range||15-125hp||25-125hp||25-125hp|
|PTO Speed||540 RPM||540 RPM||540 RPM|
|Pump Speed||3600 RPM||3600 RPM||3600 RPM|
|Linkage||Cat I - Three Point Tractor Linkage||Cat I - Three Point Tractor Linkage||Cat I - Three Point Tractor Linkage|
|Construction||Heavy duty, painted steel, cast iron pump housing||Heavy duty, painted steel, cast iron pump housing||Heavy duty, painted steel, cast iron pump housing|
|Gear Box Oil||SAE90||SAE90||SAE90|
|PTO Input Shaft||Included, 1-3/8" 6 spline||Included, 1-3/8" 6 spline||Included, 1-3/8" 6 spline|
|Weight||~72 kg||~78 kg||~85 kg|
|Dimensions||660 (w) x 660 (l) x 880 (h) mm||660 (w) x 660 (l) x 880 (h) mm||660 (w) x 660 (l) x 880 (h) mm|
|Warranty||12 Months||12 Months||12 Months|
Note: For ease of shipping some basic assembly will be required on arrival. Gearbox may require oil to be added prior to use. PTO shaft may require shortening depending on type of tractor, this can be done with a hacksaw and instructions are included with the unit.
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of over 100kg. We advise contacting us for a freight quote to your location. A fork lift may be required at the receiver's location for unloading, if unavailable a tail lift truck may need to be booked or depot delivery.
