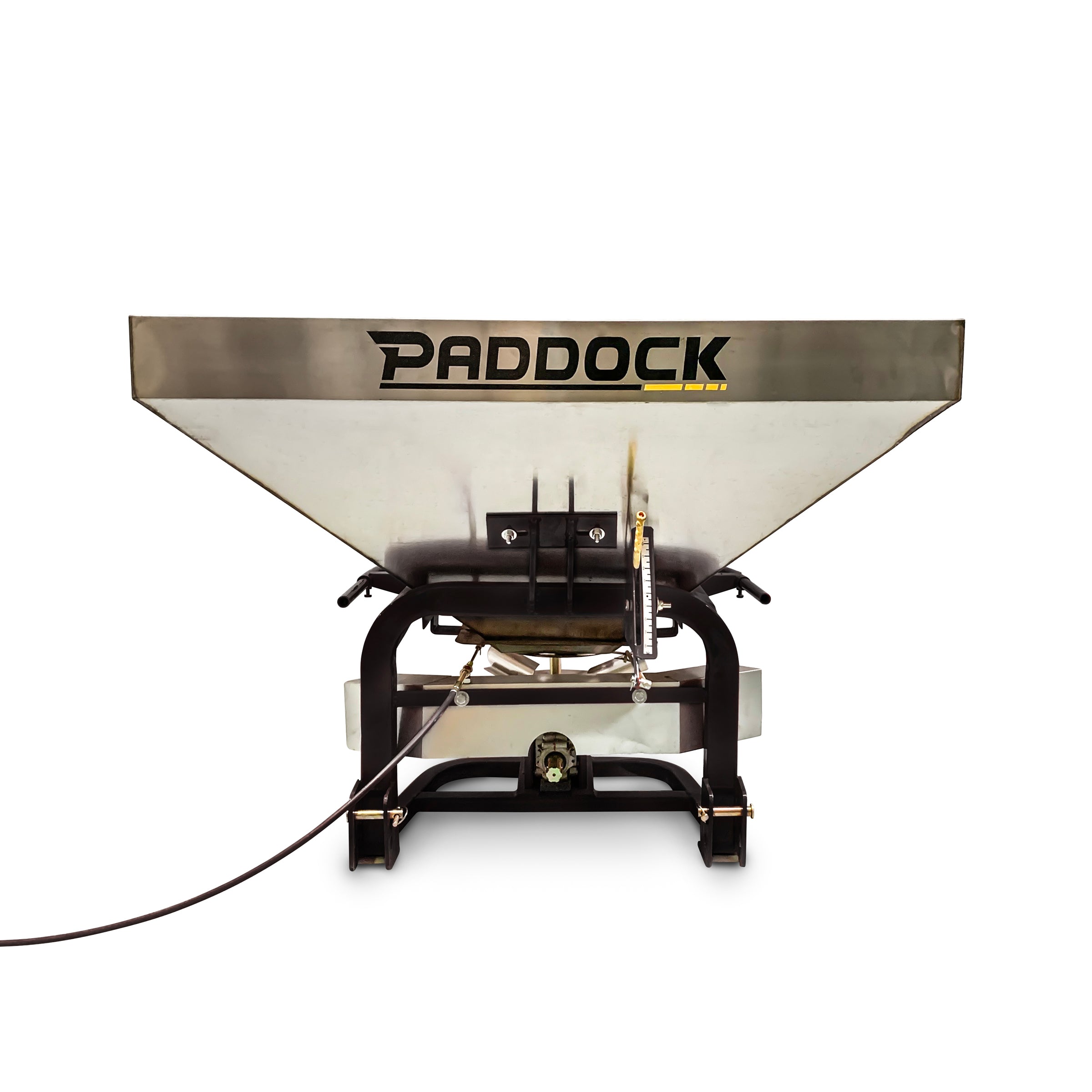

High quality, heavy duty seed and fertiliser spreader by Paddock Machinery. For use with Category 1 tractors with standard 540 RPM PTO shaft outputs. Made to withstand harsh Australian conditions, with a UV and corrosion resistant stainless steel hopper. A spread radius up to 12m means large areas can be quickly covered with a consistent distribution of product. Product flow is easily adjusted using the adjustment handles. Seed or fertilizer is spread by the paddles rotated by the PTO shaft. Simplicity and quality components make this seeder a cut above the rest.
Beware! There are many cheap tractor spreaders on the market with poorly UV stabilised, plastic hoppers and low quality gearboxes which just don't last. Poor welding, paint application and inferior design will cause problems! PADDOCK units are exceptional quality with thousands of units in use around Australia. Come and compare to spot the differences.
Compatibility - The Paddock tractor spreaders will fit a large range of tractors and are generally universal among Category 1 tractors. Customers are running these seed and fertiliser spreaders on all your big name tractors including Case, John Deere and Massey Ferguson, to name a few.
The Paddock Machinery PTO spreaders incorporate two flow control levers. A course adjustment lever with 10 positions located on the PTO spreader. A second cable operated control lever can be mounted in the tractor and has fine movements allowing for great seed or fertiliser flow control. Both levers include adjusting nuts so full open and full closed positions can be set. The spreading paddles are adjustable to 5 different angles per paddle, allowing great control over how the product is spread.
Designed to be low maintenance. The PTO spreader has a sealed, service free gearbox. Control cables require occasional light oiling along with the standard greasing of PTO shafts and nipples. Other components are designed maintenance free. The high quality, stainless steel hopper is designed to last and isn't damaged by UV light and is corrosion resistant for use with fertilisers and salts.
Paddock Machinery carries a full range of spares and replacement parts for the spreaders through their Australian office and product support is only a click away!
|Tractor Seeder Model||PTPTOS600L|
|Hopper Material||Stainless Steel (Grade 201)
|Tractor Linkage||3 Point Linkage Cat I|
|Gearbox Power||20 - 55 HP|
|PTO Speed||540 RPM|
|Tractor Speed||0 to 15 kph|
|PTO Shaft||Standard 6 spline PTO shaft|
|Spreading Mechanism||4 paddles (adjustable to 5 angles)|
|Flow Adjustment||Two flow control levers. Course & fine adjustment.|
|Materials spread||Granular products, seeds, fertilisers, fine sands|
|Spread diameter||2 to 12 meters|
|Net Weight||115kg (empty)|
|Includes||PTO Shaft. Cat I pins.|
Scintex can ship this item anywhere in Australia. Due to the size and weight of this item we recommend contacting us for a shipping quote prior to purchase. A fork lift or tractor with tines will be required to unload the spreader on delivery. If a fork lift is not available we can arrange a drop tail delivery or collection from your closest freight depot.
