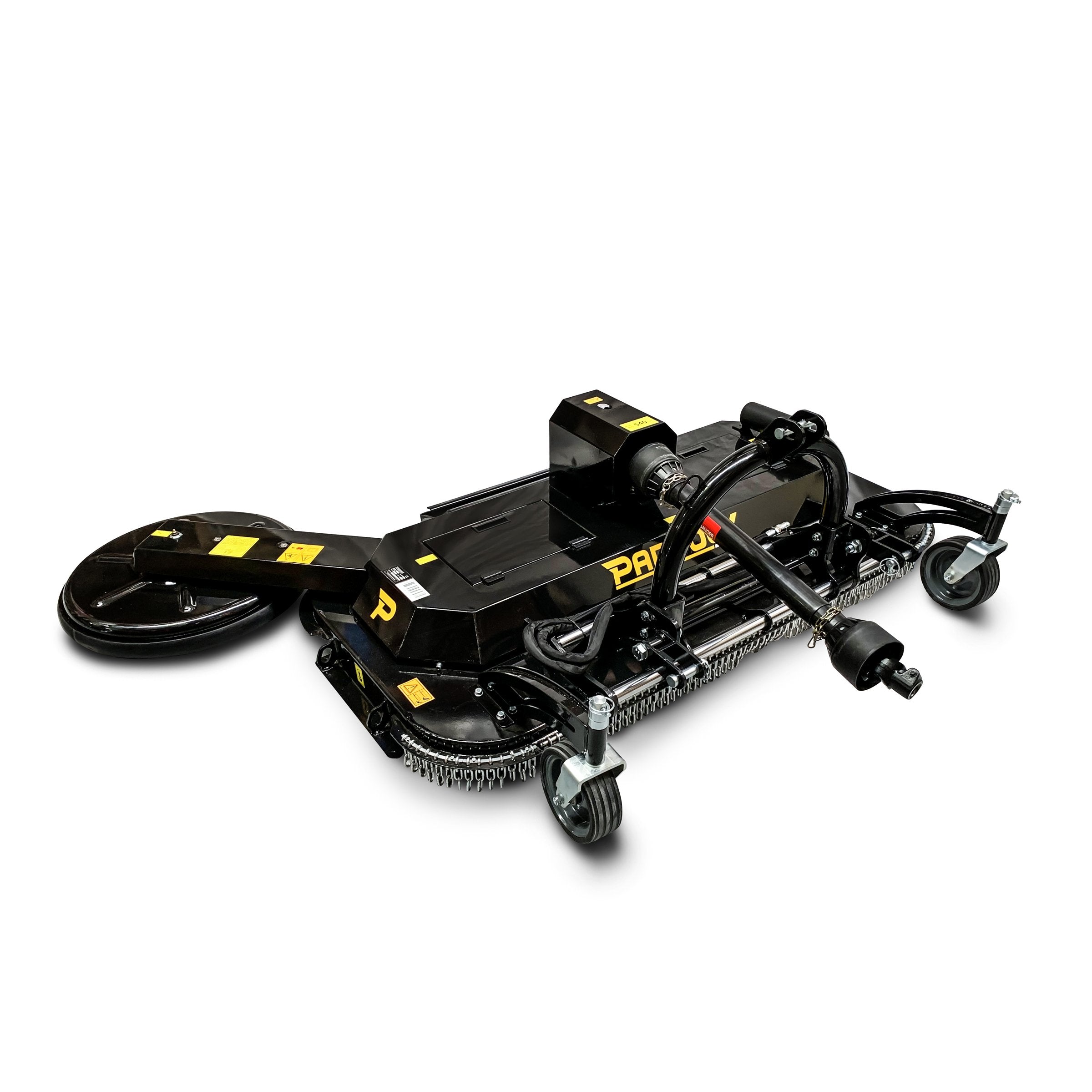

Paddock PTO Rotary Mower with Swing Arm
SKU: SFM180HS
FOR BULKY AND HEAVY ITEMS CONTACT US FOR A FREIGHT QUOTE.
For orders outside of Australia contact us for a freight quote.
Description
A modern design mower by Paddock™ incorporating a swing arm mounted UFO blade, best suited for fence line mowing, cutting around trees such as in orchards and vineyards. Built to withstand the riggers of the Australian environment with quality components and heavy-duty construction, this PTO tractor mower will be the envy of your neighbours.
PTO Driven Tractor Implement Finishing Mower Vineyard Cutter
- Intuitive floating disc design for cutting around obstacles.
- Heavy-duty, built for Australian conditions.
- Adjustable mowing heights.
- Hydraulic side shift for offset mowing
- Low maintenance.
- Special designed swing arm swivel blade, for fence post mowing and other specialised mowing.
- 3 point linkage Cat I
Mowing around trees, fence posts and solar panels
Paddock™ developed the perfect swing arm mower to make mowing around tree trunks, hedges and vines a breeze without damaging the obstacle in question. The unit utilises a rubber wheel on a UFO swing arm which rotates and deflects the swinging arm and its cutting blade away from any obstacles it contacts. As soon as the spring-ram loaded swinging arm passes the obstacle, it automatically returns to its original position. The simple design allows for mowing under fences and right up to trees and posts from the comfort of your tractor.
PTO Mower Compatibility / Hydraulic Side Shift
This implement is designed for tractors running a 540 RPM PTO speed which is the most common for Cat I & II tractors. It's ideally suited for tractors up to 50hp although higher HP tractors can be used thanks to the inclusion of a safety slip clutch in the PTO shaft. Modifications to the linkage and pins may be required for higher horsepower tractors.
To utilise the hydraulic side shift functionality, your tractor will need to be fitted with rear hydraulic connections. Side shifting the mower allows it to run closer to fence lines and trees without needing to run the tractor in compromising locations.The hydraulic side shift functionality does not need to be used for this implement to operate and users can leave this disconnected if they wish.
Finishing Mower Cut Quality
Finishing style mowers are considered to deliver one of the best quality finishes as they use a system of multiple shorter horizontal blades which rotate at high RPM. Unlike a slasher with longer blades, the finishing mower delivers a cleaner cut and is better at mulching the clippings as it works. Finishing mowers are fantastic for high traffic areas, public use areas and general tidy finish work. As the unit is PTO driven, the tractors high hp engine still delivers ample power to undertake cutting in heavily grassed areas where other mowers might bog down.
PTO Tractor Flail Mower Specifications
| Tractor Flail Mower | SMF180HS |
|---|---|
| Cutting Width | 210cm |
| Cutting Height | 30mm - 75mm |
| Ideal Power | 25 - 50 HP tractor |
| Offset |
Hydraulic side shift 2200mm wide unit 1100mm left / 1100-1370 right (looking from rear of tractor) |
| Deck thickness | 4mm |
| No. of Blades | 8 |
| Blade Material | Zinc forged hammer blades |
| Wheels | Non puncture, solid rubber 8"(D) x 3" (W) |
| Construction | Heavy-duty, powder-coated steel, 1/8" deck thickness |
| Linkage | 3 Point Linkage - Cat I (Cat I pins supplied) |
| Weight | 330kg |
| Dimensions | 2200mm(L) x 1980mm(W) x 740mm(H) |
| Greasable Bearings | SKF spindle and gearbox bearings |
| PTO Shaft | Included with safety clutch fitted |
| PTO Drive Speed | 540 rpm |
| Hydraulic Connections | G1/2 quick-change connectors |
| Warranty | 12 Month Australian Warranty |
Note: Requires greasing of grease nipples and gearbox oil prior to operation. To reduce the storage and shipping size the mower will require some simple assembly before use.
SHIPPING INFORMATION:
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of over 300kg. We advise contacting us for a freight quote to your location. A forklift will be required at the receiver's location for unloading otherwise a tail lift truck can be used.
