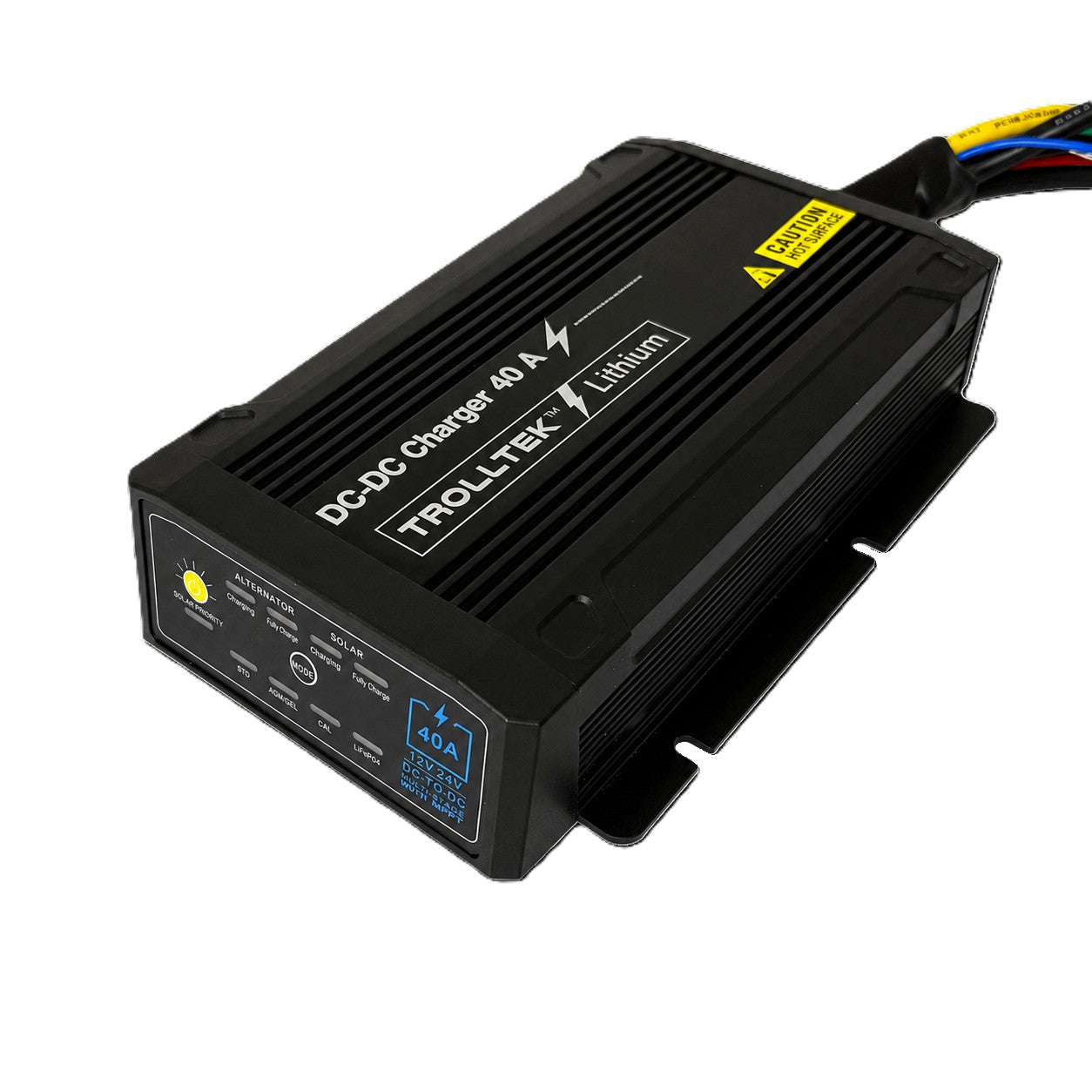

Trolltek™ 40Amp DC/DC Charger with MPPT Solar Input
Description
NEW STOCK DUE EARLY SEPT
DESCRIPTION
The Trolltek™ range of DC to DC Lithium Battery Chargers with integrated MPPT Solar Regulator are ideal for onboard installations in harsh saltwater or offroad environments. Each unit is waterproof, dustproof and shockproof, ensuring they withstand the rigours of the marine world.
By combining a DC/DC charger and MPPT solar regulator into a single compact unit, Trolltek™ chargers allow your lithium batteries to charge efficiently from both your vehicle or boat's charging system and solar panels. This provides a complete charging solution for trolling motor batteries, marine electronics, caravans, campers and off-grid power systems.

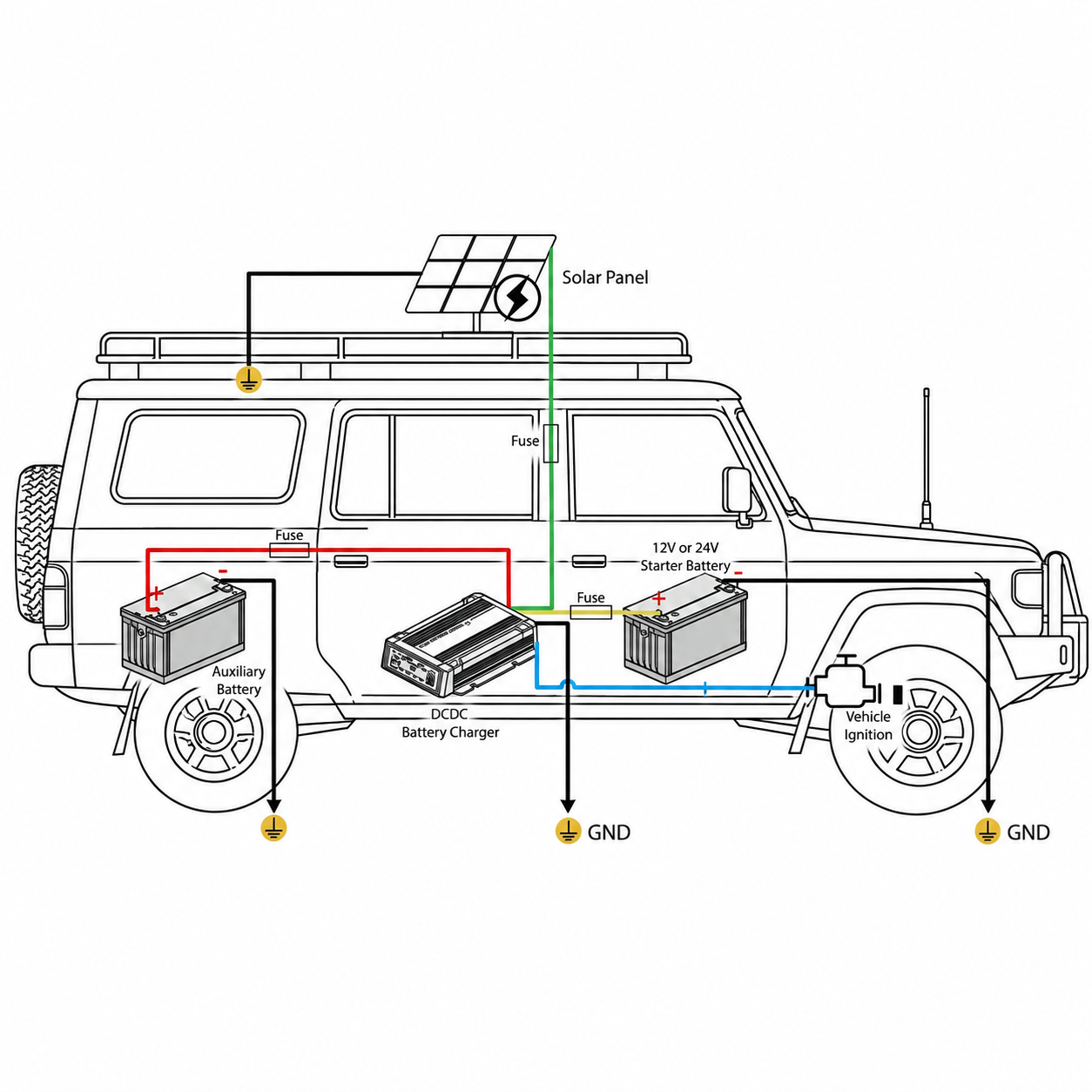

Installing an onboard DC/DC charger with MPPT solar input helps your lithium batteries recover while you're running at sea, travelling or towing, while also maximising energy harvested from solar panels when the vehicle is switched off and sunlight is available. This simplifies your lithium battery charging system and reduces installation complexity.
FEATURES
- 40Amp 12/24V DC/DC charger with MPPT solar regulator input
- Excellent performance in harsh environments.
- Dual Input from both solar and alternator.
- Alternator priority as default
- Suitable for charging 12V - Lead-acid, Gel, AGM, Calcium and LiFeP04 batteries
- Fully automatic multistage charging
- Smart alternator compatible.
- Suitable for unregulated solar panels 9-32V up to 200W
- In-built Low-Voltage, Over-Voltage, Over-Temperature and Reverse Polarity Protection.
- IP68 rated, for resistance to dust, water, and shock damage.
DESIGNED FOR LITHIUM
Trolltek™ chargers are supplied configured for use with the Trolltek™ range of Lithium batteries, with charge voltages pre-set to optimum levels, making installation simple and error-free for users. Trolltek™ chargers are also compatible with many other leading brands of batteries (refer to charge specifications below to confirm suitability for your application).
Multi-stage charging gives batteries longer life and improved performance compared to traditional battery chargers.
Bulk Charge Stage keeps the charger at a constant current until a set voltage is reached, typically achieving up to 80% of battery capacity in the shortest possible time.
Absorption Charge Stage adjusts the charge rate to bring the battery up to 100% capacity, ensuring maximum energy storage and battery performance.
Float and Maintenance Functions ensure the battery remains fully charged without risk of overcharging.
Trolltek™ chargers include advanced smart charging technology that automatically manages charging from both DC and solar inputs, protecting your battery while delivering the fastest and most efficient charge possible.
ADVANCED MPPT SOLAR TECHNOLOGY
Unlike basic solar regulators, the integrated MPPT (Maximum Power Point Tracking) solar regulator continuously monitors solar panel output and automatically adjusts operating parameters to maximise solar energy harvest.
This allows the charger to extract significantly more usable power from solar panels, particularly during low-light conditions, cloudy weather and varying temperatures.
The charger automatically prioritises available charging sources and seamlessly manages charging from alternator, outboard charging systems and solar panels without user intervention.
Find our Manual here
SPECIFICATIONS
| Specifications | TTKDC40S |
|---|---|
| Mac Charging Current | 40Amps |
| Recommended Battery Size |
120-400AH |
| Vehicle Input (V) |
11.5-32V |
| Solar Input (V) |
9-32V up to 200W panel |
| Charging Type | 3 Stage *Ref to below |

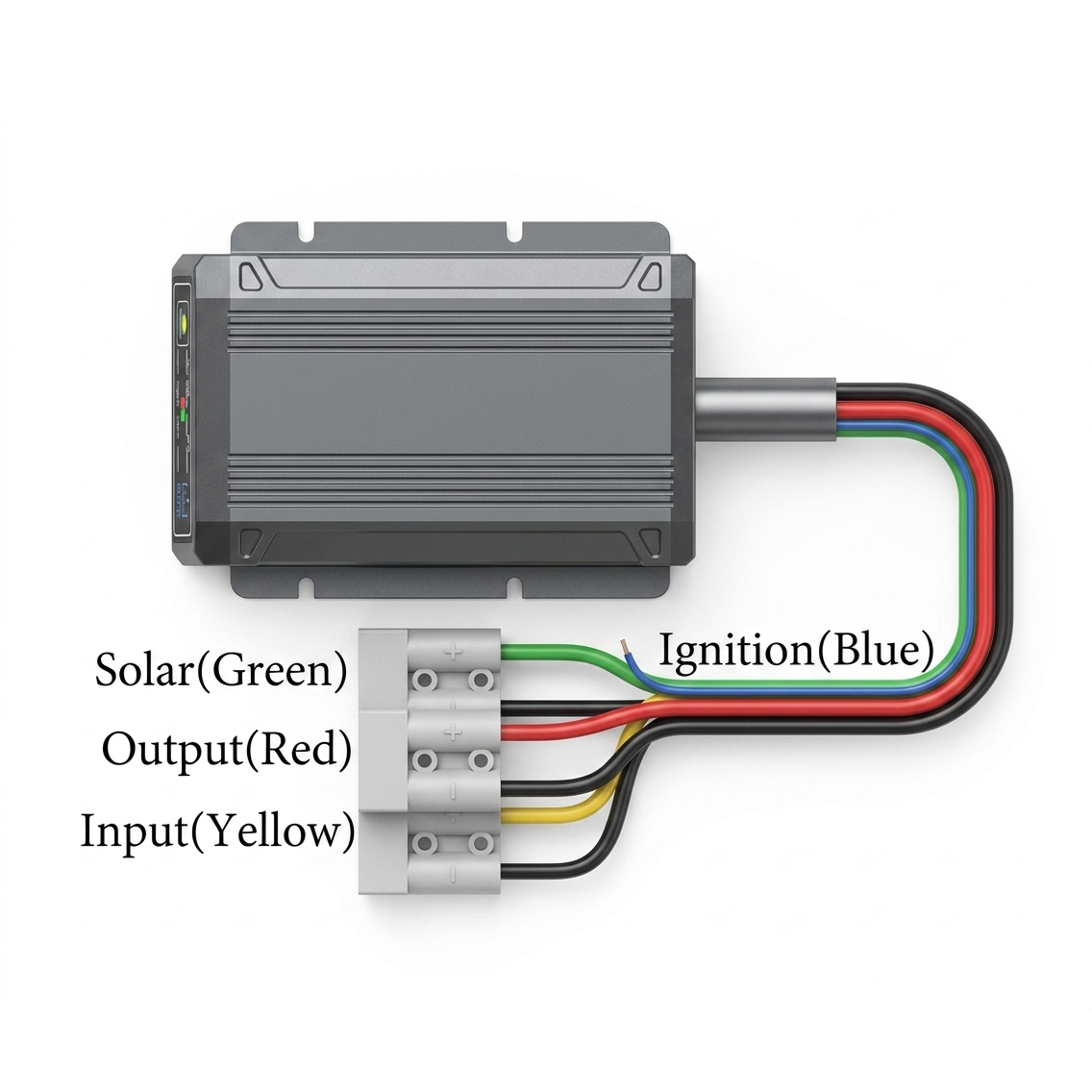

| Connection Type | Anderson Style Plugs *Ignition wire separate from plugs |
| Standby Type | <10mA |
| Suitable Battery Types |
Std Lead Acid, Gel, AGM, Calcium & LiFePo4 |
| Operating Temp | -20℃ to +80℃ |
| IP Rating |
IP68 |
| Recommended Wiring |
Less than 5m - 8AWG Less than 10m - 6AWG *Ignition Blue 20AWG |
| Recommended Fuse Size | 50A |

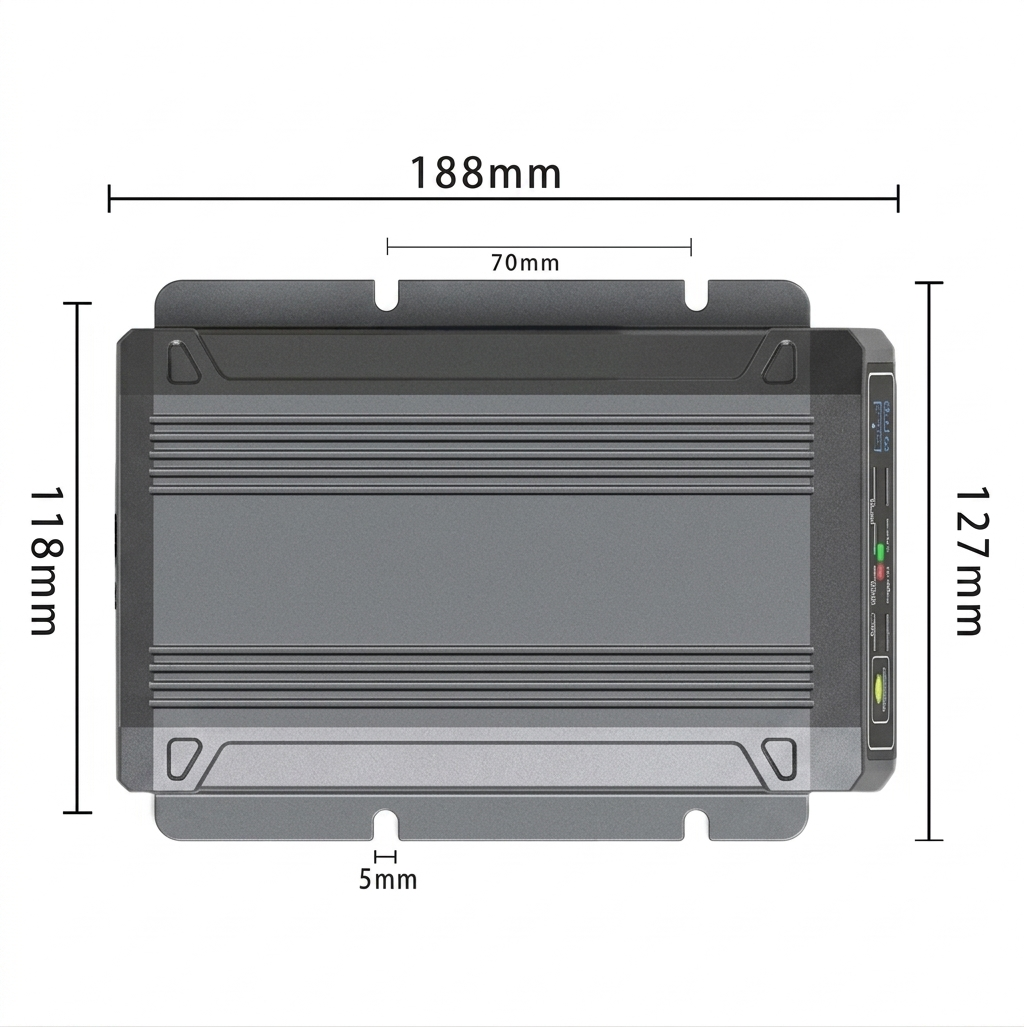

| Dimensions | 188x127x40mm |
| Weight | 1.28 kg |
| Warranty | 1 yr |
Charge Control
| Charging Profile | STD | GEL | AGM | Calcium | LiFePo4 |
| Max Voltage | 14.4V | 14.1V | 14.1V | 15.3V | 14.4V |
| Float Voltage | 13.6V | 13.6V | 13.6V | 13.6V |
