Trolltek DC Voltage Converters

$569.00
(inc GST)
SKU TTK122440

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



Description

The Trolltek™ DC voltage convertor can be used to power a 24V or 36V trolling motor directly from a 12V battery. These converters are ideal for onboard marine installations in harsh salt water environments. Each unit is waterproof, dustproof and shockproof ensuring they withstand the harsh marine environment.

Utilizing a voltage converter means there's no need for a dedicated 24V or 36V battery and instead the trolling motor can be powered from the existing 12V house or crank batteries.

The negatives to using a converter is a slight loss in efficiency with up to 4% of the power lost as heat through the converter. Additionally, users must be careful not to drain their house or crank batteries as trolling motors can draw considerable amounts of power.

Designed for Marine

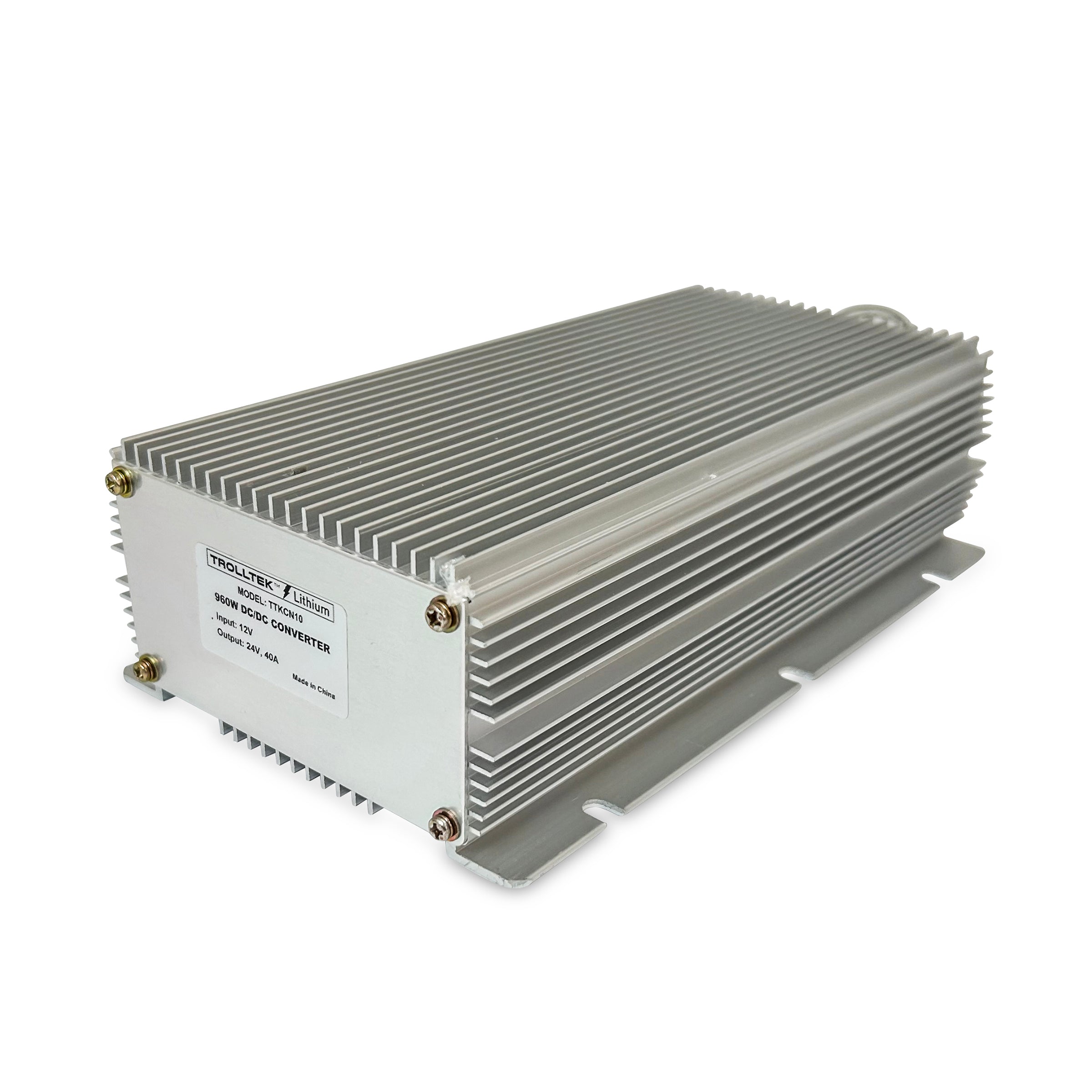

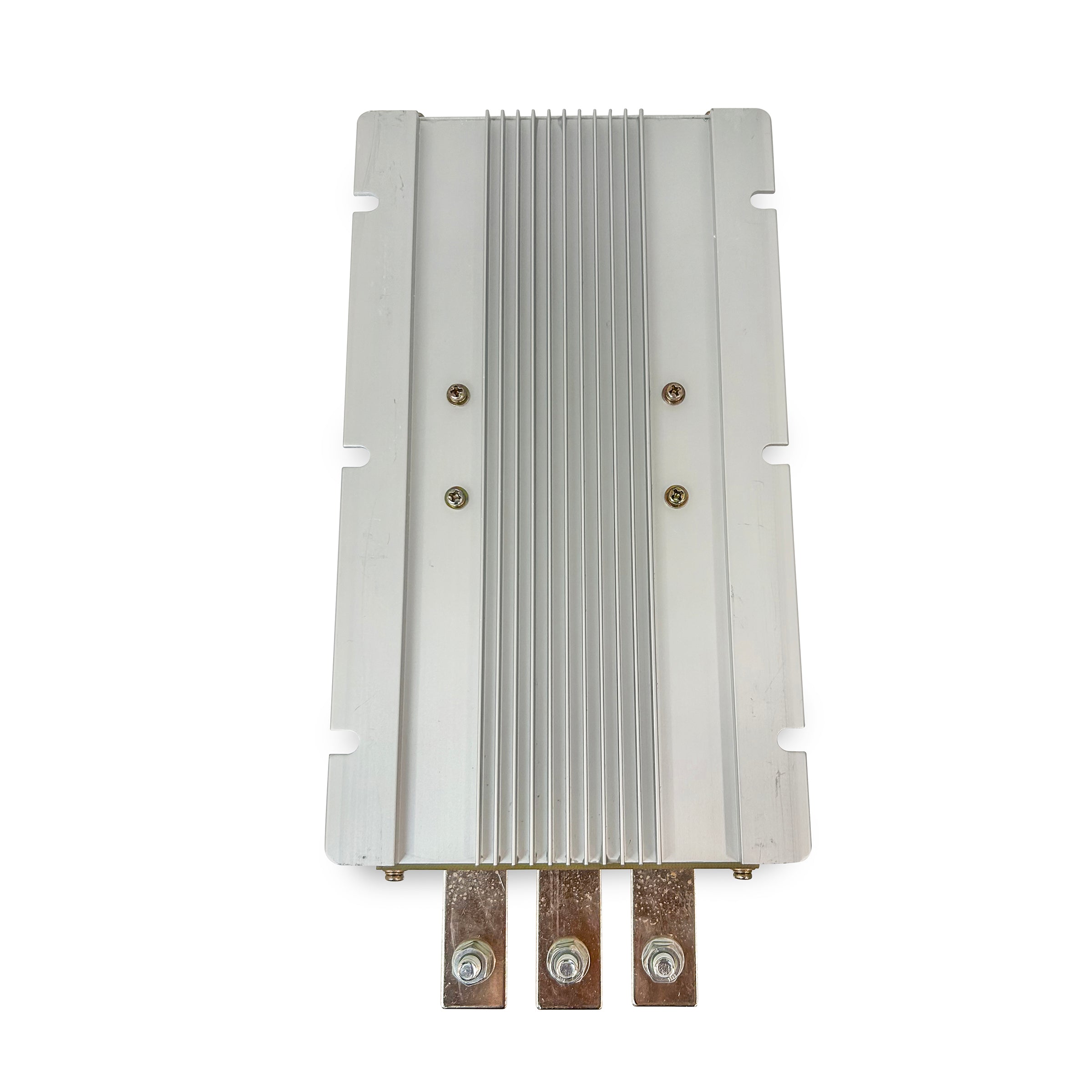

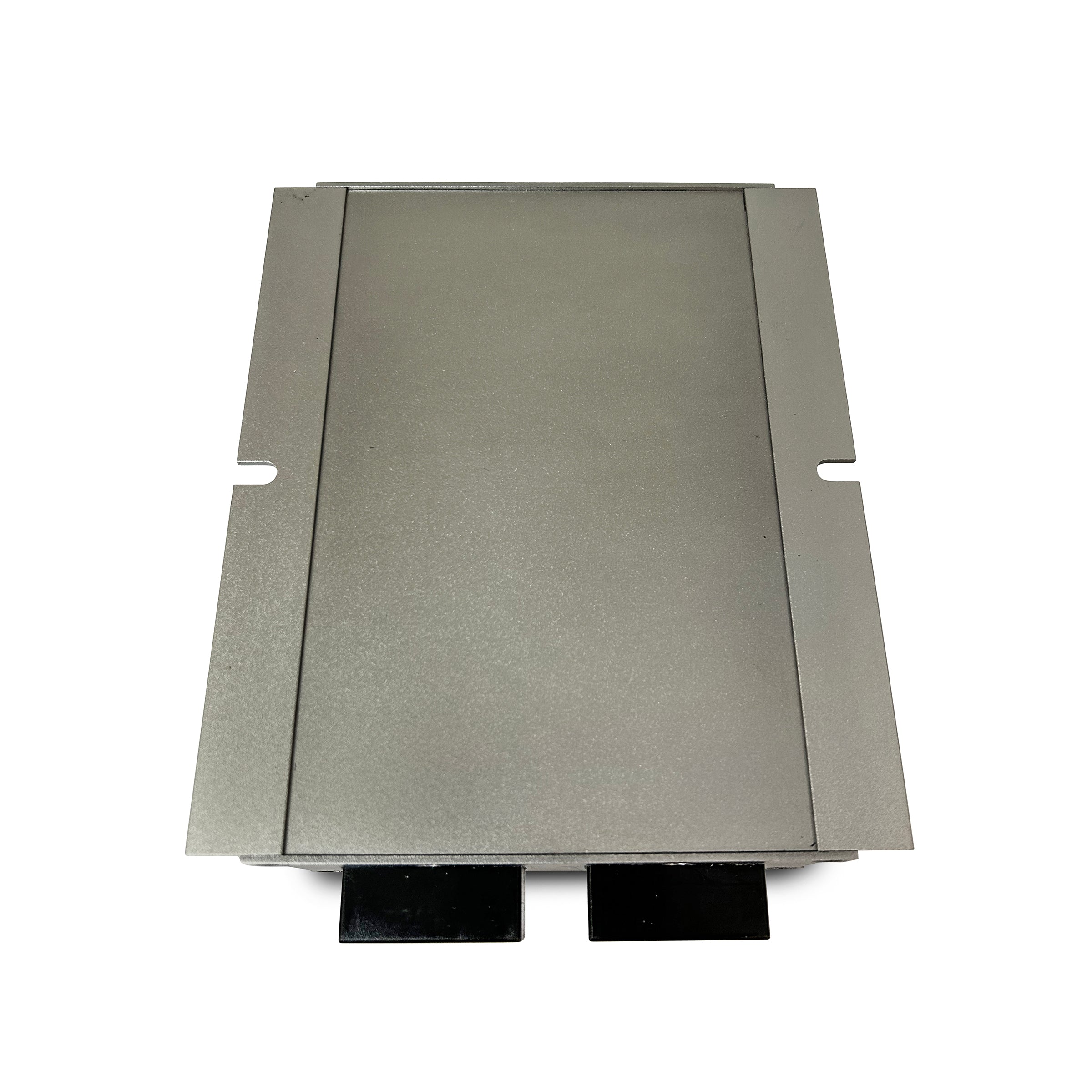

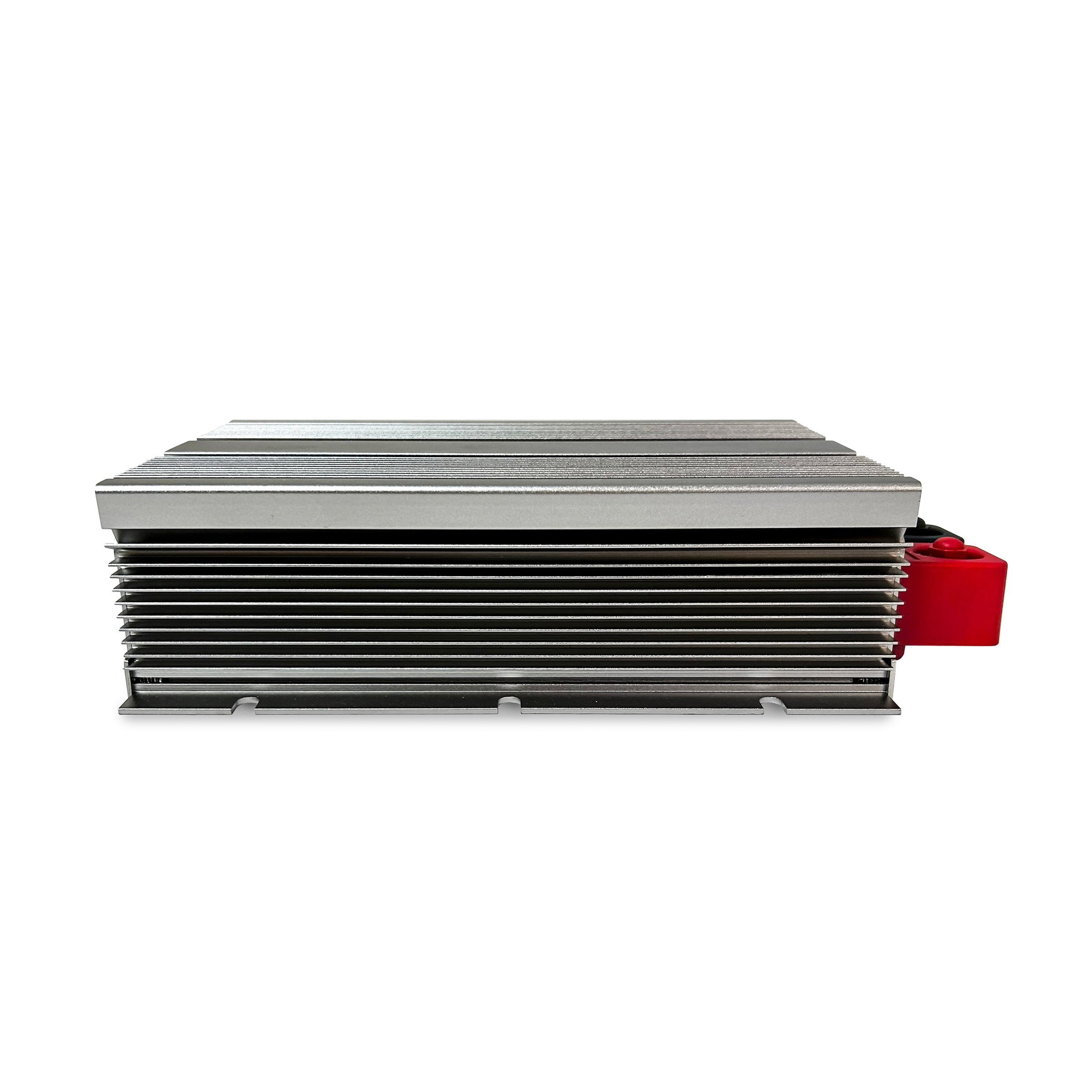

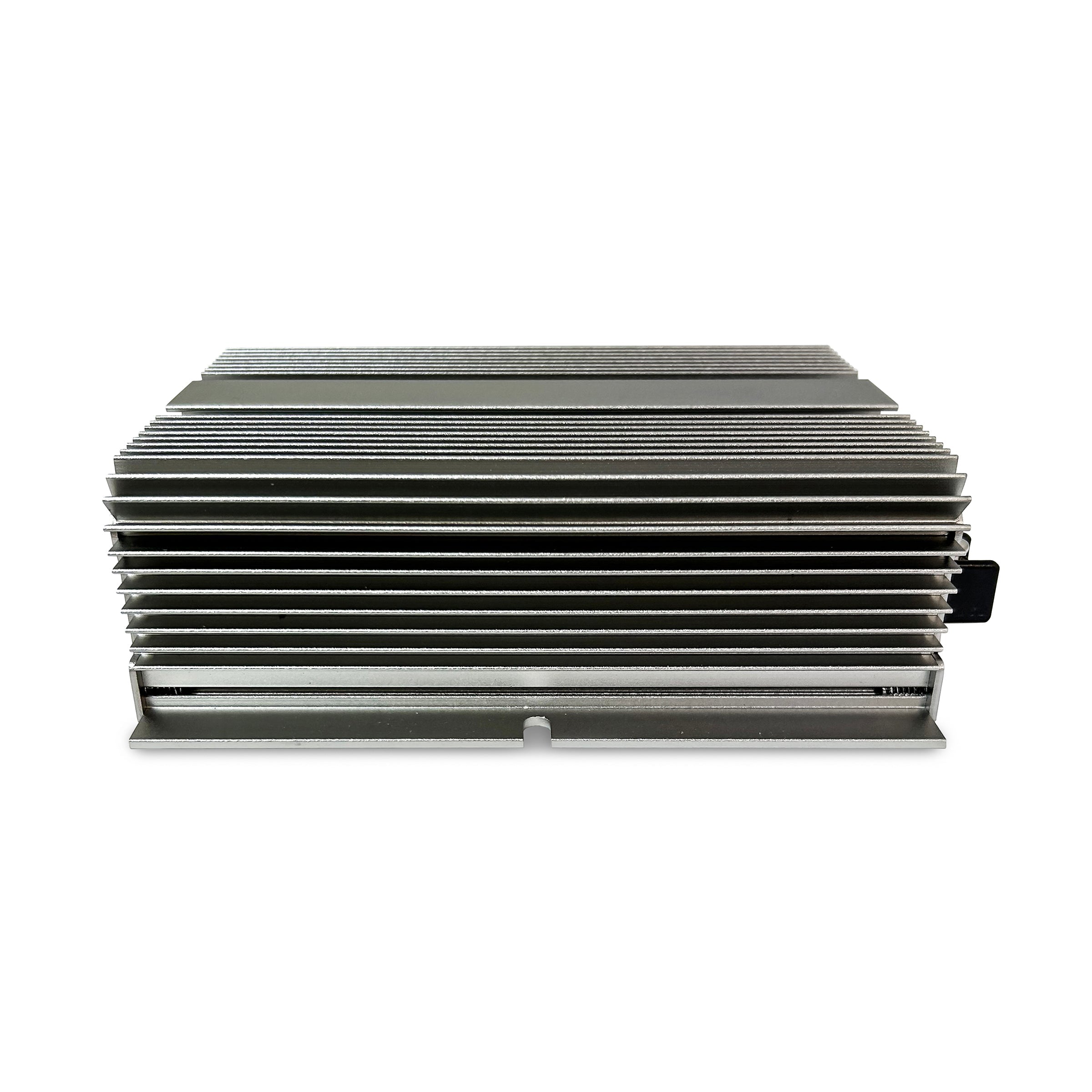

Trolltek™ converters are waterproof and shockproof making them well suited to the marine environment where boat slap and pounding from waves can be common. The internal electronics are epoxy potted and housed inside a aluminum casing to achieve a robust and stable design.

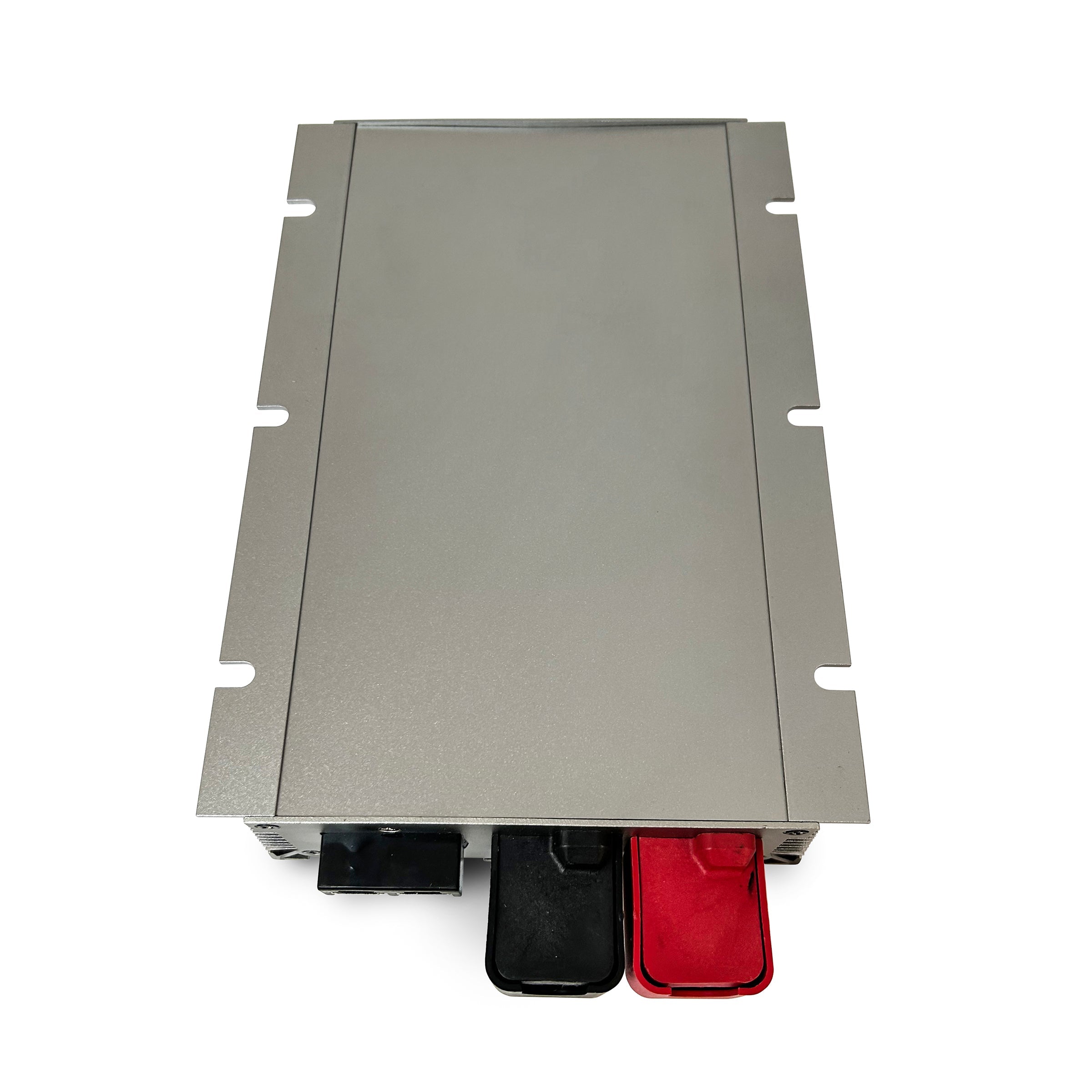

Trolltek™ converters can be mounted in any orientation making them great for boat installations. There is no reliance on fans for cooling increasing reliability.

Installation Design Considerations

Up to 4% of the power draw from Trolltek™ converters can be shed as heat and users should take this into consideration with their installations. A air gap must be maintained around the converter to prevent reaching the over-temperature protection state.

Wire gauge is also vital when installing a converter and should not be overlooked. For example, if using a 36V trolling motor that can draw ~40A@36V, the 12V input to the converter could reach as much as 150A. Wire sizing is of key importance with this amount of power draw over an extended period.

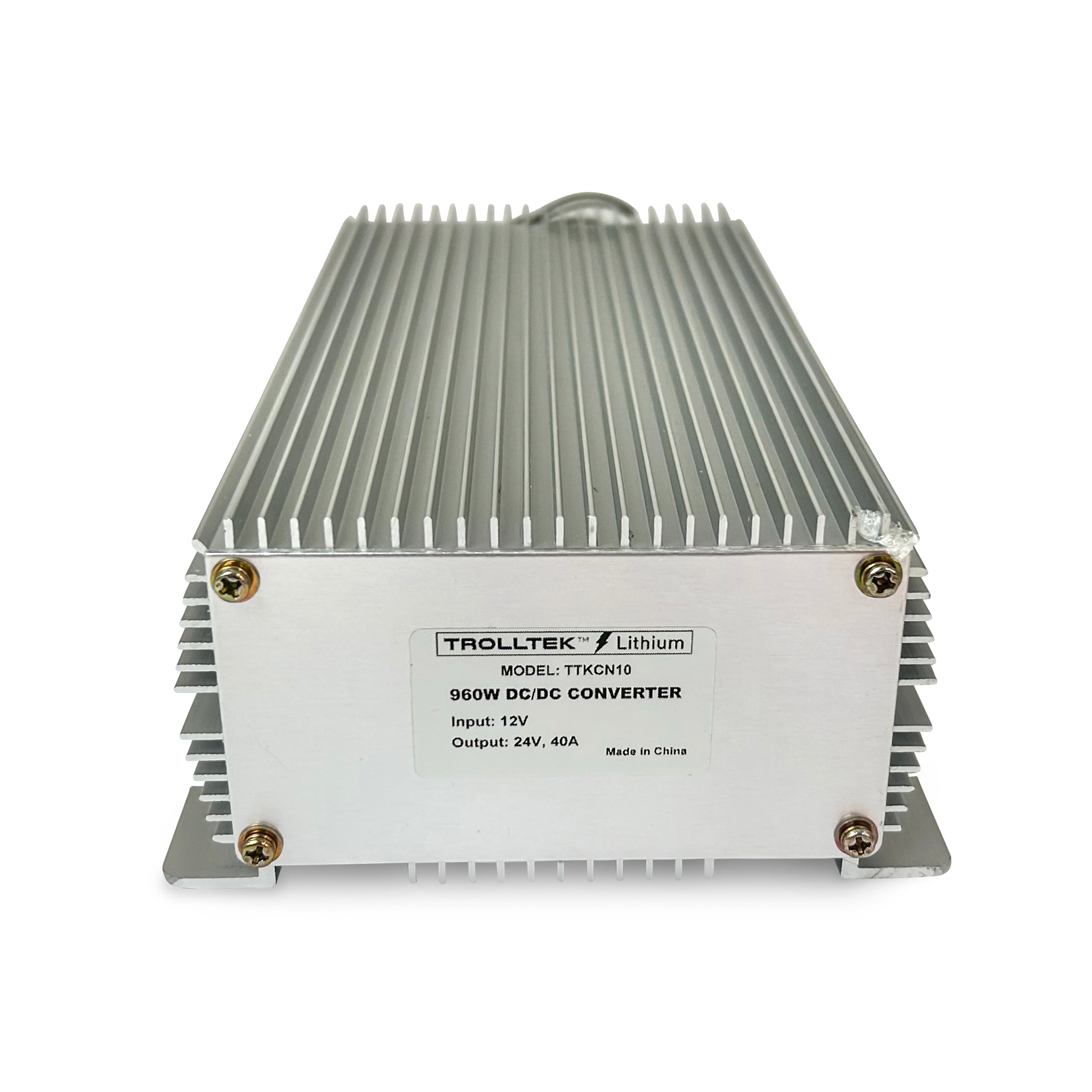

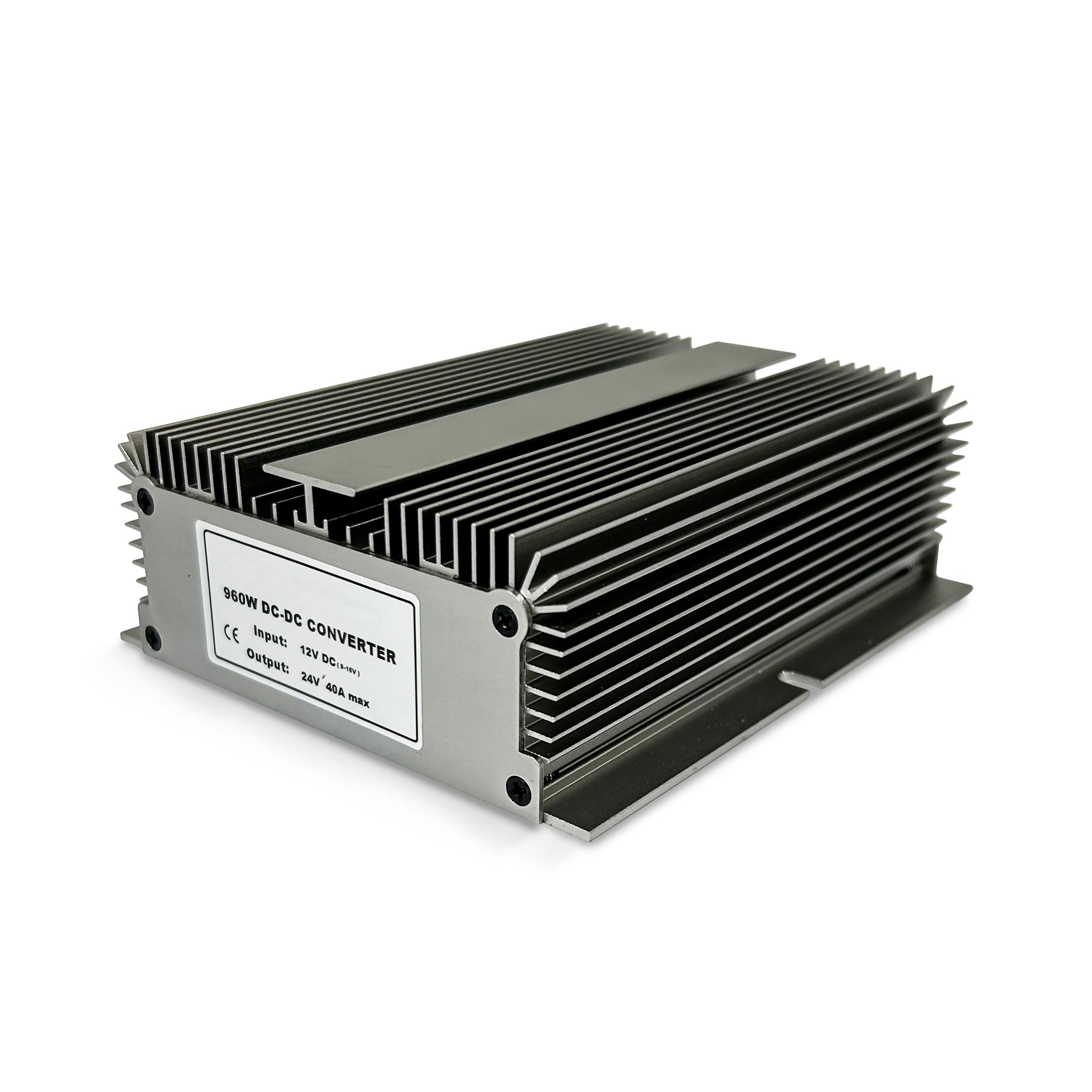

Specifications TTK122440/TTKCN10 TTK123650
Rated Input

12V

10-16V

12V

10-16V

Output Voltage 24V DC 36V DC
Output Current
40A
50A
Output Power 960W 1800W
Voltage Regulation <1% <1%
Load Regulation <2% <2%
No Load Current <30mA <30mA
Over Voltage Protection
Included Included
Over Current Protection Included Included
Over Temperature Protection
Included Included
Short Circuit Protection
Included Included
Efficiency 96% 96%
Cooling Free air convection Free air convection

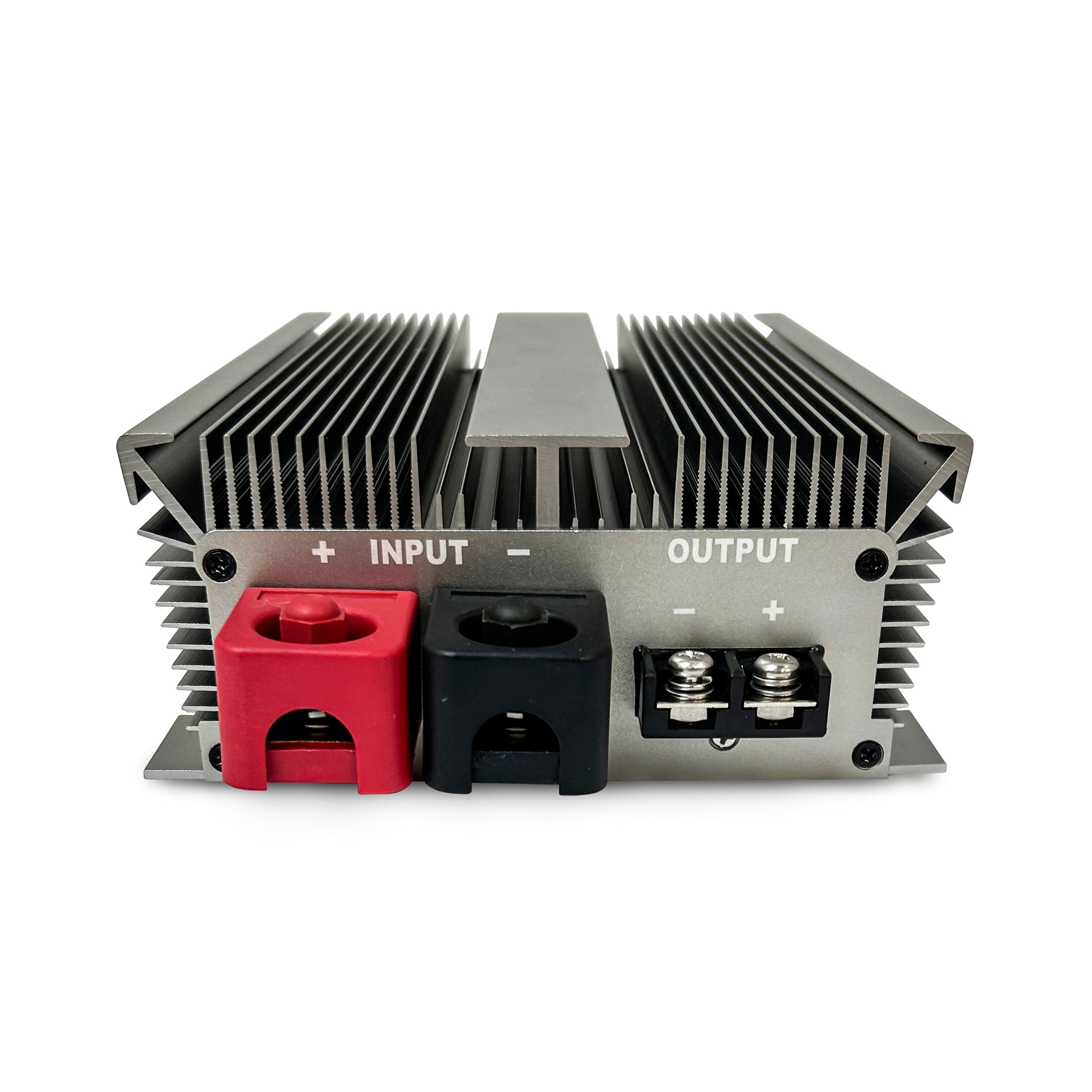

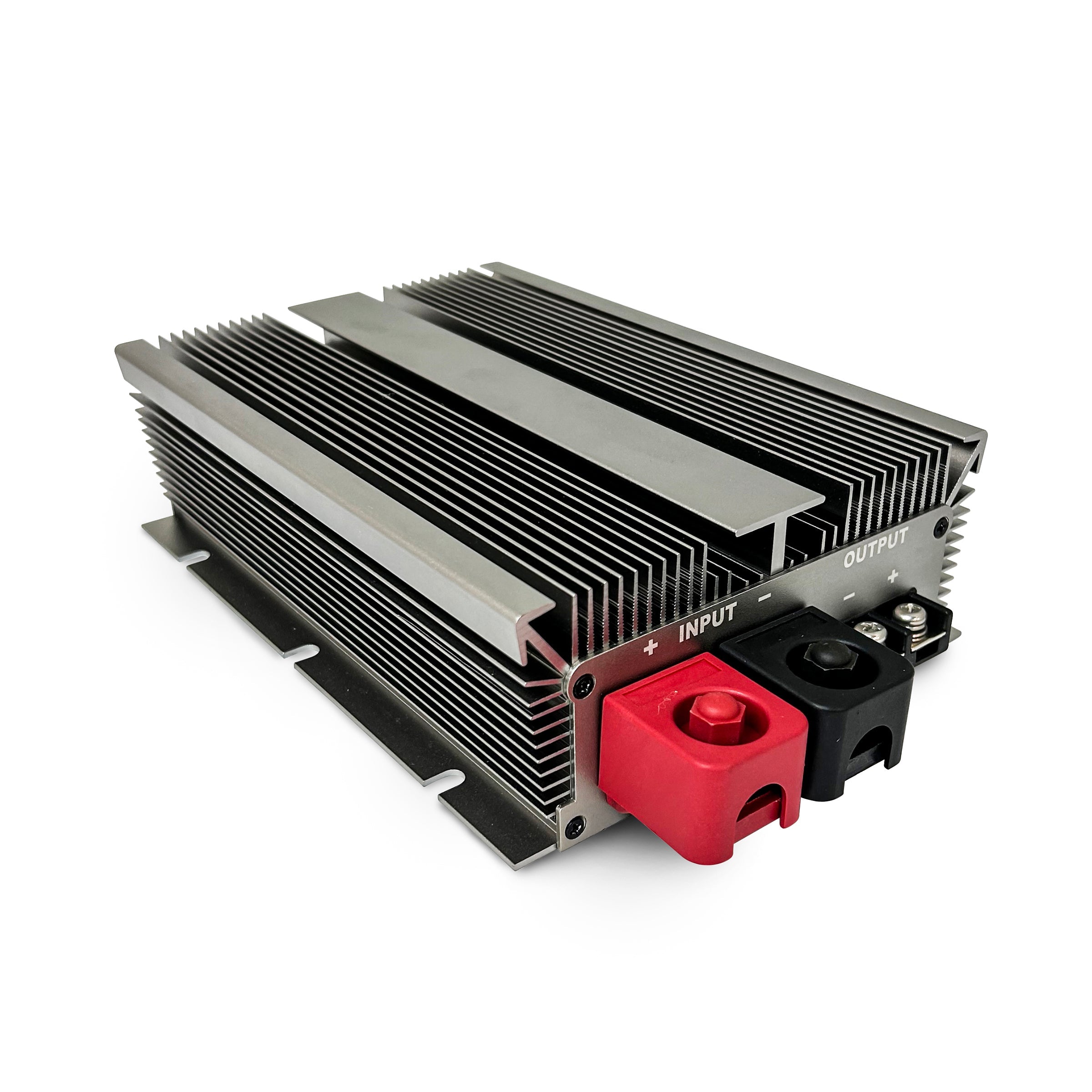

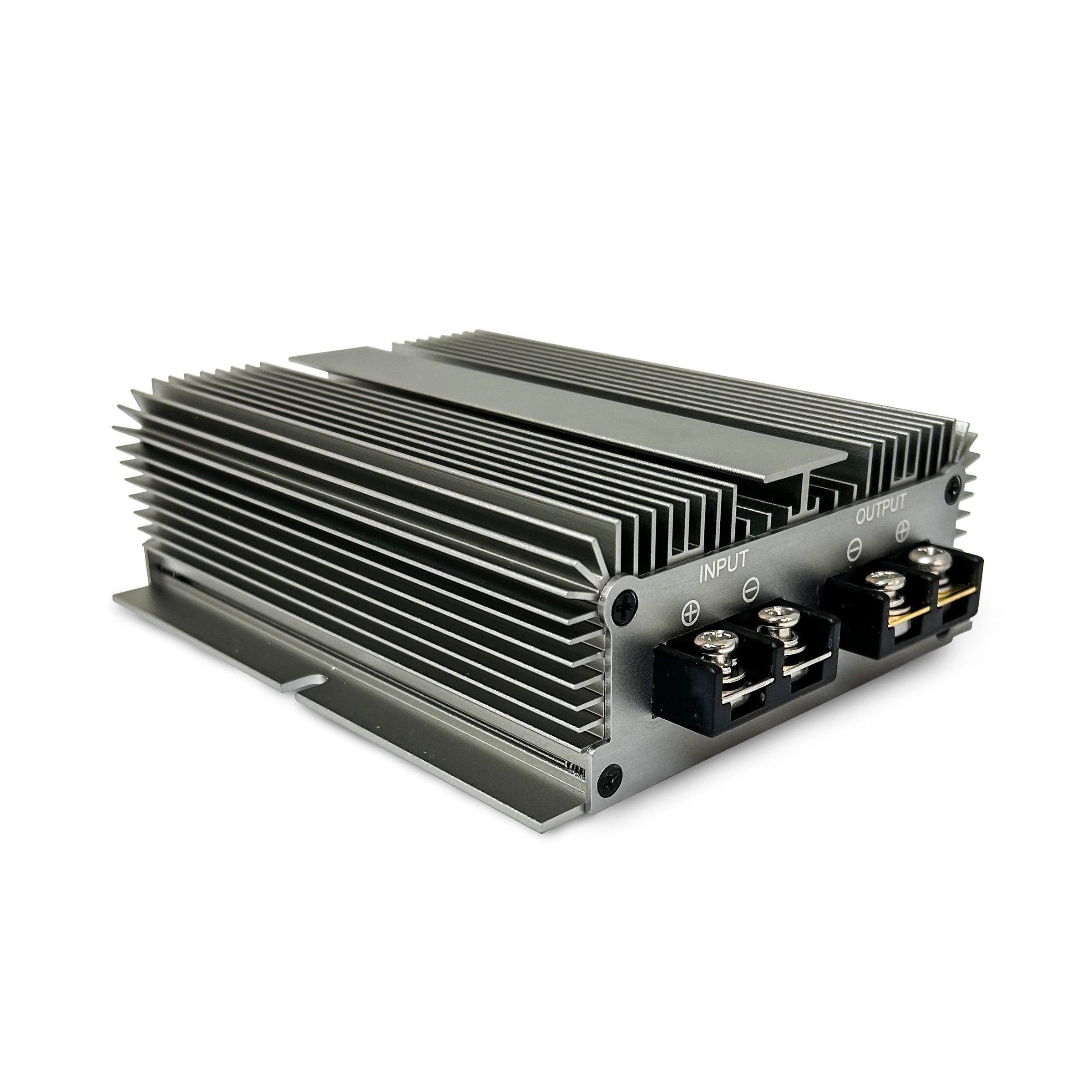

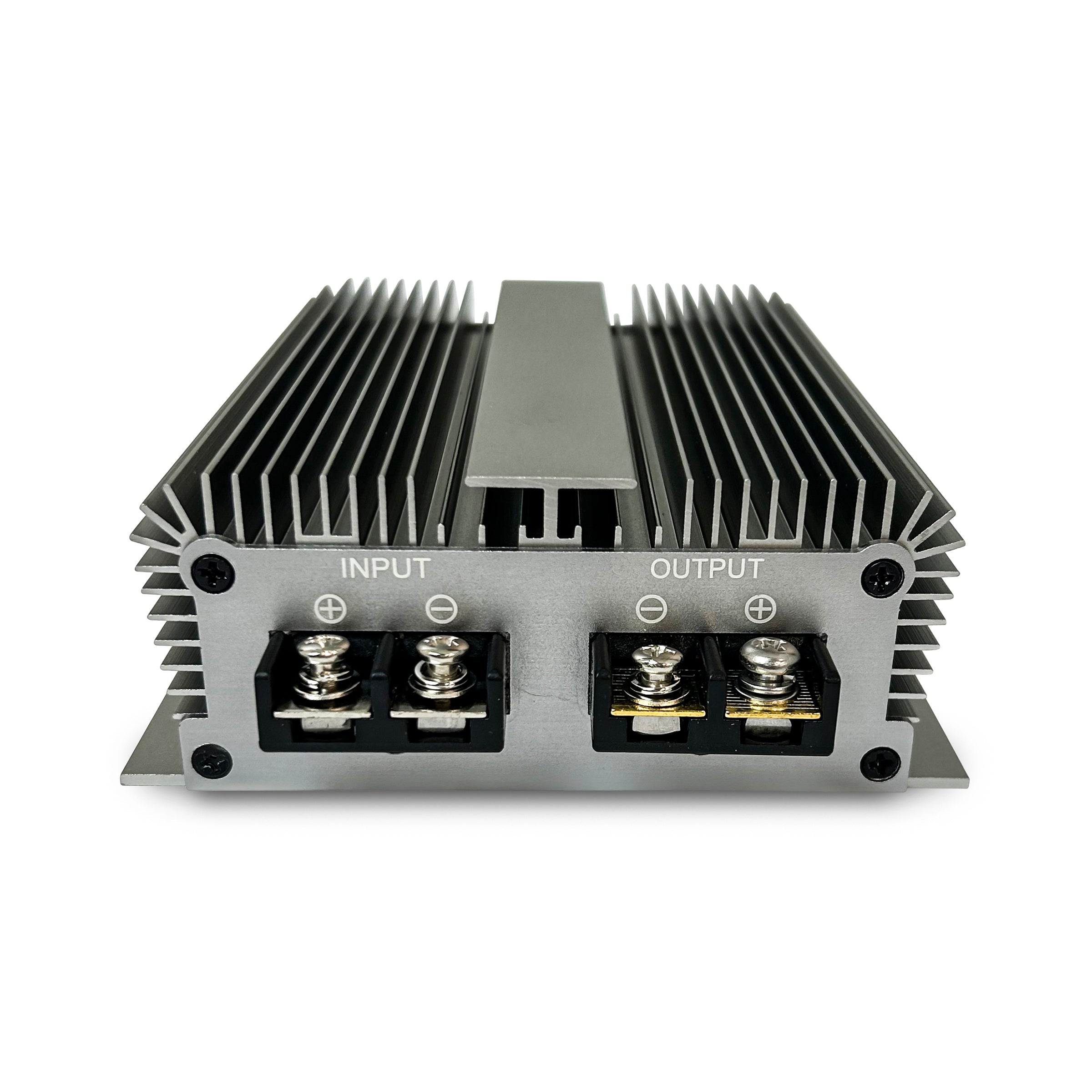

Connections
Terminal Terminal
IP Rating
68
68
Dimensions

Case 1 150x130x50mm

Case 2 220x127x63mm

(limited number of Case 2 offered at discounted price. Same internals, different outer casing/appearance)

220x156x65mm
Weight 1.5 kg
3.3 kg
Warranty 1 yr 1 yr
