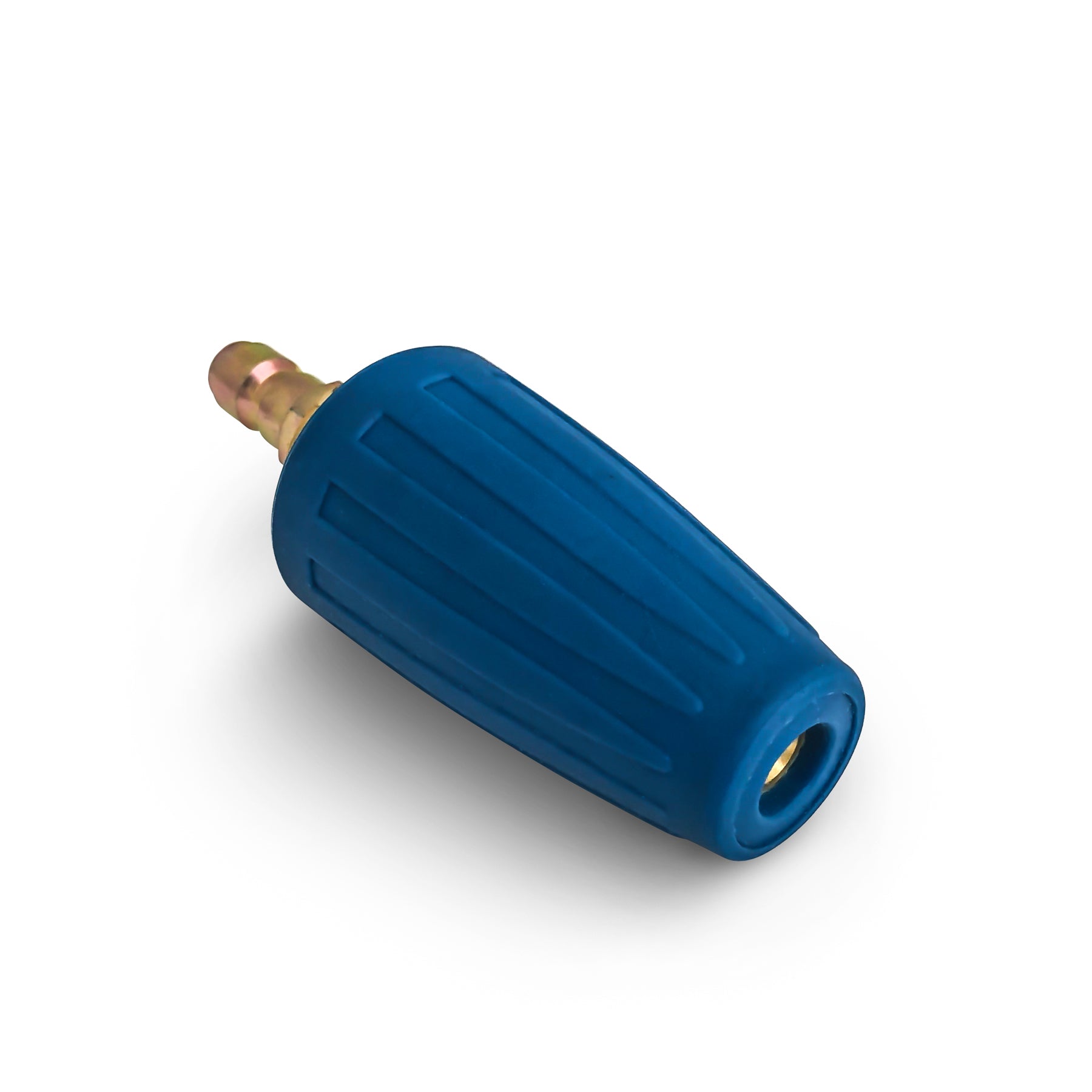

Paddock™ 4000 PSI Pressure Washer Turbo Nozzle – 1/4" Quick Connect
Description
The Paddock™ Pressure Washer Turbo Nozzle combines the concentrated cleaning force of a high-pressure jet with a rapidly rotating spray pattern. Rated to 4000 PSI and suitable for flows from 7.6–32 L/min, it is ideal for demanding pressure cleaning applications where additional cleaning impact is required.
Paddock™ 4000 PSI Pressure Washer Turbo Nozzle
Designed for demanding pressure washing applications, this heavy-duty turbo nozzle uses a rapidly rotating concentrated water jet to provide strong cleaning action across a larger area than a stationary pencil jet.
The nozzle features a ceramic core and seal, metal rotator and heavy-duty brass body for durability in commercial and industrial pressure cleaning applications.
Turbo Nozzle Features
- Maximum pressure rating of 4000 PSI / approx. 276 bar
- Suitable for pressure washer flows from 7.6–32 L/min
- Maximum water temperature of 90°C
- Heavy-duty brass body
- Ceramic core and seal
- Metal rotating mechanism
- 1/4" female BSP inlet
- 1/4" quick-connect fitting included
- Rotating concentrated jet for aggressive cleaning
- Suitable for compatible commercial and industrial pressure washers
How Does a Turbo Nozzle Work?
A conventional fan nozzle spreads the water across a wider spray pattern. A turbo nozzle instead produces a concentrated high-pressure jet and rapidly rotates it to create a circular cleaning pattern.
This provides the impact of a concentrated jet while allowing the operator to cover a larger area, making turbo nozzles particularly useful for removing stubborn dirt and contamination from suitable hard surfaces.
Typical Applications
- Concrete cleaning
- Driveways and paths
- Heavy equipment cleaning
- Machinery cleaning
- Industrial floors and hard surfaces
- Removing stubborn dirt and built-up grime
- Surface preparation
- Removing loose or deteriorated coatings from suitable surfaces
Heavy-Duty Construction
The nozzle incorporates a high-strength ceramic core and seal together with a metal rotator and heavy brass outer body. This construction is designed to withstand the demanding pressure and rotational action encountered during pressure washing.
Pressure Washer Compatibility
The turbo nozzle must be correctly matched to the pressure and flow of the pressure washer. The nozzle is rated for a maximum pressure of 4000 PSI / approximately 276 bar and a stated flow range of 7.6–32 L/min.
A 1/4" quick-connect fitting is included for convenient connection to compatible pressure washer lances and fittings.
Paddock™ Turbo Nozzle Specifications
| Specification | SPWBTH |
|---|---|
| Maximum Pressure | 4000 PSI / approx. 276 bar |
| Flow Range | 7.6–32 L/min |
| Maximum Water Temperature | 90°C |
| Inlet | 1/4" female BSP |
| Connection | 1/4" quick-connect fitting included |
| Body Construction | Brass |
| Internal Core & Seal | Ceramic |
| Rotator | Metal |
| Brand | Paddock™ Machinery |
Important – Select the Correct Nozzle
For best performance, the nozzle must be appropriately sized for the pressure washer's operating pressure and flow rate. A nozzle that is incorrectly matched to the machine can reduce cleaning performance or cause the pressure washer to operate outside its intended conditions.
Do not exceed the nozzle's maximum pressure or temperature ratings.
Operating Information
Turbo nozzles produce a concentrated, aggressive water jet and should only be used on surfaces capable of withstanding high-pressure cleaning. Test an inconspicuous area first when there is any risk of surface damage.
Avoid using the turbo nozzle on people, animals, glass, delicate finishes, soft timber or other surfaces that may be damaged by concentrated high-pressure water.
