240V Gear Oil Pump

$599.00
(inc GST)
SKU SPGP09LPM

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.

Description

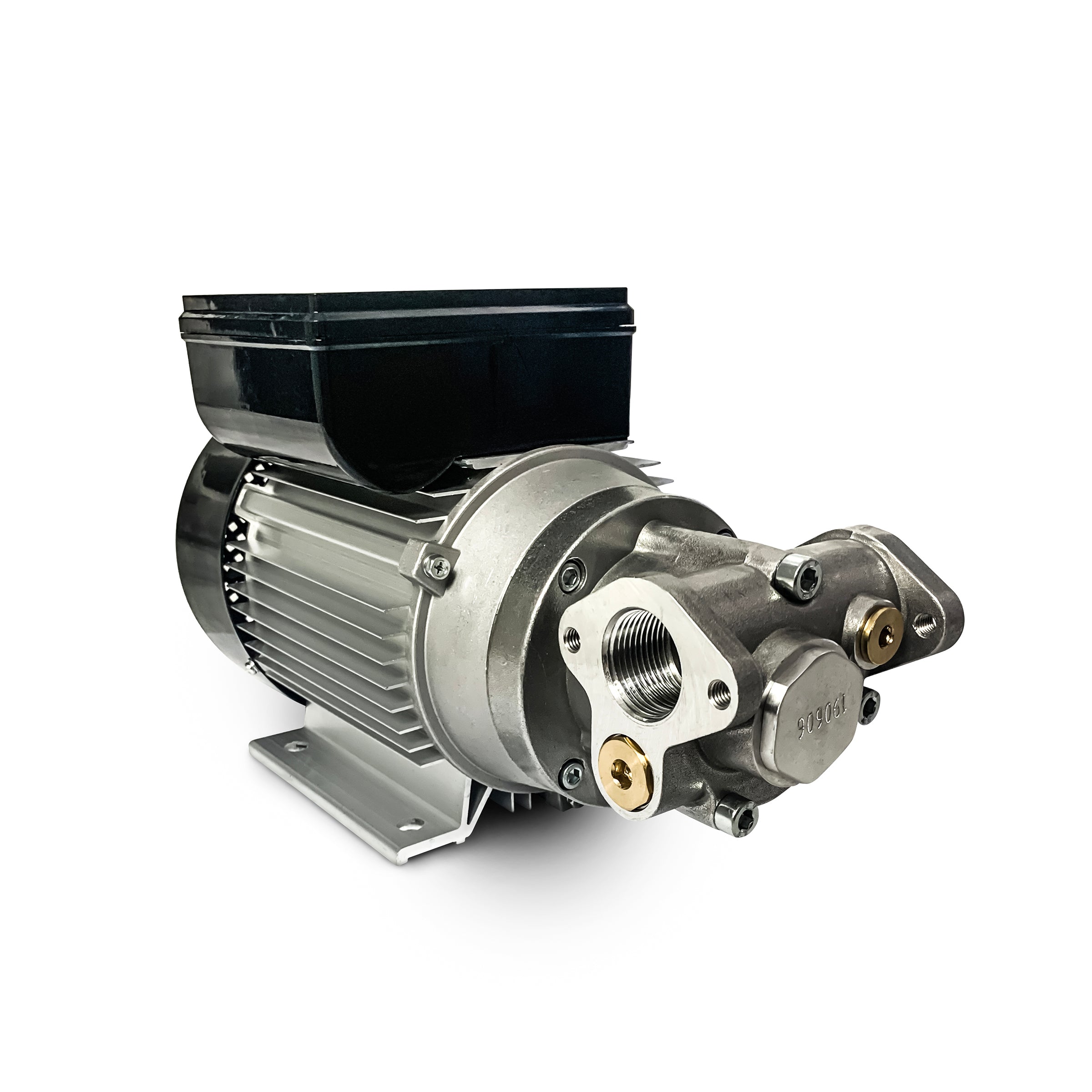

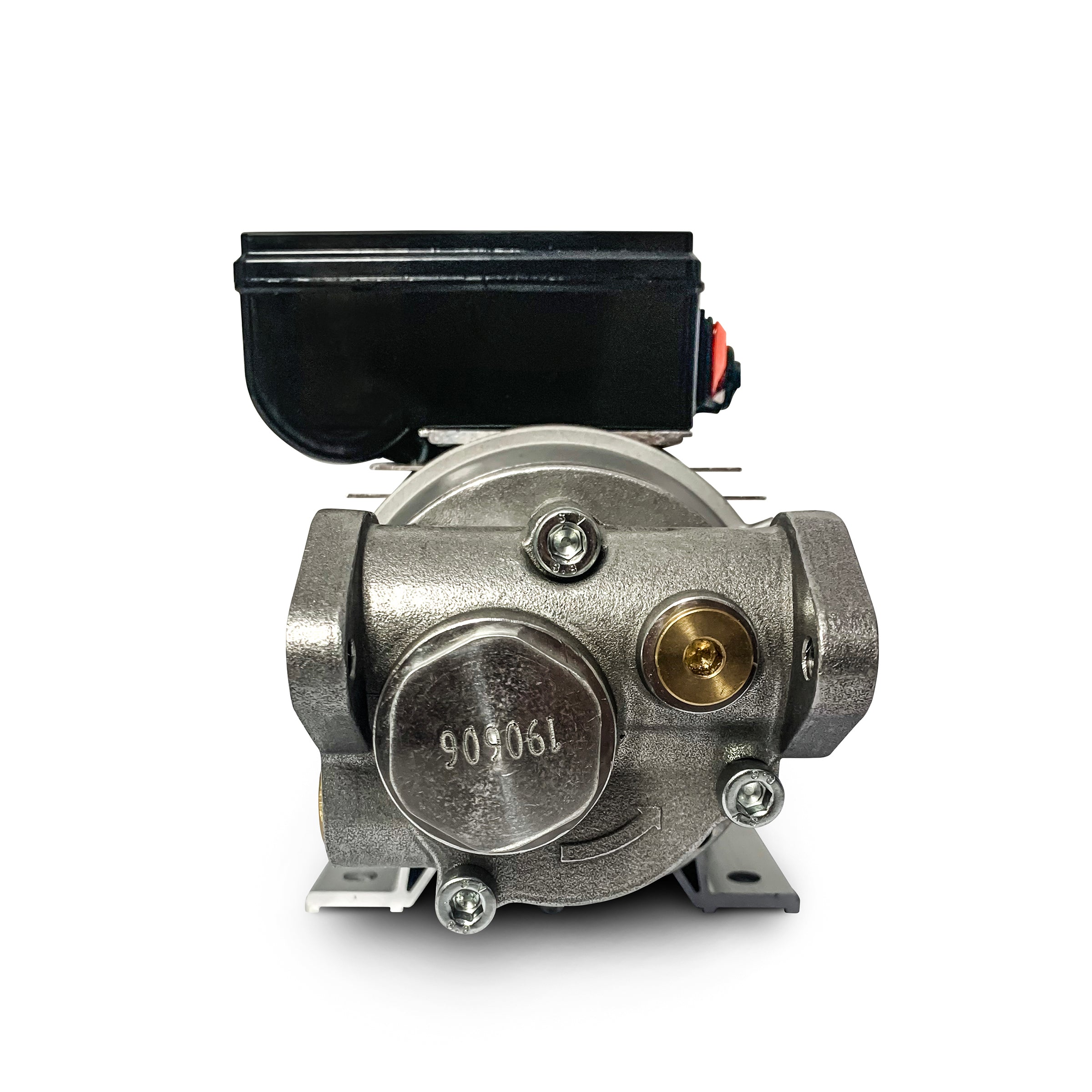

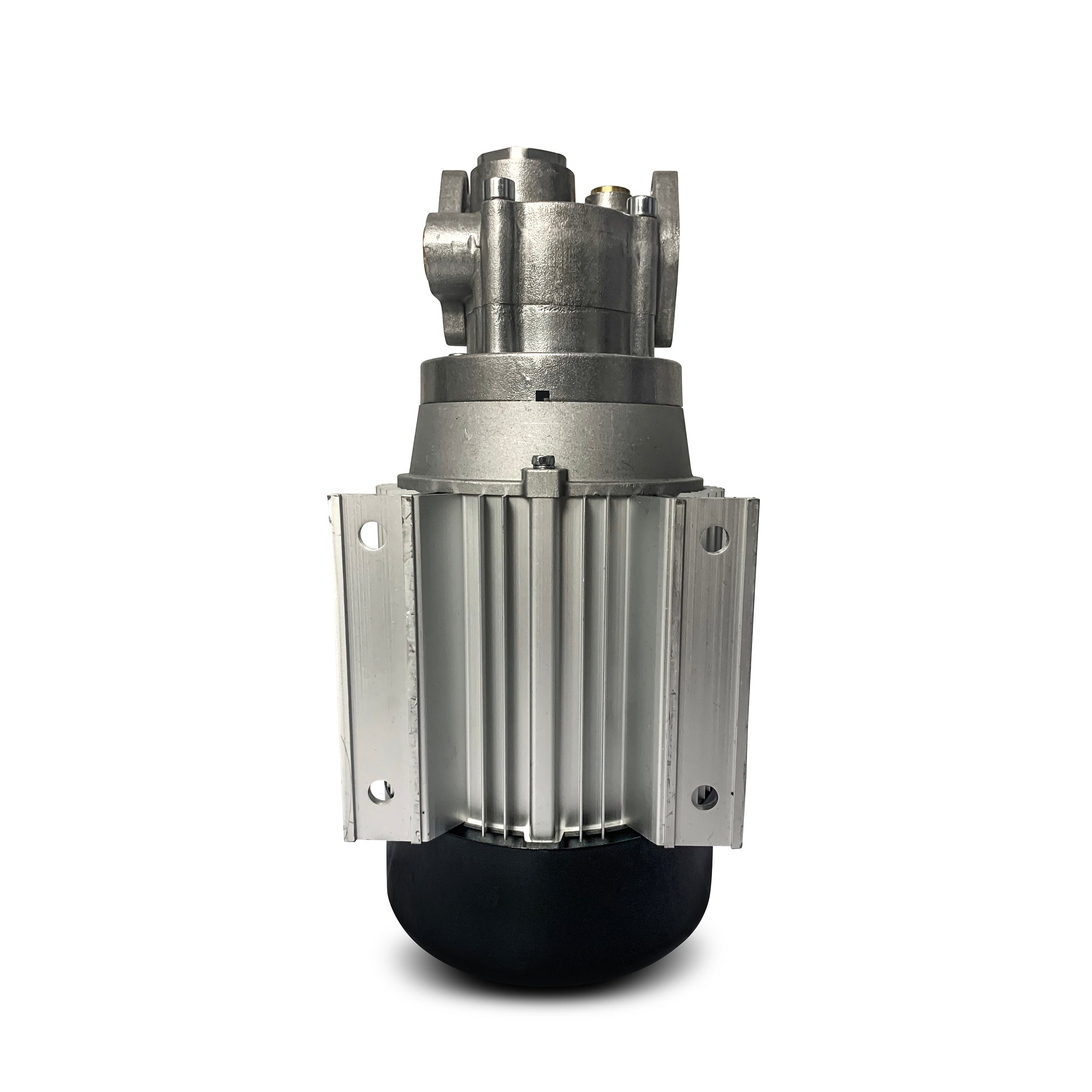

Industrial quality gear pumps, 240 Volt ideal for transferring oils and lubricants. Available in 9LPM and 14LPM versions. For higher flows we also stock a high flow gear oil pump. Ideal for many types of oils including motor or engine oils, diff oils, gearbox oils and lubricants.

Gear Oil Transfer Pump

These Gear type positive displacement pumps are perfect for transferring light oils, motor oils, vegetable oils and other lubricants. Suited to light industrial use these pumps are a great addition to your business, farm or home shed. They are commonly used by mechanics, diesel fitters, filtration persons and the home handyman

Oil Pump Features:
  • High suction capacity
  • Develops great pressures
  • By-pass Valve
  • Low Noise
  • 12 Month Australian warranty

Note: Gear pumps pump higher viscosity fluids well due to the rotating internal gears and fairly tight tolerances. Gear pumps do not operate well with dirty fluids or solids which can jam between the gears. Always use this style of pump in conjunction with a suction strainer or filter when the cleanliness of the pumped fluid can't be guaranteed.

Pump Specification Value
Voltage 240V Single Phase
Power 750 Watts
Motor IP55, Continuous Duty Cycle
Flow Rate 9 L/min or 14 L/min Pump Option
Inlet / Outlet 1.0"  BSP Female
Pressure

SPGP09LPM 360 psig or 25 Bar

SPGP14LPM 174 psig or 12 Bar

Max. Fluid temp. 60 C
Suction approx 3m lift
Compatabile Oils

Viscosity up to 10,000 SUS

(Saybolt Universal Second) / 2000cst

Operating Noise 70 dB
Approx. Weight 14 Kg
Approx Dimensions 430 x 270 x 300 mm
Construction

Die Cast Aluminium Pump Body

Sintered Steel Gears

Mechanical Shaft Seal

240V Oil Pump Manual

Technical Drawing
