This adapter allows top connection to drums and tanks via the industry common 2" female BSP thread. This fitting will allow entry for pump suction hoses and dip tubes without leaving a gap for contaminates such as water and dust to enter.
If you want to extract oil, diesel or fuels from the top of a 205L drum or a tank you need this adaptor as it allows a suction hose or drip tube to be installed inside the vessel without loosing its integrity or compromising the containment charastics.

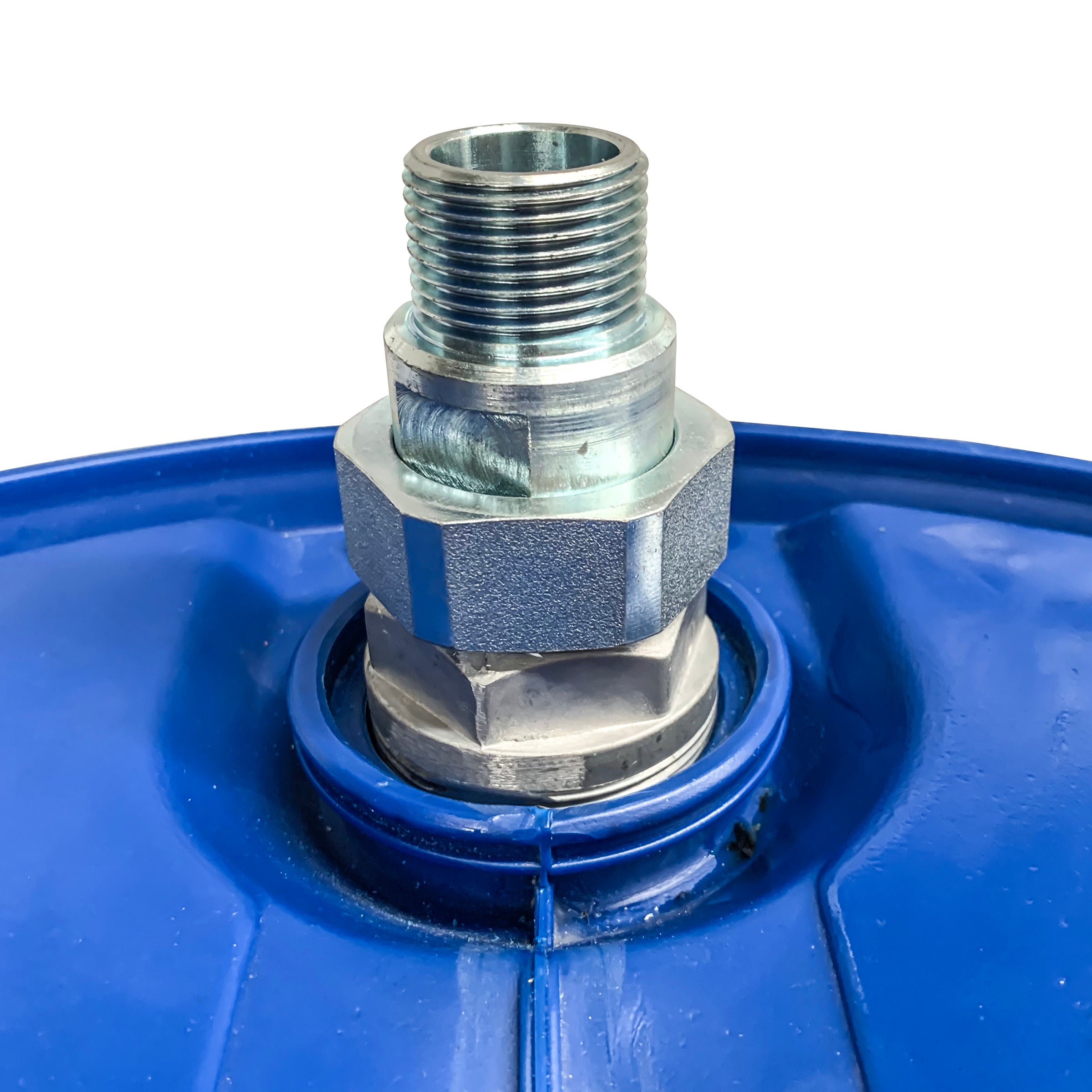

This adaptor screws into the 2" BSP female connection commonly found on drums and tanks. The fitting has a internal 1" BSP female connection which allows our telescopic dip tube to be fixed inside the drum. Alternatively a 1" Hose tail could be fitted and some pump suction hose be used for deeper tanks. On the top of the fitting is a 1" BSP male outlet which allows for your pump suction piping or hose to be attached.

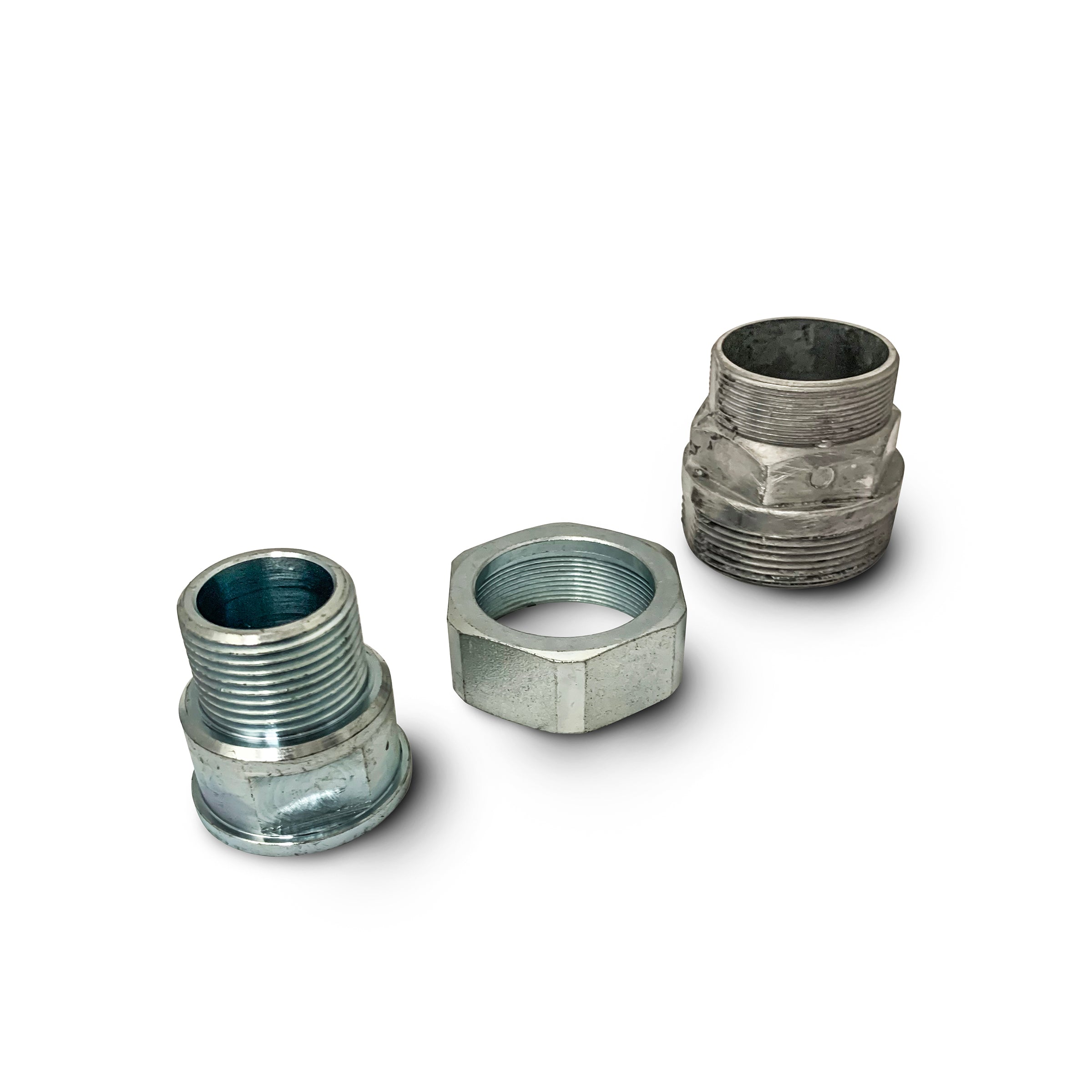

The advantage to these adaptors is that it creates a sealed entry into the drum or tank eliminating possible water and contamination entry. The fitting has been designed to make removal and switching to the next vessel fast and simple with a barrel union type 3 piece design. This union design means you won't need to make and break the pump suction hose connection each time the drum needs replacing.

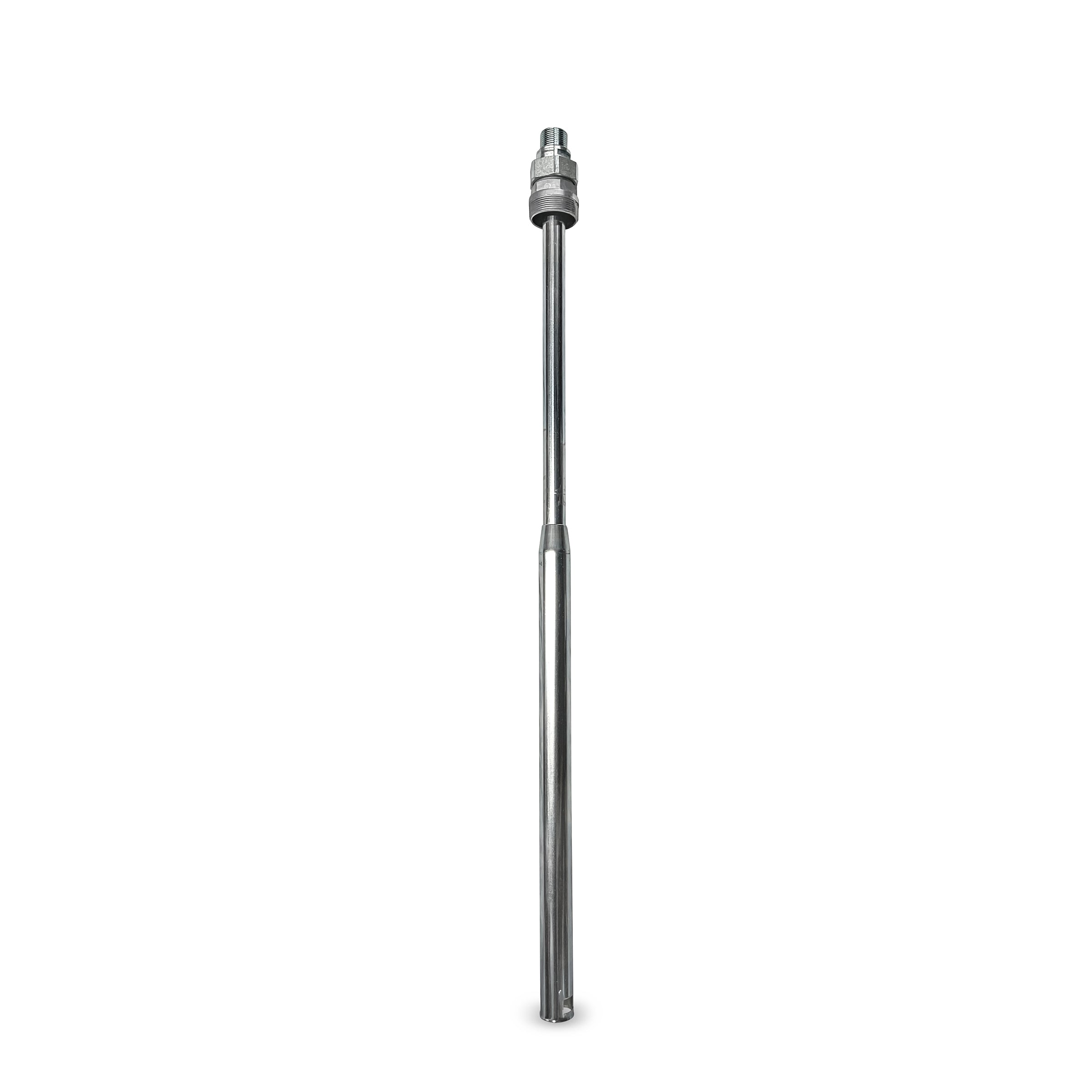

The images show how the drum adapter can be used with a telescopic drum dip tube (Part No. SDTE01). Ideal for adding a range of pumps to a 44 gallon or 200L drum. Order using the check box above.
|Suits||2" BSP female tank and drum connections|
|Internal Thread||1" BSP female|
|Outlet Thread||1" BSP male|
|Components||3 piece union design for fast drum replacements|
