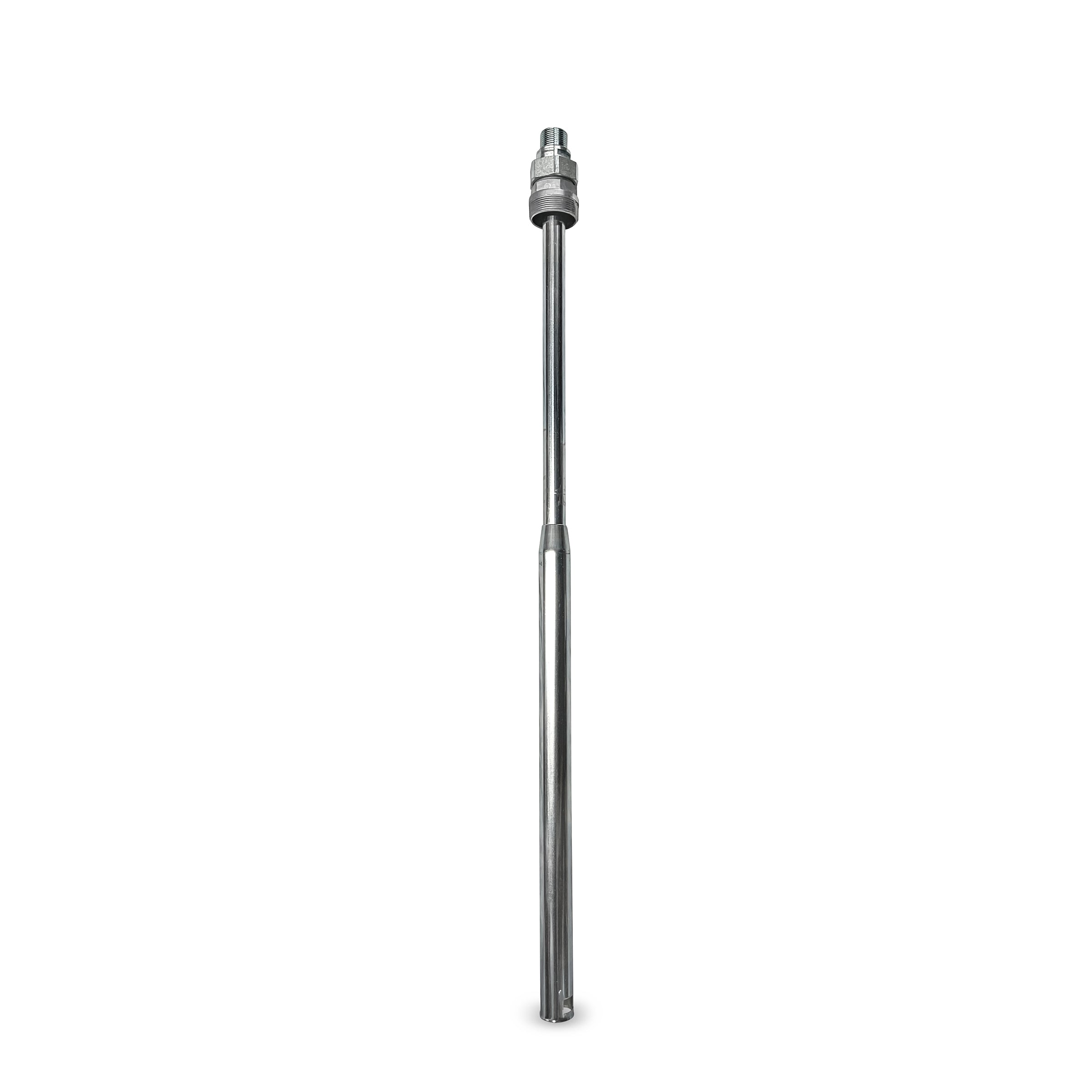

316 Stainless Steel Telescopic Pump Dip Tube – 1" BSP, 1035mm
Description
The Telescopic Pump Dip Tube provides a rigid suction pickup for pumps drawing from 200L / 44 gallon drums, tanks and other compatible containers. Unlike flexible suction hose, the rigid tube can be positioned towards the bottom of the drum without curling inside the container.
Manufactured from 316 stainless steel, the tube features a 1" BSP connection and telescopic design extending to a maximum length of 1035mm.
316 Stainless Steel Telescopic Pump Dip Tube – 1" BSP
This extendable dip tube is designed for use on the suction side of compatible fluid-transfer pumps. The telescopic construction allows the pickup length to be adjusted to suit different drum and container depths.
It is particularly useful with 200L / 44 gallon drums, where flexible suction hose can curl or move away from the bottom of the drum.
Telescopic Dip Tube Features
- 316 stainless steel construction
- 1" BSP connection
- Telescopic adjustable length
- Maximum extended length: 1035mm
- Rigid alternative to flexible suction hose
- Suitable for 200L / 44 gallon drums and compatible containers
- Helps provide a stable suction pickup position
- Can be installed through a compatible 2" drum opening using the optional adaptor
- 12 month warranty

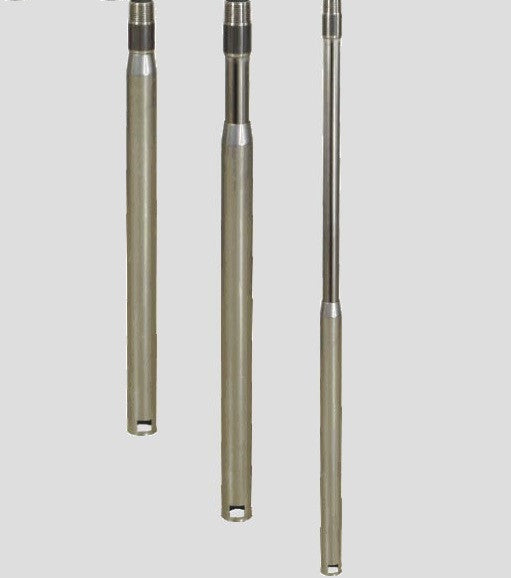

Adjustable for Different Drum Depths
The telescopic design allows the tube length to be adjusted so the suction pickup can reach towards the bottom of the drum or container.
This provides a more controlled pickup arrangement than loose flexible suction hose, which can curl or move within the drum during operation.
316 Stainless Steel Construction
The dip tube is manufactured from 316 stainless steel and is intended for use with a broad range of compatible fluid-transfer applications.
Fluids listed for this product include:
- Diesel
- Petrol / unleaded fuel
- Oils
- Vegetable oils
- Water
- Methanol
- Kerosene
- Spirits
- Biodiesel
For solvents, chemicals or other fluids not specifically listed, confirm compatibility with all wetted components of the dip tube assembly before use.
Improved Suction Arrangement
A correctly installed rigid dip tube helps provide a stable and well-sealed suction path between the drum and pump.
Maintaining airtight suction connections is important for pump priming and performance. Air leaks, excessive suction lift, restrictions and unsuitable fluid viscosity can all affect pump operation.
Telescopic Pump Dip Tube Specifications
| Specification | Details |
|---|---|
| Product Type | Telescopic pump suction dip tube |
| Construction | 316 stainless steel |
| Connection | 1" BSP / 25mm |
| Maximum Extended Length | 1035mm |
| Typical Drum Size | 200L / 44 gallon |
| Warranty | 12 months |

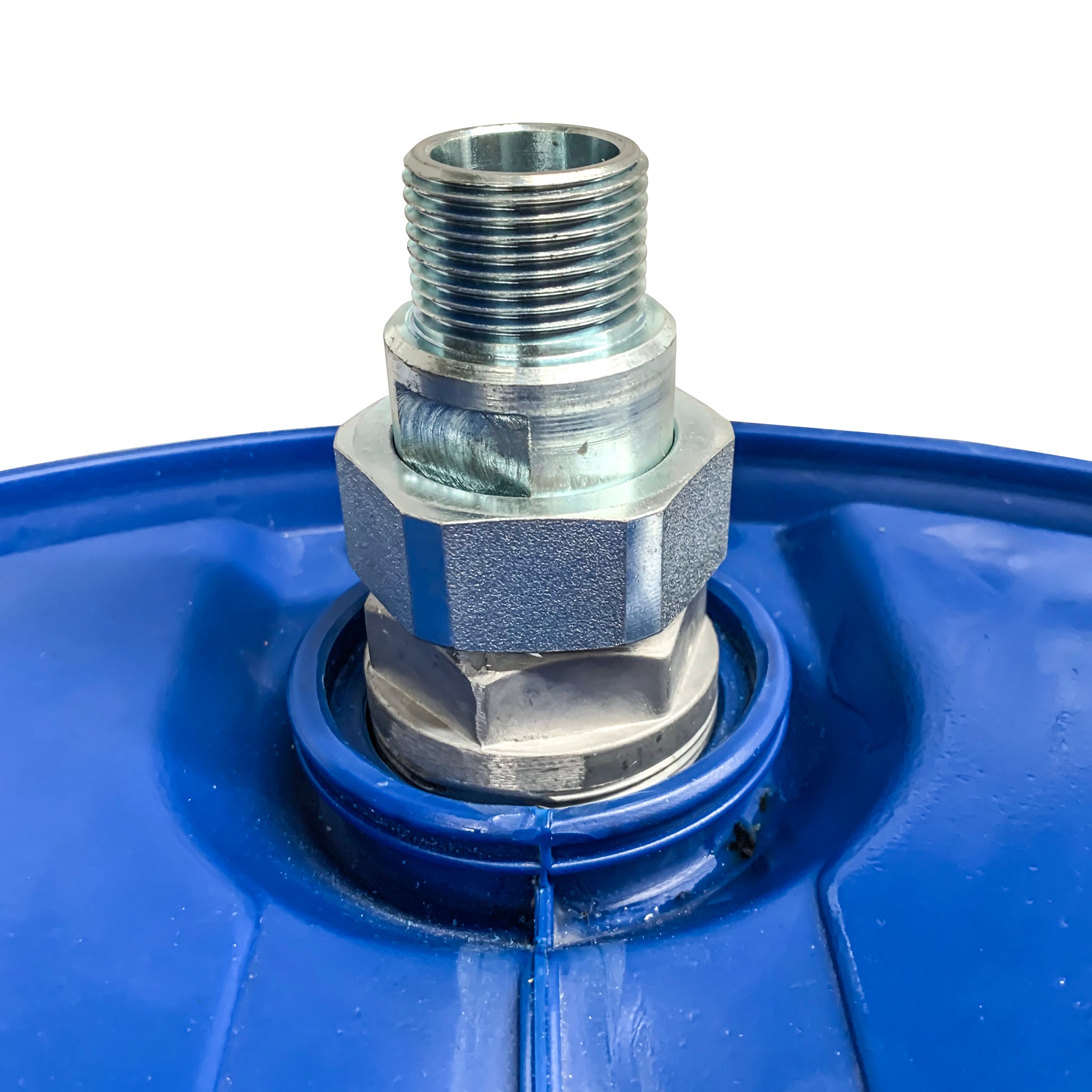

Optional 2" Drum Adaptor
For drums with a standard compatible 2" threaded opening, the dip tube can be installed using the optional STAFS21 drum adaptor fitting.
View the STAFS21 Drum Adaptor Fitting
The adaptor provides a convenient method of mounting the 1" dip tube through a compatible drum opening.
Compatible Scintex Pump Applications
The dip tube can be used with compatible Scintex fuel-transfer pumps, including the following listed 12V 75L/min vane pump systems:
For other pumps, confirm the 1" BSP connection, suction requirements and fluid compatibility before installation.
