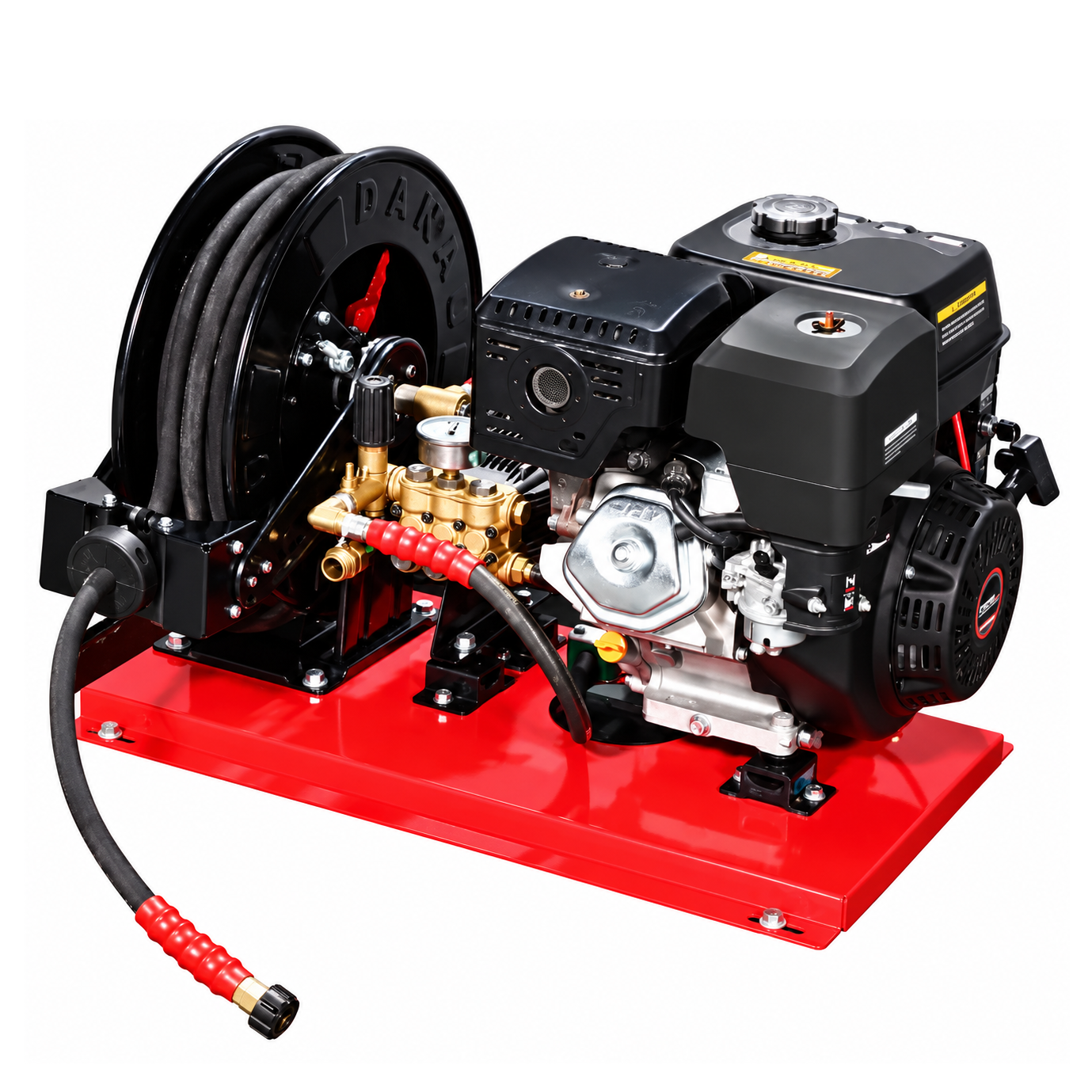

Paddock™ 3,600 PSI Pressure Washer Base Unit
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
Built for demanding commercial, trade and agricultural cleaning applications, the Paddock™ 3,600 PSI Pressure Washer Base Unit combines high-pressure cleaning performance with a compact, heavy-duty skid-mounted design.
Powered by a Loncin G390 13hp petrol engine with electric start, the unit delivers up to 3,600 PSI and 17 L/min. A commercial direct-drive triplex pump, integrated anti-vibration mounting and automatic retracting hose reel make this a practical pressure washing platform for workshops, service vehicles, trailers and fixed installations.
Paddock™ 3,600 PSI Pressure Washer Base Unit
- Powerful 3,600 PSI maximum pressure
- High 17 L/min water flow
- Loncin G390 390cc petrol engine
- Electric start for convenient operation
- Commercial direct-drive triplex pressure pump
- Direct drive pump
- Integrated automatic retracting hose reel
- Dual-stage integrated anti-vibration system
- Thermal pump protection
- Heavy-duty skid-mounted construction
- Compact design for vehicle, trailer, workshop or fixed installations
- Designed for regular commercial and professional use
Commercial Pressure Washing Performance
Delivering up to 3,600 PSI / 248 bar with a high 17 L/min flow rate, this Paddock™ base unit provides the combination of pressure and water volume required for demanding cleaning applications.
The high flow rate helps move dirt and debris efficiently, making the unit well suited to cleaning machinery, vehicles, concrete and other heavily soiled surfaces.
Typical applications include:
- Commercial pressure washing
- Workshops and industrial facilities
- Farm and agricultural machinery
- Earthmoving and construction equipment
- Trucks, 4WDs and commercial vehicles
- Trailers and mobile cleaning setups
- Concrete and hardstand areas
- Equipment wash-down stations
- Property and facility maintenance
Loncin G390 Electric Start Petrol Engine
The pressure washer is powered by a Loncin G390 390cc petrol engine, delivering approximately 13hp for dependable pressure washing performance.
Electric starting provides convenient operation, particularly where the machine is being used regularly throughout the working day.
The petrol-powered design also makes the unit suitable for mobile applications and locations where mains electrical power isn't readily available.
Commercial Direct-Drive Triplex Pump
At the heart of the pressure washer is a commercial direct-drive triplex pump.
Triplex pump construction is designed for demanding pressure washing applications and provides the performance required to deliver the unit's 3,600 PSI maximum pressure and 17 L/min rated flow.
The direct-drive configuration provides a compact and straightforward design by coupling the pressure pump directly to the petrol engine.
Integrated Auto-Retract Hose Reel
An integrated automatic retracting hose reel provides convenient pressure hose storage and helps keep the work area organised.
The retracting reel allows hose to be pulled out as required during cleaning and neatly stored when the job is complete, making it particularly useful for workshops, service vehicles and mobile cleaning installations.
Integrated Anti-Vibration System
The base unit incorporates a dual-stage integrated anti-vibration system designed to help isolate engine and pump vibration from the mounting base.
This is particularly beneficial when the pressure washer is installed onto a trailer, service vehicle, skid or other permanent mounting arrangement.
Compact Skid-Mounted Design
Unlike a conventional wheeled pressure washer, this unit uses a low-profile base configuration which makes it ideal for integration into a dedicated cleaning setup.
Applications can include:

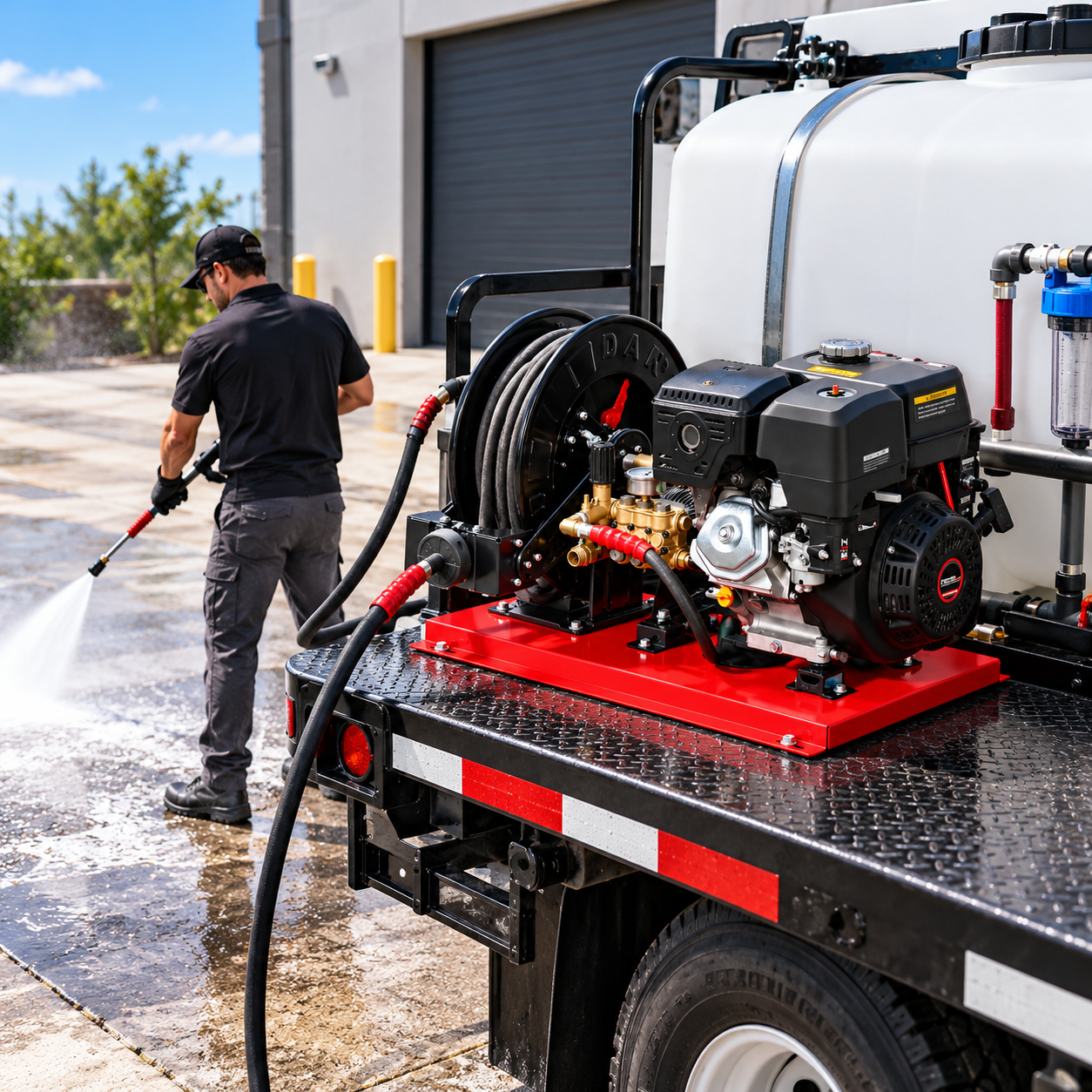

- Ute and service vehicle installations
- Pressure washing trailers
- Workshop wash bays
- Farm and machinery wash-down areas
- Commercial cleaning vehicles
- Custom pressure washing systems
Its compact footprint helps maximise available space while keeping the engine, pressure pump and hose reel together as a complete pressure washing base unit.
Pressure Washer Base Unit Specifications
| Specification | Details |
|---|---|
| Product Type | Petrol pressure washer base unit |
| Maximum Pressure | 3,600 PSI / 248 bar |
| Rated Flow | 17 L/min / 4.5 GPM |
| Engine | Loncin G390 petrol engine |
| Engine Capacity | 390cc |
| Engine Power | 13hp |
| Starting | Electric start |
| Pump | Direct drive |
| Pump Type | Commercial direct-drive triplex pump |
| Hose Reel | Integrated automatic retracting hose reel |
| Anti-Vibration | Dual-stage integrated anti-vibration system |
| Pump Protection | Thermal protection |
| Dimensions | 850 x 570 x 600mm |
| Shipping Weight | 150kg |
Complete Your Pressure Washing Setup
The Paddock™ Base Unit provides an excellent foundation for a professional pressure washing system and can be combined with suitable hoses, spray guns, lances, surface cleaners and other pressure washer accessories to suit the application.
Scintex stocks a range of pressure washer accessories, fittings and adapters to assist with configuring a complete cleaning system.
Water Supply Requirements
Important: This pressure washer requires an adequate and continuous water supply capable of supporting its 17 L/min rated flow.
Always ensure the water source can provide sufficient flow before operation. An inadequate water supply can result in poor cleaning performance and may damage the pressure pump.
Where the available mains water supply is insufficient, an appropriately sized water tank and suitable supply arrangement may be required.
