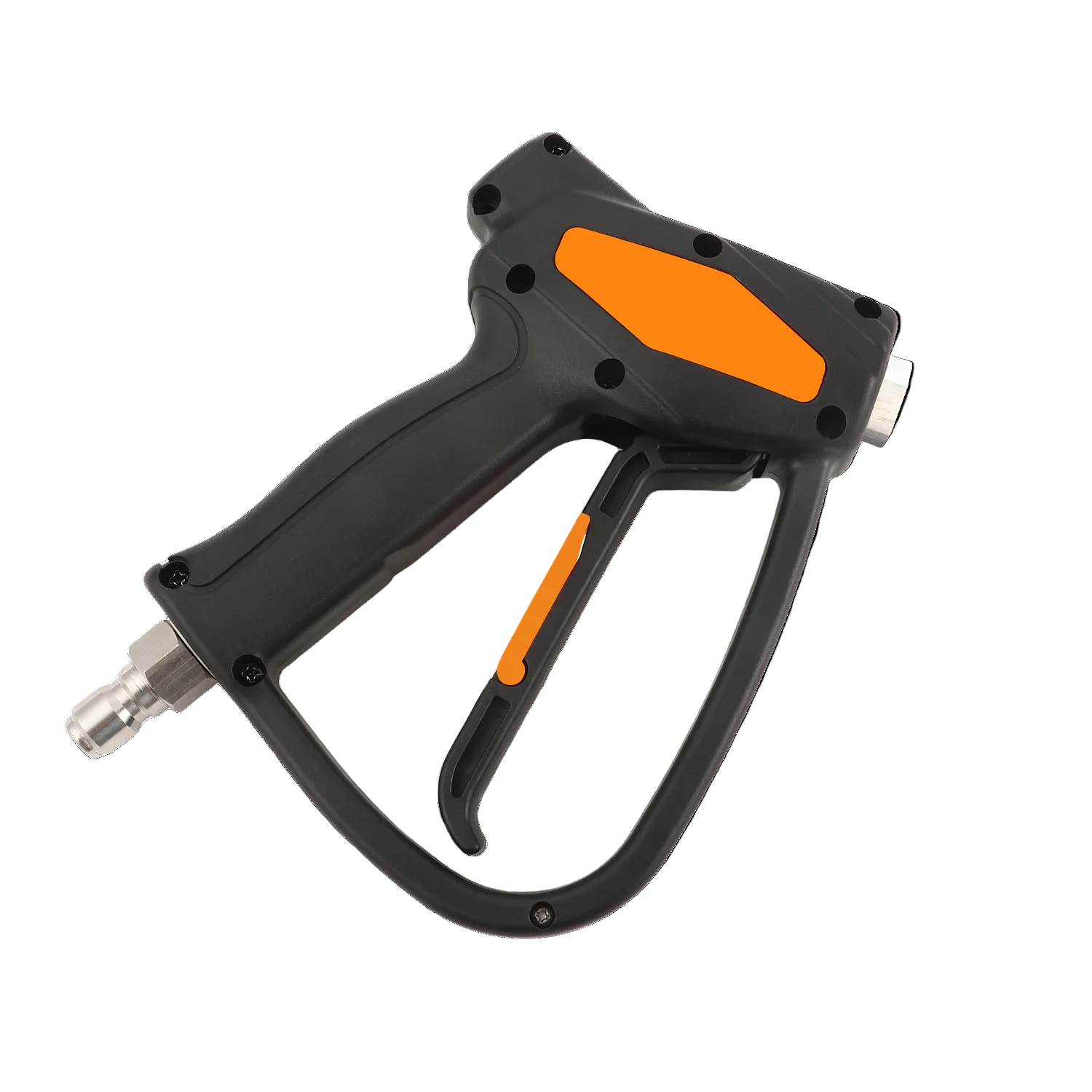

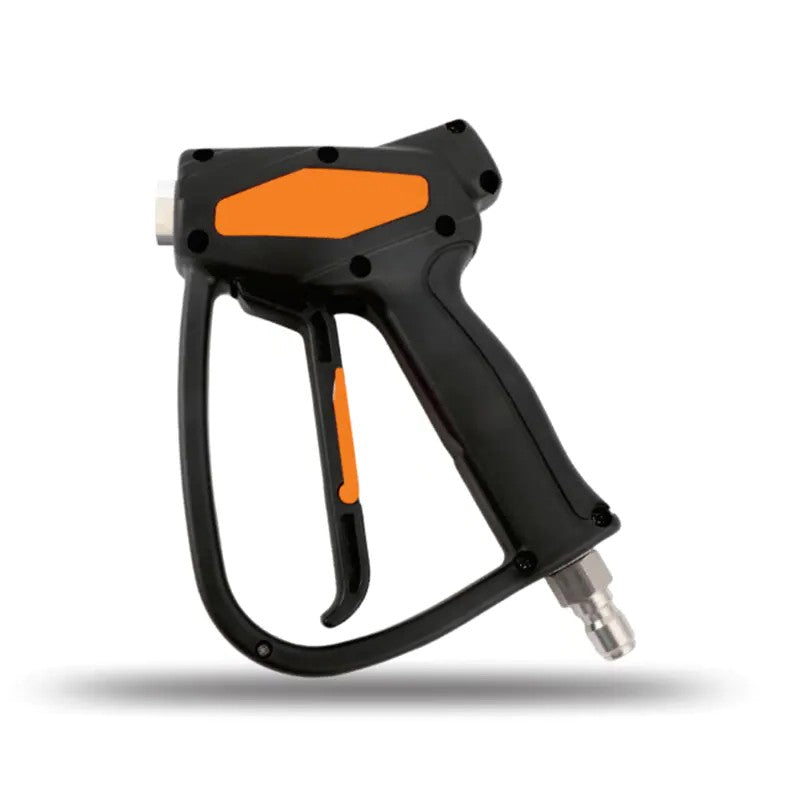

Paddock™ 5000 PSI Brass Jetting Trigger Gun
Description
Upgrade or replace your pressure washer trigger gun with the Paddock™ 5,000 PSI Brass Jetting Trigger Gun. Designed for demanding commercial and professional pressure washing applications, this compact short trigger gun features a forged brass valve body, ceramic valve and swivel inlet for reliable operation under high pressure.
Rated to a maximum 5,000 PSI / 345 bar, the gun features a 3/8" quick-connect inlet and 1/4" female outlet, making it ideal for use with compatible pressure washer hoses, jetting equipment, lances and cleaning accessories.
Paddock™ 5,000 PSI Brass Jetting Trigger Gun
- Heavy-duty commercial pressure washer trigger gun
- Maximum working pressure of 5,000 PSI / 345 bar
- Forged brass internal valve body
- Hard-wearing ceramic valve
- Swivel inlet helps reduce hose twisting during operation
- 3/8" quick-connect inlet
- 1/4" female outlet
- Compact short-gun design
- Quick-connect nozzle storage ports
- Maximum water temperature of 60°C
- Suitable for pressure washing and compatible jetting applications
Heavy-Duty 5,000 PSI Trigger Gun
The Paddock™ Brass Jetting Trigger Gun is designed for high-pressure cleaning applications where a durable, compact and easy-to-handle trigger gun is required.
With a maximum working pressure of 5,000 PSI / 345 bar, it is suitable for use with a wide range of compatible commercial pressure washers and high-pressure cleaning equipment.
The short configuration also makes the gun particularly useful where a conventional long pressure washer lance is unnecessary or where greater control is required close to the cleaning area.
Forged Brass Valve Body & Ceramic Valve
Internally, the trigger gun uses a forged brass valve body combined with a hard-wearing ceramic valve.
This heavy-duty construction is designed to withstand the high pressures associated with professional pressure washing and regular commercial use.
Swivel 3/8" Quick-Connect Inlet
The gun features a 3/8" quick-connect swivel inlet for fast connection to compatible high-pressure hoses.
The swivel design allows the hose connection to rotate during use, helping reduce hose twisting and making the trigger gun easier to manoeuvre during longer cleaning jobs.
1/4" Female Outlet
A 1/4" female outlet provides a versatile connection point for compatible pressure washer fittings, lances and accessories.
Always check the thread type, pressure rating and compatibility of any fittings or accessories before connection.
Quick-Connect Nozzle Storage
Integrated storage positions allow compatible quick-connect spray nozzles to be kept conveniently on the trigger gun, helping keep commonly used nozzles close at hand when changing between cleaning applications.
Typical Applications
- Commercial pressure washing
- Pressure washer replacement or upgrade
- High-pressure cleaning equipment
- Vehicle and machinery cleaning
- Workshop and industrial cleaning
- Drain and sewer jetting equipment where compatible
- Surface cleaning accessories
- Custom pressure washer setups
Jetting Trigger Gun Specifications
| Specification | Details |
|---|---|
| Product Type | Short pressure washer / jetting trigger gun |
| Maximum Pressure | 5,000 PSI / 345 bar |
| Maximum Water Temperature | 60°C |
| Valve Body | Forged brass |
| Valve | Ceramic |
| Inlet | 3/8" quick-connect swivel |
| Outlet | 1/4" female |
| Inlet Swivel | Stainless steel |
| Nozzle Storage | Integrated quick-connect nozzle storage ports |
Connecting to Your Pressure Washer
Before purchasing, check the pressure rating and connection type of your pressure washer hose, lance and accessories. All components used with the trigger gun must be rated for the operating pressure of your pressure washer.
Scintex stocks a range of pressure washer fittings and adapters to assist with different hose and accessory configurations.
Important
High-pressure water can cause serious injury. Never direct the spray towards people or animals and always ensure the trigger gun, hose, fittings and connected accessories are correctly installed and appropriately rated for the pressure washer being used.
