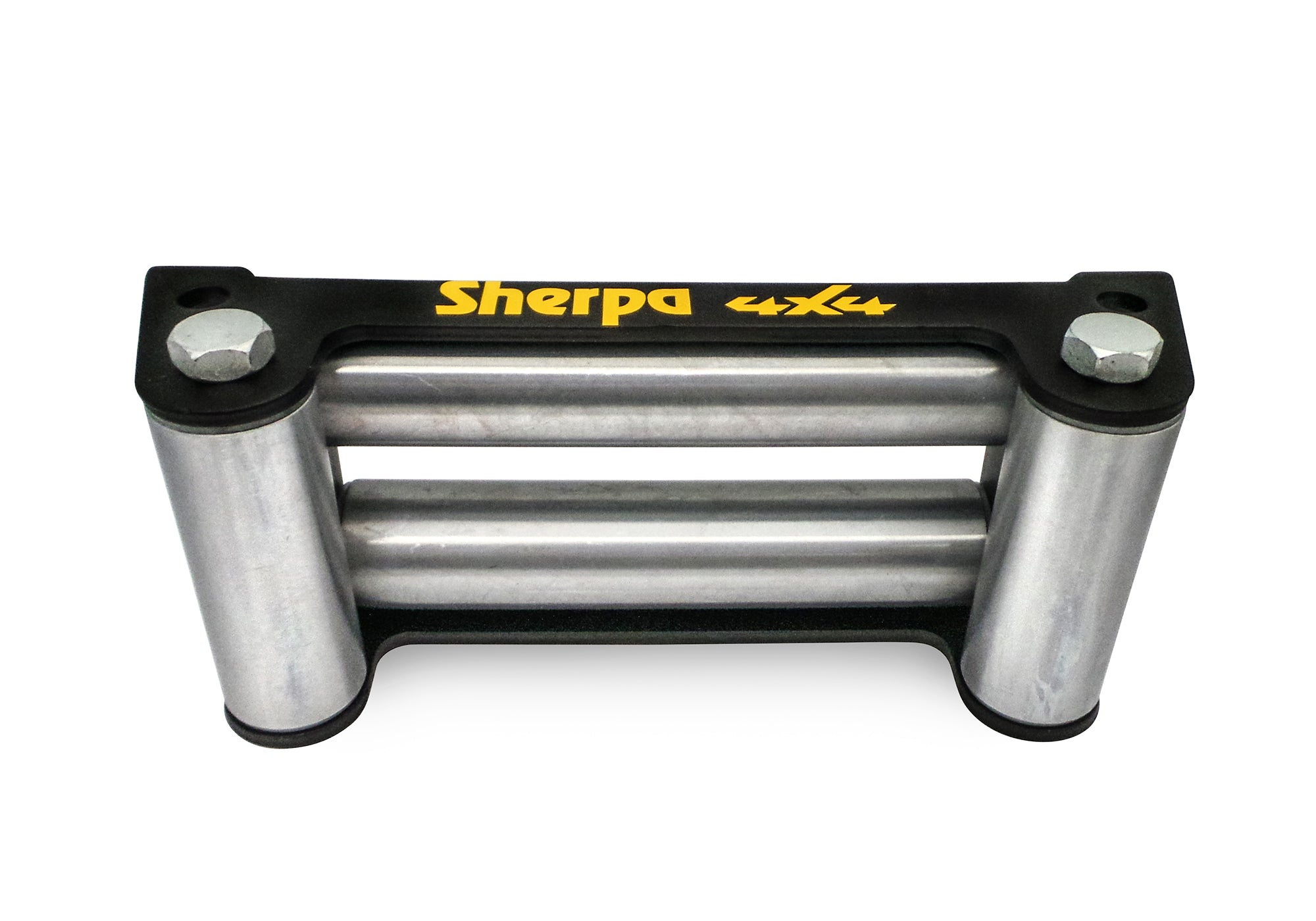

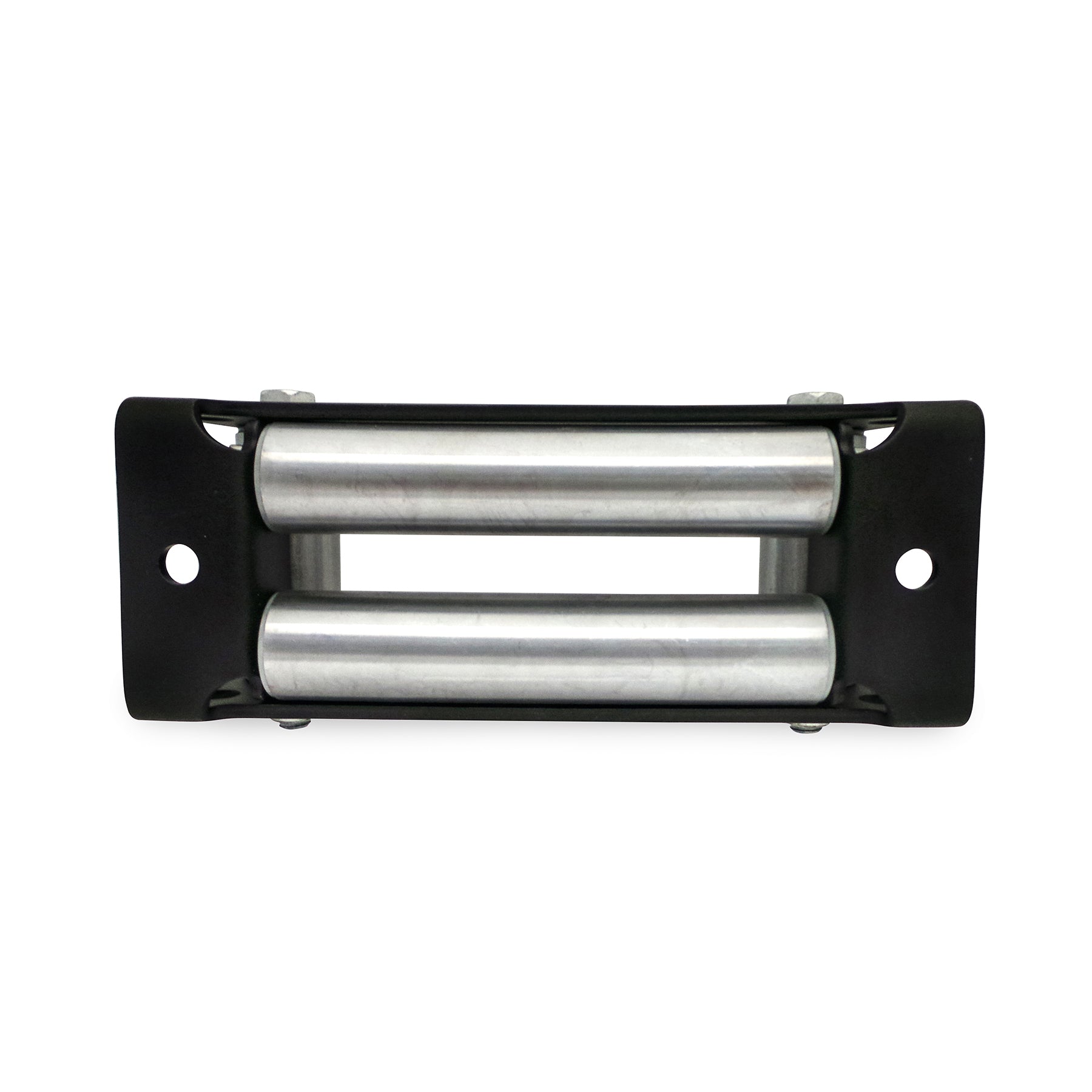

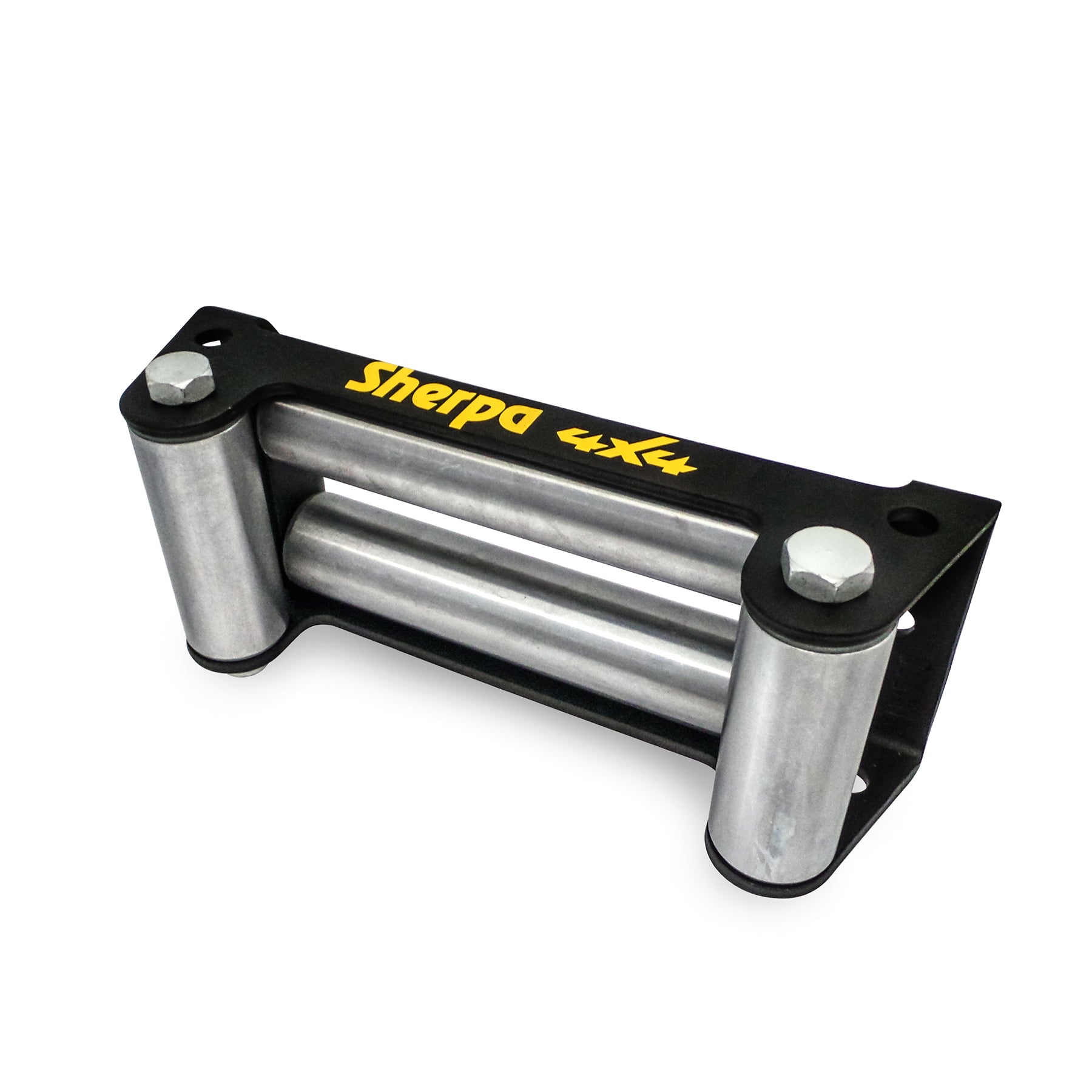

Sherpa 4x4 Winch Roller Fairlead – Steel Cable
Description
The Sherpa 4x4 Winch Roller Fairlead provides a smooth guide for steel winch cable as it enters and exits the winch mounting system. Heavy-duty horizontal and vertical rollers help reduce friction and guide the cable during angled winching.
Designed for compatible steel cable winches, the fairlead features heavy-duty rollers, large roller pins and retaining clips for a simple, durable construction.
Important: This roller fairlead is designed for steel winch cable and is not recommended for synthetic winch rope.
Sherpa 4x4 Winch Roller Fairlead – Steel Cable
A roller fairlead helps guide steel winch cable onto and off the winch drum while reducing contact with sharp mounting edges. The four-roller design allows the cable to move smoothly through the fairlead when pulling from different angles.
This Sherpa 4x4 fairlead uses heavy-duty rollers with large pins and retaining clips and has a straightforward design for easy inspection, cleaning and maintenance.
Key Features
- Heavy-duty roller fairlead
- Designed for steel winch cable
- Four-roller design helps guide cable during angled pulls
- Reduces friction as cable enters and exits the winch
- Heavy-duty rollers with large pins
- Roller retaining clips
- Simple design for inspection and maintenance
- 254mm centre-to-centre mounting hole spacing
- Approx. 298 x 116 x 90mm overall dimensions
- 3 year warranty
Designed for Steel Winch Cable
Roller fairleads are designed for use with steel winch cable. The horizontal and vertical rollers rotate as the cable moves through the fairlead, helping reduce friction and guiding the cable during both straight and angled pulls.
Do not use this roller fairlead with synthetic winch rope. Synthetic rope can become pinched between the rollers and surrounding components, potentially damaging the rope.
For a synthetic-rope winch, use a compatible smooth hawse fairlead designed for synthetic rope.
Heavy-Duty Construction
The fairlead incorporates heavy-duty rollers supported by large pins and retaining clips. Its open construction also allows the rollers and pins to be easily inspected and cleaned as part of routine winch maintenance.
Dimensions
| Specification | Details |
|---|---|
| Fairlead Type | 4-roller winch fairlead |
| Recommended Cable | Steel winch cable |
| Synthetic Rope | Not recommended |
| Overall Length | Approx. 298mm |
| Overall Height | Approx. 116mm |
| Overall Width | Approx. 90mm |
| Mounting Hole Centres | 254mm centre-to-centre |
| Warranty | 3 years |
Compatibility
This fairlead is suitable for compatible Sherpa 4x4 winches configured with steel cable. Before ordering, confirm the 254mm mounting hole centres and available mounting space against your winch cradle, bull bar or mounting system.
Winching Safety
Inspect the fairlead rollers, pins and steel cable before use. Rollers should rotate freely and should not have damage or sharp edges that could affect the winch cable.
Always operate the winch within its rated limits and follow the winch manufacturer's installation and operating instructions.
