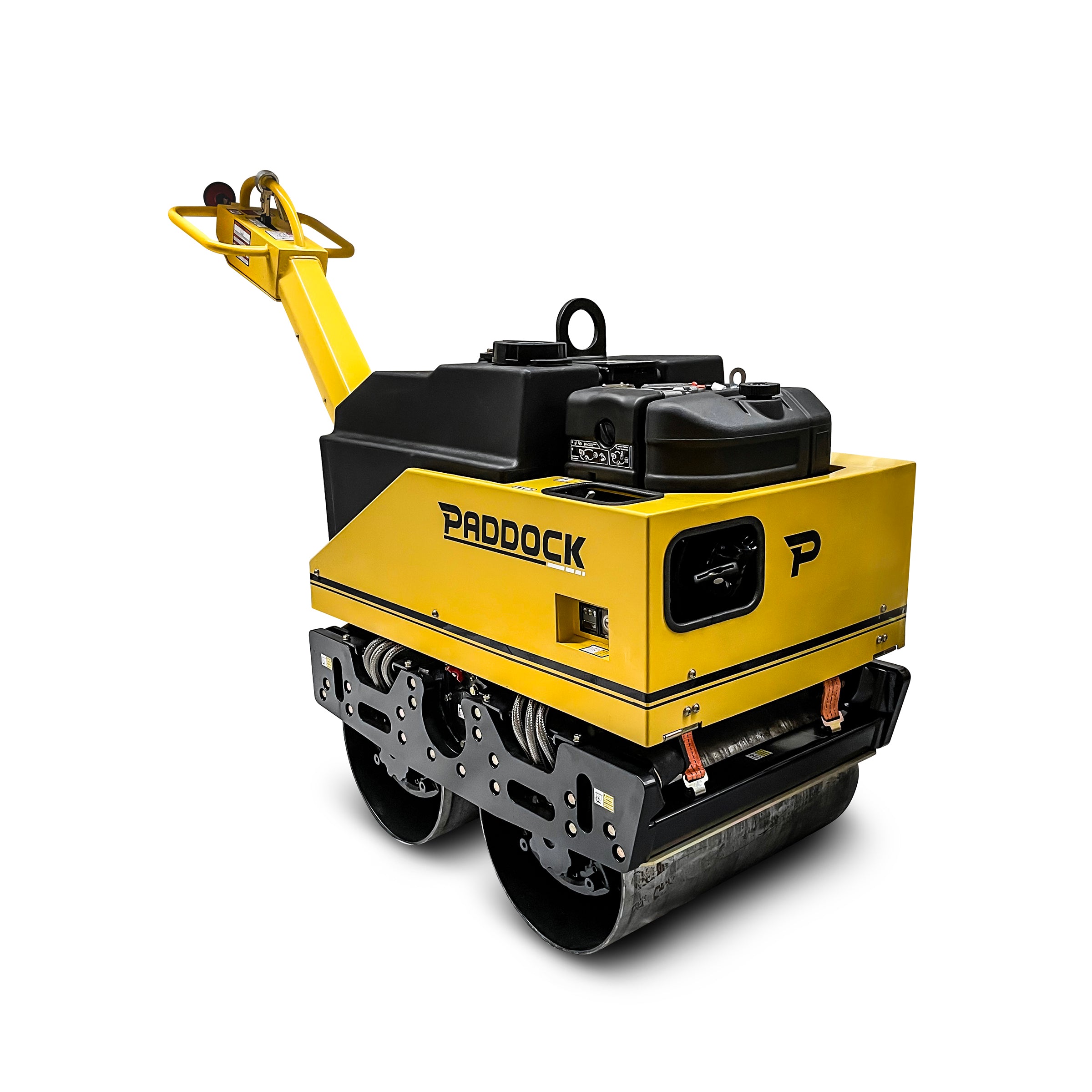

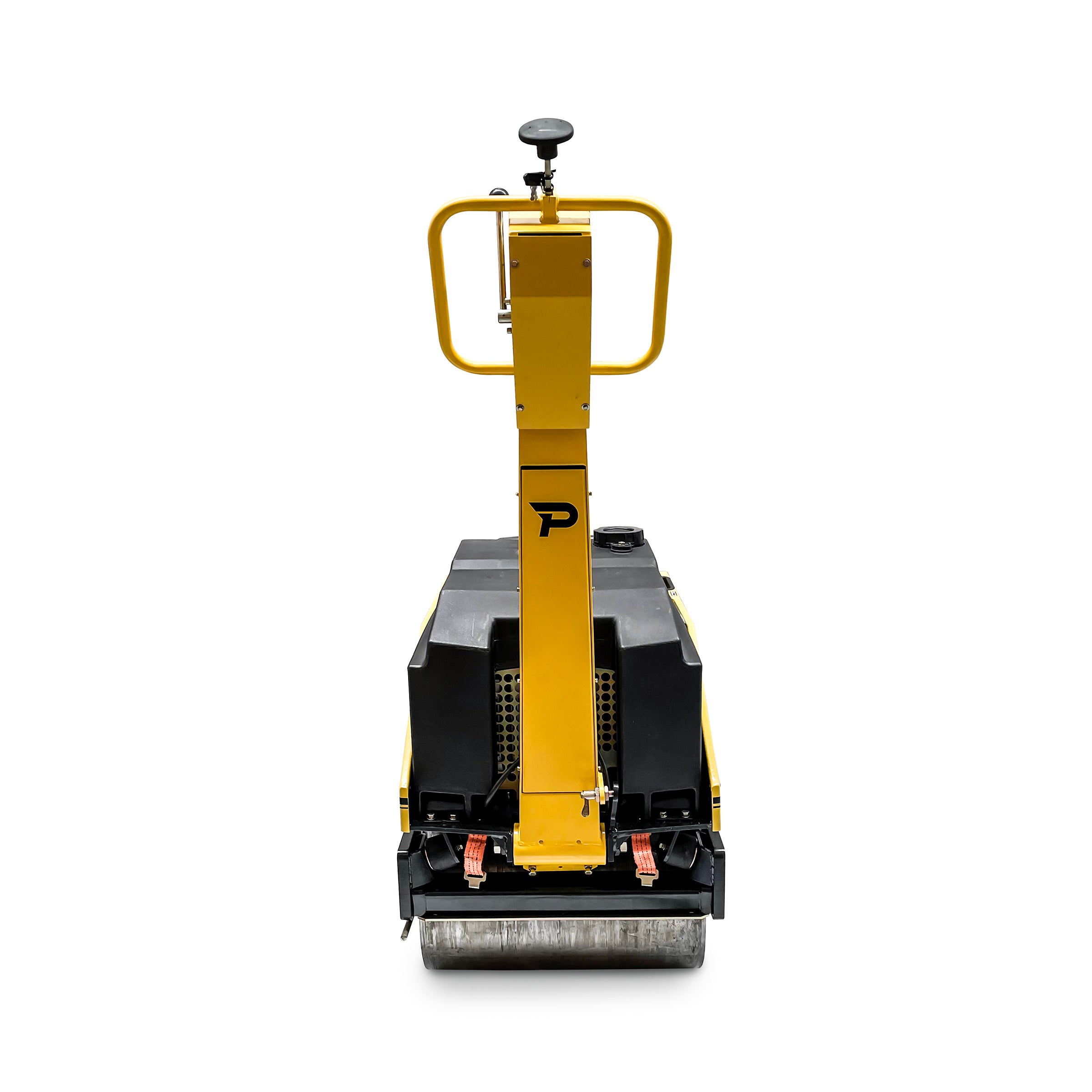

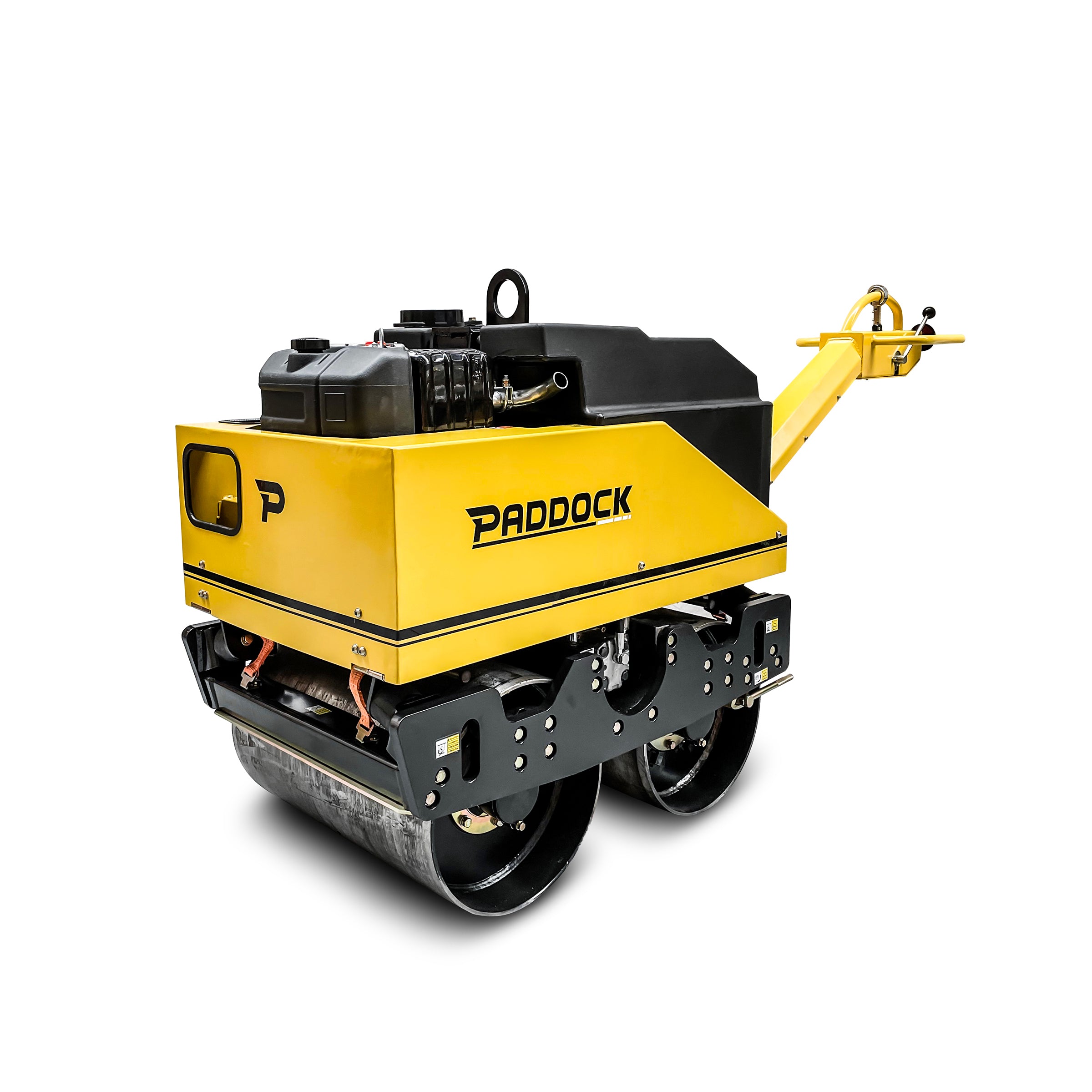

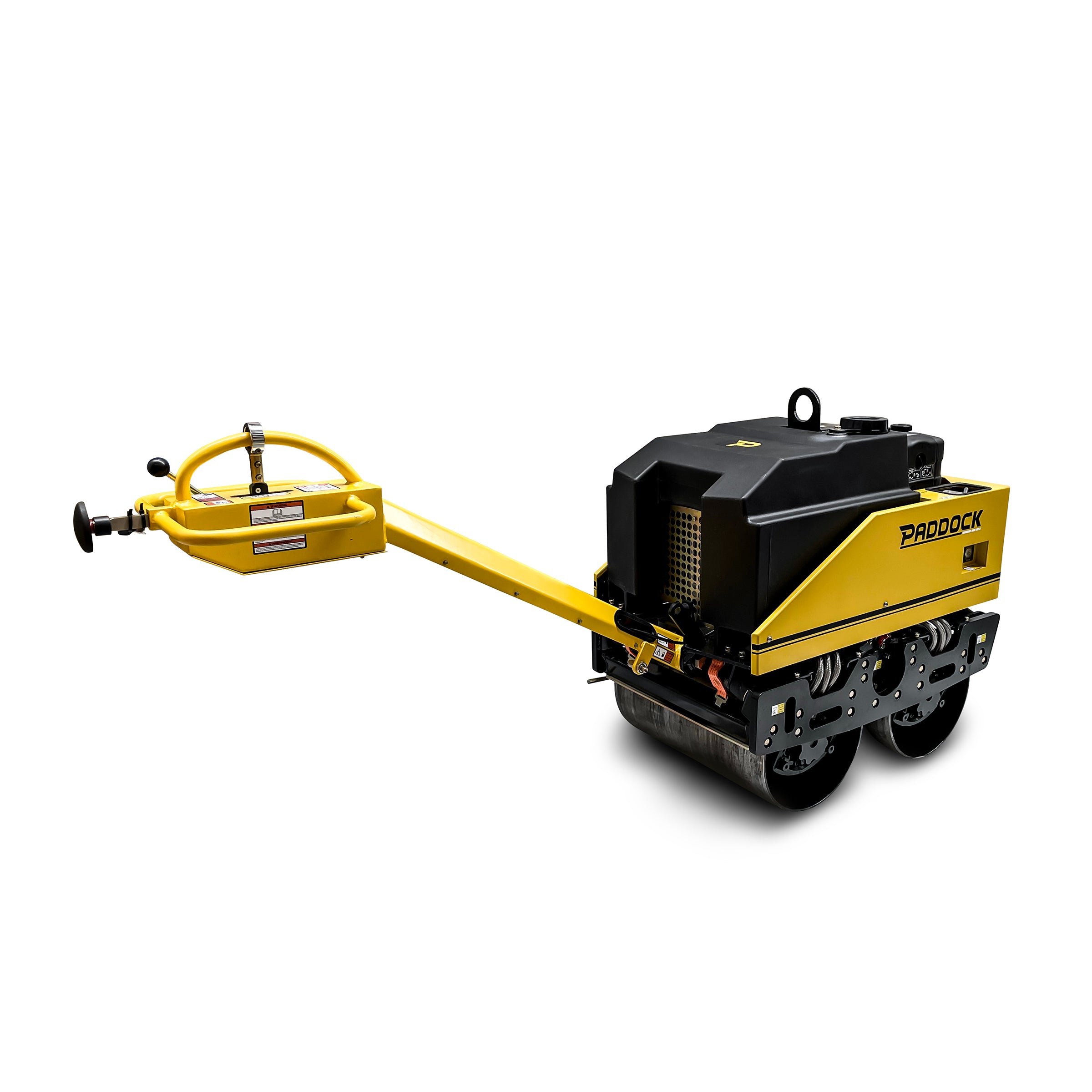

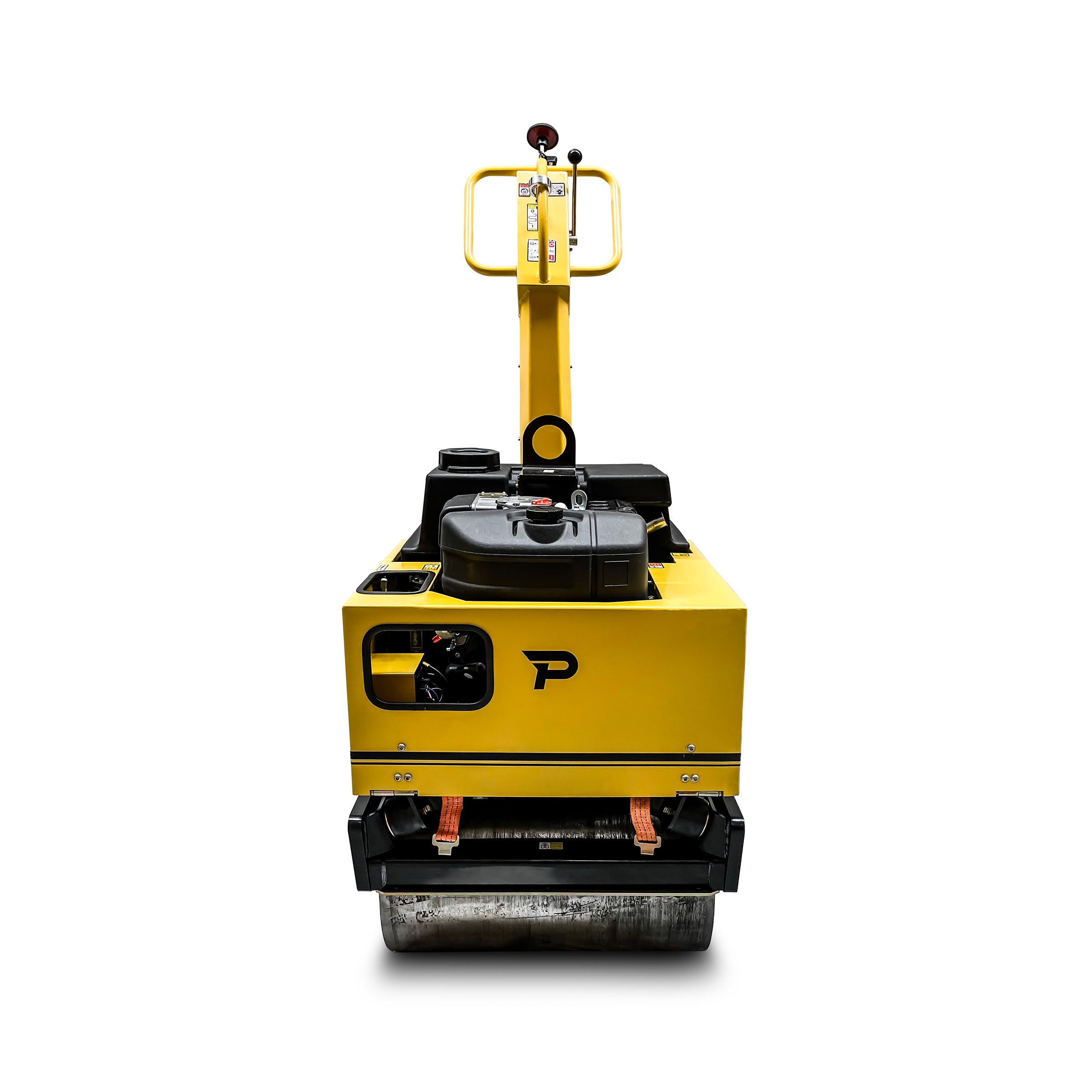

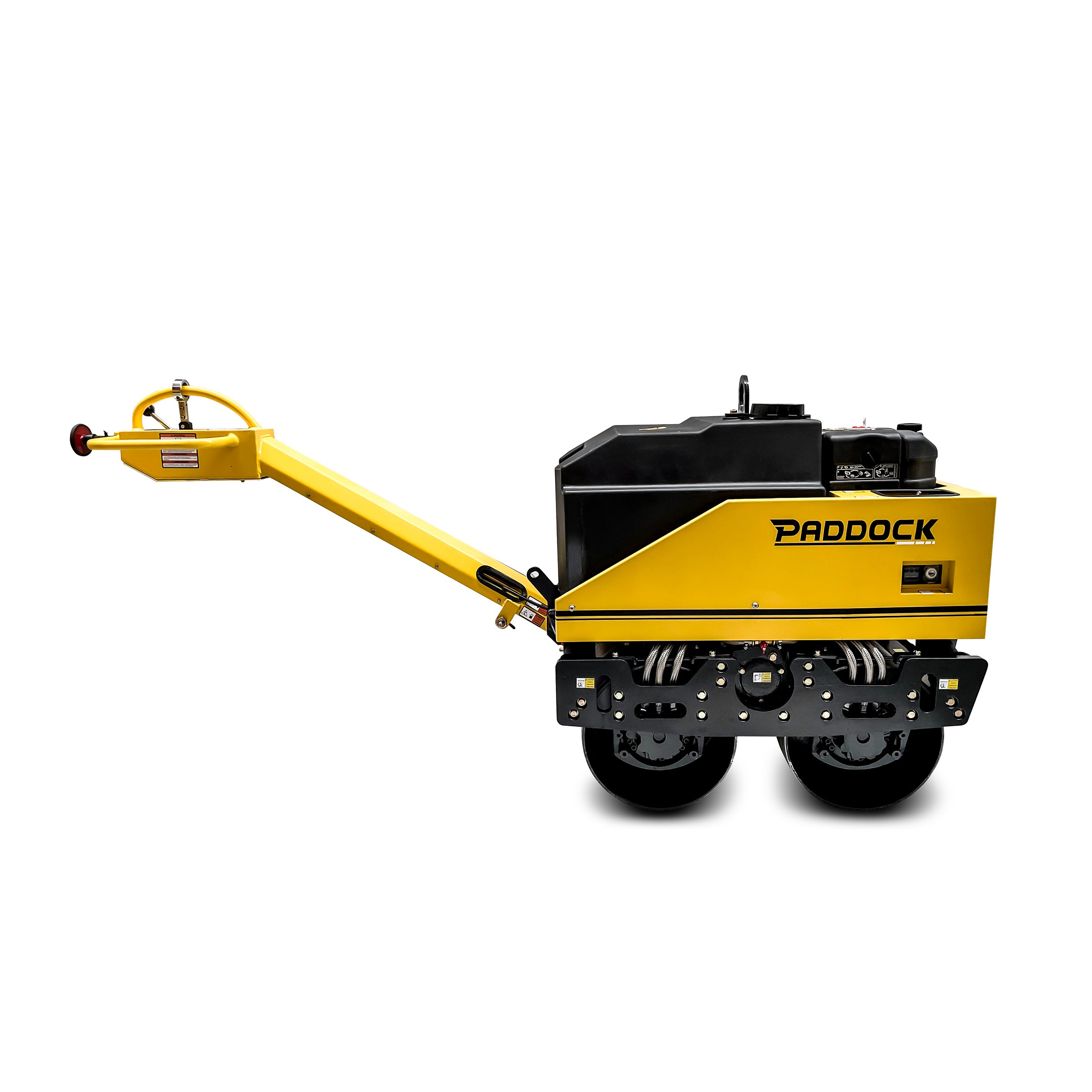

Scintex is proud to offer Paddock construction equipment to the Australian market. These industrial grade machines are optioned up with high end componentry designed for hard Australian working conditions. Heavy duty construction and Honda reliability, these drum roller compactors perform.
The double drum roller can be used on a range of building projects such as roads, paths, walkways, carparks, general building sites and gardens. Its heavy duty construction and weight combined with the in-built exciter vibrator ensures you will achieve the professional finish your clients demand.
Ideal for compaction of all gravel and asphalt surfaces, soil and sand meaning this machine is extremely versatile.
It features a fully hydraulic operating system system with pumps and motors providing infinitely variable working travel speed and vibration. The design eliminates the need for regular periodic adjustments and changes compared to outdated chain driven rollers. Suitable for use by a single operator with easy to access and ergonomically located controls.
Fitted to these machines is a imported Italian Lombardini LD440 diesel engine. These are high quality engines and commonly used in high end construction equipment of this size.
The machine is compact and well designed allowing for small approach distances to curbs, walls and other obstacles. The smooth rollers feature beveled edges to eliminate working marks on the surface.
The unit features a large onboard, non corrosive water storage tank. Using the roller with water helps compaction and also reduces dust generation.
Dual scrapper bars on each drum help to ensure a clean surface when working on asphalt.
When working construction, equipment quality should not be compromised, cheap copy machines breakdown always costing you money. Paddock only use the highest quality materials making them a machine for life. Beware of cheaper machines using Chinese copy engines, these might be fine for light duty applications but will always let you down as a trade user.
|Double Drum Roller Compactor Specifications|
|Engine Type||Lombardini LD440 Diesel|
|Start Mechanism||Dual Electric / Recoil
|Fuel Tank Volume (L)||4.3
|Drive System||Hydraulic with oil cooler|
|Static Linear Force N/cm
|Centrifugal Force kN||21|
|Frequency vpm (Hz)||3300 (55)|
|Travel Speed (km/hr)||0-3.6|
|Drum||650 mm wide x 404mm diameter|
|Water tank capacity (L)||65|
Hydraulic pump and motors - no chains makes for low servicing requirements
Hydraulic vibration control is infinitely variable
Heavy duty thick drum walls
Corrosion resistant water reservoir
Beveled drum edge eliminates markings on surface
Self-cleaning scrapers prevent the build-up of asphalt
Ergonomically design height-adjustable handle for comfort and transport
Easy user controls
Mechanical park brake
Deadman control lever offers reverse protection
Anti-vibration controls ensure operator comfort

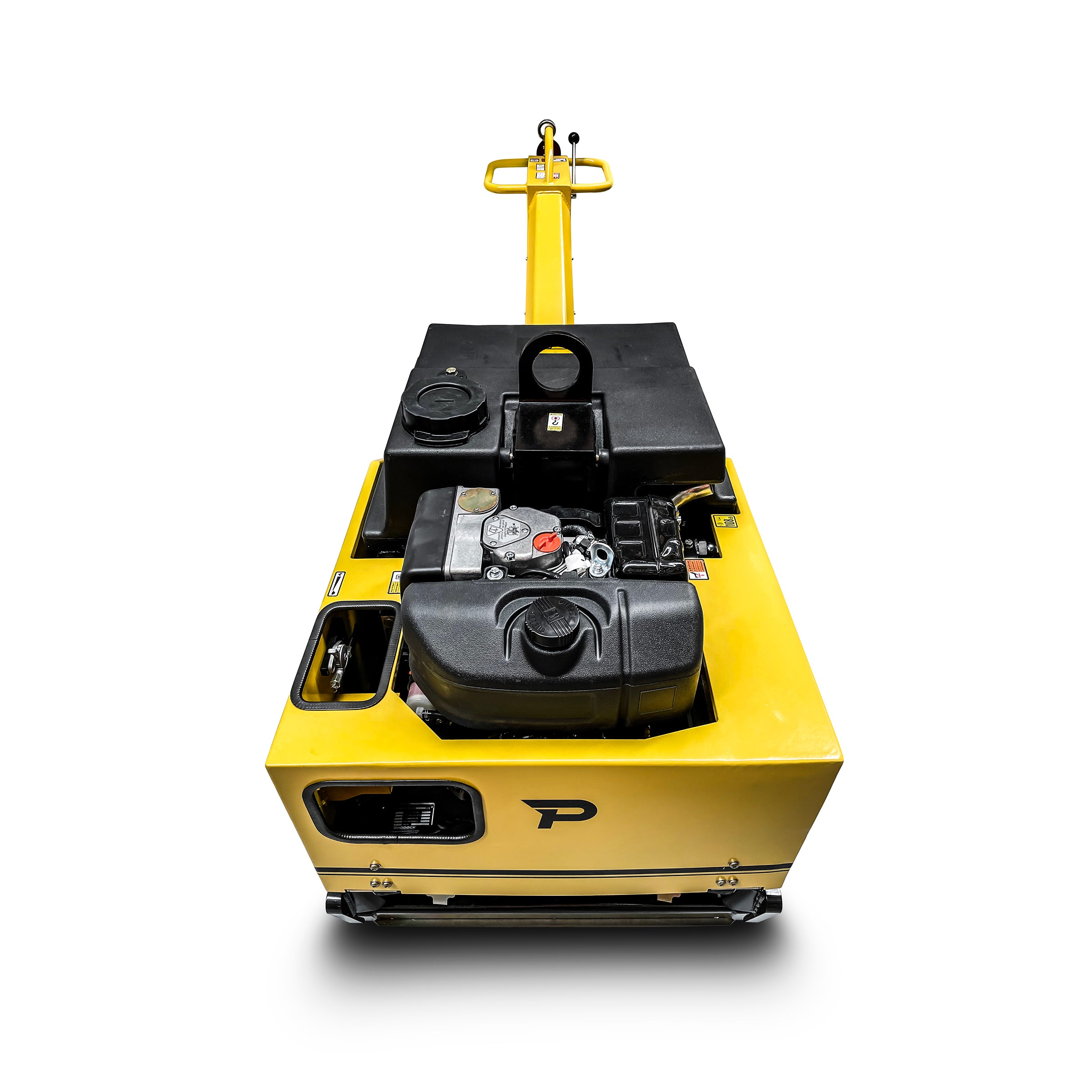

Easy access to diesel engine for servicing
Engines are stored and transported with only enough oil to keep the unit lubricated and additional oil will need to be added before starting. For ease of shipping some assembly is required.
Please contact Scintex for a shipping quote to your location. Due to the size and weight it can vary from the online calculator.
Very satisfied with drum roller and the service provided. Easy and fast to get spares and filters.
